Hypertherm Powermax 105 Plasma Cutter # 059374
Overview

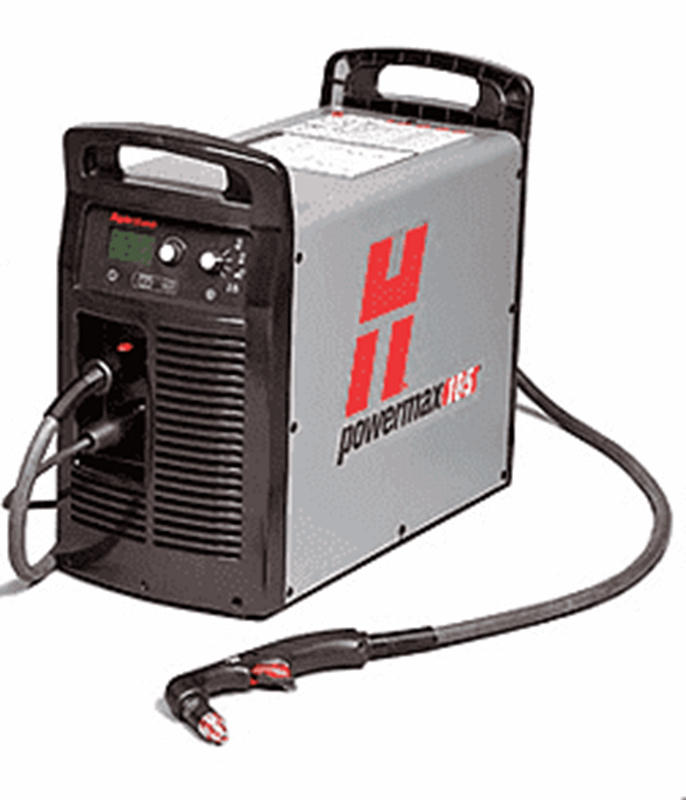

You are viewing the Hypertherm Powermax 105 without CPC port (#059374). See also Hypertherm Powermax 105 with CPC port (#059376). The Powermax 105 delivers superior cut capabilities on 1-1/4" (32 mm) thick metals. It has the duty cycle and industrial performance necessary for tough cutting and gouging jobs.

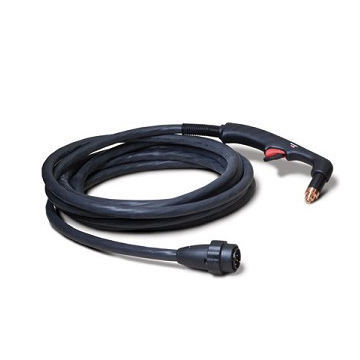

Seven Duramax torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging.
Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece.
Hypertherm Powermax 105 Automated Welding
The Powermax 105 has a full-length and mini machine torch for use with various CNC (computer numerical controller) and THC (torch height controller) machines. These torches can safely be used for semi-automated and fully automated welding. Be sure to follow all operating guides for recommended height, power, and speed adjustments.
Hypertherm automated and semi-automated welding includes cutting, piercing, and gouging applications. The machine torches can fit into universal mounting brackets to attach to automated systems.
See All HYPERTHERM Powermax 105 Consumables
Operating Data
|
Capacity |
Thickness |
Cut speed |
|
|
|
Cutting |
||
|
Recommended |
32 mm (1-1/4") |
500 mm/min (20 ipm) |
|
|
|
38 mm (1-1/2") |
250 mm/min (10 |
|
|
Severance (hand cutting) |
50 mm (2") |
125 mm/min (5 ipm) |
|
|
Pierce* |
22 mm (7/8") |
|
|
|
* Pierce rating for handheld use or with automatic torch height control |
|||
|
Capacity |
Metal removal rate |
Groove profile |
|
|
|
Gouging |
||
|
Typical gouge |
9,8 kg/hr |
6,4 mm D x 7,4 mm W |
|
Engine Driven Generator Operation
|
Engine drive rating |
System output current |
Performance (arc stretch) |
|
30 kW |
105 A |
Full |
|
22.5 kW |
105 A |
Limited |
|
22.5 kW |
85 A |
Full |
|
15 kW |
85 A |
Limited |
|
15 kW |
65 A |
Limited |
Production Cut Chart
|
Material: |
|
Thickness |
Current |
Production cut speed* |
||||
|
inches |
mm |
|
amps |
|
|
mm/min |
||
|
Mild steel |
1/4 |
6 |
105 |
192 |
5090 |
|||
|
3/8 |
8 |
105 |
116 |
3870 |
||||
|
1/2 |
12 |
105 |
76 |
2060 |
||||
|
3/4 |
20 |
105 |
40 |
940 |
||||
|
Stainless steel |
1/4 |
6 |
105 |
224 |
6000 |
|||
|
3/8 |
8 |
105 |
112 |
4210 |
||||
|
1/2 |
12 |
105 |
68 |
1860 |
||||
|
3/4 |
20 |
105 |
34 |
810 |
||||
|
Aluminum |
1/4 |
6 |
105 |
265 |
7090 |
|||
|
1/2 |
12 |
105 |
91 |
2450 |
||||
|
3/4 |
20 |
105 |
50 |
1190 |
||||
*Production cut speeds are the result of Hypertherm's laboratory testing.
Production speeds are approximately 80% of maximum.
For optimum cut quality, cutting speeds may vary based on different cutting applications.
Refer to the operator manual for more details.
Shop all our Plasma Cutting Machines and Plasma Cutting Accessories online at Welders Supply
View all Hypertherm Specifications

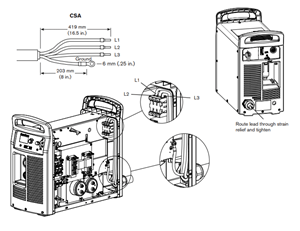

| Input voltages | 200–600 V, 3-PH, 50/60 Hz |
| Kilowatt output | 16.8 kW |
| Input current @ 16.8 kW | 200/208/240/480/600 V, 3-PH 58/56/49/25/22 A |
| Output current | 30–105 A |
| Rated output voltage | 160 VDC |
| Duty cycle @ 104° F (40° C) | 70% @ 105 A, 240 V, 3-PH 80% @ 105 A, 480–600 V, 3-PH 100% @ 94 A, 480–600 V, 3-PH 100% @ 88 A, 240 V, 3-PH |
| Open circuit voltage (OCV) | 300 VDC |

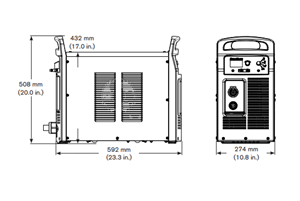

| Dimensions with handles | 23.3" D; 10.8" W; 20.0" H |
| Weight w/25' torch | 100 lbs |
| Gas Supply | Clean, dry, oil-free air or nitrogen |
| Recommended gas inlet flow rate/ pressure | Cutting: 460 scfh, 7.7 scfm @ 85 psi Gouging: 480 scfh, 8.0 scfm @ 70 psi |
| Input power cable length | 10' |
| Power supply type | Inverter – IGBT |
| Engine drive requirement | 30 kW for full 105 A output |
| Certifications | CSA-certified for use in the Americas and Asia, except China |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
