Miller Heavy Duty Hand Cutting Torch Outfit w/ Acetylene Tip, CGA 510S #HBS-H510S

Part Number: HBS-H510S
UPC: 14495269279

Ships Free To Lower 48 States

Miller Heavy Duty Hand Cutting Torch Outfit w/ Acetylene Tip, CGA 510S #HBS-H510S

Part Number: HBS-H510S
UPC: 14495269279
$670.91 + Free Shipping $1,341.83*
SAVE $670.92

Welding type:

Oxy-Fuel

Oxy-Fuel

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Related Products

Miller Hand Cutting Torch Outfit, Heavy Duty w/ Acetylene Tip, CGA 510S #HBS-H510S

This oxy-fuel hand-cutting system from Miller is built for the toughest jobs, with multiple included features aimed at improving your cutting processes. The included high-capacity one-piece torch and SC12-2 acetylene tip provide enough power to cut up to 1 ¼ inch (32 mm) thick steel, while other tips can improve cutting power up to 20-inch thick steel. Backed by Miller 1-Year warranty.

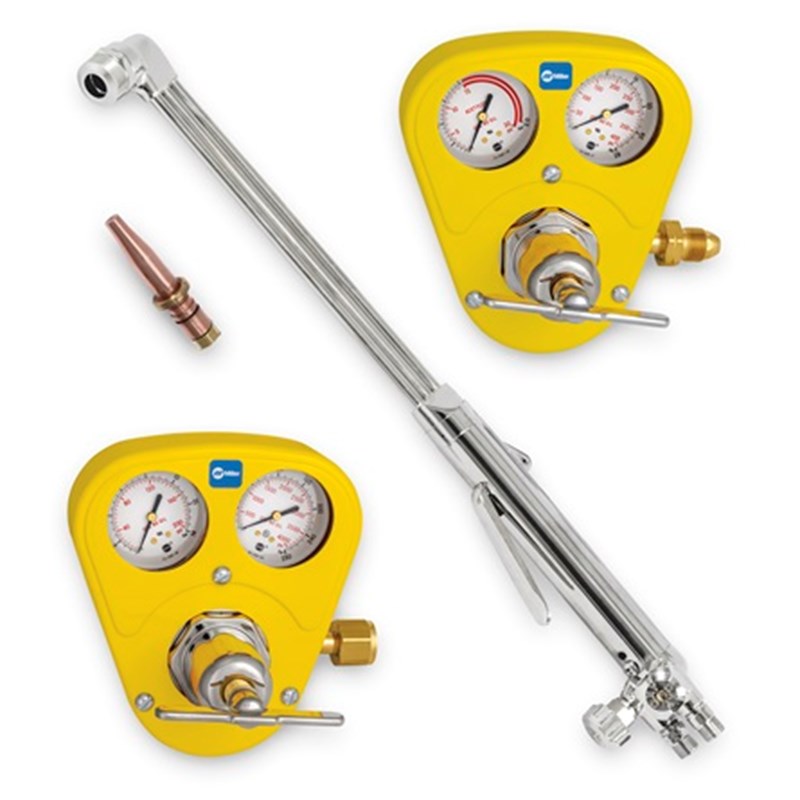

What's Included

  • HD Straight Cutting Torch (SC229)
  • Oxygen Regulator (40-175-540S)
  • Acetylene Regulator (40-15-510S)
  • Hard Hat Gauge Guards (HB190)
  • Cutting Tip (SC12-2)
  • Operations Manual
Miller True Blue warranty

Highlights

  • 2.5-Inch Regulator Gauges: The large regulator gauges are easy to read and constructed from shatter-resistant polycarbonate lenses.
  • Graf-Tite® Soft Seat Tip: Protects the tip seat from nicking for longer use.
  • Slip-in Tip Design: No wrench is needed allowing for quick and easy tip changes.
  • Three Tube Construction: Keeps gases separate in cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from operator.
  • Dual Filters Including Sure Seat™: Regulator dual filter design protects high-pressure seat from debris for reliable operation and long service life.
  • Ease-on Cutting Oxygen Valve: Allows for smooth application of cutting oxygen reducing keyholing and slag blowback when piercing.

Industries

  • Construction & Fabrication

Benefits of the Heavy Duty Hand Cutting Torch Outfit

  • A resin bonnet insert allows smooth, easy adjustments at high-pressure levels.
  • PTFE packing provides a gas-tight seal while allowing individually adjusted drag.
  • Hose connections are easily replaced for reduced maintenance costs.
  • The nickel-plated bonnet with a forged brass body protects against corrosion.
  • Stainless steel ball-style valves allow for smooth adjustments and positive seating to eliminate leaks.
  • The external relief valve will release excessive pressure and automatically reset to protect the regulator from damage due to inadvertent high-pressure surges.
  • A stainless steel diaphragm extends service life by resisting corrosion, leaking and freeze-up if used with liquid gasses.

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via UPS Ground. Need special shipping? Just call 1-844-682-0205 for accommodations, including our use of your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products with a pre-approval. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Check out our selection of welding equipment and accessories from Miller and other brands.
Specifications - Heavy Duty Hand Cutting Torch Outfit with Acetylene Tip, CGA 510S
Industries Construction and Fabrication
Warranty

SHIPPING DIMENSIONS

Height: 1.00 Inches
Width: 1.00 Inches
Length: 1.00 Inches
Weight: 1 Lb(s) 0 Oz
