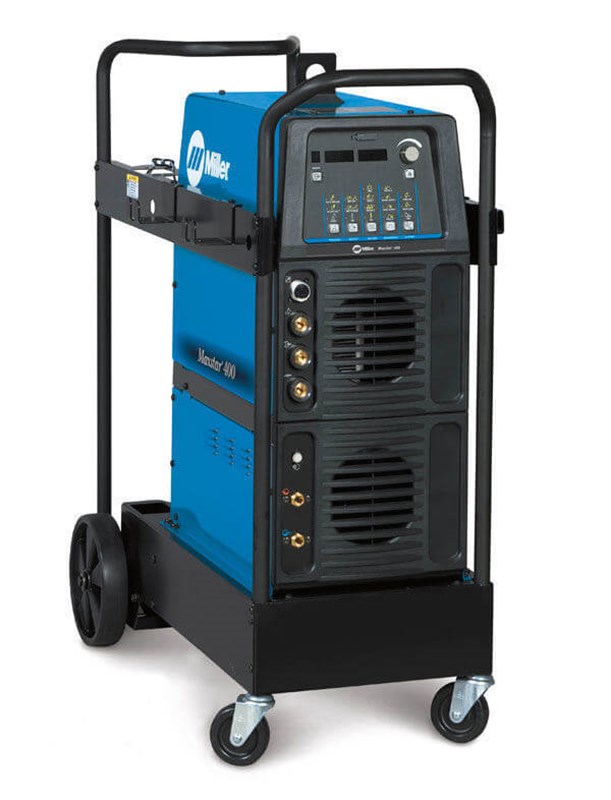

Miller Maxstar 400 TIG Runner Package #907716001

Part Number: 907716001
UPC: 715959648417
This Item Has Been Discontinued and has been replaced by Maxstar® 400 208-600 V, TIGRunner - Level up today!

Welding type:

Stick

Stick

Tig

Tig

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • Stick Welding
  • TIG Welding
  • 1 or 3-Phase Input
  • 3-Year Power Warranty

Miller Maxstar 400 TIG Runner Package #907716001

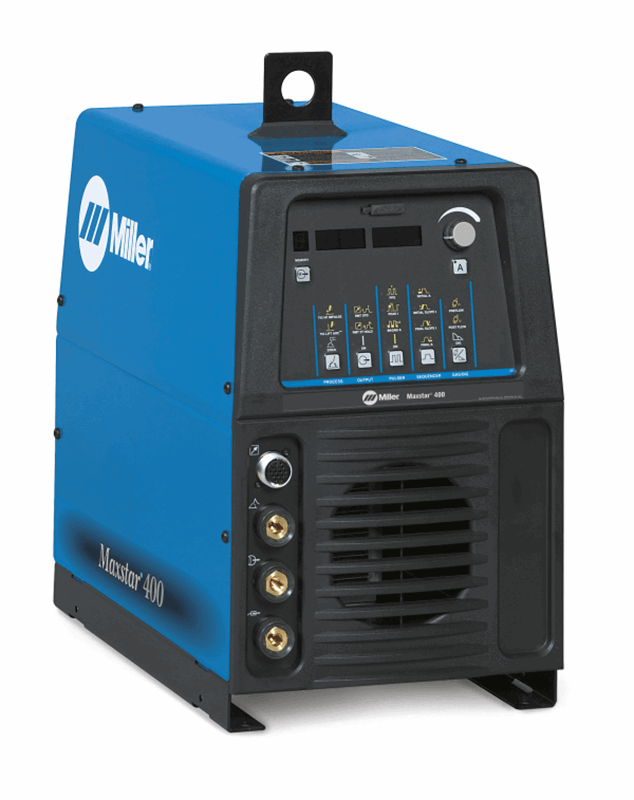

The Maxstar 400 is an ideal TIG/Stick welding solution for a wide range of high-end and large-scale operations, including those working with exotic metals. Equipped with Miller’s innovative Auto-Line™ technology, which allows input power from 208v to 575v, the Maxstar can be used with any power source anywhere in the world—even locales with unreliable power.

Miller has loaded the Maxstar 400 with advanced arc control features for smoother, more precise welds on all materials. This package includes a custom-sized Runner™ Cart to make transporting the little beast easier and a Coolmate™ external cooler to keep your electrodes from overheating—two extras you’ll come to consider essential in no time.

Included with the Maxstar 400 TIG RUNNER Package:

  • 8 ft. power cord
  • Assembly DVD and reference guide

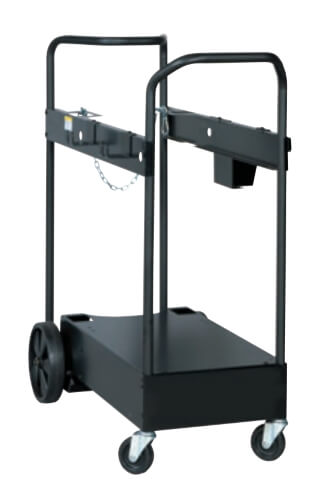

  • Runner™ Cart #300244

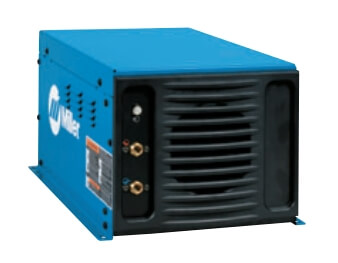

  • Coolmate™ 3.5 #300245

Lowest Prices and Free Shipping Within the Lower 48

At Welders Supply, you always get the lowest possible prices on quality welding equipment from top manufacturers. Plus, you get free shipping on orders over $300 (within the lower 48 states).

View our large selection of TIG welding machines, Miller welders, and welders safety equipment with the greatest values online.

Miller Maxstar 400 TIG Runner Package #907716001

 3-Phase1-Phase
TIG Duty Cycle 400 A, 20%
300 A, 60%
250 A, 100%
300 A, 60%
250 A, 100%
300 A, 20%
Stick Duty Cycle 400 A, 20%
300 A, 60%
250 A, 100%
300 A, 60%
250 A, 100%
300 A, 20%
AC TIG Material Thickness Range .015–5/8 in.
(0.38–15.9 mm)

.015–5/8 in.
(0.38–15.9 mm)

DC TIG Material Thickness Range .012–5/8 in.
(0.3–15.9 mm)

.012–5/8 in.
(0.3–15.9 mm)

Stick Electrode Maximum Diameter 6010: 1/4 in. (6.4 mm)
7018: 1/4 in. (6.4 mm)
7024: 1/4 in. (6.4 mm)

6010: 1/4 in. (6.4 mm)
7018: 1/4 in. (6.4 mm)
7024: 1/4 in. (6.4 mm)

Carbon Arc Grouping (CAC-A) Maximum 1/4 in. (6.4 mm)

1/4 in. (6.4 mm)

Generator Requirement 20kW 20kW

SHIPPING DIMENSIONS

Height: 43.50 Inches
Width: 17.50 Inches
Length: 47.50 Inches
Weight: 280 Lb(s) 0 Oz

Product Questions and Answers


Q - What is the output? A - Rated output is 300A at 32V, 60% duty cycle
Q - What input power does this need? A - 208 to 575 on 3- or 1-phase power
