Thermal Dynamics Cutmaster 60i #1-5630-1X 20' Torch
220V Single Phase
Thermal Dynamics Cutmaster 60i 20' Torch #1-5630-1X

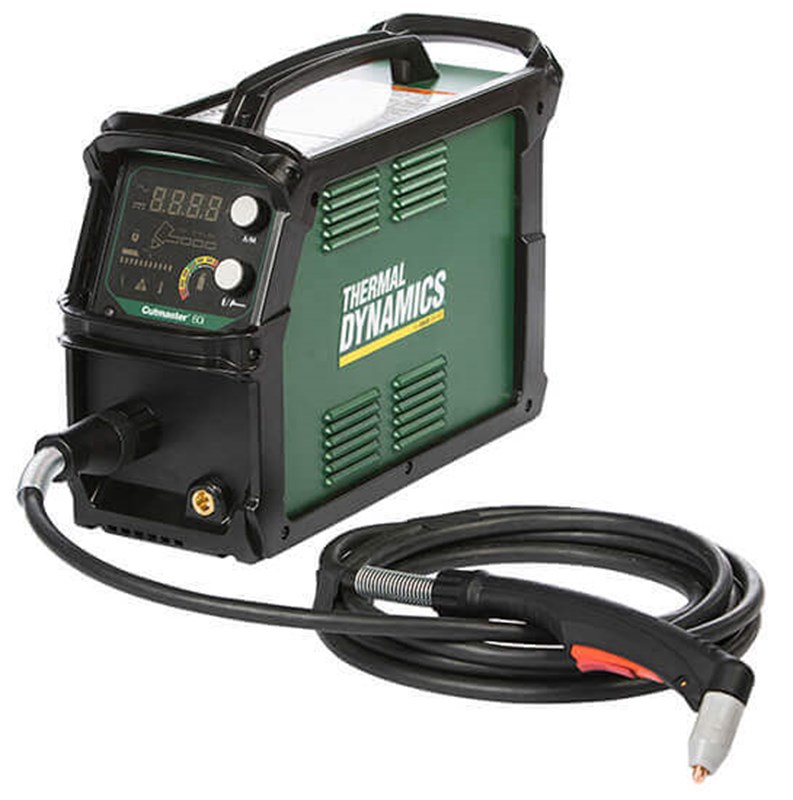

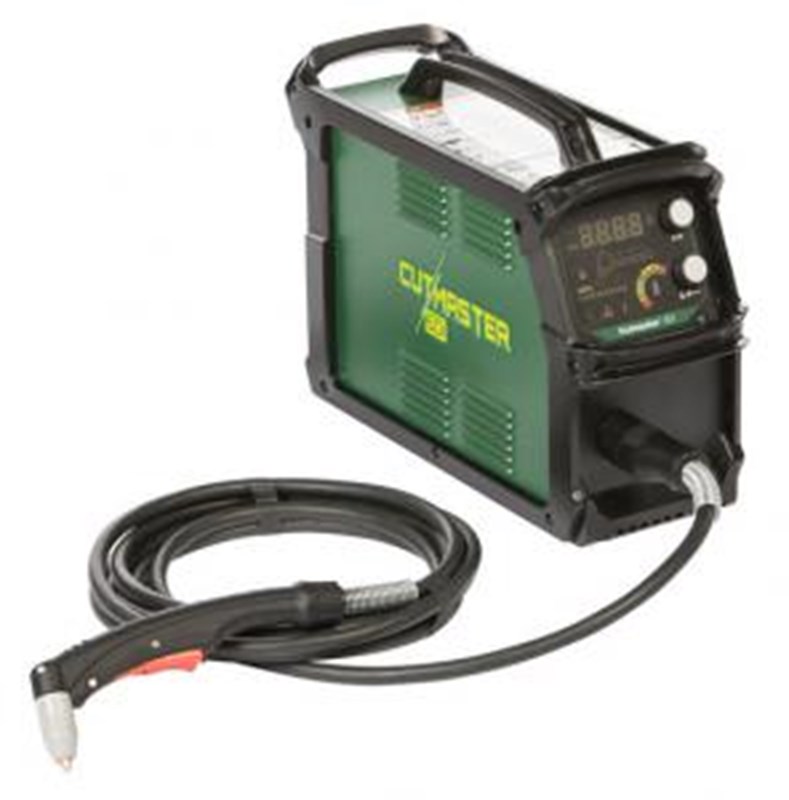

The Cutmaster® 60i is the newest addition to the plasma Cutmaster line. The Cutmaster 60i is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 60i also has best in class cutting arc length and the most empowering and engaging user experience no matter the application.
|Pierces||5/8 in. (16 mm)|
|Recommended Cut||5/8 in. (16 mm)|
|Model||Input Power Cable and Plug||Work Lead
|Description or Qualifier||single phase 8AWG 3/C with NEMA 6-50P Plug||#8 work cable with 50 mm connection|
|Frequency Hz||50/60 Hz|
|VAC||208-480 ± VAC|
|Minimum Air Supply||6.2-8.3 bar (90-120 psi)|
|Open Circuit VAC High||300 VAC|
|Operating Temperature||0 - 50 °C (32 - 122 °F)|
|Output Current AC||10 - 60 A|
|Output Power||7.6 kW|
|Amp High||60 A|
|Duty Cycle||50 %|
|Amp High||50 A|
|Duty Cycle||60 %|
|Amp High||40 A|
|Duty Cycle||100 %|
Plasma Gas Requirements
|Gas Pressure||6.2-8.3 bar (90-125 psi)|
|Gas Requirements||Compressed Air|
|Weight||16.8 kg (37 lb)|
Shop all plasma cutting machines available online at Welders Supply.
Amperage Output 10–60 A, continuously adjustable
Rated Output Power 7.6 kW
Open-Circuit Voltage (OCV) 300 V
Input Voltage 208–480 VAC ± 10%
Number of Phases 1 ph
Supply Frequency 50/60 Hz
Rated Duty Cycle
50% @ 60 A
60% @ 50 A
100% @ 40 A
43 A @ 208 V
39 A @ 230 V
19 A @ 480 V
Enclosure Rating IP23S
Input Power Cable and Plug 9 ft. (2.7 m) single phase 8 AWG 3/C with NEMA
Work Lead with Ground Clamp 20 ft. (6 m) #8 work cable with 50 mm connection
Gas Requirements Compressed air
Operating Temperature Range 32°F–122°F (0°C–50°C)
Input Pressure 90–125 psi max (8.6 bar)
Air Flow Requirements (cutting and gouging) 300–500 scfh / 5–8.3 cfm (142–235 l/s)
Power Supply Gas Filtering Ability Particulates to 5 Microns
Recommended Cut 5/8 in. (16 mm)
Maximum Sever 1 1/2 in. (38 mm)
Pierce Rating 5/8 in. (16 mm)
Torch Duty Cycle 100% at 60 A @ 400 scfh air flow
Torch Air Pressure 75 psi (5.2 bar)
Torch Air Consumption 6.7 cfm (190 l/s)
Torches (for use with the Cutmaster 60i)
SL60QD 1Torch (supplied)
SL100 Mechanized 1Torch
SL100SLV Automated 1Torch
Product Questions and Answers
How to install optional Two - Staged Air Filter Kit:
- Attach Two Stage Filter bracket.
Attach the Two Stage Filter bracket to the back of the power supply with screws supplied.
- Connect to outlet hose.
Connect the two stage filter outlet hose to the inlet port of the Regulator/Filter Assembly.
- Connect air line to filter.
Use customer-supplied fittings to connect the air line to the Filter. A5/16 (8mm) O.D. smooth tubing should be used with the press in fitting.
