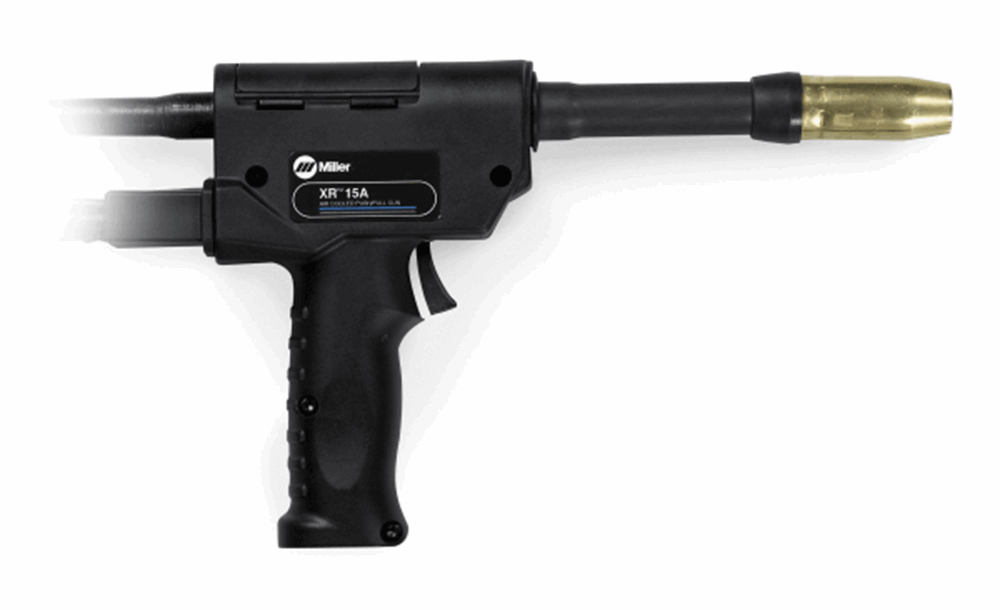

Miller XR™Pistol 15 ft. Air, Quick Disconnect #198127

Heavy-duty Construction

All internal components are designed to provide long lasting performance and feeding precision.

Replaceable Feed Cable Liner

Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.

Trigger Hold

Reduce fatigue by allowing operators to weld without holding gun trigger. (Feature available when paired with XR-Control.)

Contact Tips

Accepts single-turn, quick-change FasTip™ and Bernard® Centerfire™ contact tips.

Multiple Configurations

Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.

Complete Your System

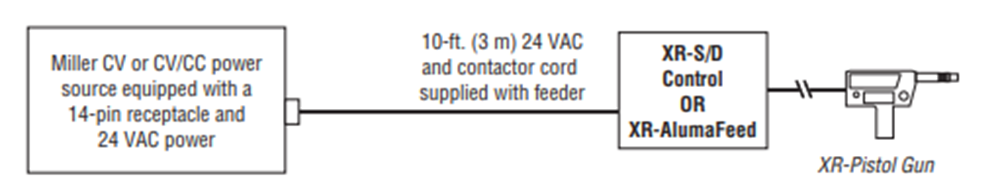

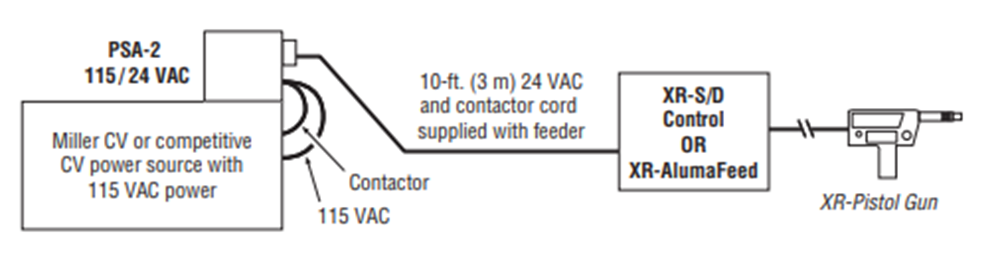

XR-Pistol guns work in conjunction with XR-Control wire feeders to provide the best solution for push-pull applications.

Contact Welders Supply for more information on bulk orders of the Miller XR pistol.

PROCESSES

Aluminum Welding

GENERAL SPECIFICATIONS

Title	XR™Pistol 15 ft. Air, Quick Disconnect
Industries Interests	Manufacturing Railcar Shipbuilding
Amperage Rated Output	200 @ 100%
Cable Length	15 ft
Head Angle	180 degree
Torch Handle Type	Pistol Grip
Torches Type	Push Pull
Wire Size	.030-1/16
Net Width	1.875 in
Net Height	7.375 in
Net Length	10.625 in
Net Weight	2.2 lbs
Warranty	Miller's True Blue Warranty
