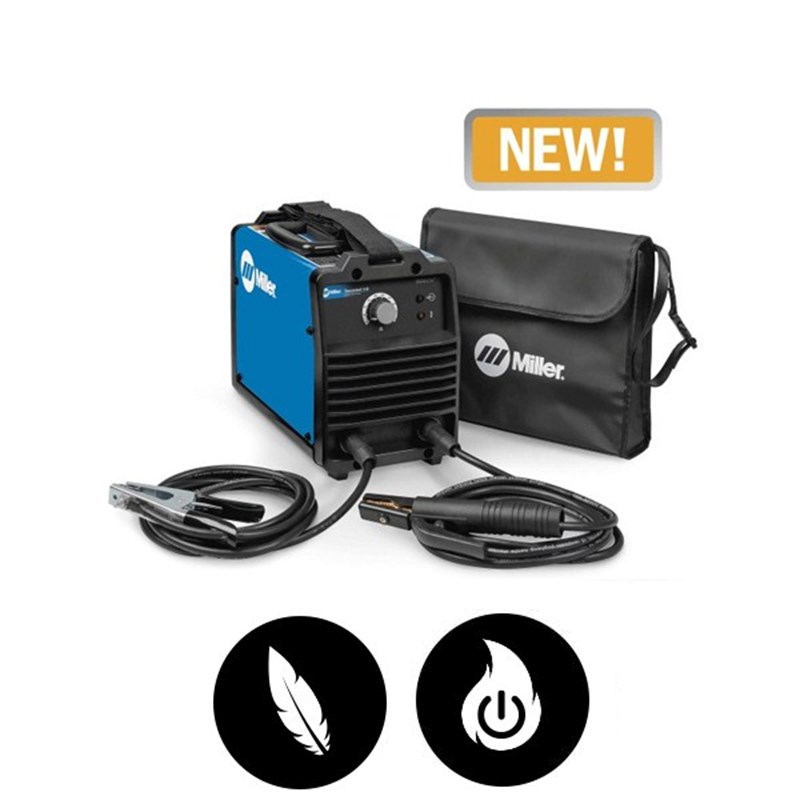

Miller Thunderbolt® 210 DC Stick Welder 907722
It's quite clear why the Miller Thunderbolt 210 is the best-of-class dependable, portable, powerful stick welder in its category. With nearly 100 lbs. lighter and up to 85 more amps of power compared to leading competitive welding machines, you'll be thunderstruck by the swift portability and power of this welding machine. This portable stick welding machine can plug-and-weld with the Hot Start™ technology to easily create reliable arcs for those time sensitive jobs.
- 10 ft. (3 m) No. 4 electrode cable with heavy-duty electrode holder
- 10 ft. (3 m) work cable with clamp
- 6.5 ft. (2 m) power cord with plug for 240V
Light Industrial Applications:
- Garage/job shops
- Maintenance repair
- Light production-line work
- Shipyard install/repair
Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.
Miller Thunderbolt 210 Processes:
- Stick (SMAW)
Miller Thunderbolt 210 Specifications:
|Industries Interests||DIY / Home Hobbyist
Farm and Ranch
Maintenance and Repair - Field Operations
|Input Voltage||220/230/240 V|
|Input Hz||50 / 60 Hz|
|Net Height||10.5 in|
|Net Length||13.375 in|
|Net Weight||15.5 lbs|
|Weldable Metals||Stainless Steel
|Net Width||7.125 in|
|Rated Output||210A @ 20% duty cycle|
|Max Open Circuit Voltage||85 VDC|
|Amperage Range||25 DC - 210 DC|
Miller's True Blue Warranty
|Weight:||22 Lb(s) 8 Oz|
Miller Thunderbolt 210 DC #907722 Stick Welder
Product Questions and Answers
How to install work clamp:
- Use the right tools.
Do not just hand tighten hardware. Use proper tools. A loose electrical connection will cause poor weld performance and excessive heating of the work clamp.
- Position cable.
Work cable should be routed through the opening in the clamp handle.
- Secure cable.
Tighten cable using a wrench to secure the lock washer and nut on the screw.
