ESAB Fabricator 141i - 110 Volt MIG/TIG/Stick Machine Part# W1003141

$764.00 $869.00 Reduced Price You Save $105.00
Product Number: W1003141

ESAB Fabricator 141i Welder #W1003141

ESAB Fabricator 141i multiprocess welderThe ESAB Fabricator 141i Welder is a portable 3-in-1 welding system for MIG, TIG and Stick welding. It will output 140 amps for MIG and TIG welding, and 90 amps for Stick welding projects. This welder is primarily for small scale DIY projects. It operates on a standard 115-volt input power and comes complete with a 15 amp or 20 amp adapter.

Weighing just 33 pounds, it's easy to move around but packs enough punch to get the job done without weighing a pound more than it needs to. Not only is the Fabricator 141i lightweight and easy to use, it has well-thought out features like overload protection, a flow gauge regulator, and a fan on the welder that keeps dust and dirt from being sucked into the machine. The Fabricator 141i is a great tool for the price, especially with the included Victor Argon Regulator and 10-foot hose.

Welders Supply Company has the Fabricator 141i at the lowest price possible, and all orders over $300 ship FREE to anywhere in the lower 48 states.

Recommended accessories for the Tweco Fabricator 141i Welder:

J Tillman Grain/Split Cowhide MIG Glove Part#52 Tweco 300 Amp Copper Ground Clamp Part #GC-300 Fabshield® 21B 10lb Spool #21B for general purpose welding applications

Tweco Fabricator 141i Welder Features:

  • Fabricator 141i Power Supply
  • 10 ft. Tweco 140A MIG Gun
  • Victor Flowgauge Regulator
  • Tweco 13 ft. 200A Electrode Holder
  • Tweco ground clamp
  • Drive rolls
  • 9 ft. power cord and carrying strap
  • TIG torch kit available as an option
  • Portable
  • Digital Meters to preview and post-view parameters
  • Easy setup chart
  • Remote receptacle for Foot Controls and Spool gun
  • Easy polarity changes
  • Overload protection
  • Fan on demand reduces dust and contaminants being pulled through the machine

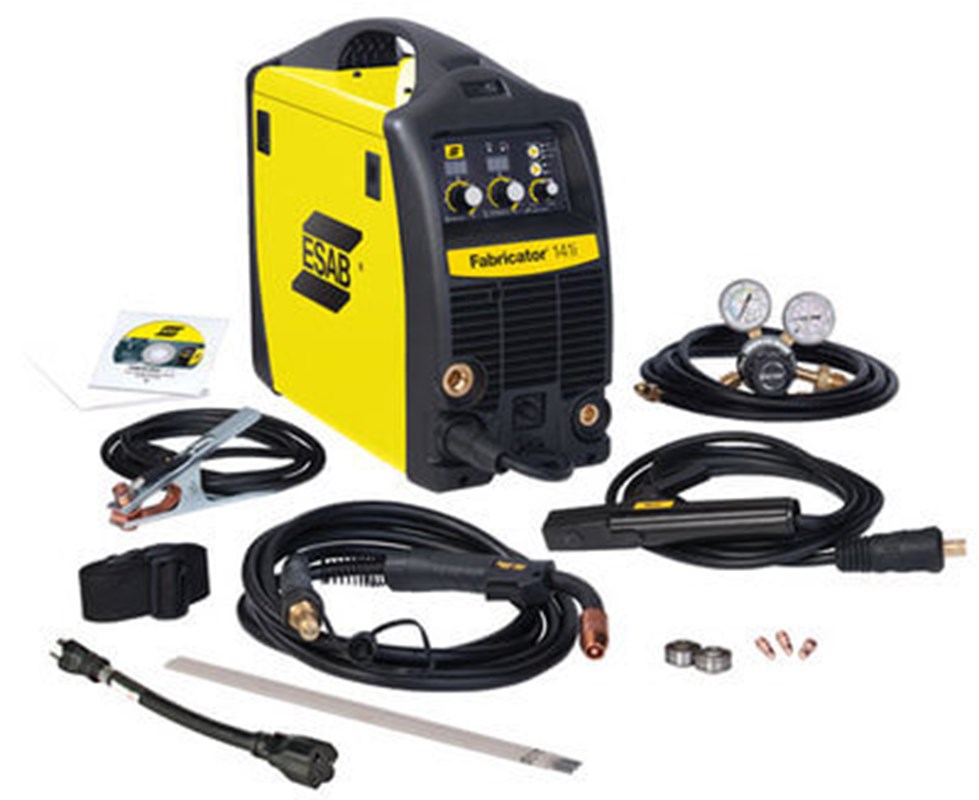

 Comes complete with:

  • ESAB® Fabricator® 141i MIG/TIG/Stick welder
  • Flowgauge regulator and 12.5 ft. (3.8 m) hose,
  • Electrode holder with 13 ft. (4 m) lead
  • Bonus contact tips (1 each) .023 in. (0.6 mm), .030 in. (0.8 mm) installed, .035 in. (0.9 mm)
  • Drive rolls .023/.030 in. (0.6/0.8 mm) v-groove installed, .030/.035 in. (0.8/0.9 mm) for flux-cored wire
  • Tweco Fusion 140A MIG Gun with 10 ft. (3 m) cable
  • 4 general purpose stick electrodes (E6013)
  • Power adapter 115V, 20A to 15A
  • Ground clamp with 10 ft. (3 m) lead
  • Shoulder strap
  • Operator’s manual and CD
  • 10 ft. (3m) power cord and NEMA 5-20P 115V AC plug



Primary Power

Primary Voltage 115 VAC
Supply Voltage Range 95 140 VAC
Number of Phases Single Phase
Supply Frequency 50/60Hz
Supply Plug NEMA 5-20P
Rated kVA @ 140 AMP 5 kVA
Lead Cord Length 10 ft (3m)

Replacement Items & Consumables

Tweco Fusion™ 140 Amp MIG Gun, w/ 10ft (3m) Cable 1017-1321
        Velocity™ Nozzle 1/2" Bore 1220-1200
        Universal Conduit Liner 1420-1113
        Velocity Contact Tip, .023" 1110-1308
        Velocity Contact Tip, .030" 1110-1309
        Velocity Contact Tip, .035" 1110-1310
Electrode Holder, w/ 13ft (4m) lead, 25mm Dinse W7003106
Ground Clamp, w/ 10ft (3m) Lead, 25mm Dinse W7003105
Victor® Argon Flowguage Regulator 0781-9411
Gas Hose, 12.5 ft, Male 5/8-18UNF W4013900
Power Adapter - 115V, 20A to 15A W4013300
Dinse Adapter, 50mm to 25mm W4017500

View all Tweco Welding and Cutting Products

For the best prices on MIG welders, TIG weldersStick welders and Gas welders, shop Welders Supply online.

Other Versions of the ESAB Fabricator 141i:

Welding DC

Maximum Output 140 Amp
MIG (GMAW/FCAW) Welding Output @ 104 F (40 C) 140A/19V @ 15% Duty Cycle
90A/18.5V @ 20% Duty Cycle
STICK (SMAW) Welding Output @ 104 F (40 C) 90A/23V @ 15% Duty Cycle
80A/23.2V @ 35% Duty Cycle
TIG (GTAW) Welding Output @ 104 F (40 C) 140A/15.6V @ 15% Duty Cycle
100A/14V @ 20% Duty Cycle
Current Range 10A - 140 Amp
MIG Welding Voltage Range 14.5 - 19 Volt
Wirefeed Speed Range 90 - 390 IPM (2.3 - 9.9m/min)
Nominal OCV Volt/DC 53 Volt
Maximum Plate Thickness 3/16" (4.8mm)
Wire Diameter Range
          Solid .023"-.030" (0.6-0.8mm)
         Stainless Steel .023"-.030" (0.6-0.8mm)
         Aluminum .030" (0.8mm)
         Flux Cored .030"-.035" (0.8-0.9mm)
Spool Size Capacity 4" & 8" (100 & 200mm)
Warranty period 3 Years*
Approvals IEC 60974-1, CSA E60974-1, UL 60974-1
Protection Class IP23S
Power Source Dimensions (HxWxD) 16.2" x 8.3" x 17.7" (410mm x 210mm x 450mm)
Power Source Weight 32.2lb (14.6kg)
*Limited Warranty, refer to warranty schedule.


ESAB /Victor/Tweco welding machines

Product Questions and Answers


Q - What size generator would I need to run this? A - A 5000 watt generator for a 20 amp breaker and 6000 watt on a 30 amp breaker.
Q - Is a TIG torch included? A - No, that's sold separately.
Q - 220 V? A - No, it's 120V.

How to Change Feed Roll:

  1. Open Access Panel.

    Open the access panel on the side of the fabricator.

  2. Remove Screw.

    Remove the feed roll retaining screw by turning in a counterclockwise direction.

  3. Remove and Replace.

    Remove old feed roll and replace it with standard supplied feed roll. Select roller with the chosen wire size facing outwards.

  4. Tighten Screw.

    Tighten the retaining screw and close the access panel.
