Miller AlumaPower™ 350 MPa Pkg #951147

Part Number: 951147

Discontinued - Check out other Miller MIG Welders

Out of Stock
Starts at $1,575.78/month with

Call 844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Aluminum

Aluminum

  • MIG Welding
  • Multi-Phase
  • 220V
  • 460V
  • 3-Year Power Warranty

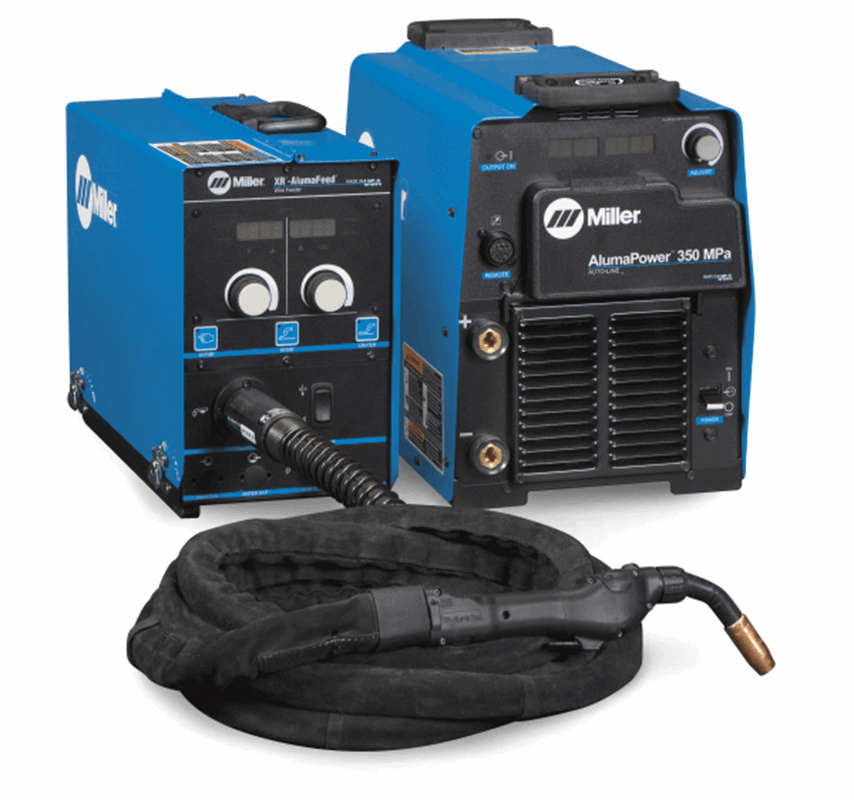

Miller AlumaPower™ 350 MPa, XR-AlumaFeed®, XR-Aluma-Pro™ 25 Ft Air, Pkg #951147

Dedicated aluminum system for the most advanced MIG and synergic Pulsed MIG performance.

What's Included:

  • AlumaPower 350 Mpa
  • XR-AlumaFeed Feeder
  • XR-A Aluma-Pro 15FT
  • Gun and feeder drive rolls for .035-3/64 wires
  • Fast tip contact tips 3 each for .035 Al and 3/64 Al

Features:

  • Profile Pulse™
  • Wind Tunnel Technology™
  • Fan-On-Demand™
  • Synchronized, true push-pull wire feed system
  • Synergic Pulsed MIG
  • Built-in MIG and Pulsed MIG programs
  • Parameter and system locks
  • Trigger schedule select
  • Auto-Line™ Power Management Technology
See our line of quality welding equipment and welding helmets or view our full selection of quality welding machines.



Miller AlumaPower™ 350 MPa MIGRunner™ #951556 Specs

Input Voltage 208–575 V
Input Phase 3- or 1-phase
Input Hz 50 / 60 Hz
Input Circuit Welding Rating 400 A at 100% duty cycle
Rated Output 3-phase: 350 A at 34 VDC, 60% duty cycle
1-phase: 300 A at 32 VDC, 60% duty cycle
Output Ranges CC mode: 5–425 A
CV mode: 10–38 V
Current Type DC
Max Open Circuit Voltage 75 VDC
Heavy Industrial Applications Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Processes Aluminum MIG (GMAW)
Aluminum Pulsed MIG (GMAW-P)
Aluminum Synergic Pulsed MIG (GMAW-P)
Width 12.5 in. 318 mm)
Height 17 in. (432 mm)
Length 24 in. (610 mm)
Weight 80 lb. (36.3 kg)
Portability Handle(s)
Running Gear / Cart (Standard)
Running Gear / Cart (Optional)
Warranty 3 Years - Miller's True Blue Warranty

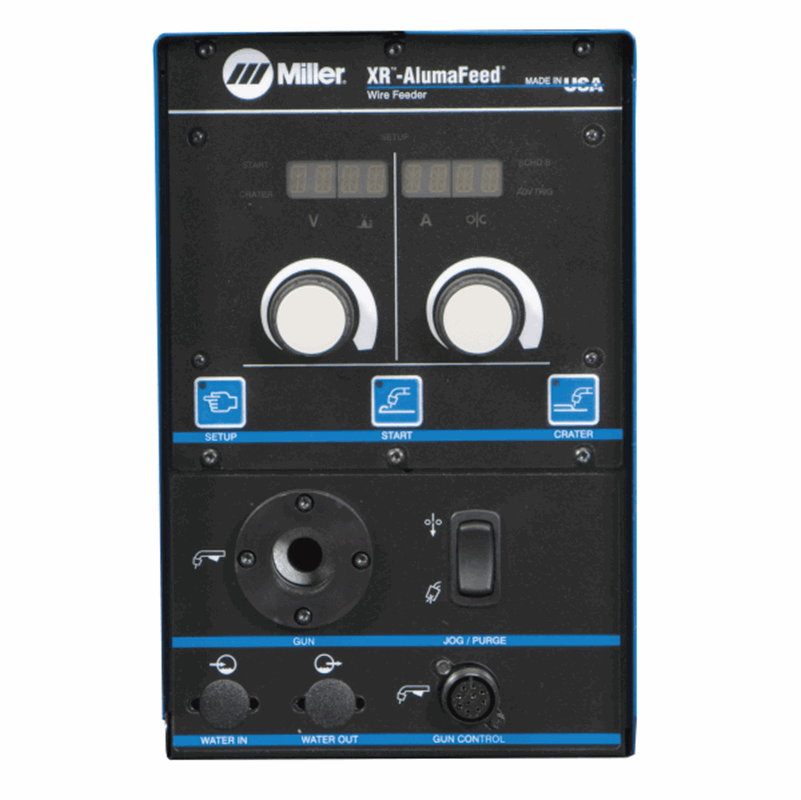

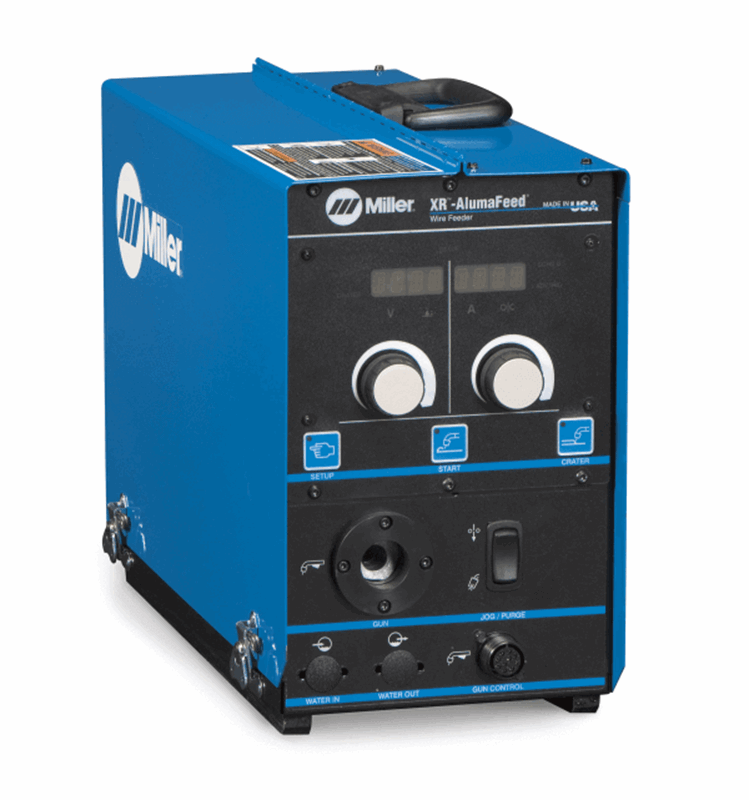

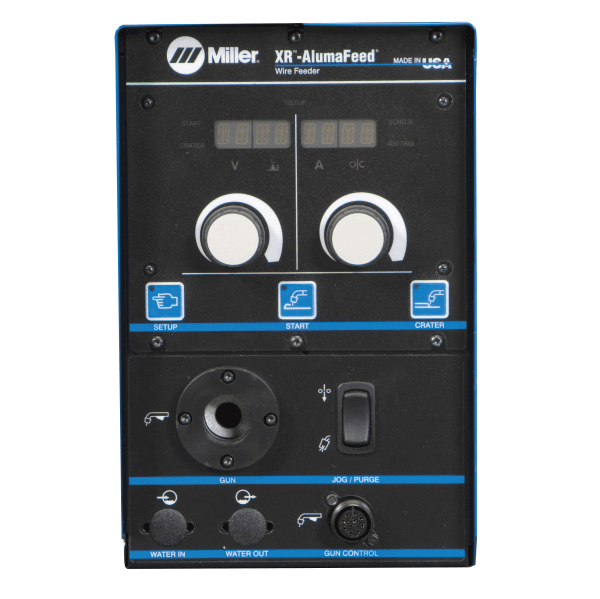

Miller XR-Alumafeed™ Specs

Input Power 24 VAC
Input Amperage 5 A
Input Hz 50 / 60 Hz
Input Circuit Welding Rating 400 A at 38 VDC, 100% duty cycle
System duty cycle is limited to gun rating
Power Source Compatability CC/CV, DC
Welding Power Source Type  CC/CV
Wire Feed Speed 50–900 ipm (1.3–22.9 m/min.)
Wire Type and Diameter Capacity  Aluminum: .035–.062 in. (0.9–1.6 mm)
Solid Wire: .035–.045 in. (0.9–1.2 mm)
Maximum Spool Size  12 in. (305 mm)
Width 23 in. (584 mm)]
Height 16 in. (406 mm)
Length 21.25 in. (540 mm)
Weight 42.5 lb. (19.3 kg)
Portability Handle(s)
Running Gear / Cart (Optional)
Warranty 3 Years - Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 25.00 Inches
Width: 30.00 Inches
Length: 35.00 Inches
Weight: 150 Lb(s) 0 Oz

Product Questions and Answers


Q - What kind of power is needed for this? A - 3- or 1-phase power, 208 to 575 V, 50/60 hz.
Q - What is the wire feed speed? A - You can set it between 50 imp and 900 ipm.
