Miller AlumaPower™ 350 MPa, XR-AlumaFeed®, XR-Aluma-Pro™ 25 ft. Air, MIGRunner™ Package #951151
Part Number: 951151
Welding type:
Mig
Power supply:
220V Single Phase
220V 3 Phase
460V
Material type:
Documents
Videos
3-Year Power Warranty
MIG Welding
Multi-Phase

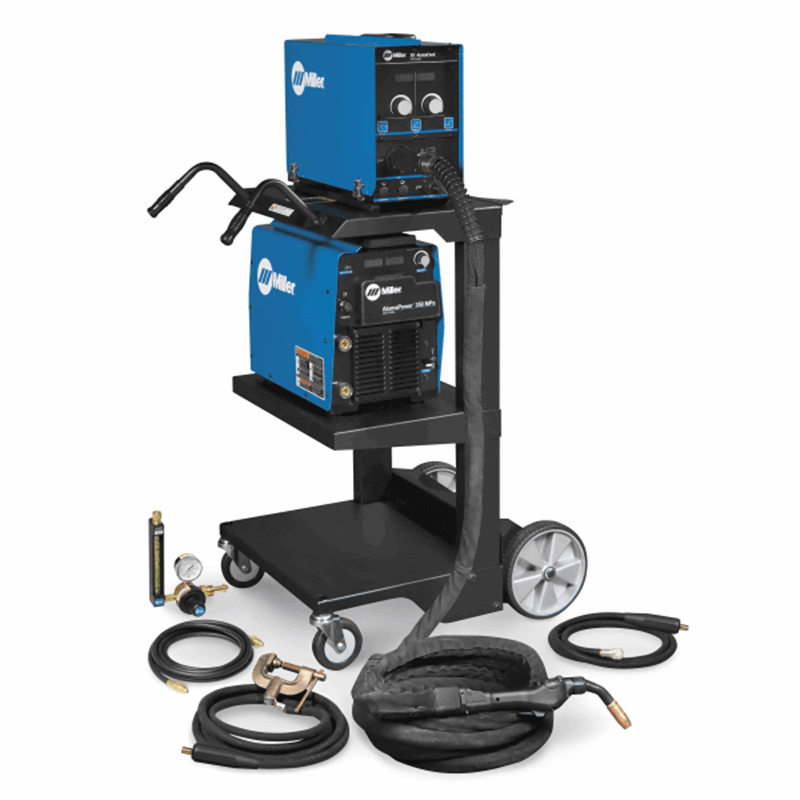

Miller AlumaPower™ 350 MPa, XR-AlumaFeed®, XR-Aluma-Pro™ 25 ft. Air, MIGRunner™ Package #951151
Dedicated aluminum system for the most advanced MIG and synergic Pulsed MIG performance.
What's Included:

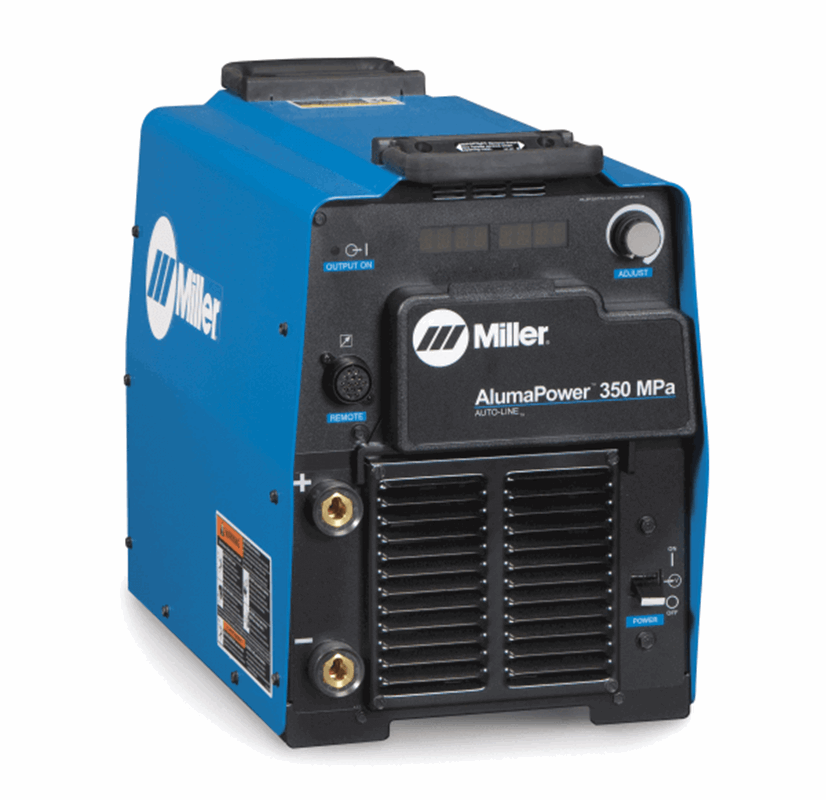

- AlumaPower 350 Mpa

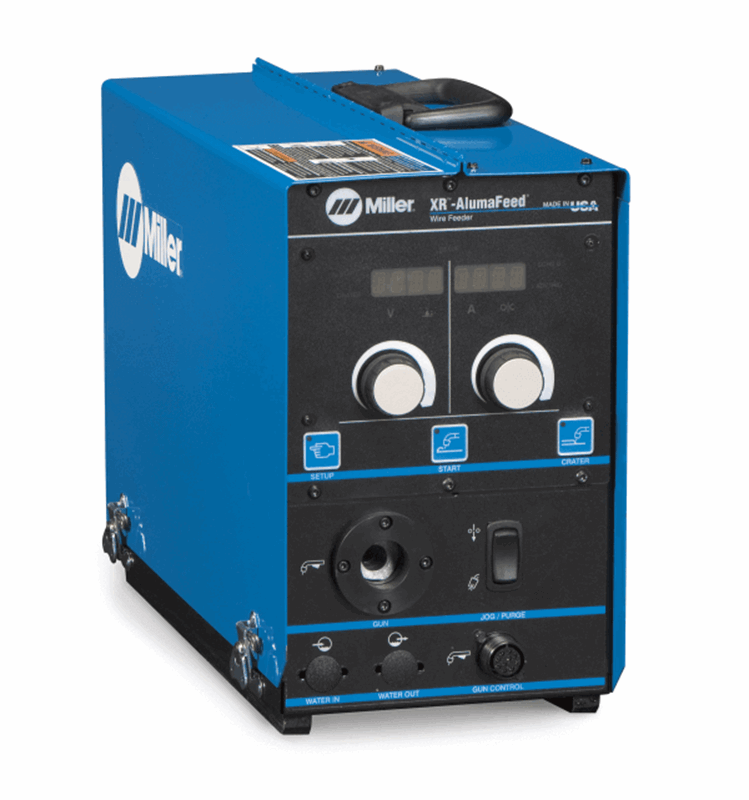

- XR-AlumaFeed Feeder
- XR-A Aluma-Pro 25 FT

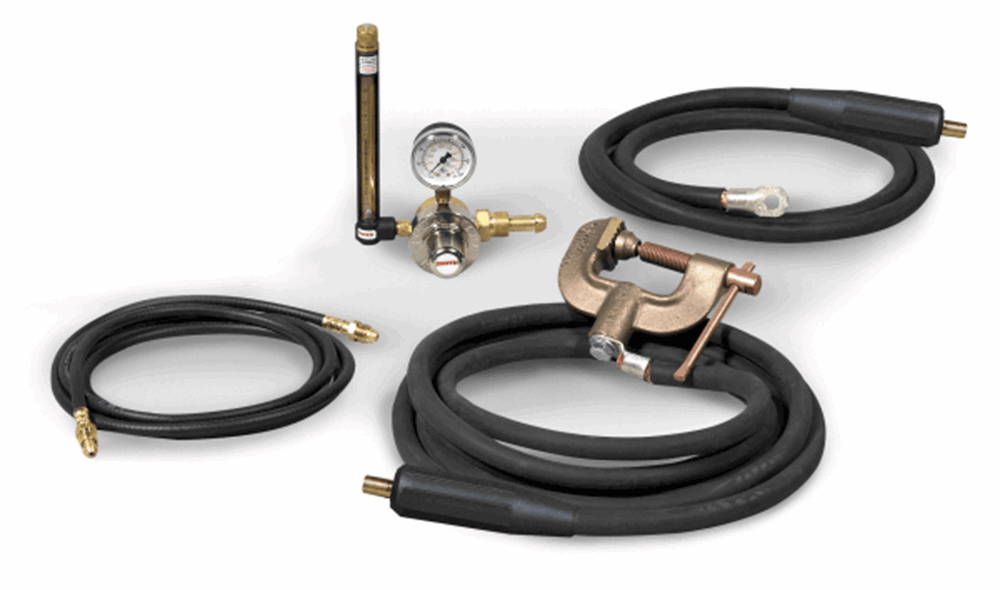

- Industrial 4/0 MIG kit with Dinse connectors

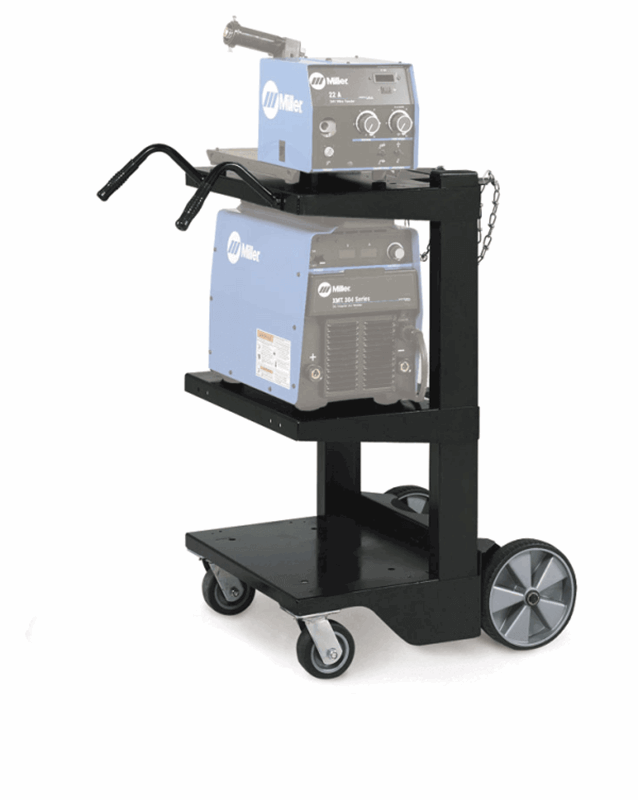

- MIGRunner Cart
- Gun and feeder drive rolls for .035-3/64 wires
- Fast contact tips 3 each for .035 Al and 3/64 Al
Check out the wide selection of new welding machines, used welders & equipment, and plasma cutting machines available at Welder Supply.
Other Versions of the Miller AlumaPower™ 350 MPa Package:
Related Packages:
Miller AlumaPower™ 350 MPa MIGRunner™ #951556 Specs | |
|---|---|
| Input Voltage | 208–575 V |
| Input Phase | 3- or 1-phase |
| Input Hz | 50 / 60 Hz |
| Input Circuit Welding Rating | 400 A at 100% duty cycle |
| Rated Output | 3-phase: 350 A at 34 VDC, 60% duty cycle 1-phase: 300 A at 32 VDC, 60% duty cycle |
| Output Ranges | CC mode: 5–425 A CV mode: 10–38 V |
| Current Type | DC |
| Max Open Circuit Voltage | 75 VDC |
| Heavy Industrial Applications | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Processes | Aluminum MIG (GMAW) Aluminum Pulsed MIG (GMAW-P) Aluminum Synergic Pulsed MIG (GMAW-P) |
| Width | 12.5 in. 318 mm) |
| Height | 17 in. (432 mm) |
| Length | 24 in. (610 mm) |
| Weight | 80 lb. (36.3 kg) |
| Portability | Handle(s) Running Gear / Cart (Standard) Running Gear / Cart (Optional) |
| Warranty | 3 Years - Miller's True Blue Warranty |

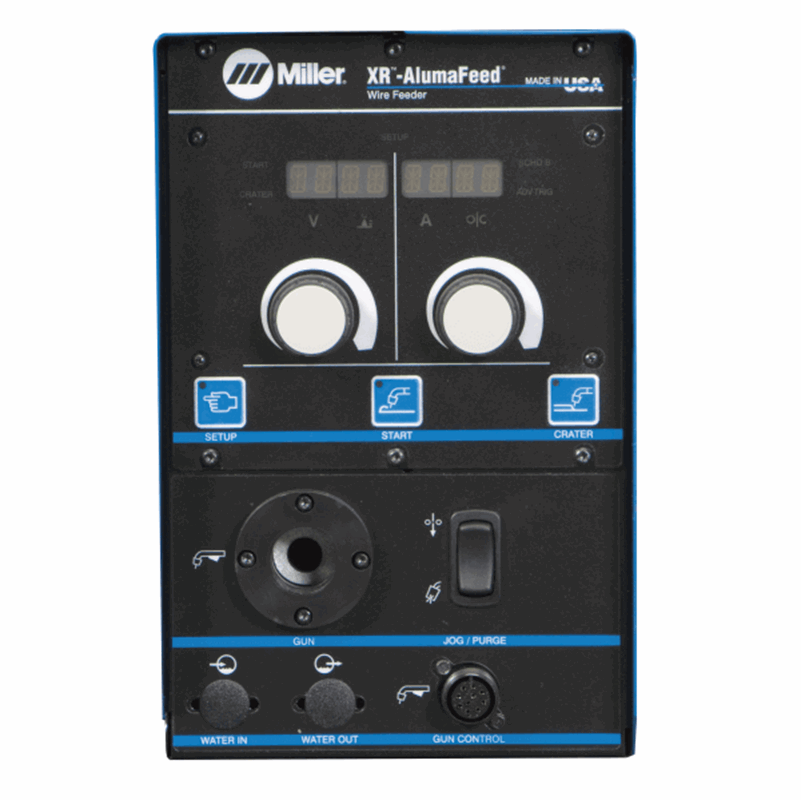

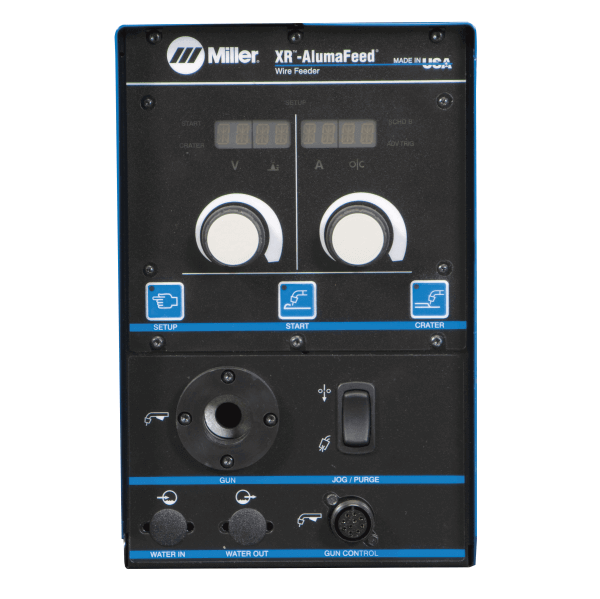

Miller XR-Alumafeed™ Specs | |
|---|---|
| Input Power | 24 VAC |
| Input Amperage | 5 A |
| Input Hz | 50 / 60 Hz |
| Input Circuit Welding Rating | 400 A at 38 VDC, 100% duty cycle System duty cycle is limited to gun rating |
| Power Source Compatability | CC/CV, DC |
| Welding Power Source Type | CC/CV |
| Wire Feed Speed | 50–900 ipm (1.3–22.9 m/min.) |
| Wire Type and Diameter Capacity | Aluminum: .035–.062 in. (0.9–1.6 mm) Solid Wire: .035–.045 in. (0.9–1.2 mm) |
| Maximum Spool Size | 12 in. (305 mm) |
| Width | 23 in. (584 mm)] |
| Height | 16 in. (406 mm) |
| Length | 21.25 in. (540 mm) |
| Weight | 42.5 lb. (19.3 kg) |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Warranty | 3 Years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 26.00 Inches |
| Width: | 32.00 Inches |
| Length: | 54.00 Inches |
| Weight: | 315 Lb(s) 0 Oz |
Consumables
Product Questions and Answers
Q - What is the wire feed speed?
A - 50 to 900 imp
Q - How effective is this at getting a TIG appearance?
A - Quite good, actually. You can get the "stacked dimes" without any gun manipulation and you can easily increase or decrease the spacing in your ripple pattern.
