Millermatic® 255 Auto-Line™ MIG Welder #907964

Part Number: 907964

UPC: 715959769754

Ships Free To Lower 48 States

Millermatic® 255 Auto-Line™ MIG Welder Front

Millermatic® 255 Auto-Line™ MIG Welder Open

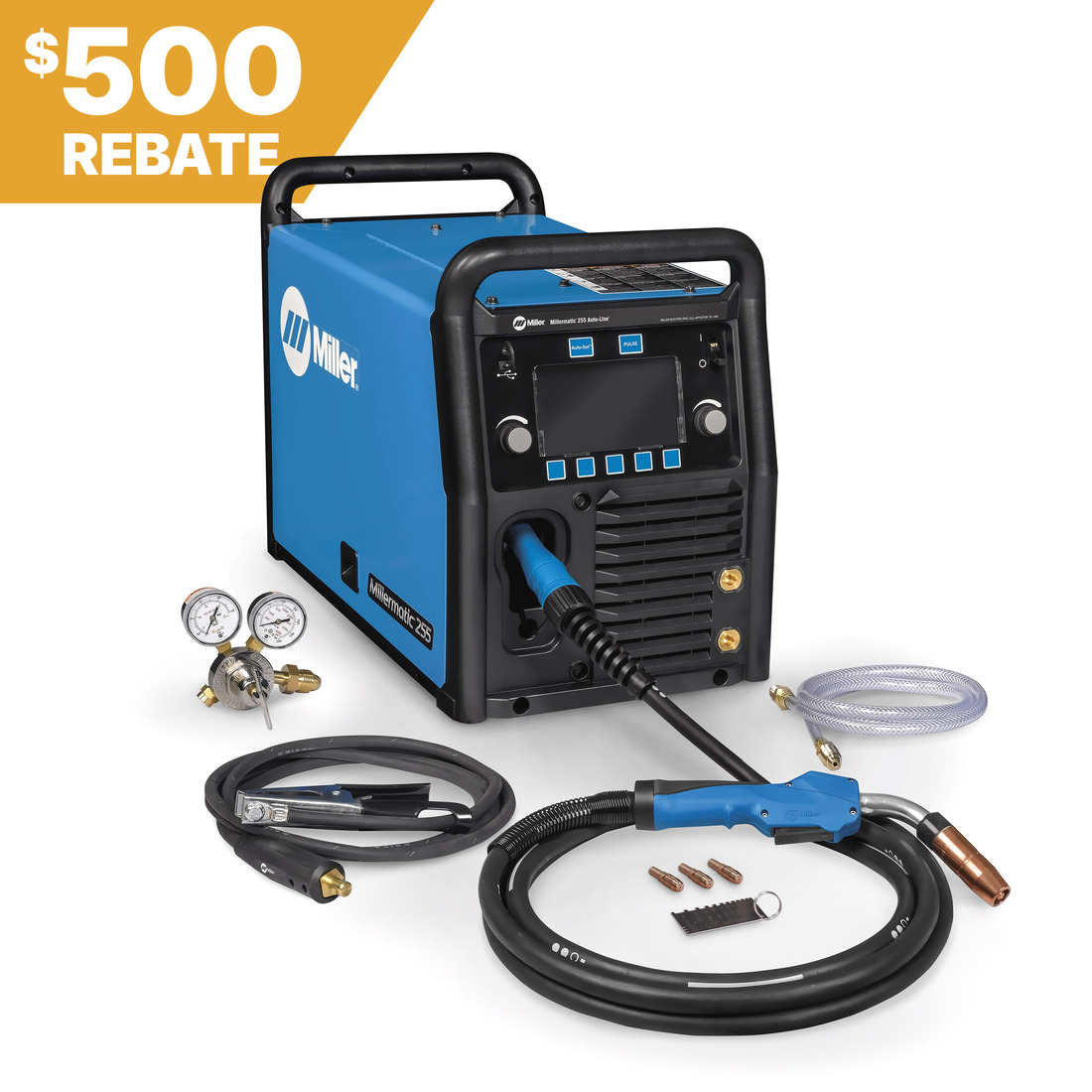

Millermatic® 255 Auto-Line™ MIG Welder with Accessories

Millermatic® 255 Auto-Line™ MIG Welder #907964

Part Number: 907964

UPC: 715959769754

$4,391.00 + Free Shipping $5,566.06*

SAVE $1,175.06

Features
Specs
Documents
Consumables
FAQS

Millermatic® 255 Auto-Line™ MIG Welder #907964

208-575 V Auto-Line™ MIG and Pulsed MIG welder. Welds mild steel and aluminum up to 1/2 in. Includes MDX-250 MIG Gun with Heavy Duty consumables. Packed with innovative features to boost efficiency in manufacturing and fabrication.

Highlights

Auto-Set™: Fast and easy predefined settings for multiple materials and processes to help you get welding quickly.
Auto-Gun Detect: automatically adjusts voltage, wire speed and timers for faster switching between MIG, push-pull and spool guns.
Program mode: allows easy save and recall of favorite weld settings.
7-inch color LCD display: ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Pulsed MIG: delivers higher quality welds for ALL welders.

What's Included:

Power source with 10 ft. (3 m) industrial power cord
15 ft. (4.5 m) 250-amp MDXTM-250 MIG gun with MDXTM heavy duty consumables for .035/.045 in. (0.9/1.2 mm) wire
10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
Flow gauge regulator and gas hose for argon or AR/CO2 mix
.035/.045 in. (0.9/1.2 mm) reversible drive rolls
Extra contact tips
Material thickness gauge

Applications:

General Fabricators
Contract Welding Services
Plant Maintenance Shops

Specifications - Millermatic® 255 Auto-Line #907964
Brand	Miller Electric
Model	Millermatic® 255 Auto-Line
SKU	907964
Processes	MIG (GMAW) Pulsed MIG (GMAW-P) Flux-cored (FCAW)
Current Type	DC
Input Power	208-575V, 25 A, 60 Hz, 1-Phase
Rated Output	230 A at 25.5 V, 60% duty cycle
Amperage Range	20–350 A
Max Open Circuit Voltage	81 VDC
Net Height	19.25 in
Net Length	26.5 in
Net Width	13.75 in
Net Weight	84 lbs
Portability	Handle(s)
Industries Interests	General Fabricators Contract Welding Services Plant Maintenance Shops
Weldable Metals	Steel Stainless Steel Aluminum
Material Thickness	Mild Steel 24 ga - 0.375 in Aluminum 18 ga - 0.375 in
Wire Feed Speed	50–800 ipm (1.3–20.3 m/min.)
Wire Diameter	Solid/stainless: .023–.045 in. (0.6–1.2 mm) Flux-cored: .030–.045 in. (0.8–1.2 mm) Aluminum: .035–.047 in. (0.9–1.2 mm)
Spool Size	12 in
Warranty	Miller's True Blue Warranty
