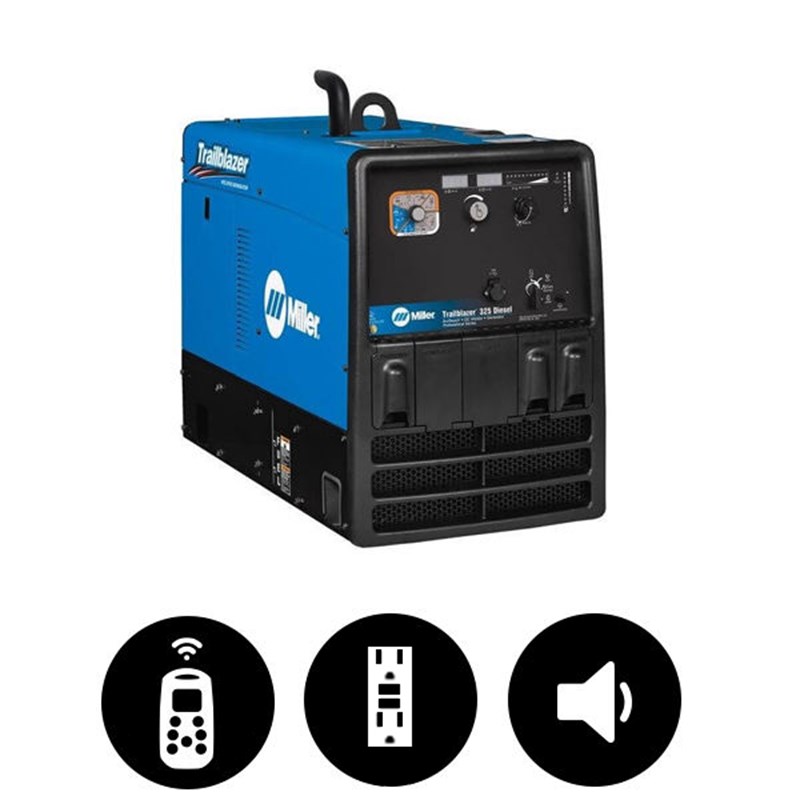

Miller Trailblazer® 325 (Kohler), GFCI 907797001

Part Number: 907797001
UPC: 715959678407
1 Review
Out of Stock

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Kohler Gas Engine
  • Multiprocess Welding
  • Single Phase Generator

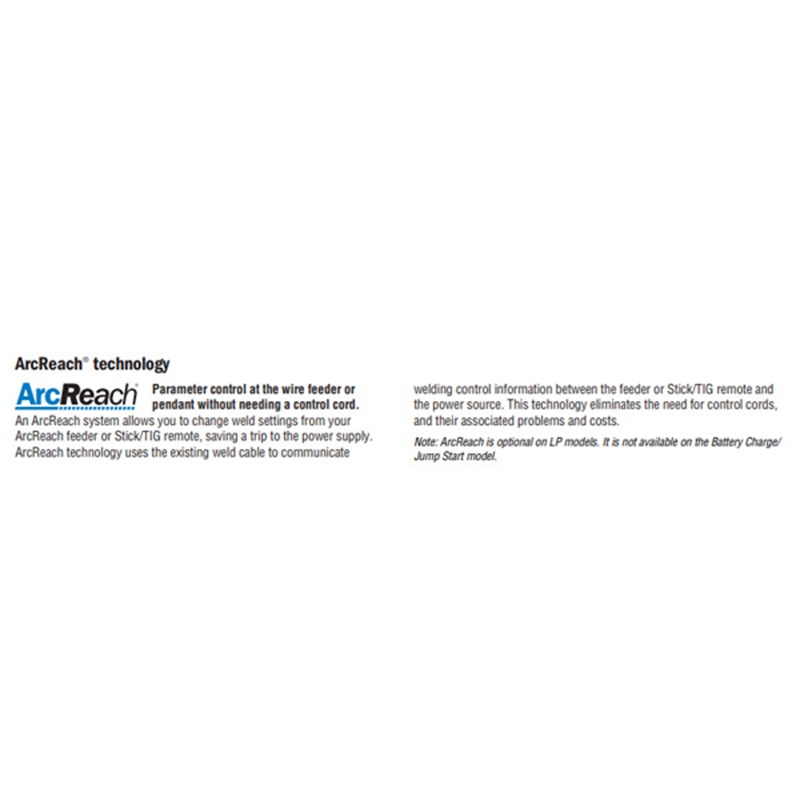

  • ArchReach® Technology
  • 3-Year Miller Warranty

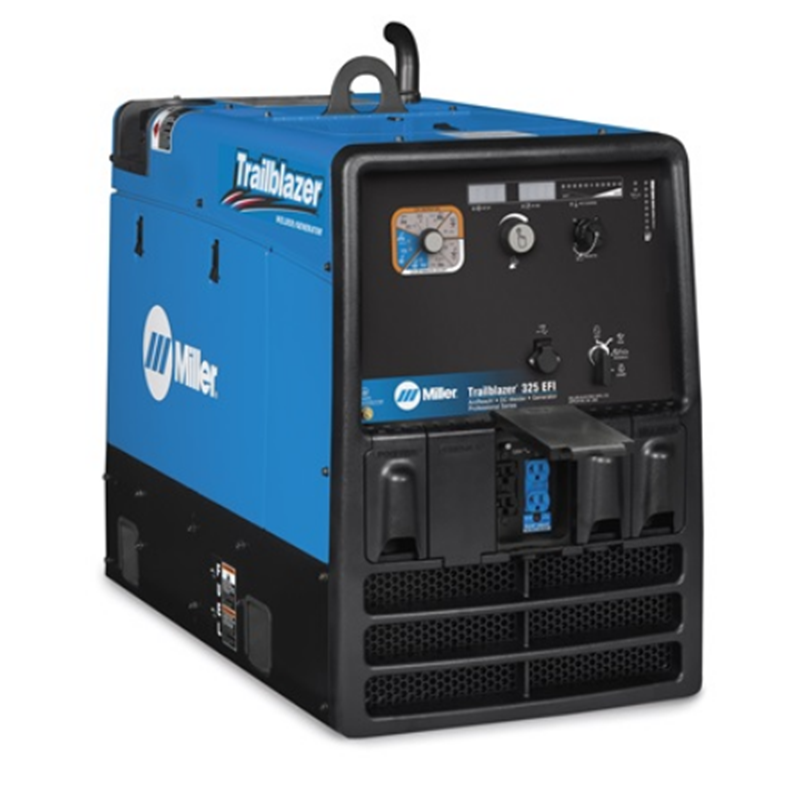

Miller Trailblazer 325 (KOHLER) EFI W/EXCEL POWER With GFCI Receptacle

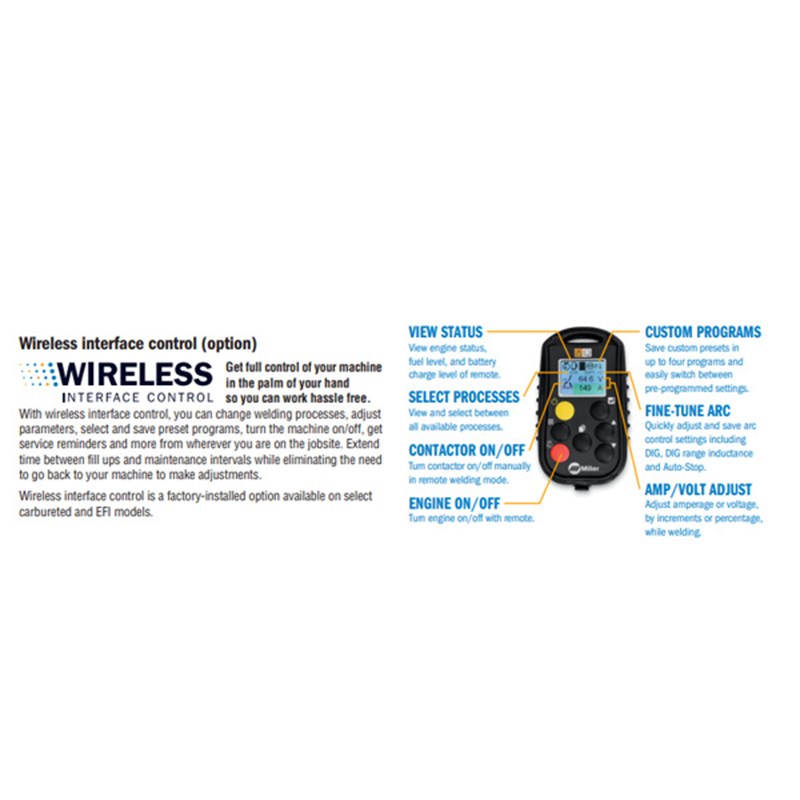

Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

Trailblazer 325 Features:

  • Unmatched arc performance
  • Clean and powerful generator power
  • Minimized refueling trips
  • Auto-Speed Technology
  • ArchReach® Technology


PROCESSES

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cores (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • TIC DC (GTAW-DC)
  • Plasma (PAC)
Title Trailblazer® 325 (Kohler) EFI w/Excel Power & GFCI Receptacle
Industries Interests Fabrication
Maintenance
Repair
Structural steel work
Sheet metal
Pipe
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed 2400 RPM
2800 RPM
3200 RPM
3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Gasoline
Horsepower 23 hp
Single Phase Generator Continuous Power 10500 W
Single Phase Generator Peak Power 12000 W
Sound Rating 70 dB @ idle and 81.5 dB @ weld dB
Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Net Width 20 in
Net Height 28 in
Net Length 40.5 in
Net Weight 502 lbs
Warranty

3 Years
Miller's True Blue Warranty
Engine Warranties

Weld Output CC / CV

SHIPPING DIMENSIONS

Height: 20.00 Inches
Width: 28.00 Inches
Length: 41.00 Inches
Weight: 500 Lb(s) 0 Oz

Manufacturer Reviews

By: Hank
This welder was a significant step up in investment from my previously owned Bobcat. I was a little apprehensive about the extra money. I am running a small business and ROI is the the name of the game when it comes to this size of an investment. I can tell you that this welder is the best investment that I have made in the last five years. ROI is projected in 2 years.
