Miller Dynasty® 400 Wireless Foot Control Complete, 208-600 V #951000263

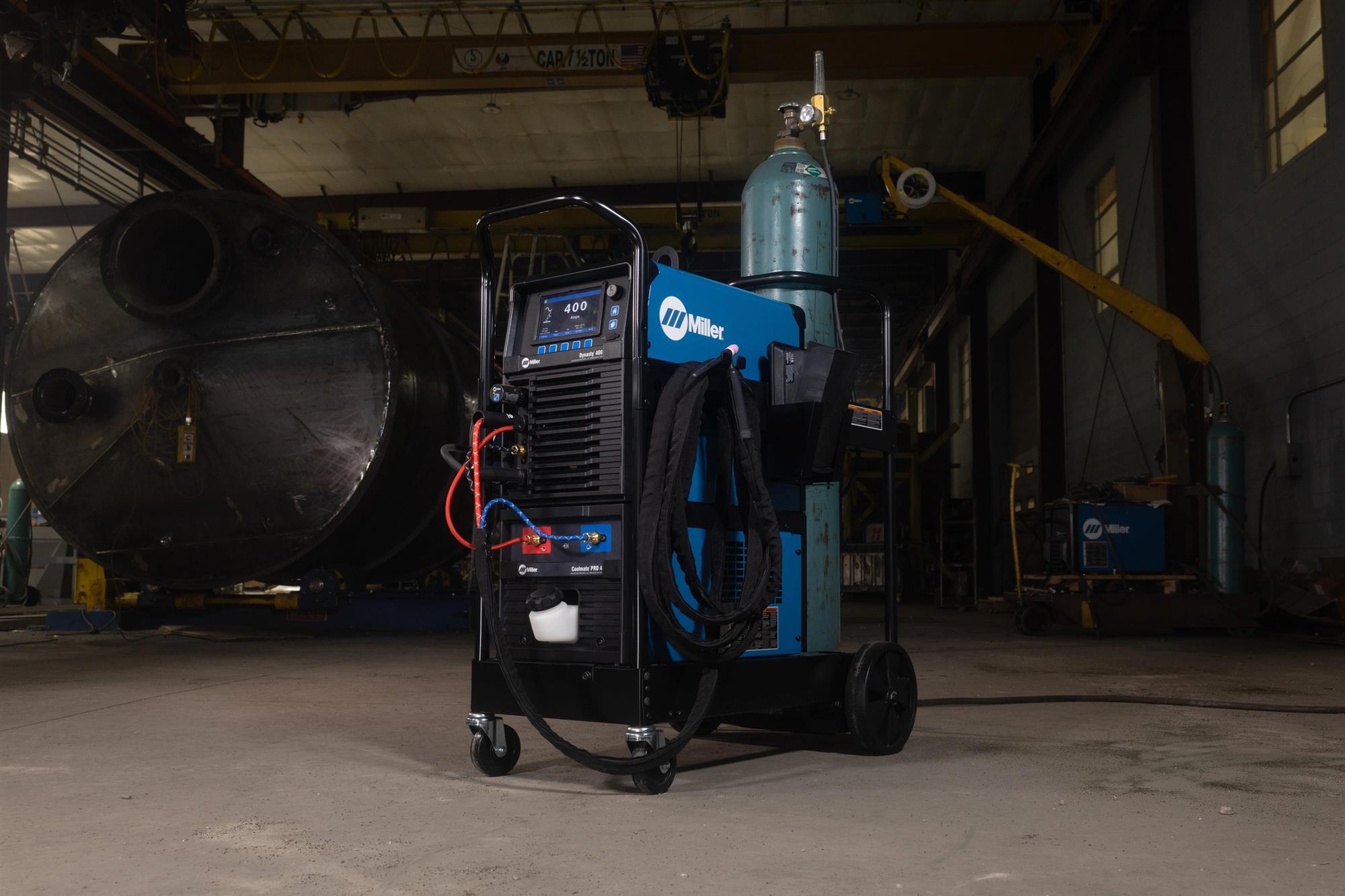

The Dynasty® 400 Wireless Foot Control Complete is a ready-to-weld water-cooled TIG system in one package. It includes the Dynasty 400 AC/DC inverter, Coolmate™ PRO 4 cooler, Runner cart, four gallons of coolant, a Weldcraft™ W-375 water-cooled torch kit, and Miller's wireless foot control. The welder delivers 3 to 400 amps for aluminum and steel up to 5/8 inch thick.

Highlights

• Complete Water-Cooled TIG System: Power source, cooler, coolant, torch, cart, and foot control arrive together, so there is no need to source matching components.
• Wireless Foot Control: Removes the foot pedal cable from the floor. Miller rates it for a 90 ft range and up to 1,500 hours of battery life.
• Weldcraft™ W-375 Super Cool™ Torch: A water-cooled torch with leak-resistant connections for long, high-amperage welds.
• Coolmate™ PRO 4 with CPS: The 4-gallon cooler runs off the welder's dedicated Cooler Power Supply receptacle and comes with four 1-gallon bottles of Miller coolant.
• Auto-Line™ Technology: Connects to single-phase or three-phase power from 208 to 600 V with no manual linking.
• Advanced AC TIG Controls: Independent EP and EN amperage, extended AC balance, 20 to 400 Hz AC frequency, and four AC waveforms for aluminum.
• High-Speed DC Pulse and QuietPulse™: Up to 5,000 pulses per second, with Sine or Triangular waveshapes for a quieter pulsed arc.
• Program Memory and Locks/Limits: 99 named programs with USB transfer and locked parameter ranges to hold operators to the WPS.
• Pro-Set™: One-press presets for balance, frequency, pulse, and DIG.
• Blue Lightning™ HF Arc Starter: Reliable non-contact arc starts.
• Stick Capability: Adjustable DIG and Hot Start™ for 7018 and 6010 electrodes.

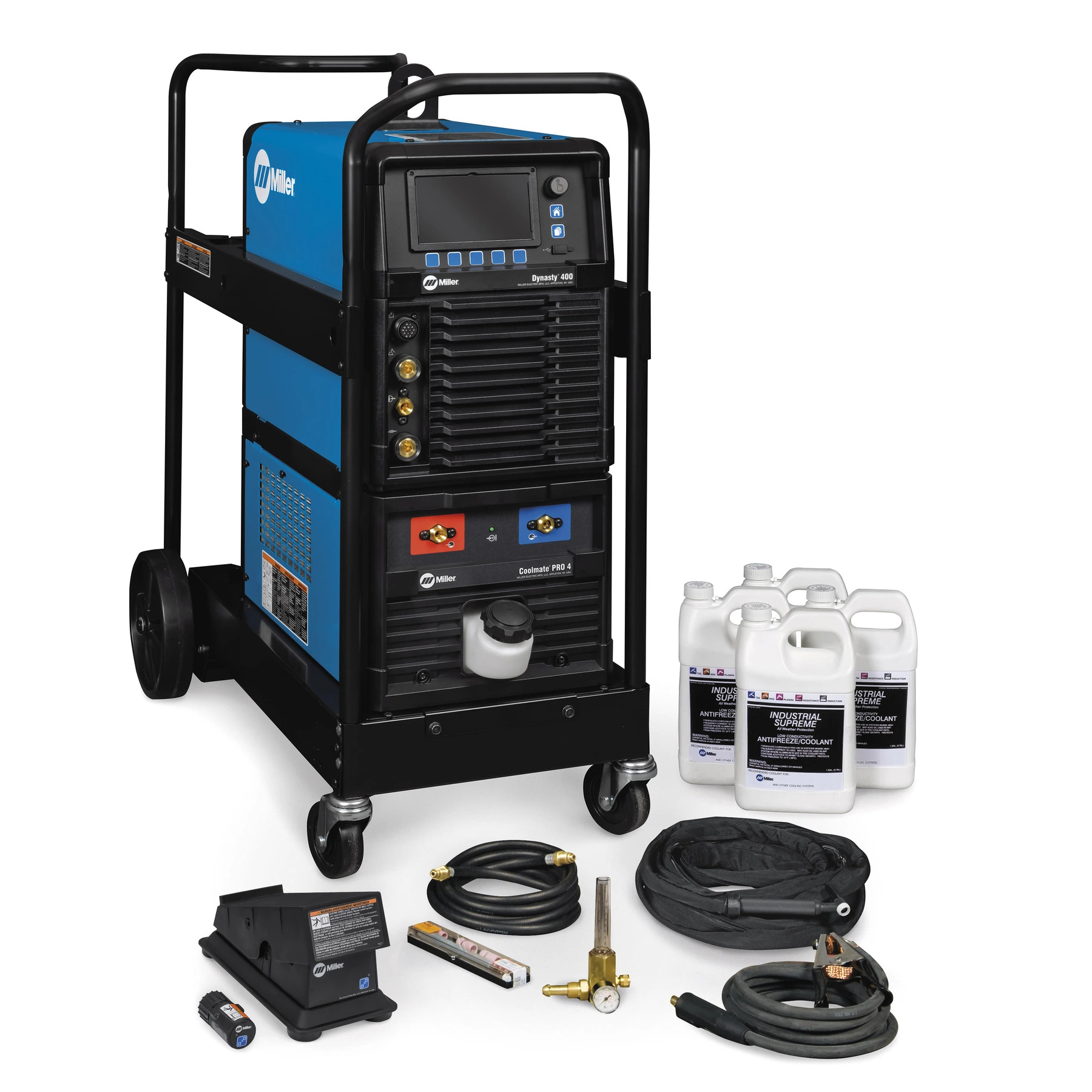

What's Included

• Dynasty® 400 power source
• 8 ft. (2.4 m) primary power cord
• Coolmate™ PRO 4 water cooler
• Runner cart
• Low-Conductivity Antifreeze/Coolant #043810 (4 one-gallon bottles)
• Weldcraft™ W-375 Super Cool™ torch kit and accessories #301268
• Wireless Foot Control System #301580

Applications

• Aluminum fabrication
• Aerospace manufacturing
• Heavy equipment
• Process pipe
• Production TIG welding
