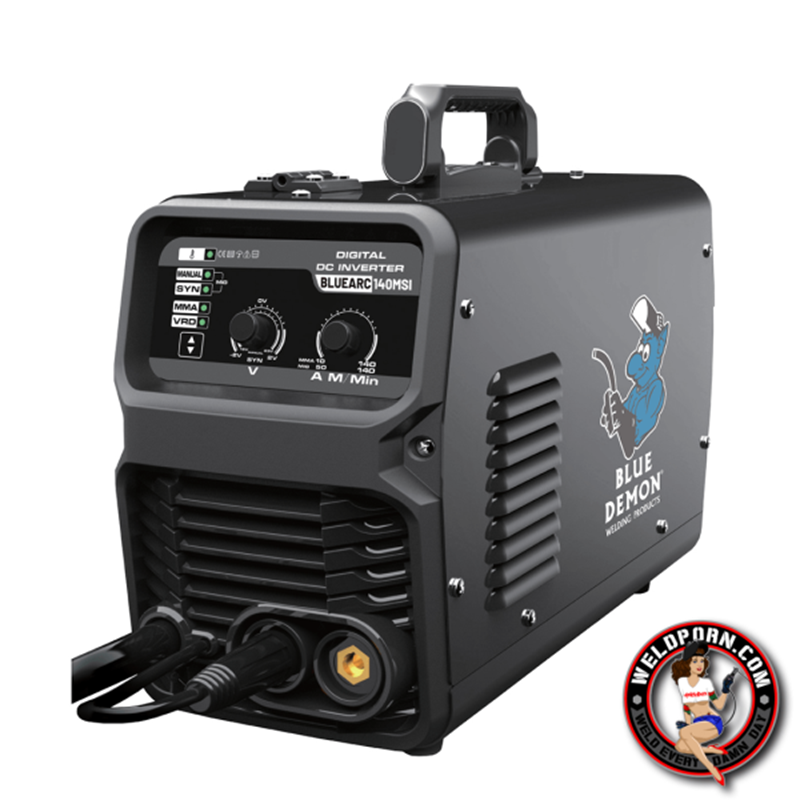

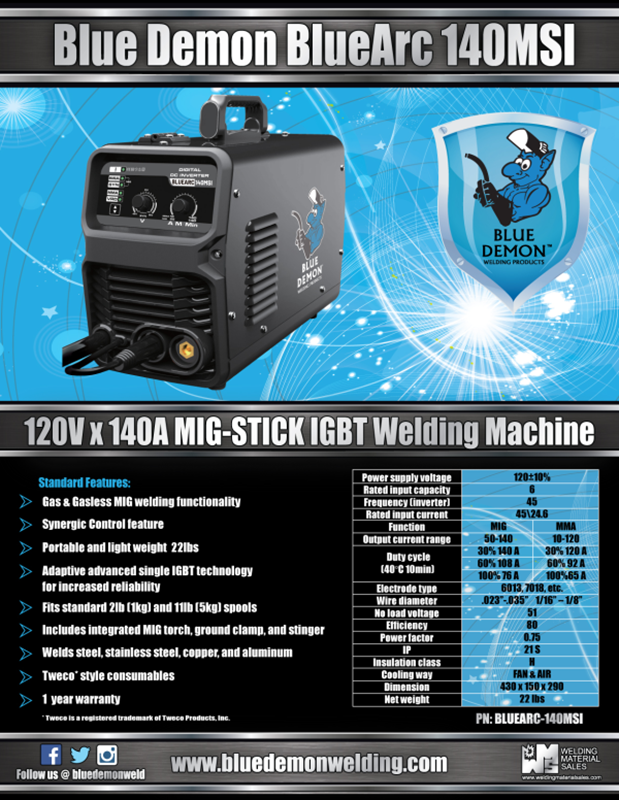

Blue Demon BlueArc 140MSI MIG/Stick Welder

Blue Demon BlueArc 140MSI MIG/Stick Welder #BLUEARC-140MSI

Inverter Welding Machine, MIG and STICK capable

Gas & Gasless MIG welding functionality, Synergic Control Feature, Portable and light weight, only 19lbs

Adaptive advanced single IGBT technology for increased reliability

Fits standard 2lb and 11lb spools

Includes integrated MIG torch, ground clamp, and stinger

Welds steel, stainless steel, copper and aluminum

Gas and gasless functionality

Synergic control feature

Portable

Weighs 22 lbs.

Adaptive advanced single IGBT technology for increased reliability

Fits standard 2 lb. (1 kg) and 11 lb. (5 kg) spools

Welds steel, stainless steel, copper, and aluminum

Includes integrated MIG torch, ground clamp, and stinger

Power supply voltage: 120 +/- 10%

Rated input capacity: 6

Frequency (inverter): 45

Rated input current: 45/24.6

Electrode type: 6013, 7018

Wire diameter: .023 in. - .035 in. (1/16 in. - 1/8 in.)

No-load voltage: 51

Efficiency: 80

Power factor: 0.75

IP: 21 S

Insulation class: H

Cooling: Fan and Air

Dimensions: 20 in. x 6 in. x 11.500 in. (430 mm x 150 mm x 290 mm)

Net weight: 22 lbs.

MIG Function:

Output current range: 50-140

Duty cycle @ 104 degrees F (40 degrees C) for 10 minutes:

140 Amp - 30%

108 Amp - 60%

76 Amp - 100%

MMA (Manual Metal Arc) Function:

Output current range: 10-120
Duty cycle @ 104 degrees F (40 degrees C) for 10 minutes:
120 Amp - 30%
192 Amp - 60%
65 Amp - 100%

BlueArc 140MSI Manual
