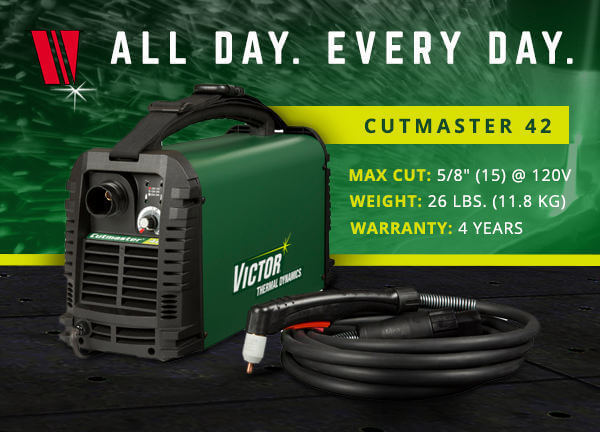

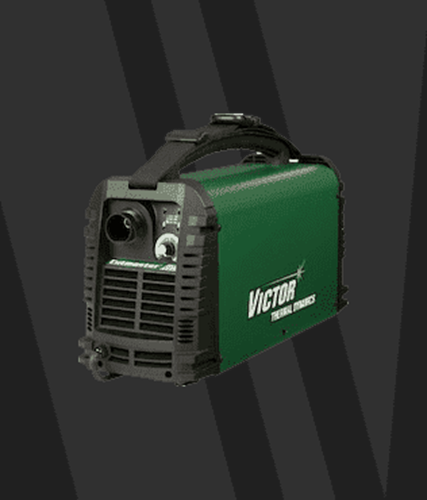

Thermal Dynamics Cutmaster 42 Plasma Cutter #1-4200
Part Number: 1-4200
Cut capacity:
VideosThermal Dynamics CUTMASTER 42 Plasma Cutter #1-4200
Overview:
40 Amp
SL40, 75 Deg Head
15 ft Leads
120/230V
1 ph
50/60Hz
FREE freight shipping to the lower 48! Best-priced name brand plasma cutter on the market! Get one now at our discounted price!
The Thermal Dynamics True Series Cutmaster 42 #1-4200 is not only one of the most affordable entry-level plasma systems on the market, it is also one of the few systems with the ability to increase power when switching from 120V to 230V. On 120V input, the Cutmaster delivers 27 Amps of output power. Switch to 230V input and you’ve got 40 Amps to work with. It literally gives you “The power of two machines in one.”
Designed to cut up to 1/4" with ease and up to 5/8" when needed, the Cutmaster 42 is perfect for DIY’ers, auto and marine repair, HVAC cutting, light fabrication, roofing construction and trade school use. Its portable, lightweight design and handy carrying case makes it easy to transport to different job sites, too. With the Cutmaster 42, you can work all day at the recommended cut capacity—and when you need that extra punch, you can be confident it’s there.
Since the Thermal Dynamics Cutmaster 42 incorporates Vent2Shield (V2S) technology, it can be run with a considerably smaller compressor--which means less weight to carry around and full compatibility with 120V. In addition to the carrying case, Cutmaster includes gloves, glasses and an SL40 plasma torch. The unit also carries Thermal Dynamics’ industry-leading four-year warranty.
Compare the Thermal Dynamics Cutmaster 42 vs. Hypertherm Powermax 30 Air
Compare the Thermal Dynamics Cutmaster 42 vs. Hypertherm Powermax 30 XP
Compare the Thermal Dynamics Cutmaster 42 vs. Miller Spectrum 375
Try these accessories with your new CUTMASTER 42 Plasma Cutter
Thermal Dynamics Cutmaster 42 Plasma Cutter Features
- CUTMASTER 42 power supply

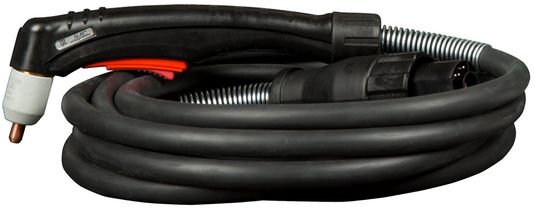

- All new SL40 torch
- Safety gloves & glasses
- Instructional plasma cutting DVD
- Consumables set
- Heavy-duty carrying case
- Power plug adapters
FREE TOTE, LIMITED TIME!
Shop Plasma Cutting Machines, plasma cutting accessories and plasma cutting consumable parts from Welders Supply.
View All
Specifications |
|
|
Process(es) |
Manual Air Plasma Cutting |
|
Torch Model |
SL40 |
|
Applications |
Auto Body/Marine Repair |
|
Recommended Cut - Inches (mm) |
1/4" (6) |
|
Max Cut - Inches (mm) |
5/8" (15) |
|
Piercing Rating - Inches (mm) |
1/4" (6) |
|
Rated Output |
40 Amps |
|
Amperage Draw |
29A @ 120 V 15A @ 230V |
|
Output Power (Kw) |
3.8 |
|
Input Voltage - (Volts, Phase, Hz) |
120/230V, 1, 50/60 |
|
Max Amperage Output - (Amps) |
27 @ 120V 40 @ 230V |
|
Duty Cycle (@40 degrees C) |
40% @ 40A |
|
Dimensions (H x W x L) Inches (mm) |
9 x 7 x 18.5 (228 x 117 x 470) |
|
Air Pressure - psi (bar) |
75 (5.2) |
|
Weight |
26 lbs. (11.8 kg) |
|
Warranty - (Unit/Torch) Parts & Labor |
4/1 |
|
Flow - Cfm (l/m) |
3.2 (91) |
Thermal Dynamics/Victor welding equipment
Accessories
Consumables
Product Questions and Answers
Q - What air filter should be used with this?
A - The Thermal Dynamics Plasma Air Filter Kit (#7-7507). This isn't included with this package, and you'll need one before using this machine.
Q - Can this be used for automated cutting?
A - No, you cannot use this on a plasma table.
Q - What torch comes with this?
A - A Thermal Dynamics SL40.
