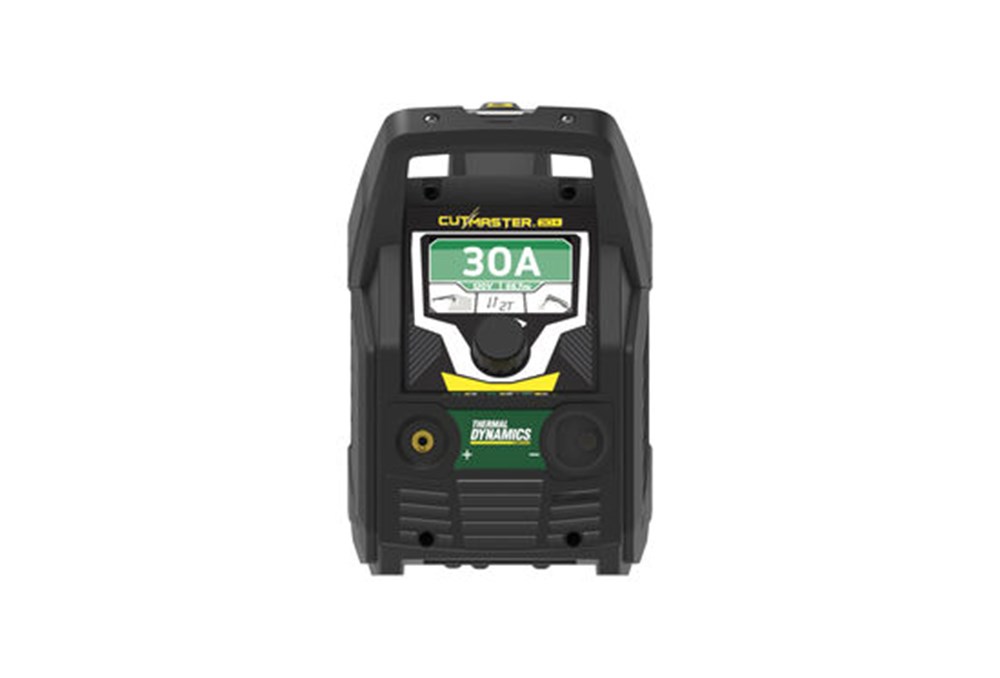

Thermal Dynamics Cutmaster 30+, 120-240V 1PH #1-3000-1
Thermal Dynamics Cutmaster 30+, 120-240V 1PH #1-3000-1
Cut capacity:

3/8" Capacity
Plasma Torch Type:

Handheld
Power supply:

110V

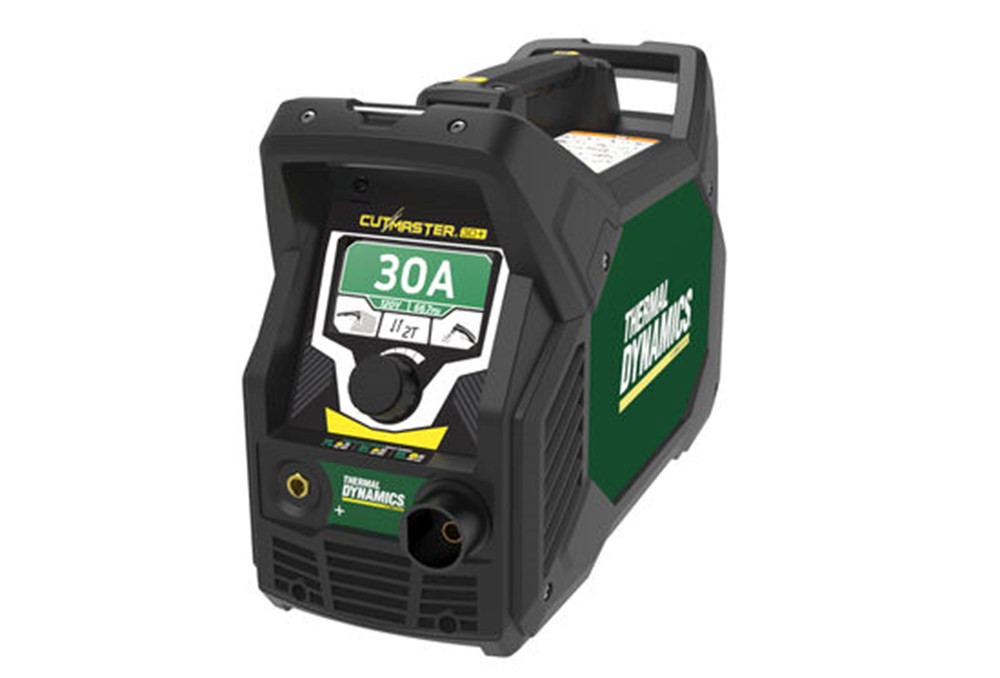

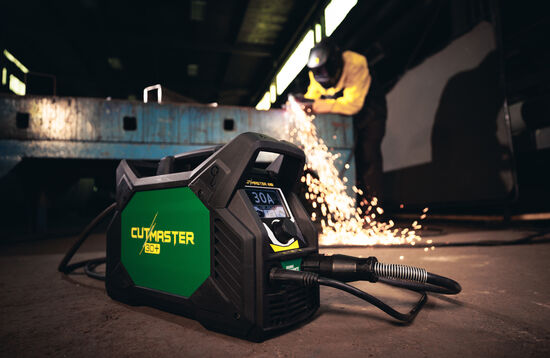

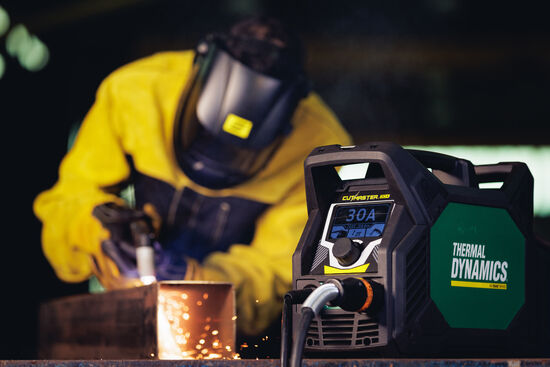

Cutmaster 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 4.3 in. TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm (3/8 in.). Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
Recommended pierce and cut capacity: 10 mm (3/8 in.) Maximum edge cut capacity: 16 mm (5/8 in.)
Industries
Pierce and cut capacity of 3/8 in. and a maximum edge cut capacity of 5/8 in.
40% duty cycle at 30 A and 100% duty cycle at 20 A
Runs on both 110 and 240 V input with auto-voltage detection

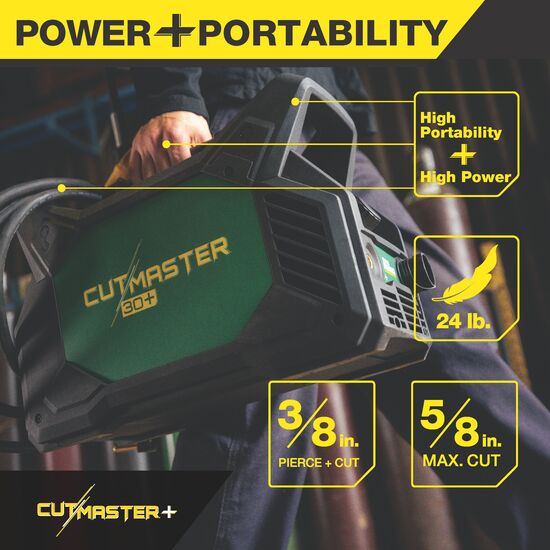

Lightweight design with three handles for easy transportation
Durable, weather-protected IP23S housing

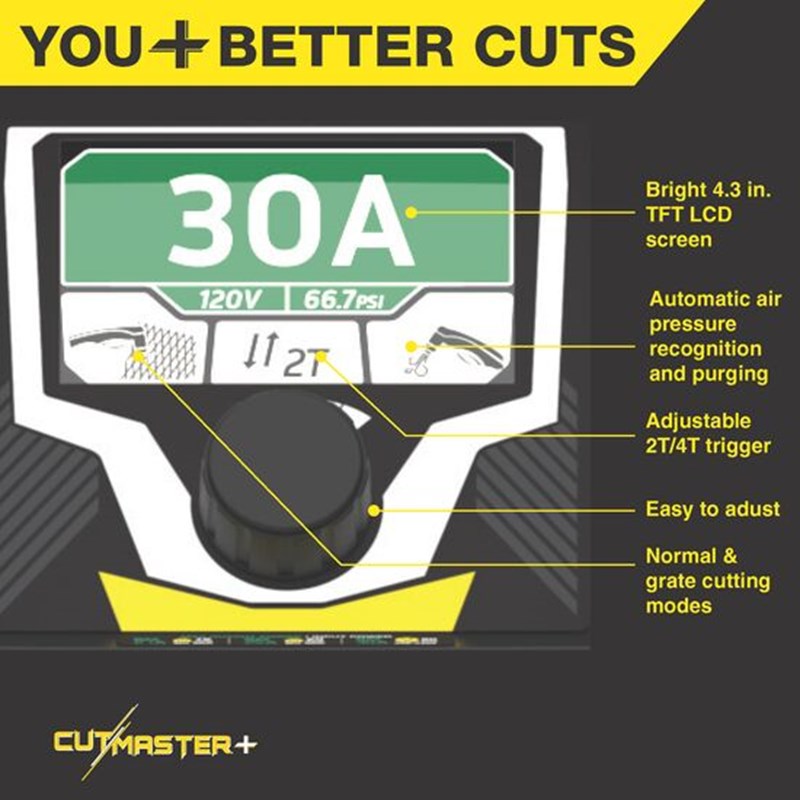

Bright 4.3 in. screen is optimal for displaying settings and making adjustments
Adjustable 2T/4T trigger lock to achieve long cuts by hand or with MechPak
Automatic air pressure recognition and purging for proper cutting pressure and extended consumable life
Comes standard with long-lasting Cutmaster Black Series electrodes
Switch from normal plate to grate cutting mode to extend consumable life when working with expanded metal
Equipped with SL60TM 1Torch® and a full range of consumables for both shielded and unshielded cutting and gouging
*Cutmaster 30+ power supply SL60 75° torch with lead 3 m (10 ft) work lead with ground clamp consumables kit regional input power plugs per above 1/4 in. NPT air fitting. Cutmaster 30+ is compatible with all 11Torch ATC torch connections.
Thermal Dynamics Cutmaster 30+ Specifications | |
---|---|
Amp Low - High | 10 A - 30 A, Continuously adjustable |
Output Power | 4.5 kW |
Input Ratings | 110 – 240 VAC, 1 ph, 50/60 Hz |
Duty Cycle | 20 A @ 100 % duty cycle 30 A @ 40 % duty cycle |
Operating Temperature | -10 – 50 °C ( 14 – 122 °F ) |
Gas Requirements | Compressed Air |
Gas Pressure | 6.2–8.6 bar ( 90–125 psi ) |
Gas Flow | 80–150 l/min ( 170–350 cfh ) |
Severs Manual | 16 mm ( 5/8 in. ) |
Pierces | Up to 10 mm ( 3/8 in. ) |
Enclosure Class | IP23S |
Recommended Cut | Up to 10 mm ( 3/8 in. ) |
SHIPPING DIMENSIONS |
|
Height: | 12.40 Inches |
Width: | 7.90 Inches |
Length: | 18.30 Inches |
Weight: | 24 Lb(s) 4 Oz |
