Forney 220 Multi-Process (MP) Welder #410

Part Number: 410
$1,799.99 + Free Shipping

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

110V

110V

220V Single Phase

220V Single Phase

  • 110V Input
  • 220V Input
  • Single Phase
  • Multi-Process
  • 90 Day Warranty

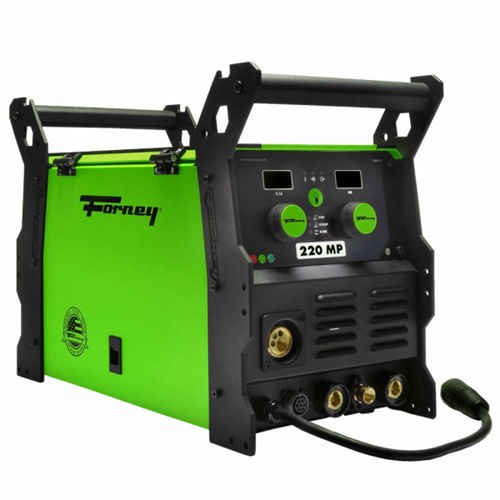

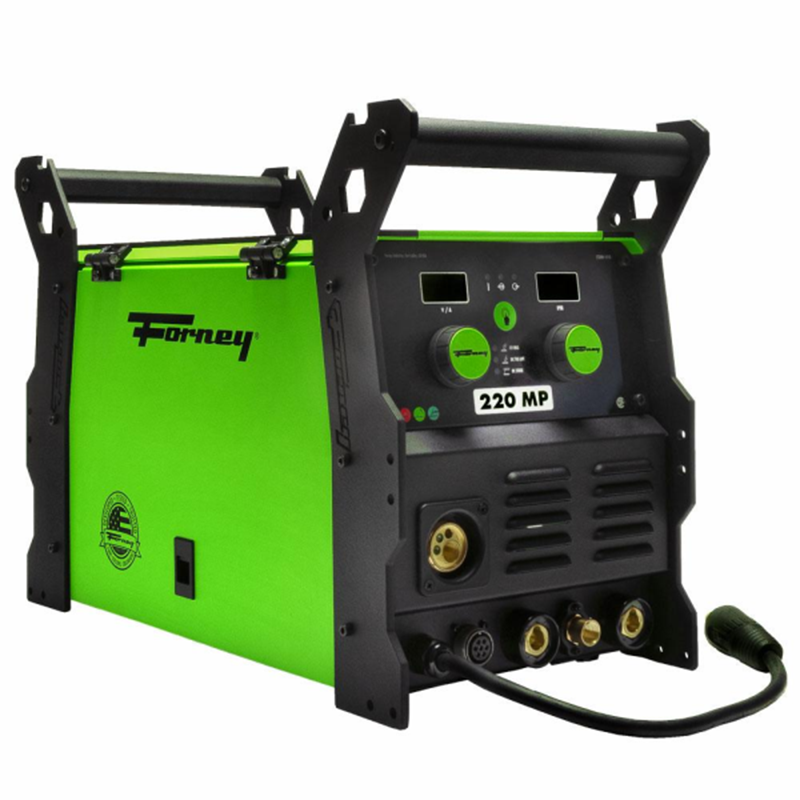

Forney 220 Multi-Process (MP) Welder #410

Multi-process MIG, TIG and Stick welder. 120V/240V input power with 220 AMPs of welding power. This machine is great for many applications including do-it-yourself projects and light industrial work.

The Forney 220 MP welder brings multi-process welding to the next level. Ideal for anything from do-it-yourself projects to light industrial work, this powerful welding machine features dual-voltage with 120V/240V input power. With a high welding capacity of 1/2” and 220 AMPs of welding power, this unit is ideal for use on steel, stainless steel, cast iron and aluminum (with spool gun). This machine is rugged and technologically advanced with a digital display, all-metal drive system and 3-year warranty.

Forney 220 Multi-Process Welder #410Features:

  • All-Metal Drive System
  • Multi-Process
  • Auto Torch Detect
  • Digital Displays
  • Dual-Voltage

Included Accessories:

  • 12.5’ (3.81 m) 200 AMP PRO-Grip MIG Gun
  • 15’ (4.57 m) Ground Clamp with Cable
  • 15’ (4.57 m) Electrode Holder with Cable
  • 15’ (4.57 m) Input Power Cable
  • Flowgauge with Hose
  • Extra Contact Tips

Warranty Information

30 Days

  • Product: Free of defects in material and workmanship that may occur under normal use and care.

90 Days

  • Welder and Plasma Machines: MIG guns and plasma torches.

3 Years

  • Forney Transformer Based Machines: All internal electrical components that cannot be accessed without removing the cover. The transformer and rectifiers are covered by the 5-year warranty.
  • Forney Inverter Based Machines: All internal electrical components that cannot be accessed without removing the cover.

5 Years

  • Forney Transformer Based Machines: Transformers and rectifiers.

For more warranty information, visit: https://www.forneyind.com/support/warranty-information

Shop all Forney productswelding machines or safety equipment available online from Welders Supply.
Forney 220 Multi-Process (MP) Welder #410 Specifications
Processes GMAW (MIG)
FCAW (Flux-Cored)
SMAW (Stick)
GTAW- DC (TIG)
Output Power MIG:
120V: 35% @ 90 AMP
240V: 40% @ 200 AMP

Stick:
120V: 32% @ 80 AMP
240V: 40% @ 200 AMP

TIG:
120V: 35% @ 110 AMP
240V: 40% @ 200 AMP
Input Power 120V @ 21.4 AMP
240V @ 38 AMP
Welding Capacity Up to 1/2 inch
Wire/Electrode Diameters 024” (0.6 mm) to .035” (0.9 mm)
Weldable Metals Solid Steel
Stainless Steel
Cast Iron/Steel
Aluminum with spool gun
