Forney 220 AC/DC TIG Welder Package #420

Part Number: 420
$2,199.99 + Free Shipping

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

110V

110V

220V Single Phase

220V Single Phase

  • 110V Input
  • 220V Input
  • Single Phase
  • Stick Welding
  • TIG Welding
  • 90 Day Warranty

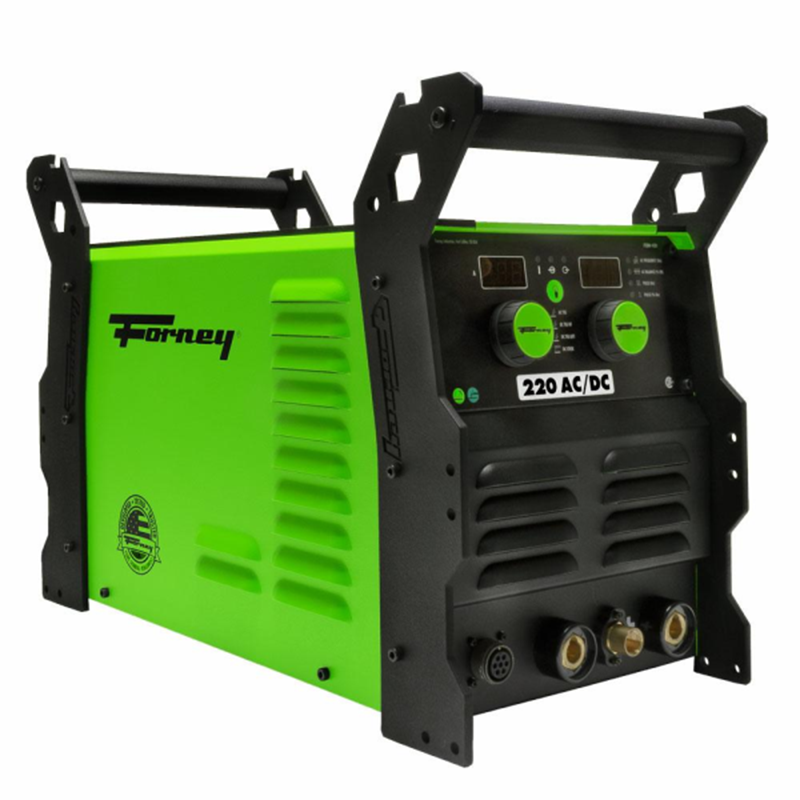

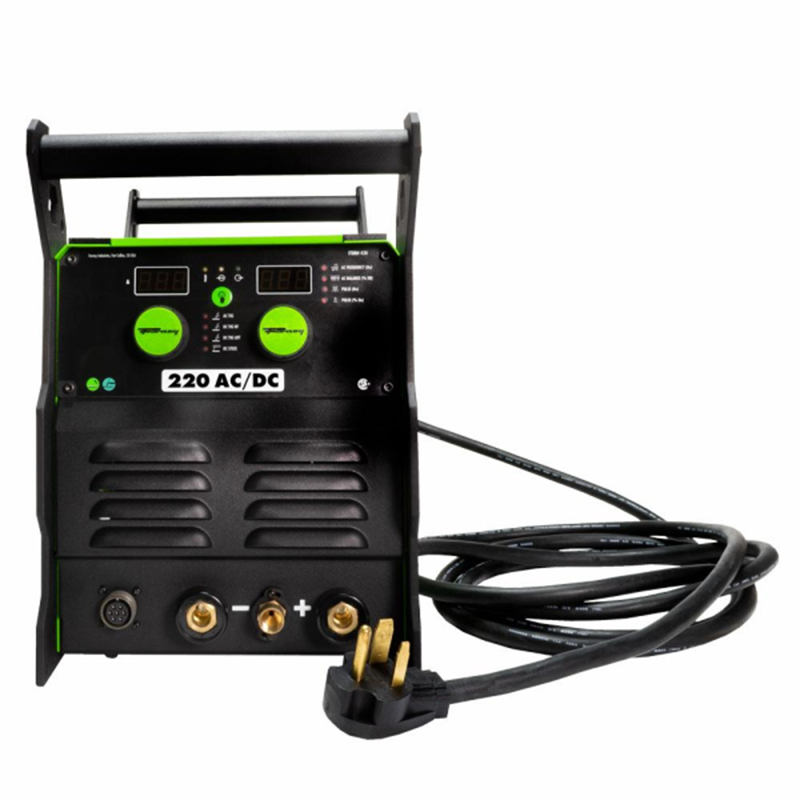

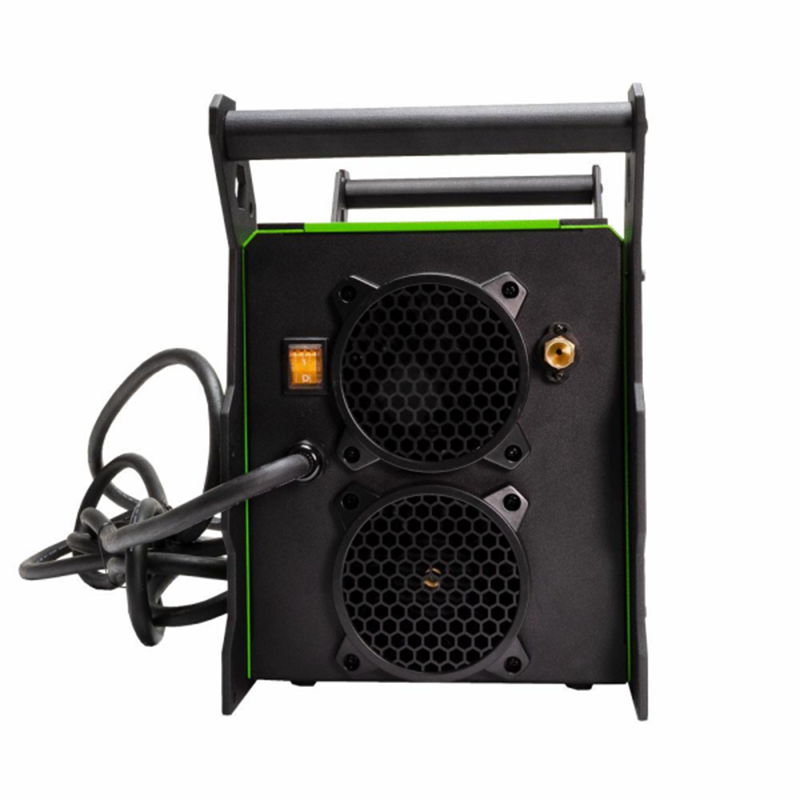

Forney 220 AC/DC TIG Welder Package #420

AC/DC TIG welder. Features 120V/240V input power and 220 AMPs of welding power. This machine is great for many applications including simple metal art projects and professional repairs.

The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/240V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes the machine a great tool for professionals. The intuitive controls allow for quick setup and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze!

Forney 220 AC/DC TIG Welder #420Features:

  • Stable Arc at 5 AMPs
  • Pulse Welding
  • High Frequency Starts
  • Ability to Turn Off High Frequency
  • TIG Torch/Foot Pedal Combination
  • Dual-Voltage
  • Digital Gauges

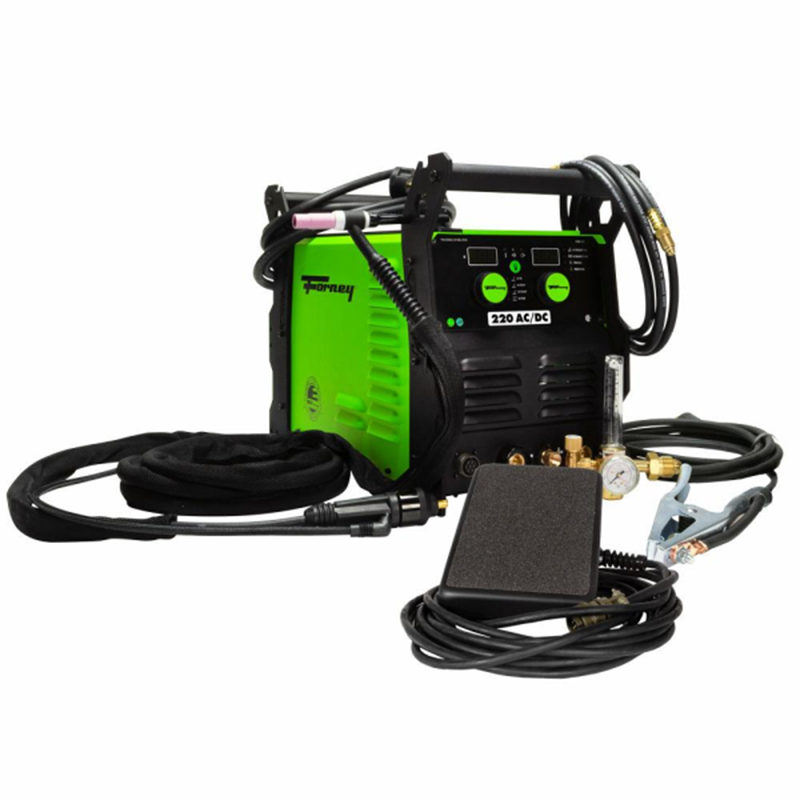

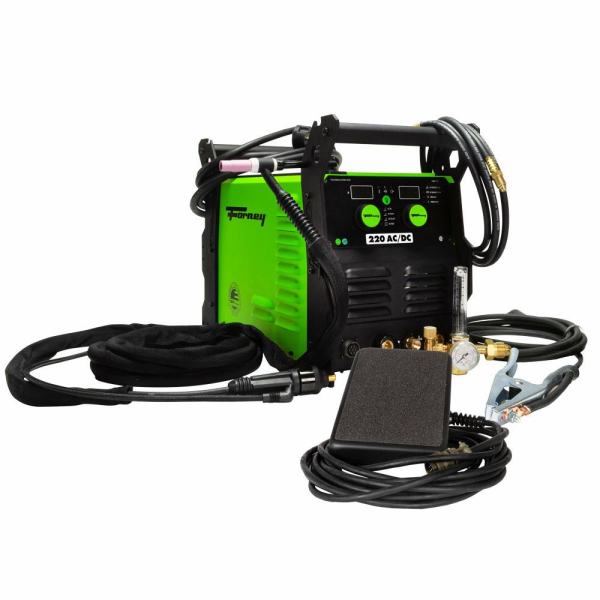

Included Accessories:

  • 12.5' (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck
  • 12.5' (3.81 m) 7 Pin Foot Pedal
  • 15’ (4.57 m) Ground Clamp with Cable
  • 15’ (4.57 m) Electrode Holder with Cable
  • 15’ (4.57 m) Input Power Cable
  • Flowmeter with Hose

Warranty Information

30 Days

  • Product: Free of defects in material and workmanship that may occur under normal use and care.

90 Days

  • Welder and Plasma Machines: MIG guns and plasma torches.

3 Years

  • Forney Transformer Based Machines: All internal electrical components that cannot be accessed without removing the cover. The transformer and rectifiers are covered by the 5-year warranty.
  • Forney Inverter Based Machines: All internal electrical components that cannot be accessed without removing the cover.

5 Years

  • Forney Transformer Based Machines: Transformers and rectifiers.

For more warranty information, visit: https://www.forneyind.com/support/warranty-information

Shop all Forney productswelding machines or safety equipment available online from Welders Supply.
Forney 220 AC/DC TIG Welder Package #420 Specifications
Processes SMAW (Stick)
GTAW- DC (TIG)
GTAW- AC (TIG)
Output Power TIG
120V: 25% @ 120 AMP (AC)
120V: 25% @ 130 AMP (DC)
240V: 35% @ 220 AMP

Stick
120V: 40% @ 85 AMP
240V: 35% @ 200 AMP
Input Power 120V @ 24.8 AMP
240V@ 32 AMP
Welding Capacity Up to 1/2 inch
Wire/Electrode Diameters Stick: 1/16" (1.6 mm) to 5/32" (4.0 mm)
TIG: .040" (1.02 mm) to 1/8" (3.2 mm)
Weldable Metals Solid Steel
Cast Iron/Steel
Stainless Steel
Aluminum
