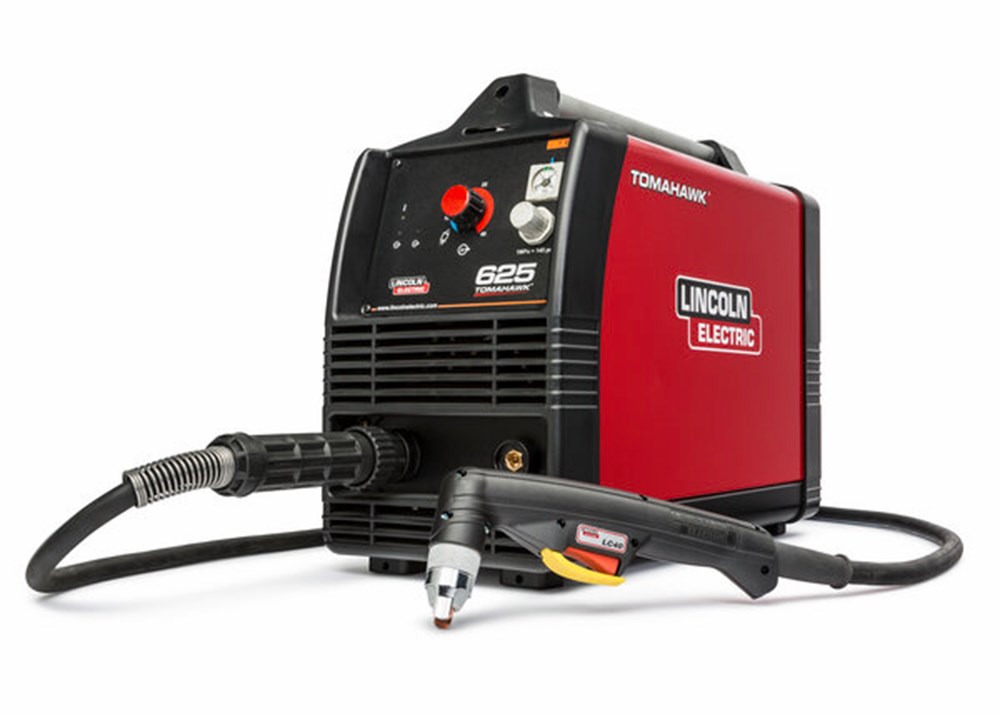

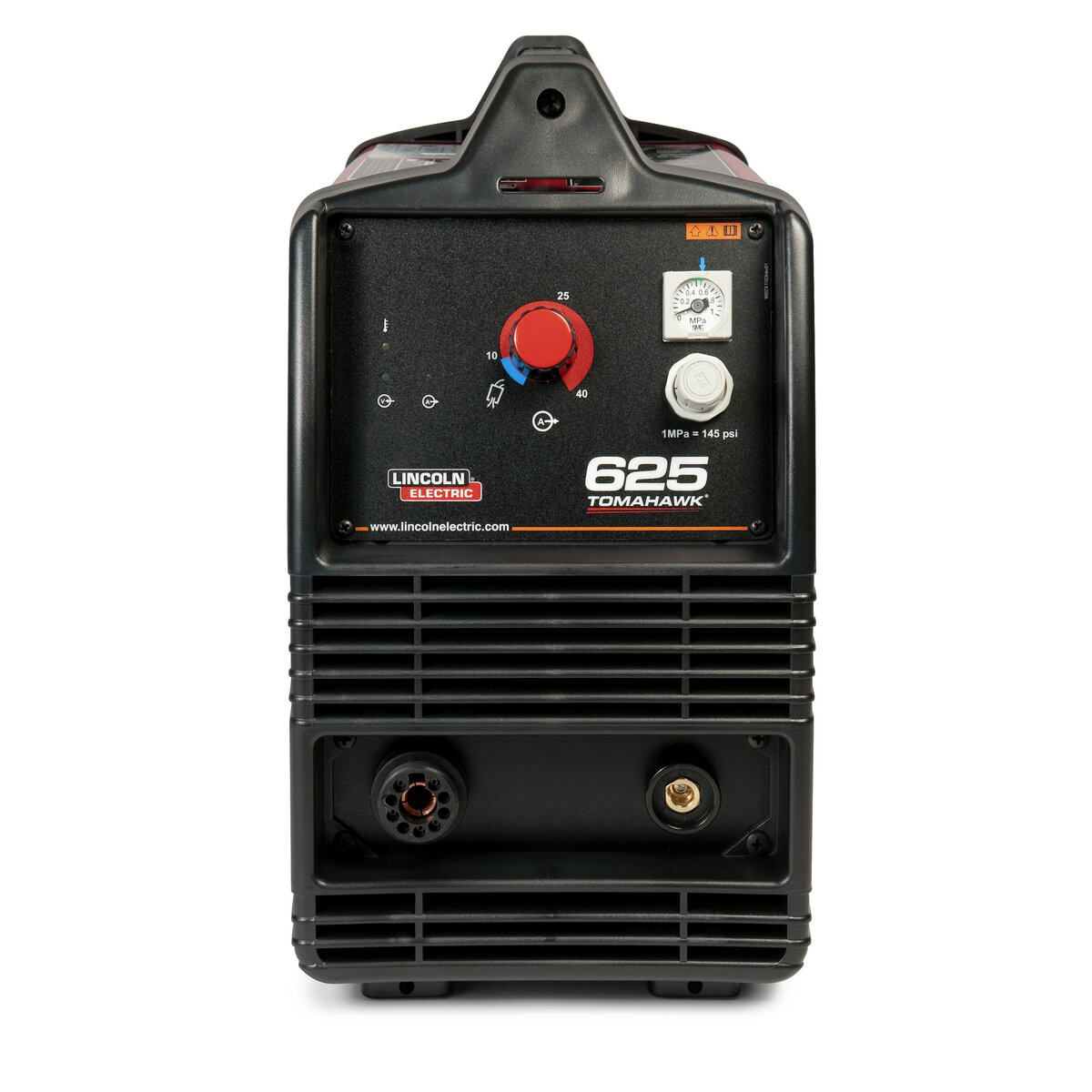

Lincoln Tomahawk® 625 Plasma Cutter with 20 ft (6.1 m) Hand Torch #K2807-1

Part Numbers: K2807-1

Included with your purchase ( ) :

$1,999.00 $2,125.00*
SAVE $126.00
$1,999.00 $2,125.00*
SAVE $126.00

Plasma torch:

Handheld

Handheld

Cut capacity:

1/2" Capacity

1/2" Capacity

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

  • 1/2" cut capacity plasma cutter1/2" Cut Capacity
  • 220 volt welder220V Input
  • Single phase input welding machineSingle Phase
  • Lightweight, portable plasma cutterLightweight & Portable
  • Lincoln Electric hassle-free warrantyHassle-Free Warranty

Lincoln Tomahawk® 625 Plasma Cutter with 20 ft (6.1 m) Hand Torch #K2807-1

Plasma Cutting - Anywhere, Anytime

Tomahawk 625 plasma cutting systems are portable enough to carry to any jobsite. Hook up the compressed air, grab the torch and start cutting right away

  • Lightweight and Portable – Easily carried by one person.
  • Continuous Output Control – Focus the arc for different material thickness.
  • Touch Start System – Reliable plasma arc initiation without high frequency.
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
  • Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life - New electrode and nozzle design helps you save money in the long run.
  • Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
  • Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations
  • Optional Machine Plasma Torch available for use on CNC plasma cutting tables.

What's Included

  • LC40 hand torch and 20 ft. (6 m) cable with electrode | nozzle 40A | swirl ring | retaining cap (standard) | drag spacer
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables include (2) electrodes | (2) nozzles 40A | (1) swirl ring
  • Shoulder strap
  • Input power cord
Shop all plasma cutters and plasma cutting consumables available from Welders Supply.
Lincoln Tomahawk® 625 #K2807-1 Specifications
Input power

208/230V

36.8A (max)

50/60 Hz

1-Phase

Gas supply

Air or Nitrogen

80 - 110 psi (6 -7.5 Bar)

Recommended cutting capacity (mild steel) 1/2 in @ 20 ipm (12.7 mm. @ .51 m/min)
Maximum cutting thickness (mild steel) 5/8 in @ 12 ipm (15.9 mm. @ .30 m/min)
Maximum severance (mild steel) 3/4 in @ 5 ipm (19.1 mm. @ .13 m/min)
Typical application Construction
Automotive
General Fabrication
Marine Fabrication & Repair
Structural Fabrication

SHIPPING DIMENSIONS

Height: 15.20 Inches
Width: 8.50 Inches
Length: 18.90 Inches
Weight: 34 Lb(s) 0 Oz
