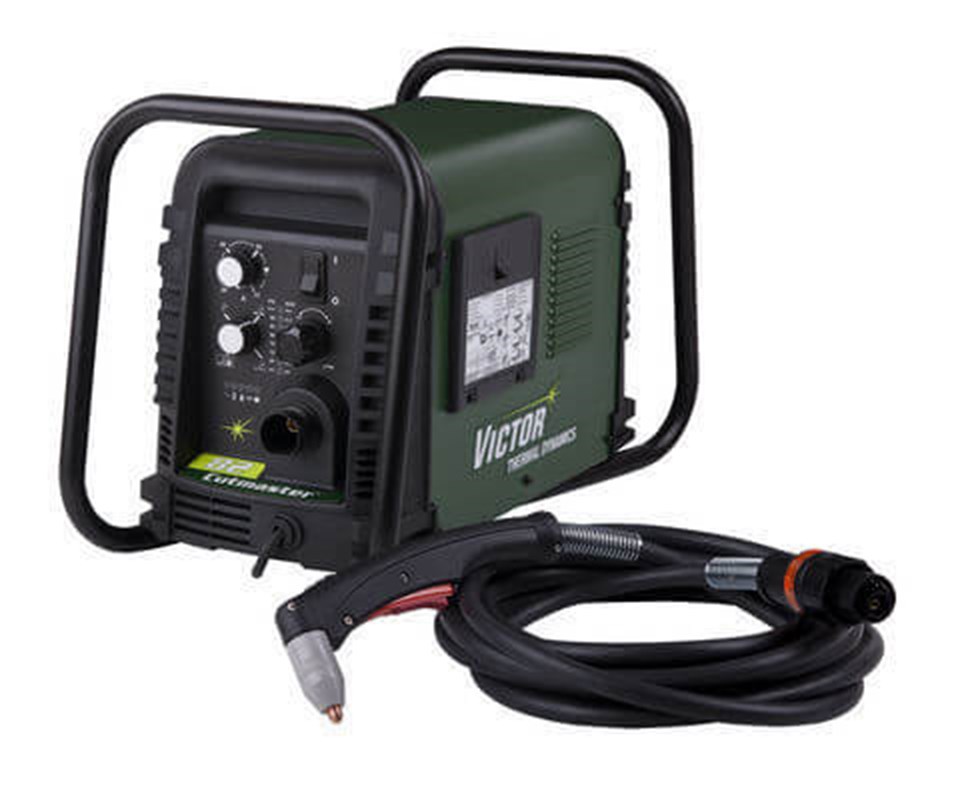

Thermal Dynamics Cutmaster 82 Plasma System, 80 Amp, SL60, 75 Deg Head, 50 ft Leads, 208-230V, 1Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1131-1

Part Numbers: 1-1131-1
UPCs: 0699488001236

Included with your purchase ( ) :

Cutmaster 1-1131-1
Thermal Dynamics Cutmaster 82 Plasma Sys...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$3,599.00 + Free Shipping $4,499.00*
SAVE $900.00
$3,599.00 + Free Shipping $4,499.00*
SAVE $900.00
Starts at $599.83/month with

Cut capacity:

3/4" Capacity

3/4" Capacity

Plasma torch:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 220V Single Phase
  • 1" and Higher cut capacity
  • 1 Year Warranty
  • Lightweight and Portable
  • MultiVoltage

Thermal Dynamics Cutmaster 82 #1-1131-1

CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 82 weighs in at a mere 43 lbs. (19.5 kg) almost 50% less than its leading competitor, while still offering superior cutting power. Don’t let the size of this unit fool you, it’s more than capable of cutting 3/4.

Warranty: 1 Year

Included Features

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)
  • Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)
  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
  • Power Supply
  • 50ft. (15.2m) Lead
  • 1Torch SL60, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable without plug
  • Work Cable and Clamp
  • Spare Parts Kit
  • Operating Manual

 Other Features

  • Front Panel LEDs indicate status conditions for maximum efficiency
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch. True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208 to 480 Volts in a single power supply
  • Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Lighter weight design for maximum portability
Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories

Other Versions:
1-1130-1 230V 20 Ft. Hand Torch
1-1130-5 600V 20 Ft. Hand Torch
1-1131-2 460V 50 Ft. Hand Torch

General Specifications

Process(es)

Manual Air Plasma Cutting

Industrial Applications

Heavy Fabrication

Manufacturing

Contractors

Maximum Amperage Output

80A

Output Power

9 kW

Recommended Cut

3/4" (20 mm)

Maximum Cut

1 1/2" (40 mm)

Pierce Rating

5/8" (15 mm)

Amperage Range

20-80 Amps

Input Voltage

208-230V, 1Ph, 50/60 Hz Ready

Duty Cycle (@ 40 deg C)

40% @ 80A

60% @ 65A

100% @ 55A

Amperage Draw

72A @230V, 1Ph




Dimensions: (H x W x D)

15" ( 381 mm) x 12" (305 mm) x 24" (610 mm)

Weight

43 lbs (19.5kg)

Pilot

Start Cartridge

Control

Hand Torch Switch or Hand Pendant Control

Warranty (Parts & Labor)

4 Years

Certifications

IP23S



Torch Specification



Hand Automated & Mechanized

SL60

Air Pressure

70 psi (4.8 bar)

Flow

6.7 cfm (190 l/m)

Torch

SL60 with ATC (hand), SL100 (mechanized)

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 12.00 Inches
Length: 24.00 Inches
Weight: 43 Lb(s) 0 Oz

Product Questions and Answers


Q - What torch does this come with? A - The hand torch is an SL60 with ATC, the mechanized torch is an SL100.
Q - How thick can it cut? A - Maximum cut is 1.5", recommended cut is 3/4"
