Miller Bobcat 200 Air Pak™ #907706

Part Number: 907706

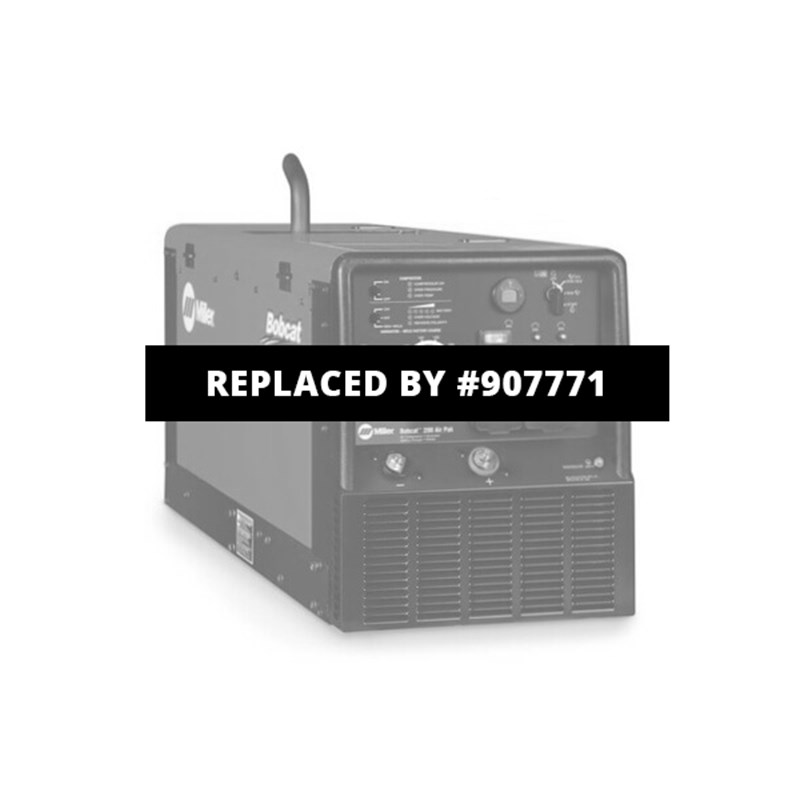

Discontinued - Replaced by Miller Bobcat™ 200 Air Pak 907771

Out of Stock
$8,949.00 $11,344.42*
SAVE $2,395.42

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Stick Welding
  • Built-In Compressor
  • 3-Year Power Warranty

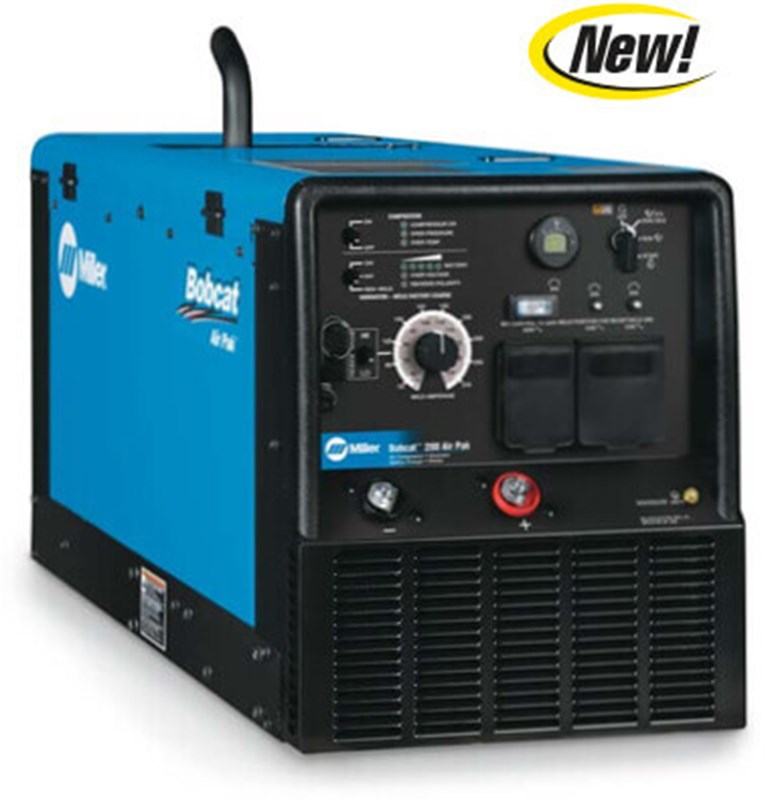

Miller Bobcat 200 Air Pak™ #907706

NEW! The Miller Bobcat 200 Air Pak™ is the industry-leading power solution for increasing your capabilities, reducing your expenses and boosting profitability and efficiency. Get it here at Welders Supply Company!

Maximize available payload. Reduce weight by up to 550 pounds and increase available payload by up to 24 cubic feet.

Reduce fuel consumption. Minimize fuel costs by reducing truck engine idle time by as much as 75 percent or if you have a separate engine-driven compressor by only operating one engine.

Minimize operating costs. Potentially save more than $50,000 over ten years from increased fuel efficiency, decreased maintenance costs, and increased asset life.

Professional Appearance. The components of the Bobcat 200 Air Pak are concealed within a durable, environment resistant, precision-engineered enclosure.

Bobcat 200 Air Pak™ Features

Air compressor

The industrial rotary-screw air compressor in the Bobcat 200 Air Pak easily outperforms and outlasts reciprocating compressors. Virtually any air tool can be powered by the compressor including 3/4-inch and 1-inch impact wrenches. No waiting for an air tank to fill. When you are ready to work, so is the Bobcat 200 Air Pak. It immediately supplies 28 cfm at 175 psi, 100 percent duty cycle — continuous air output to get the job done. Designed for dependability, the air compressor requires minimal maintenance and is engineered to provide years of reliable service.

Generator power

 Electrical tools, lights, and more! The Bobcat 200 Air Pak provides a 5,500-watt generator that can handle most job site electrical needs. Four 120-volt receptacles and one 240-volt receptacle provide 60 Hz current to support job site electrical tools, lights, and even high-demand applications like plasma cutters and TIG welders

Battery charge/crank assist

The Bobcat 200 Air Pak produces up to 100 amps of DC current to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist from the Bobcat 200 Air Pak.

DC stick welding

The stick welder in the Bobcat 200 Air Pak can minimize downtime and delays by allowing you to make metal repairs in the field and stay on schedule. The easy-to-use amperage selector lets operators choose the right setting for the job from 50 amps to 210 amps. Like all Miller® machines, the high-quality stick welder in the Bobcat 200 Air Pak is engineered and built to deliver dependable results.

Legendary Reliability

Easy-starting power With industry-exclusive eChoke™* technology, the Bobcat 200 Air Pak starts easily in any weather — and its powerful engine allows simultaneous use of the air compressor with any other feature. *eChoke is a trademark of Kohler Co.

Testing

Ruggedly built and rigorously tested to ANSI and CSA standards, the Bobcat 200 Air Pak is proven to withstand high temperatures, rain, salt, dust, impact, vibration and more. Its welding, auxiliary power, battery charging, and crank assist systems are tested to meet the highest applicable industry safety standards.

Shop our welding machines, welding helmets, and welding equipment and accessories here.

Other Versions of the Miller Bobcat™ 200 Air Pak:

General Specifications

Title Miller Bobcat 200 Air Pak™ #907706
Industries Interests Construction
Farm and Ranch
Maintenance and Repair - Field Operations
Mechanical Contracting
Work / Service Trucks
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed 3600 RPM
Fuel Tank Size 7
Fuel Type Gasoline
Horsepower 23.5 hp
Rated Output CC/DC Stick 210 A at 25V, 30% duty cycle
CC/DC Stick/ 150 A at 26V, 100% duty cycle
Single Phase Generator Continuous Power 5500 W
Single Phase Generator Peak Power 5500 W
Current Type DC
Net Width 20 in
Net Height 23.76 in
Net Length 46.64 in
Net Weight 558 lbs
Warranty Miller's True Blue Warranty
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)

SHIPPING DIMENSIONS

Height: 31.00 Inches
Width: 28.00 Inches
Length: 56.00 Inches
Weight: 570 Lb(s) 0 Oz

Product Questions and Answers


Q - Has this been discontinued? A - Yes, the new model is the 200 Air Pak #907771

Have a question about this product? Submit your question using the form below

Related Products

Bobcat™ / Trailblazer® GFCI Receptacles #300975
Bobcat™ / Trailblazer® GFCI Receptacles #300975
$200.00
Get the lowest price on  Miller 50 ft. 2/0 Welding Cables #173851 at Welders Supply
Miller 2/0 50ft Electrode & 50ft work cables
$1,118.00
Miller 2-in-1 Document & Fire Extinguisher Holder #301236
Miller 2-in-1 Document & Fire Extinguisher Holder #301236
$471.00
Buy Miller Oil Heater for EnPak®/ Bobcat™ & Trailblazer® Air Pak #301448 Online at Welders Supply
Miller Air Compressor Oil Heater for EnPak®/ Bobcat™ and Trailblazer® Air Pak Mo…
$494.00
Buy Miller Auxiliary Fuel Tank Pump #301450 Online at Welders Supply
Miller Auxiliary Fuel Tank Pump #301450
$484.00
Miller Bobcat 200 Air Pak Running Gear #301460
Miller Bobcat 200 Air Pak Running Gear #301460
$1,785.00
Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
Miller Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
$161.00
Bobcat™ / Trailblazer® Engine Tune-Up Kits (gas only, not EFI) #230015
Miller Bobcat™ / Trailblazer® Engine Tune-Up Kits (gas only, not EFI) #230015
$88.85
$89.38
Miller Cable tree #043826
Miller Cable tree #043826
$522.00

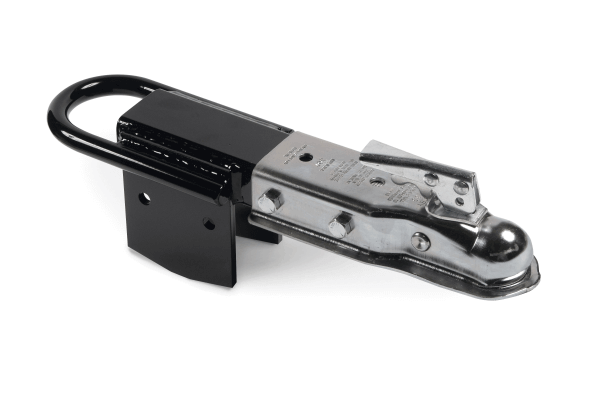

Miller Dual Hitch #301441
