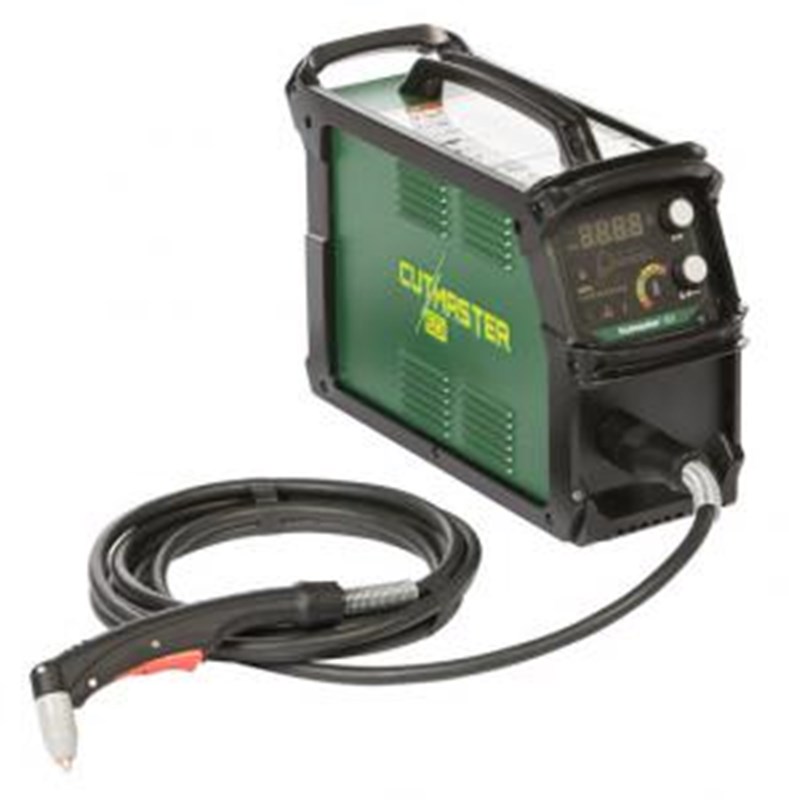

Thermal Dynamics Cutmaster 60i #1-5631-1 w/ 50' Torch

Part Numbers: 1-5631-1X
UPCs: 0699488026475
1 Review

Included with your purchase ( ) :

60i machine
Thermal Dynamics Cutmaster 60i #1-5631-1...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$3,099.00 + Free Shipping $3,649.00*
SAVE $550.00
$3,099.00 + Free Shipping $3,649.00*
SAVE $550.00

Call 844-682-0205 or CHAT for more options

Cut capacity:

1/2" Capacity

1/2" Capacity

Plasma torch:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 5/8" Cut Capacity
  • Multivoltage
  • Single Phase
  • 50 ft leads
  • Hand torch included

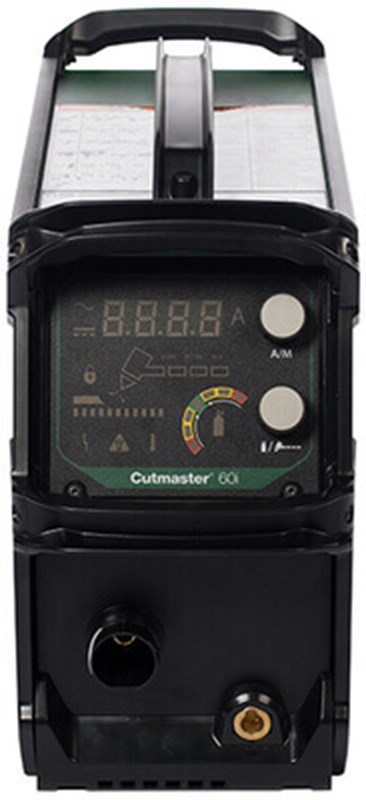

Thermal Dynamics Cutmaster 60i w/ 50' Torch #1-5631-1

The Cutmaster® 60i is the newest addition to the plasma Cutmaster line. The Cutmaster 60i is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 60i also has best in class cutting arc length and the most empowering and engaging user experience no matter the application.

Cutting Specifications

Pierces 5/8 in. (16 mm)
Recommended Cut 5/8 in. (16 mm)

Dimensions

Model Input Power Cable and Plug Work Lead with Ground Clamp
Description or Qualifier single phase 8AWG 3/C with NEMA 6-50P Plug #8 work cable with 50 mm connection
Height 14.15 in.
593 mm
14.15 in.
593 mm
Length 21.12 in.
9 ft
2.7 m
536 mm
20 ft
21.12 in.
536 mm
6 m
Width 7.85 in.
199 mm
7.85 in.
199 mm

Input Ratings

Frequency Hz 50/60 Hz
Phases 1
VAC 208-480 ± VAC
Amps 43 A
Volts 208 V
Amps 39 A
Volts 230 V
Amps 19 A
Volts 480 V

Operating Specifications

Minimum Air Supply 6.2-8.3 bar (90-120 psi)
Open Circuit VAC High 300 VAC
Operating Temperature 0 - 50 °C (32 - 122 °F)

Output Ratings

Output Current AC 10 - 60 A
Output Power 7.6 kW
Amp High 60 A
Duty Cycle 50 %
Amp High 50 A
Duty Cycle 60 %
Amp High 40 A
Duty Cycle 100 %

Plasma Gas Requirements

Gas Flow 300-500 cfh (8520-14100 l/min)
Gas Pressure 6.2-8.3 bar (90-125 psi)
Gas Requirements Compressed Air

Weight

Weight 16.8 kg (37 lb)



Shop all plasma cutting machines available online at Welders Supply.

Amperage Output 10–60 A, continuously adjustable

Rated Output Power 7.6 kW

Open-Circuit Voltage (OCV) 300 V

Input Voltage 208–480 VAC ± 10%

Number of Phases 1 ph

Supply Frequency 50/60 Hz

Rated Duty Cycle
50% @ 60 A
60% @ 50 A
100% @ 40 A

Amperage Draw
43 A @ 208 V
39 A @ 230 V
19 A @ 480 V

Enclosure Rating IP23S

Input Power Cable and Plug 9 ft. (2.7 m) single phase 8 AWG 3/C with NEMA
6-50P Plug

Work Lead with Ground Clamp 20 ft. (6 m) #8 work cable with 50 mm connection

Gas Requirements Compressed air

Operating Temperature Range 32°F–122°F (0°C–50°C)

Input Pressure 90–125 psi max (8.6 bar)

Air Flow Requirements (cutting and gouging) 300–500 scfh / 5–8.3 cfm (142–235 l/s)

Power Supply Gas Filtering Ability Particulates to 5 Microns

Recommended Cut 5/8 in. (16 mm)

Maximum Sever 1 1/2 in. (38 mm)

Pierce Rating 5/8 in. (16 mm)

Torch Duty Cycle 100% at 60 A @ 400 scfh air flow

Torch Air Pressure 75 psi (5.2 bar)

Torch Air Consumption 6.7 cfm (190 l/s)

Torches (for use with the Cutmaster 60i)
SL60QD 1Torch (supplied)
SL60/SL100 1Torch
SL100 Mechanized 1Torch
SL100SLV Automated 1Torch

SHIPPING DIMENSIONS

Height: 22.00 Inches
Width: 12.00 Inches
Length: 20.00 Inches
Weight: 40 Lb(s) 0 Oz

Customer Reviews

Thermal Dynamics Cutmaster 60i Review
By: Michael
on 12/6/2017
"That is a good cutting machine. Awesome machine for cutting steel" - Review originally posted on cyberweld.com

Product Questions and Answers


Q - Does the torch that comes with this have the ATC? A - Yes, the SL60QD 1Torch has Thermal Dynamics' Advanced Torch Connector that lets you replace either the torch handle assembly or torch leads using the patented SureLok design.
Q - What compressor would I need with this? A - You'll need one with a minimum 125psi at 300-too scfh.
