Miller XR-S Control #300601

$2,284.20 $2,953.00 Reduced Price You Save $668.80
Product Number: 300601
QTY:
Financing AVAILABLE!

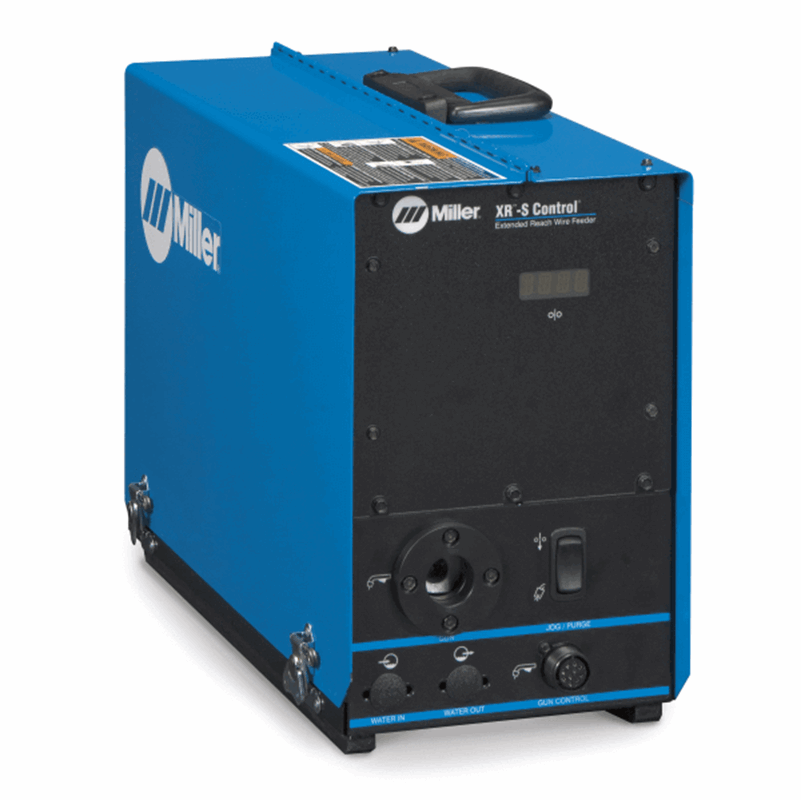

Miller XR-S Control #300601

The XR-S Control is a simple, cost-effective push-pull wire feeder for fabrication and manufacturing for use with a push-pull gun. It is good for feeding aluminum wire.

True Torque Feed Motor

Push-pull design provides continuous push force to the wire while the gun motor controls the speed at the gun. The motors work together to provide accurate and positive wire feed speed without wire shaving or deformation.

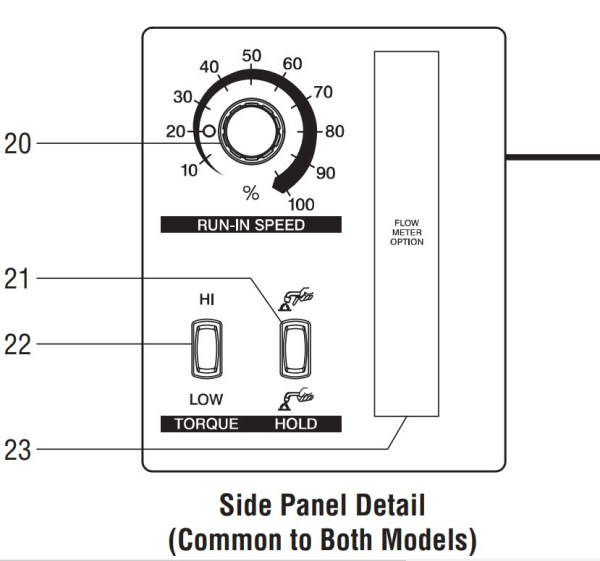

Trigger Hold

Reduce fatigue by allowing operators to weld without holding gun trigger.

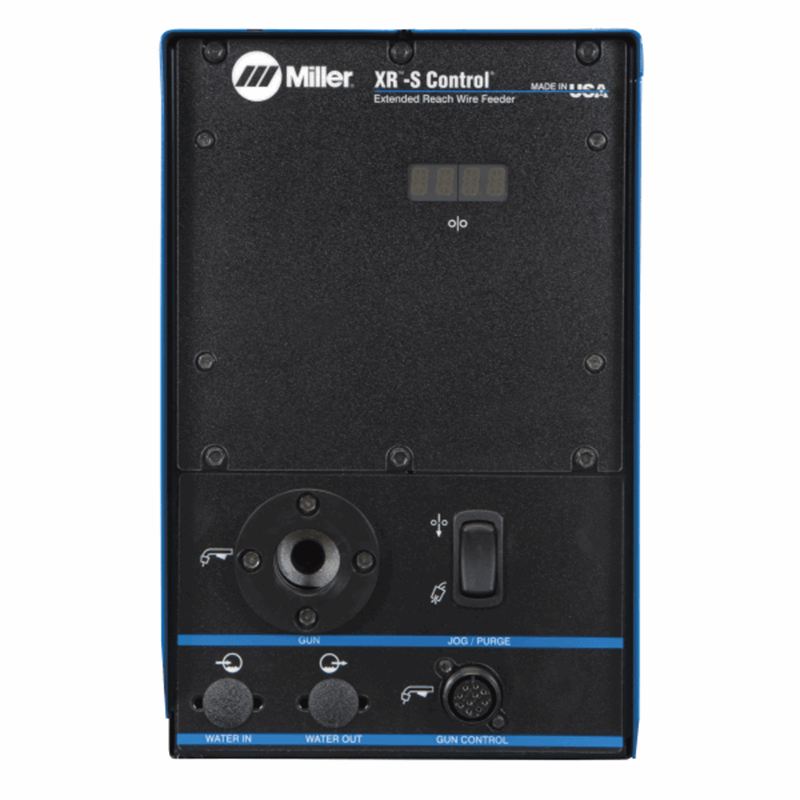

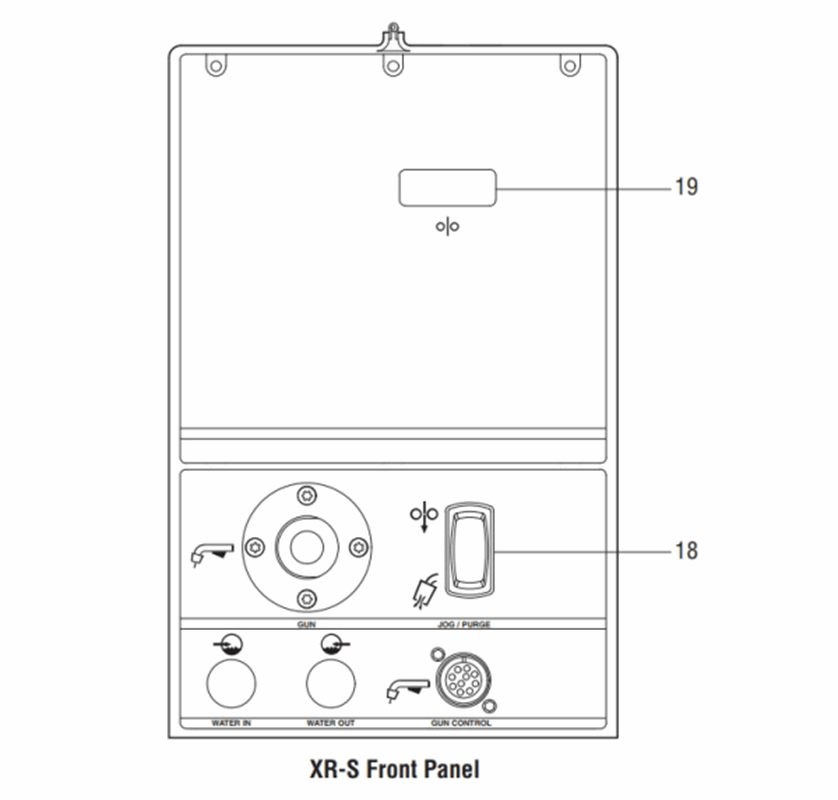

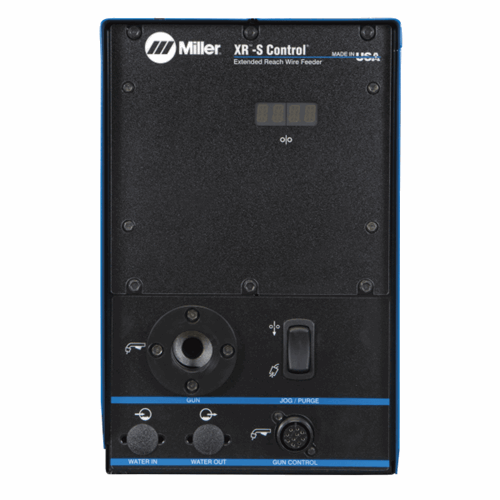

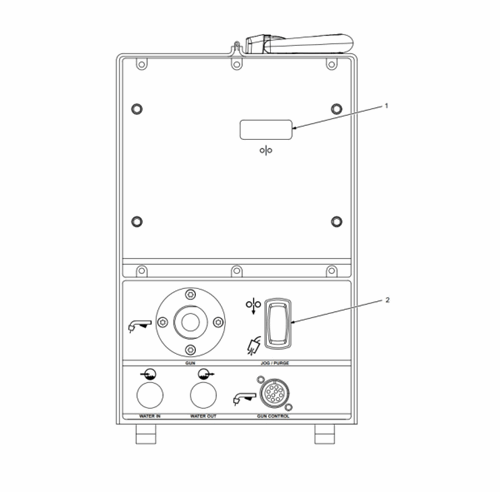

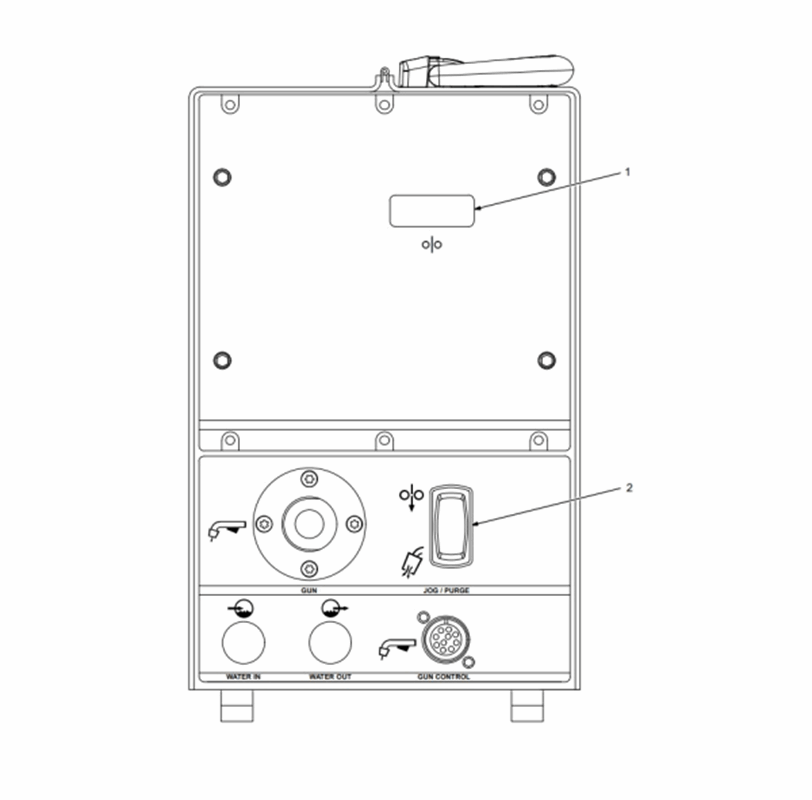

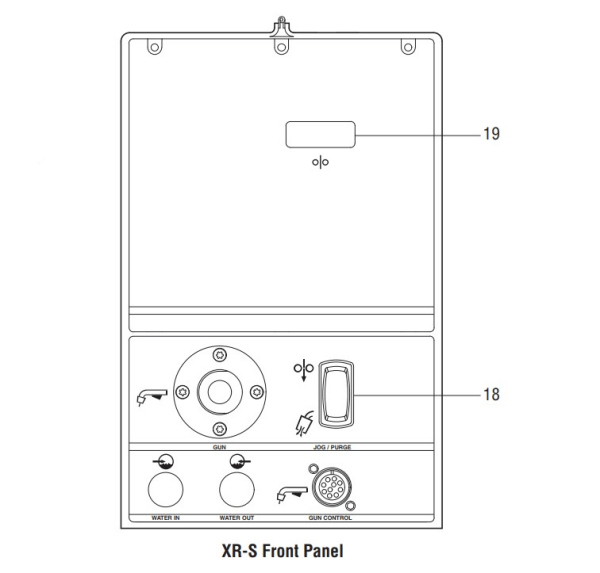

Wire Jog Control

Allows wire to be threaded through gun cable without energizing weld output.

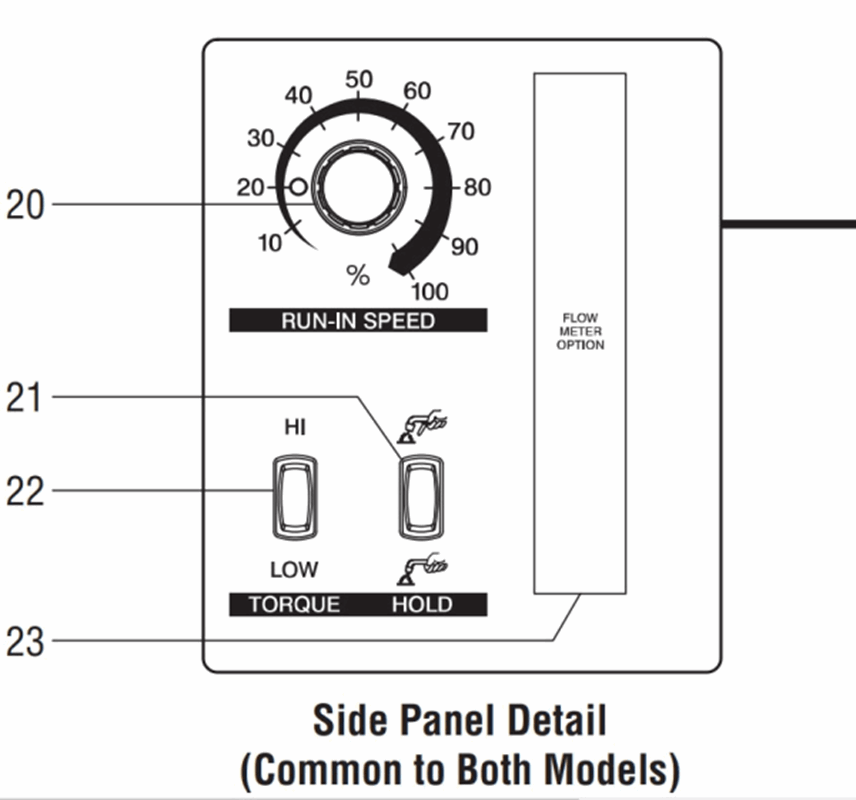

Adjustable Wire Run-in Control

Allows arc start fine-tuning and reduces wire stubbing or arc flaring which can result in contact tip burnback.

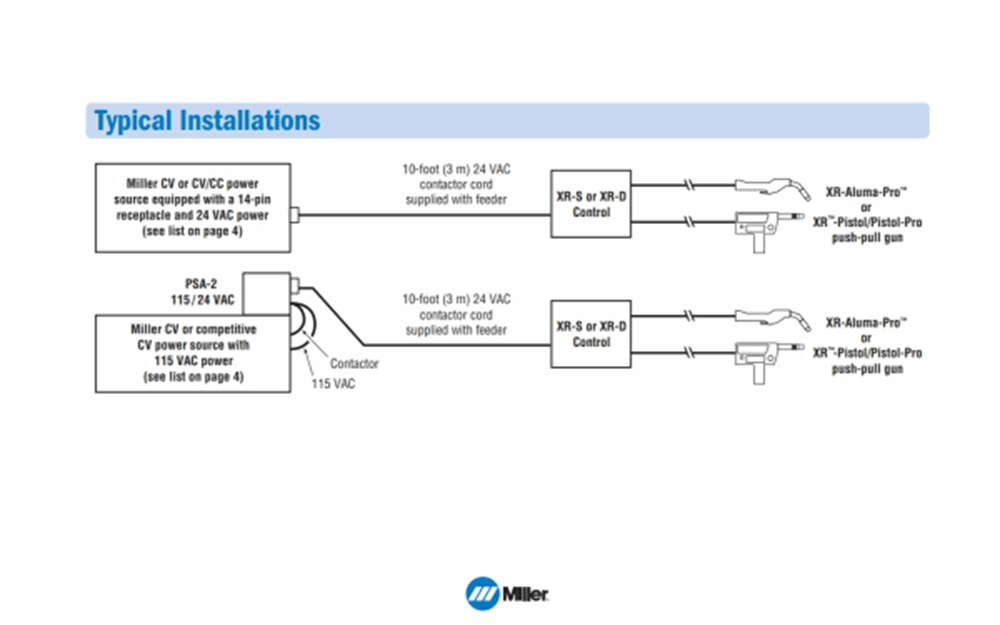

Input Power 24 VAC, 5 A, 50/60 Hz

Wire Feed Speed 50–900 ipm (1.3–22.9 m/min.)

Wire Type and Diameter Capacity

Aluminum .035–.062 in. (0.9–1.6 mm) Solid Wire .035–.045 in. (0.9–1.2 mm)

Drive roll kit 268850 required to run 1/16 in. (1.6 mm) wire

Maximum Spool Size Capacity 12 in. (305 mm)

Input Welding Circuit Rating 400 A at 100% duty cycle System duty cycle is limited to gun rating

Net Weight 42.5 lb. (19.2 kg)

Dimensions H: 16 in. (406 mm) W: 9.5 in. (241 mm) D: 21.25 in. (540 mm)

PROCESSES

  • Aluminum Welding
  • MIG (GMAW)
Title XR™-S Control
Industries Interests Aerospace
Boat / Yacht
Auto Repair
Commercial Truck and Trailer
Fabrication
Manufacturing
Railcar
Shipbuilding
Input Circuit Welding Rating 400 A at 100% duty cycle
Power Source Compatibility CV
Spool Size 12 in (305 mm)
Wire Feeder Type Portable
Wire Feed Speed 70 IPM - 900 IPM
Wire Diameter Aluminum 0.03 in 0.062 in
Net Width 9.5 in
Net Height 16 in
Net Length 21.25 in
Net Weight 42.5 lbs
Warranty Miller's True Blue Warranty
Portability Handle(s)
Running Gear / Cart (Optional)

Product Questions and Answers


Q - Can this switch between preflow and postflow? A - Yes, it is factory set with preflow on (0.2 seconds) and post low off. The preflow can be turned off and postflow turned on (3.5 seconds) with the internal dip switch setting.
Q - What size solid wire can this run? A - .035 to .045 in.
