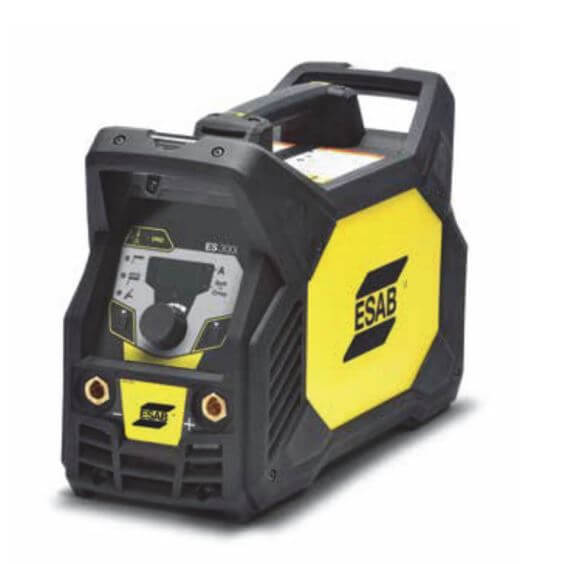

ESAB RENEGADE ES 300i #0445100881

Add to Cart for Pricing
Product Number: 0445100881
Add item to cart for

People who bought this product were also interested in:

ESAB RENEGADE ES 300i #0445100881

Features

  • Extreme power to weight ratio in a most compact format. Rugged composite casing for durability in the roughest environments
  • For professional MMA welding with electrodes up to 6 mm with a high duty cycle of 300 A at 40%. Ideal for operation in high ambient temperatures
  • The machine automatically provides operators with the optimal start and stop parameters based on the set welding current
  • A booster circuit provides additional voltage for superior cellulosic arc starts and welding performance
  • 3 memory settings for easy and quick access to welding parameters

Industries

  • Civil Construction
  • Heavy Fabrication
  • Industrial and General Fabrication
  • Mining
  • Pipe Construction
  • Repair and Maintenance
  • Ship and Offshore Yards
  • Steel Erectors

POWER TO THE WELDER. Renegade runs Stick and TIG and has the widest input power range on the market, making it capable of handling singleand three-phase from 208V to 480V automatically and puts out 5 - 300 amps. To top it off, Renegade has a superior working range at up to 350 ft (107 m) with minimum power loss.

WELD ON THE MOVE. As the most compact and lightweight welder in its class, Renegade is the definition of a field machine. Three handles make it easy to grab it, pull it, push it, or throw it over your shoulder with the padded strap for hard-to-reach areas with limited access.

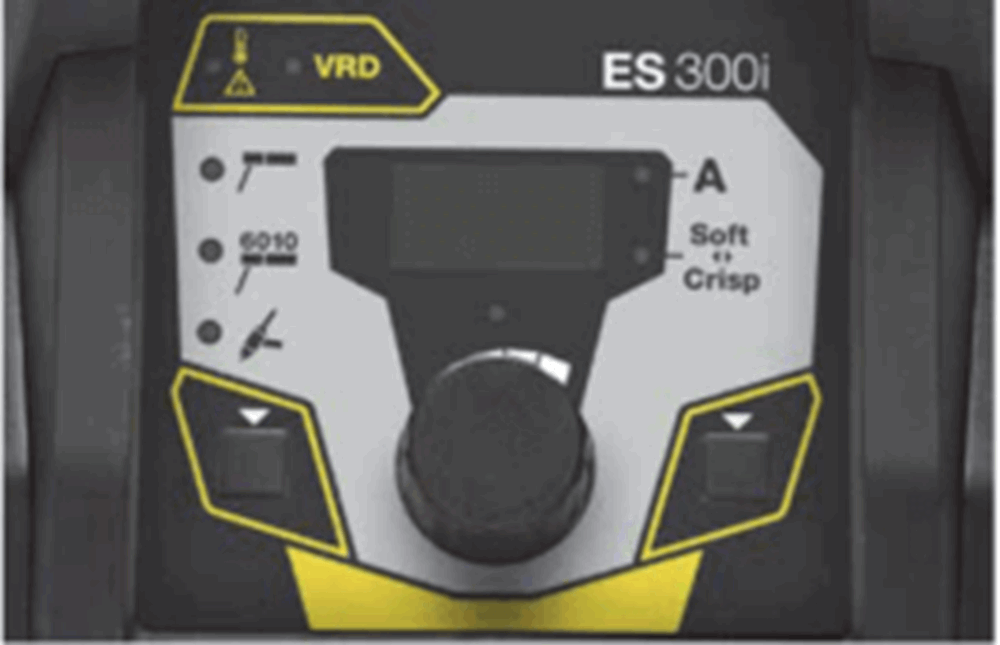

CONVENIENCE. Intuitive interface – The machine’s digital readout display, along with large buttons and controls, make it easy to set parameters and read them from a distance n Cable management – An integrated latch system helps control cables so they can be secured to the machine, making it easy to pack up and go

PERFORMANCE. Automatic voltage detection – No need to rewire every time the machine is plugged in n Excellent cellulosic performance (E6010 and E6011) – Provides higher arc voltage and longer arc length for a soft arc with impeccable starts and stops n High-speed machine-to-arc communication – Renegade reads the arc faster than most machines, equating to better control, a more stable arc, and virtually no spatter n Arc gouging – Work with rods up to 1/4 in (6 mm) n Hot start – Automatically increases your output to avoid sticking n Arc force – To provide a softer, crisper arc

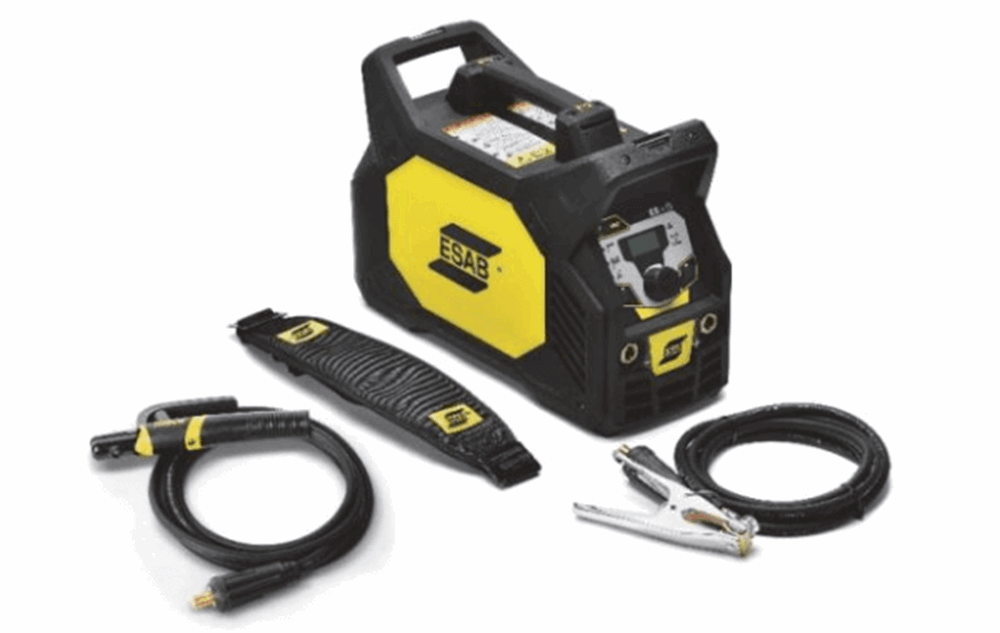

Includes: Renegade ES 300i power supply, shoulder strap, 10 ft. (3 m) input cable, 2 x OKC 50 connectors.

Efficiency Rating

Efficiency Max Current

89 %

Process

Stick



Efficiency Max Current

85 %

Process

Tig

Fuse Specifications

Fuse Slow - Amps

10 A



Fuse Slow - Amps

20 A

Fuse Slow - Volts

230 V

Input Ratings

Frequency Hz

50/60 Hz

Phases

1

VAC

230-460 VAC



Frequency Hz

50/60 Hz

Phases

3

VAC

230-460 ± 10% VAC

Output Ratings

Stick (3ph)

Duty Cycle

40 %

Output Current DC

300 A

VDC Out

30 VDC



Duty Cycle

60 %

Output Current DC

250 A

VDC Out

30 VDC

Stick (1ph/3ph)

Duty Cycle

100 %

Output Current DC

200 A

VDC Out

28 VDC

TIG

Duty Cycle

40 %

Output Current DC

300 A

VDC Out

20 VDC



Duty Cycle

60 %

Output Current DC

250 A

VDC Out

20 VDC

TIG (1ph/3ph)

Duty Cycle

100 %

Output Current DC

200 A

VDC Out

18 VDC



Output Power

11.3 kVA

Power Specifications

Enclosure Class

IP23

Energy Save Mode

91 W

Max Welding Output

300 A

Open Circuit VDC High

48 V

Power Factor Maximum Current

0.96 %

Setting Range (A)

5-300 A

Weight

Weight

15 kg (33 lb)

SHIPPING DIMENSIONS

Height: 12.60 Inches
Width: 7.90 Inches
Length: 18.10 Inches
Weight: 33 Lb(s) 0 Oz
