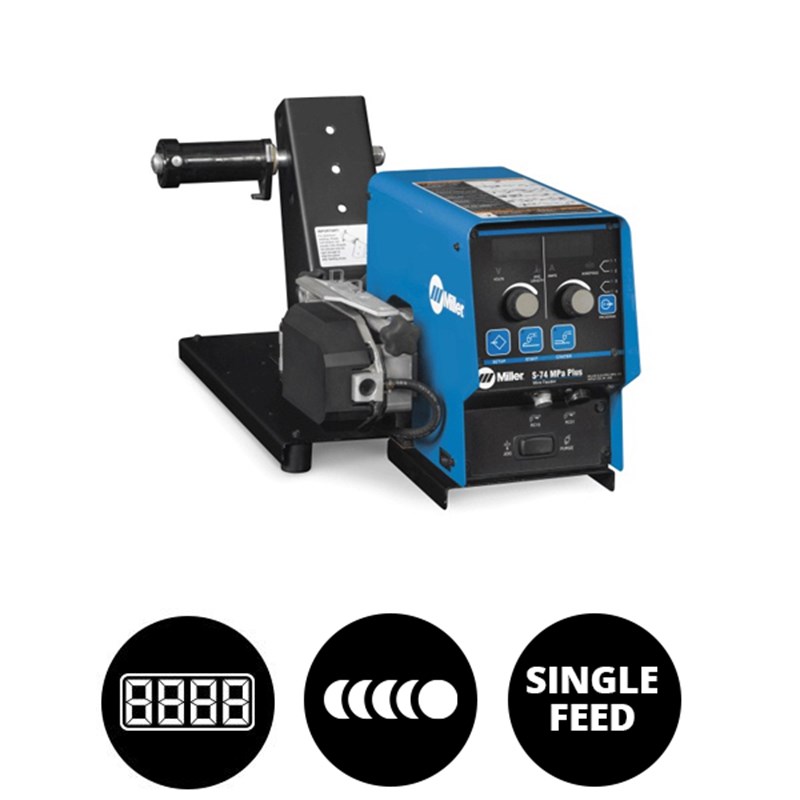

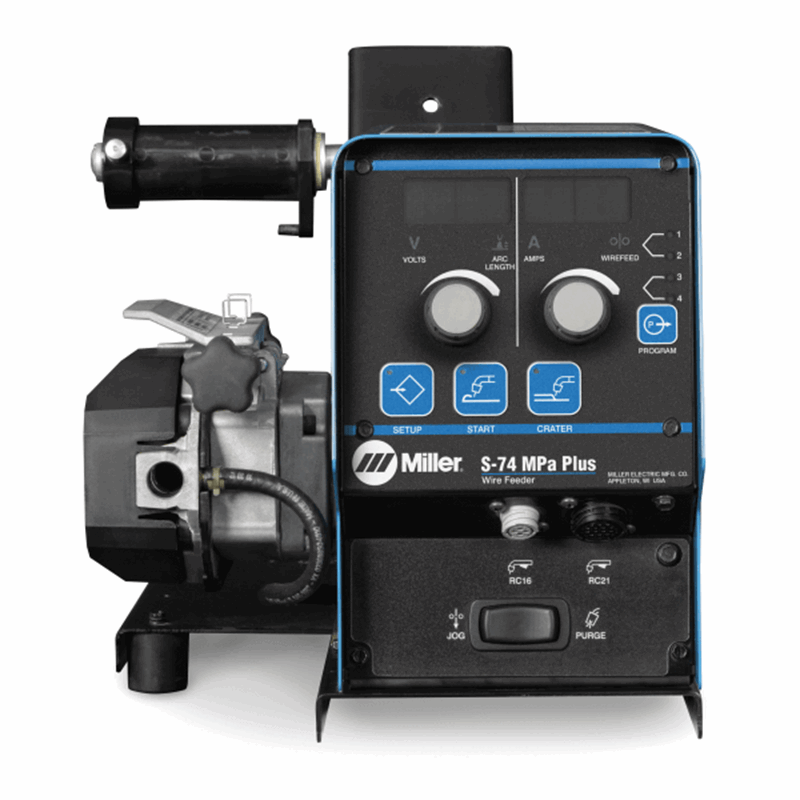

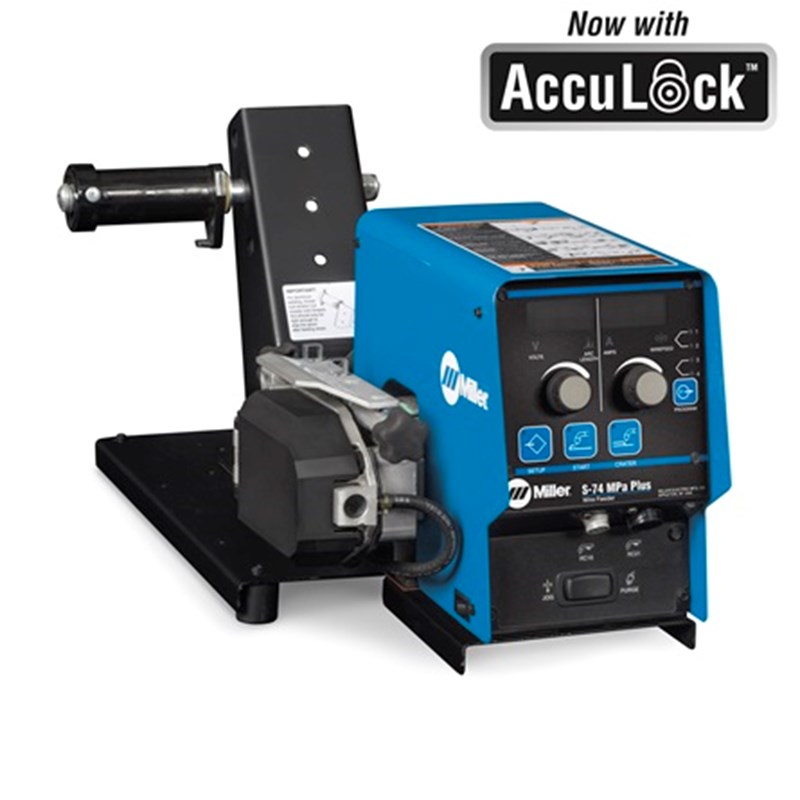

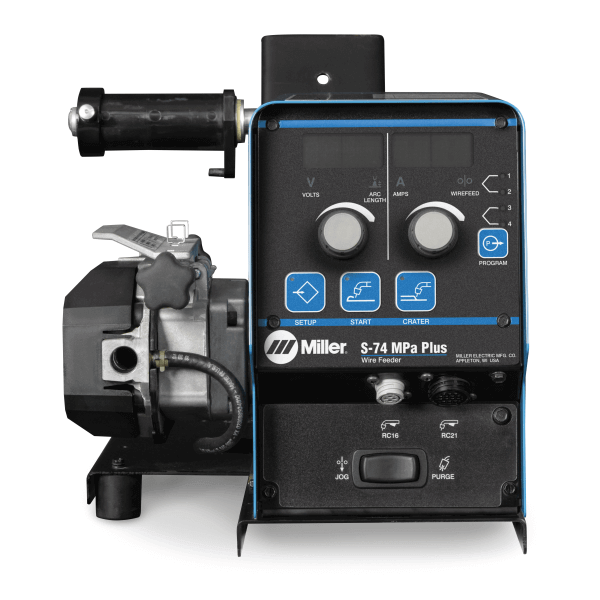

Miller S-74 MPa Plus (Single) #951291
Share
Print
Worldwide manufacturer shortages are impacting delivery times. Lead times are more variable than other websites imply. We are a top distributor for Miller Welding; nobody will get you this faster. Call 1-844-682-0205.
Documents
VideoS-74 MPa Plus (Single) #951291
Expanded capabilities from 74D, adds push-pull aluminum capabilities. Optimized with Invision™ MPa or XMT® MPa power sources.
WHAT'S INCLUDED
- S-74 MPa Plus (Single)

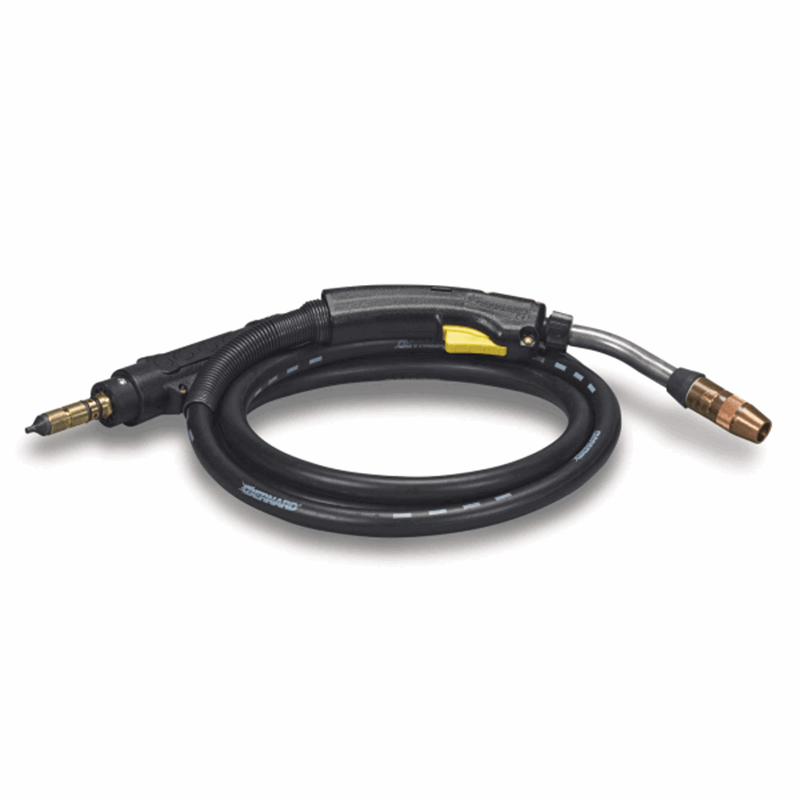

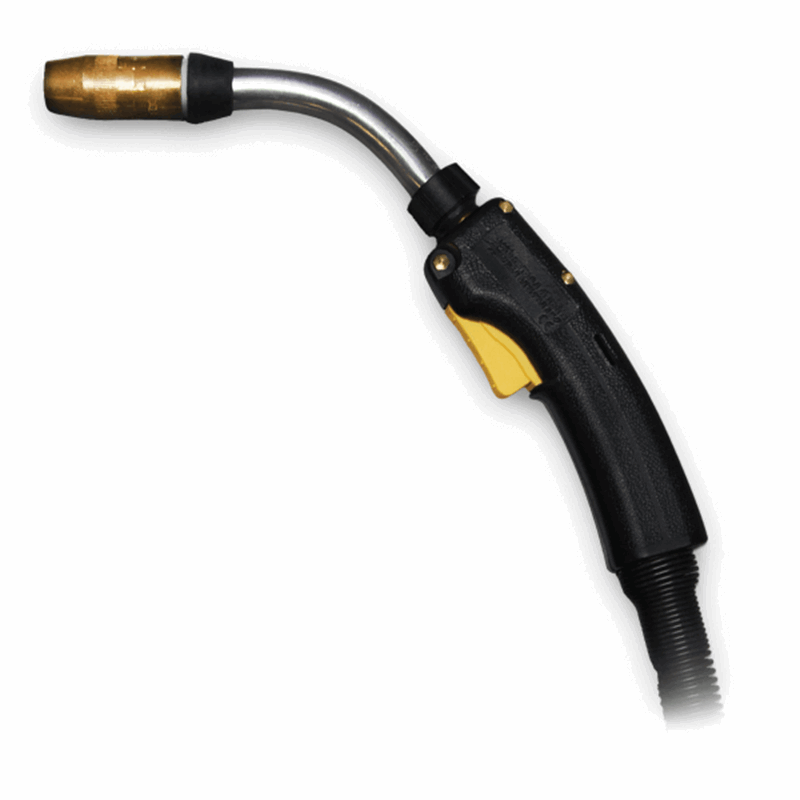

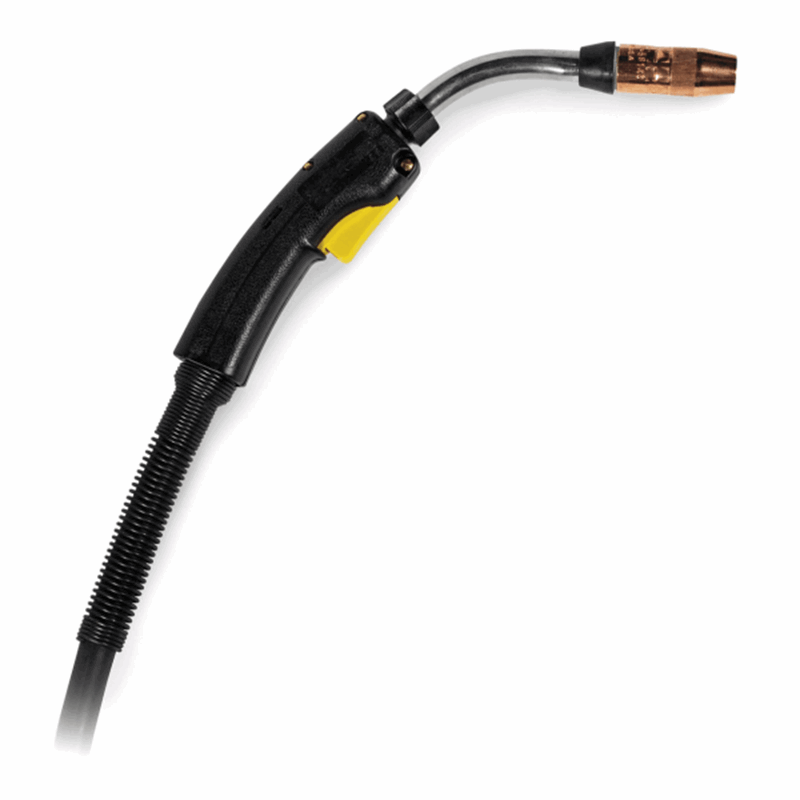

- BTB 400A Gun
- Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)

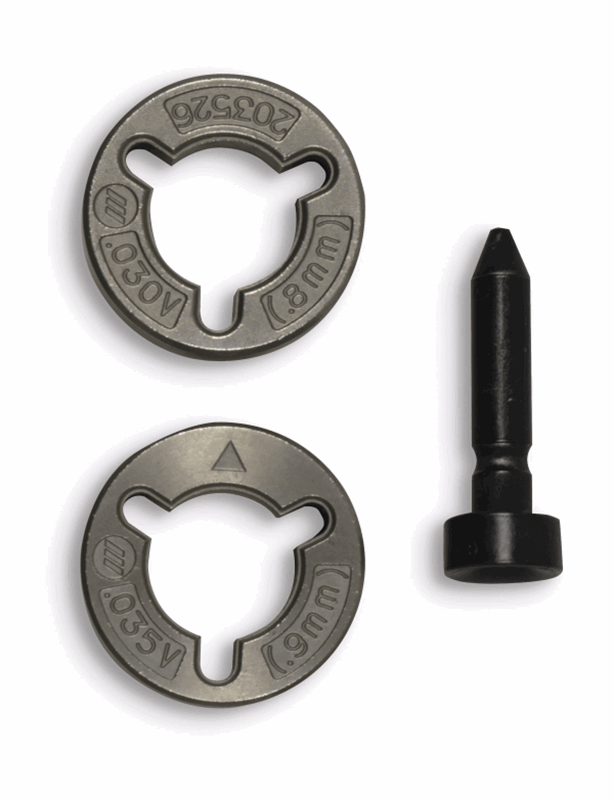

- .035-.045 reversible dual V drive rolls
Trigger Schedule Select
Save time when switching between two weld settings by simply tapping gun trigger.
Accu-Mate™
Properly seats the MIG gun power pin for best feeding performance.
Alumination™
Gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminum wire feeding.
Digital Meters
Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.
Remote Voltage Control
Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.
Complete Your System
Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with this feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.
Additional features when used with Invision MPa or XMT MPa power sources
Synergic Pulsed MIG. As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments. Profile Pulse™ provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
Remote Configurations
Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.
See more Miller welding equipment and supplies or browse our entire selection of welding machines!
S-74 MPa Plus (Single) #951291 Specifications
| Title | S-74 MPa Plus (Single) |
|---|---|
| Processes | Flux Cored (FCAW) |
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Input Circuit Welding Rating | 750A at 100% duty cycle |
| Power Source Compatibility | CV |
| Welding Power Source Type | CV |
| Wire Feeder Type | Bench |
| Wire Feed Speed | 50 IPM - 780 IPM |
| Wire Diameter | Solid Wire 0.023 in 0.094 in Flux Cored 0.023 in 0.094 in Aluminum 0.03 in 0.0625 in |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 12.00 Inches |
| Width: | 14.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 68 Lb(s) 0 Oz |
Miller S-74 MPa Plus Single #951291 Wire Feeder Demo
Miller S-74 MPa Plus Single #951291 Wire Feeder Functions
Product Questions and Answers
How to access the setup menu:
- Press and release the SETUP button.
The SETUP MENU INDICATOR and SETUP BUTTON INDICATOR will illuminate.
- Select menu items.
Rotate the LEFT ADJUST KNOB to select menu items shown in the LEFT DISPLAY. Rotate RIGHT ADJUST KNOB to change menu item values shown in the RIGHT DISPLAY.
- Exit SETUP MENU.
To exit SETUP MENU, press and release the SETUP button.
