Miller Invision™ 450 MPa, S-74 MPa Plus (Single), Bernard™ BTB 400 A 15 ft, MIGRunner™ Pkg #951499

Part Numbers: 951499
$16,080.00
$18,571.00* Save $2,491.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • MIG Welding
    • 220V
    • 460V
    • 3-Year Miller Warranty

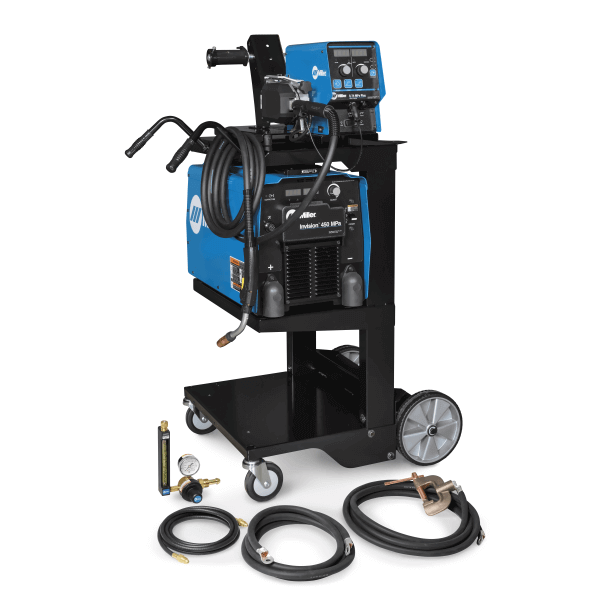

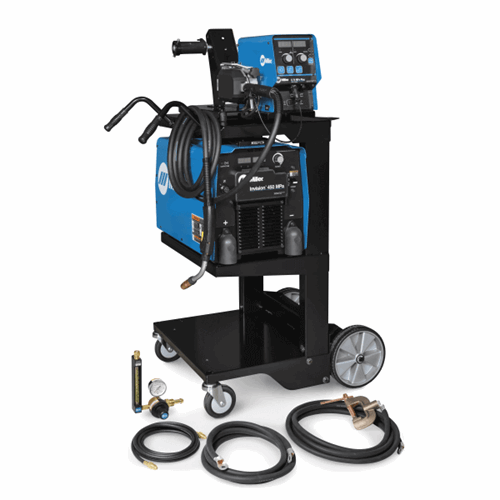

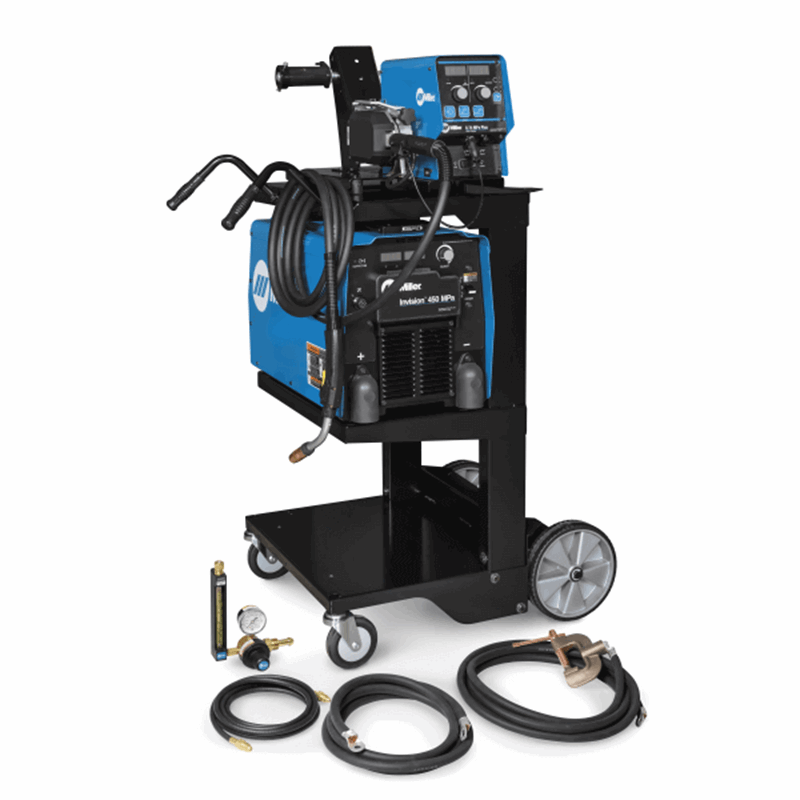

    Miller Invision™ 450 MPa 230/460 V, S-74 MPa Plus (Single), Bernard™ BTB 400 A 15 ft, MIGRunner™ Pkg #951499

    MIG and synergic Pulsed MIG system with optimized weld programs for both steel and aluminum.

    What's Included:

    • Invision 450 MPa

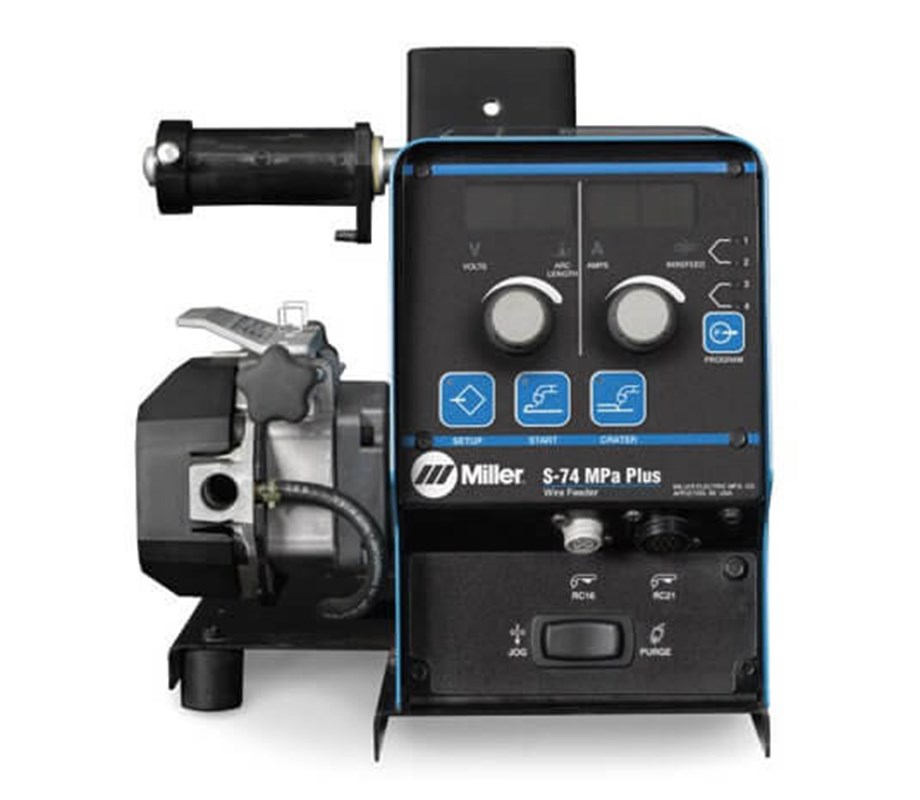

    • Single 74 MPa Plus Feeder
    • BTB 400A Gun
    • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)
    • .035-.045 reversible dual V drive rolls
    • Running gear, cylinder rack

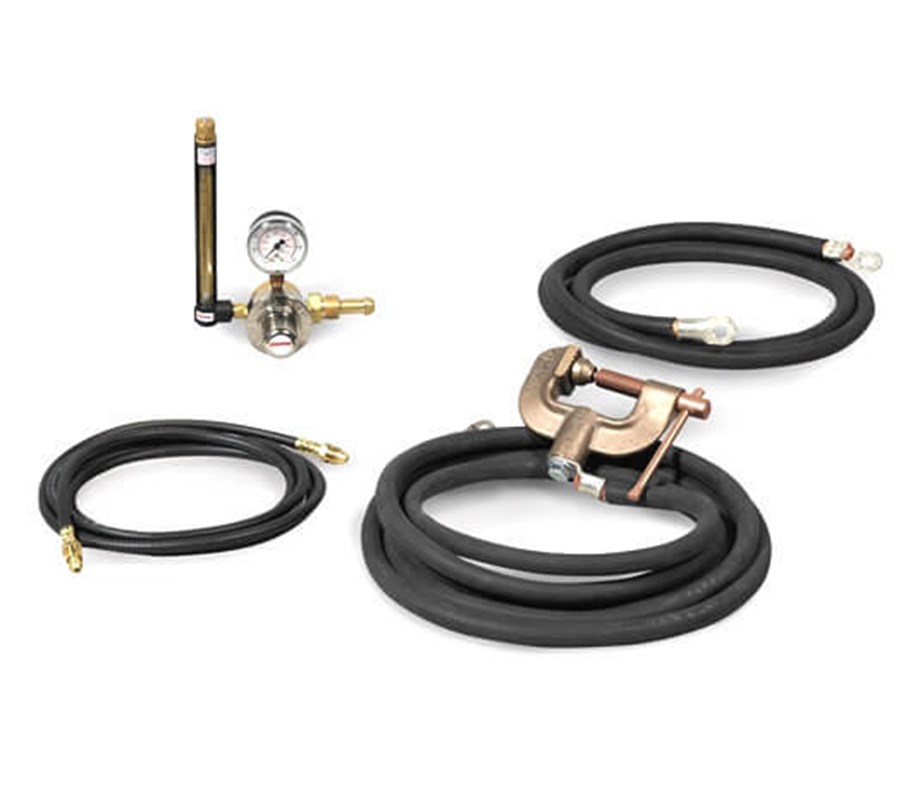

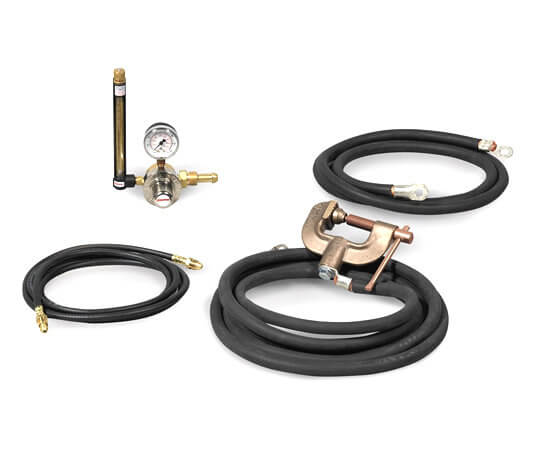

    • 4/0 weld cables, Gas valve and gas hose
    Check out the wide selection of welding machineswelding helmets & welding safety equipment available at Welders Supply Company.

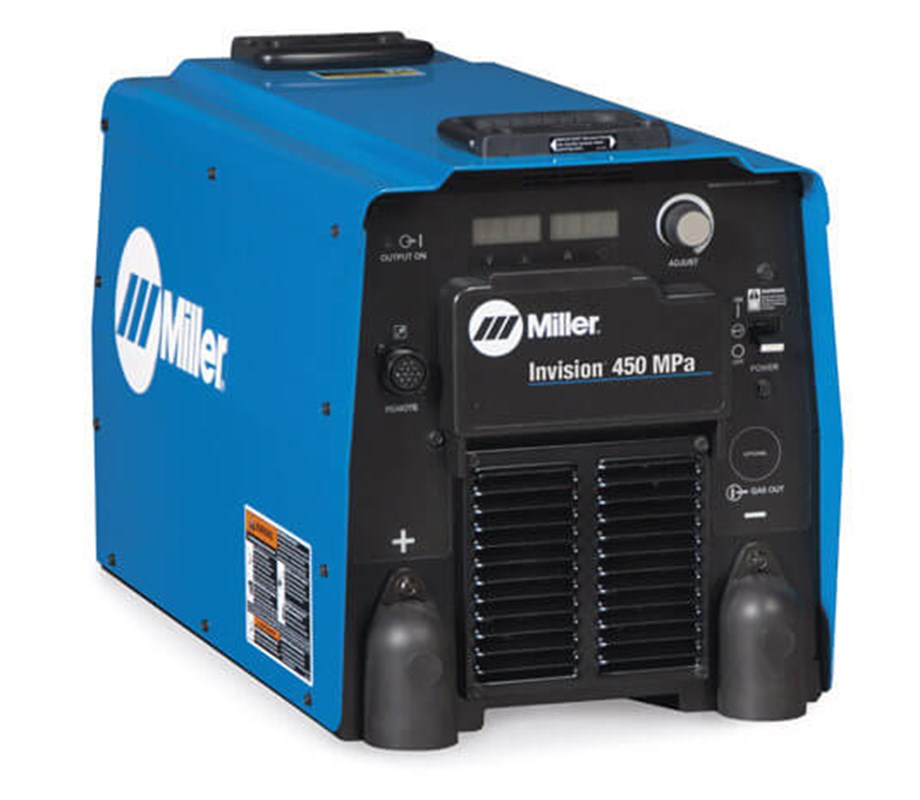

    Miller Invision™ 450 MPa #951499 Specifications:

    Input Voltage Options 230/460 or 575 VAC, 60 Hz, 3-phase power
    Welding Output Range CC mode: 15–600 A
    CV mode: 10–38 V
    Max Open Circuit Voltage 90 VDC
    Processes MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) & Air Carbon Arc Cutting and Gouging (CAC-A, 5/16-in. carbons max)
    Industrial Applications Aerospace, Construction, Heavy Equipment Manufacturing, Infrastructure, Manufacturing, Railcar, Shipbuilding, Boat / Yacht & High Purity Processing
    Weldable Metals Steel, Metal Core, Aluminum, Stainless Steel, Nickel, Silicon Bronze & Copper Nickel
    Rated Output 450 A at 36.5 VDC, 100% duty cycle
     Ancilliaries
    Net Width 14.5 in. (368 mm)
    Net Height 17.25 in. (438 mm)
    Net Length 27.125 in. (689 mm)
    Net Weight 122 lb. (55.3 kg)
    Portability Handles
    Running Gear / Cart (Optional)
    Warranty 3-year Miller's True Blue Warranty

    SHIPPING DIMENSIONS

    Height: 48.00 Inches
    Width: 48.00 Inches
    Length: 72.00 Inches
    Weight: 481 Lb(s) 0 Oz

    Product Questions and Answers


    Q - Can this be powered by a generator? A - Yes, but to run the machine at 100% duty cycle at 450 amps you need at least a 20 kva generator.
    Q - What does MPa stand for? A - M is for MIG, P for Pulse, and "a" is for Advanced Arc Control, which enables a better pulse welding arc as well as a more stable arc at very low arc lengths. This reduces heat input and allows for welding a wider range of material thicknesses.

    Have a question about this product? Submit your question using the form below
