ESAB Rebel™ EMP 285ic

Part Numbers: 0558102554, 0558102556
$4,656.45 + Free Shipping
$5,711.40* Save $1,054.95

Victor Technologies

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

460V

460V

ESAB Rebel™ EMP 285ic #0558102554 1ph / 0558102556 3ph

Introducing Rebel™ EMP 285ic the most powerful, industrial Rebel yet for excellent performance on MIG, Flux-Cored, TIG and Stick applications. Capable of welding up to 350A, this TRUE multi-process, multi-voltage industrial welding machine runs the full range of .035 in. (0.9 mm) and .045 in. (1.2 mm) wires. It’s the most portable, mobile welder in its class and has the power and performance to crush even the most demanding industrial jobs.



Power to Perform – with 285A @ 40% (1ph model) and 285A @ 50% (3ph model) you’ll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc
and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm).

sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.

With ESAB’s new 4 Roll Drive System, weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in.(1.6 mm) cored wire. Plus, electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm).

Unmatched Portability/Mobility – weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage. Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site.

TFT Multilingual Display – packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance.

Two Model to Choose From:

  • Rebel EMP 285ic 120V-230V 1ph
  • Rebel EMP 285ic 460V-575V 3ph

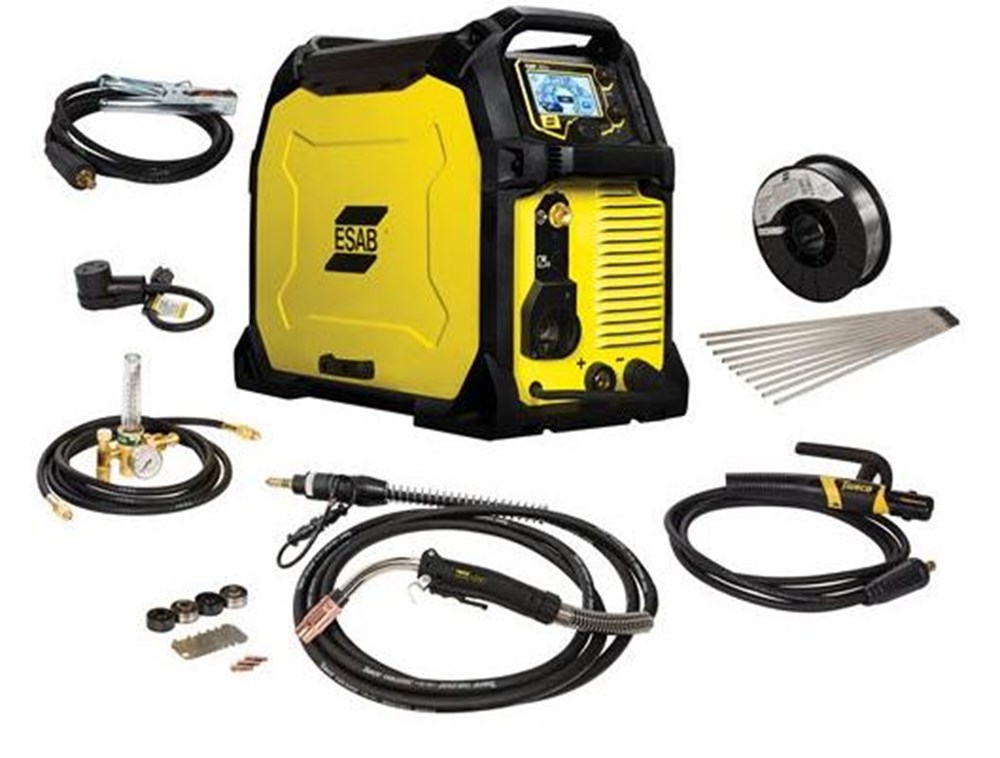

Comes complete with

  • ESAB® Rebel™ EMP 285ic MIG/TIG/Stick welder
  • 15 ft.Tweco® SprayMaster Velocity 250V MIG gun
  • Victor® argon flowmeter regulator
  • 12.5 ft. (3.8 m) gas hose
  • Electrode holder with leads
  • Ground clamp with leads
  • Drive rolls: .035-.045 smooth (solid wire - installed), .052-1/16 VK (flux-cored wire)
  • 2 extra contact tips
  • 1 extra MIG nozzle
  • 120V/230V power adapter
  • 11 lb. spool .035 E70S-6 MIG welding wire
  • ESAB Atom Arc 7018 electrodes
  • Operator's manual

Shop all welding machines for sale online at Welders Supply.



Rebel EMP 285ic 120V-230V 1 ph System 0558102554

Rebel EMP 285ic 120V-230V 1 ph System with Cart 0558102555

Rebel EMP 285ic 460V –575V 3 ph System 0558102556

Rebel EMP 285ic 460V –575V 3 ph System with Cart 0558102557

SHIPPING DIMENSIONS

Height: 20.00 Inches
Width: 12.00 Inches
Length: 26.50 Inches
Weight: 70 Lb(s) 0 Oz

Product Questions and Answers


Q - Does it have pulse? A - No, it doesn't.
Q - Will it TIG weld aluminum? A - No, it can't TIG weld aluminum.
