Miller Spoolmatic™ Pro 30A 301148

Part Number: 301148
UPC: 715959603430
Ships Free (Contiguous U.S.) 5 Distribution Centers, 391 Reviews
Best welding torch Miller Spoolmatic™ Pro 30A how to buy online Miller Spoolmaticâ„¢ Pro 30A 301148 easy Access Head Tube Miller Spoolmaticâ„¢ Pro 30A 301148 Tension Settings Miller Spoolmaticâ„¢ Pro 30A 301148 Head Options Miller Spoolmaticâ„¢ Pro 30A 301148 Set Up
Best welding torch Miller Spoolmatic™ Pro 30A how to buy online

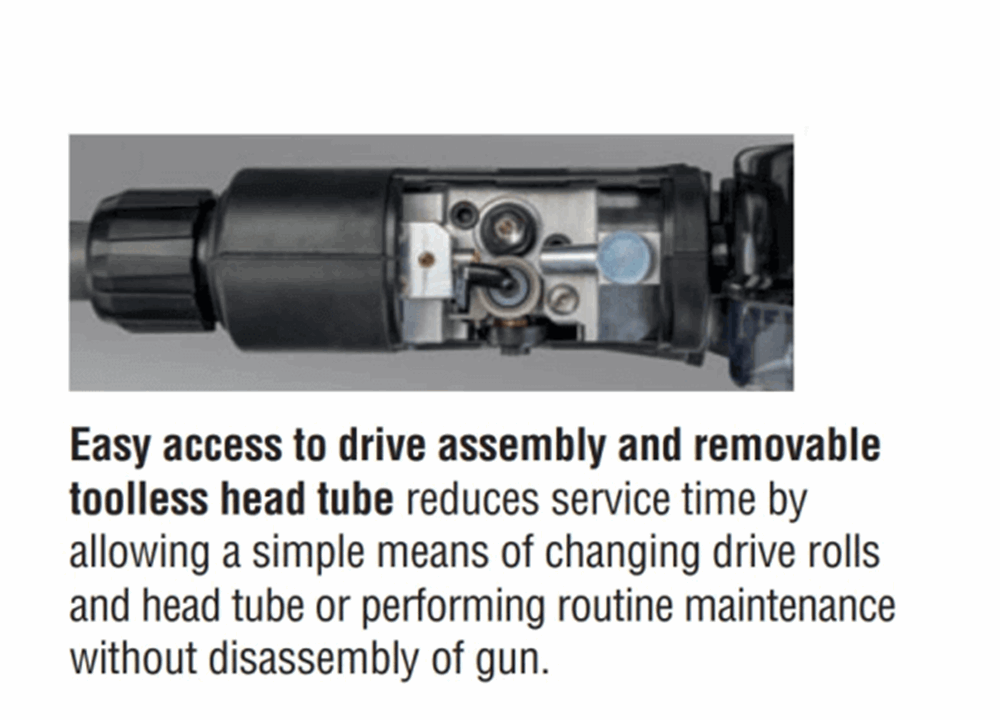

Miller Spoolmaticâ„¢ Pro 30A 301148 easy Access Head Tube

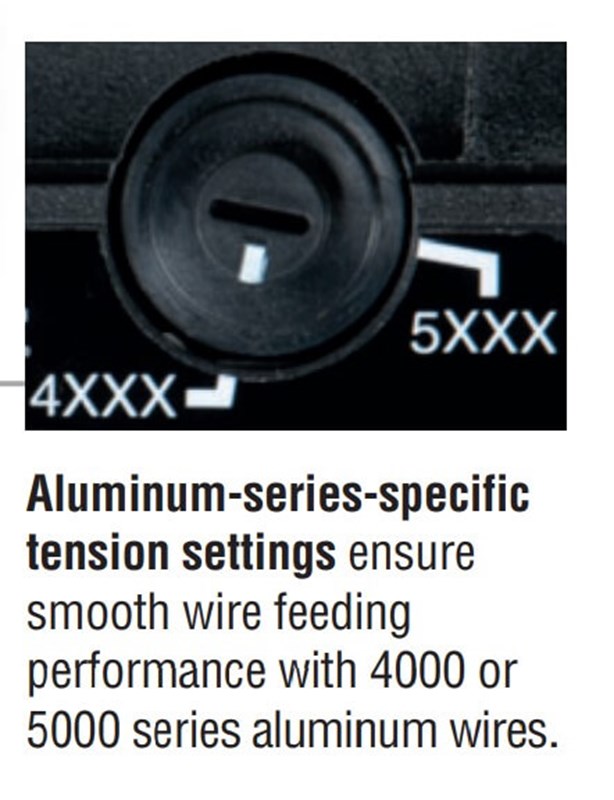

Miller Spoolmaticâ„¢ Pro 30A 301148 Tension Settings

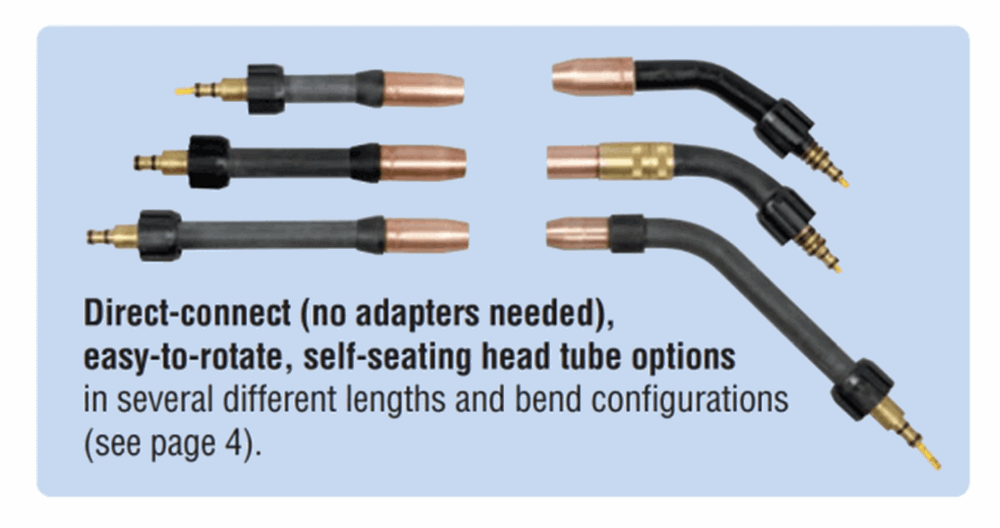

Miller Spoolmaticâ„¢ Pro 30A 301148 Head Options

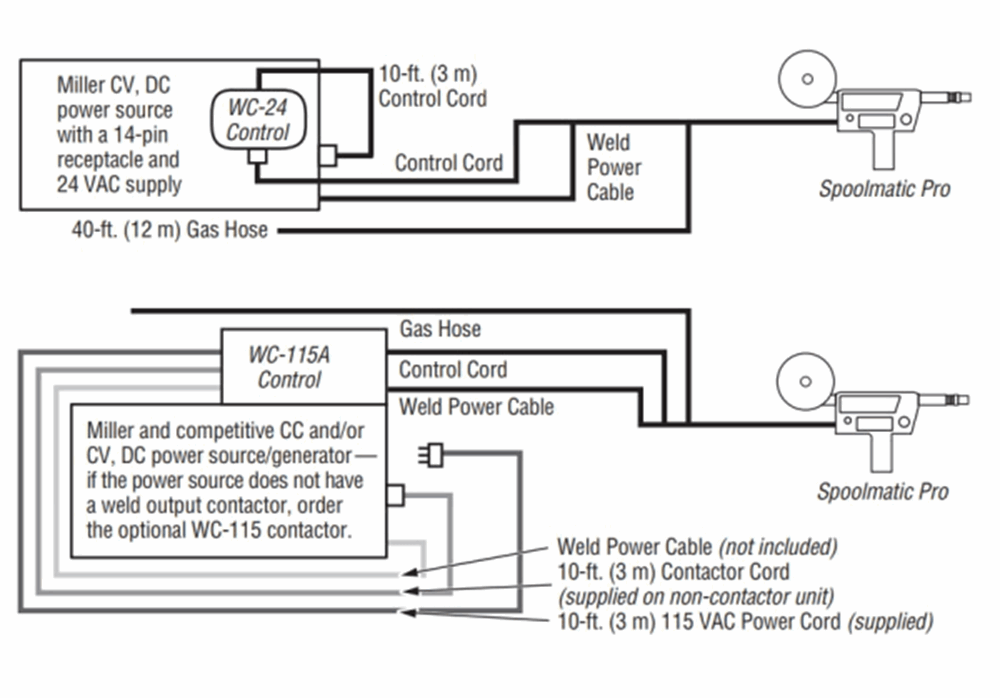

Miller Spoolmaticâ„¢ Pro 30A 301148 Set Up

Miller Spoolmatic™ Pro 30A 301148

Part Number: 301148
UPC: 715959603430
$2,924.00 + Free Shipping $3,377.00*
SAVE $453.00

Related Products

Replacement Spool Case for Miller Spoolmatic Pro Gun Miller Electric Spare Spool Canister #132230 5 purchased
Save $25.87
$204.13
$230.00
Miller Spoolmatic 15A Part#195156 Miller Electric Spoolmatic 15A MIG Welding Gun #195156 43 purchased
Save $294.00
$1,897.00
$2,191.00
Free Shipping
Miller Spoolmatic 30A Part#130831 Miller Electric Spoolmatic 30A #130831
(2)
295 purchased
Save $335.00
$2,163.00
$2,498.00
Free Shipping
25ft Hose Extension for Miller Spoolmatic Welding Gun #132228 Miller Electric Spoolmatic 30A Extension Hose and Cable Kit - 25 ft #132228 9 purchased
Save $101.74
$968.26
$1,070.00
Free Shipping
Miller Spoolmatic Welding Gun 50ft Extension Hose #132229 Miller Electric Spoolmatic 30A Extension Hose and Cable Kit - 50 ft #132229 17 purchased
Save $170.77
$1,347.23
$1,518.00
Free Shipping
  • MIG Welding
  • 1 Year Warranty

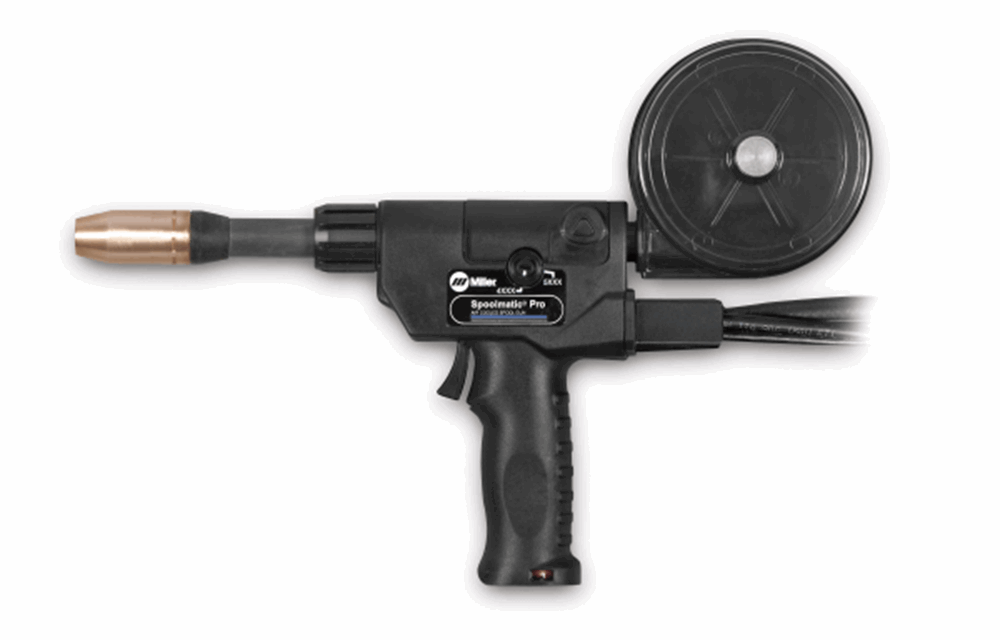

Miller Spoolmatic™ Pro 30A  301148 Spool Gun

Most reliable, easy-to-use spool gun in the industry for the professional welder.

Features:

  • Best Feeding Performance
  • Durable Design
  • Reduce Service Time
  • Better Gun Access
  • Easy to Use
  • Integrated Spool Canister
  • Two-Stage Trigger
  • Multiple Configurations
View our large selection of welding machine accessories for the greatest values online.





Welding Output Rating 200 A at 100% Duty Cycle
Wire Diameter Capacity .030 - 1/16 in (0.8 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm)
Wire Speed 70 - 875 IPM (1.8 - 22.2 m/min)
Max Spool Size Capacity 4 in (102 mm)
Cable Length 30 ft (9.144 m)
Net Height 10.25 in. (260 mm)
Net Length 15.125 in. (384 mm)
Net Width 2.5 in. (64 mm)
Net Weight 14 lb (6.4 kg) with cable assembly
Processes MIG (GMAW) with aluminum wire and other soft alloys
Pulsed MIG (GMAW-P) with pulsing power source
Heavy Industrial Applications Emergency Vehicles
Shipbuilding
Recreational Vehicles
Tool Boxes
Trucks and Trailers Railcars
Boat/Yacht
Building Fabrication
Sign Manufacturers
Warranty 1 year - Miller's True Blue Warranty

SHIPPING DIMENSIONS
Height: 7.00 Inches
Width: 17.00 Inches
Length: 17.00 Inches
Weight: 18 Lb(s) 0 Oz

Product Questions and Answers

Q - What's the longest cable that can be used with this? A - Miller says 80' is the maximum. A cable longer than that will cause the Spoolgun to lose its communication signal to the power source.
Q - Will this work with a Dimension 452? A - You'll need a Miller WC-24 Weld Control (#137549) to use this with the Dimension 452.

How to adjust drive roll and spool brake pressure:

  1. Remove cover.

    Loosen thumbscrew and remove screw.

  2. Cut wire off at contact tip.

    Cut welding wire off at contact tip. Retract wire onto spool and secure.

  3. Adjust spool brake thumb-nut.

    Grasp spool in one hand and turn while adjusting spool brake thumb-nut. When a slight force is needed to turn spool, tension is set. Do not overtighten.

  4. Reinstall canister cover.

    Reinstall canister cover. Thread welding wire.

  5. Turn off unit.

    Turn off unit. Reinstall top cover.
