Miller S-74 MPa Plus Wire Feeder 300577

$3,817.00 $4,408.00 Reduced Price You Save $591.00
Product Number: 300577
QTY:
Financing AVAILABLE!

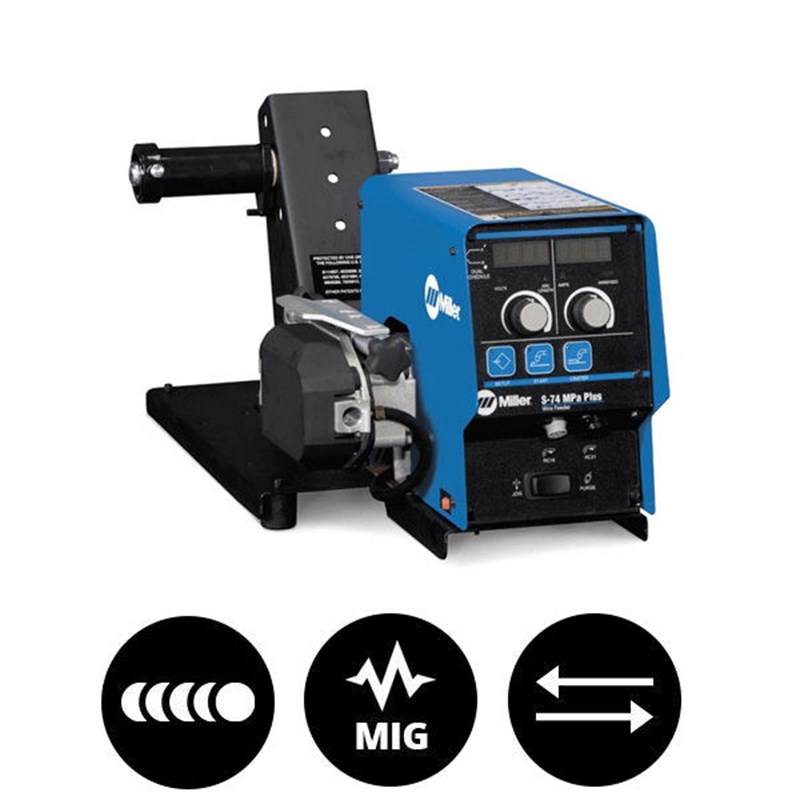

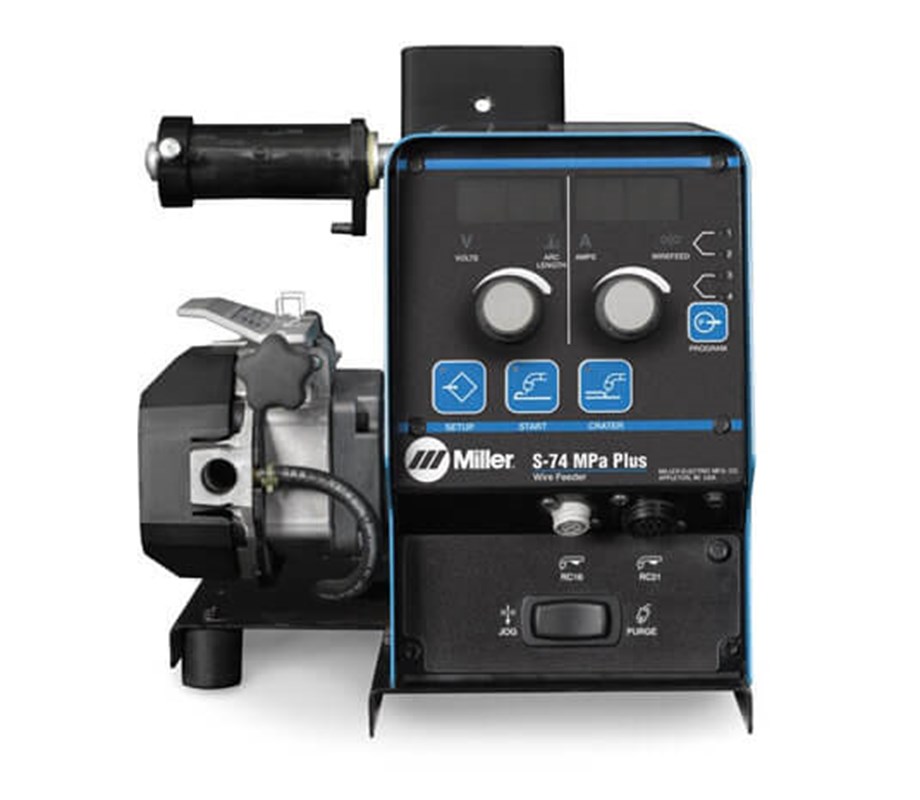

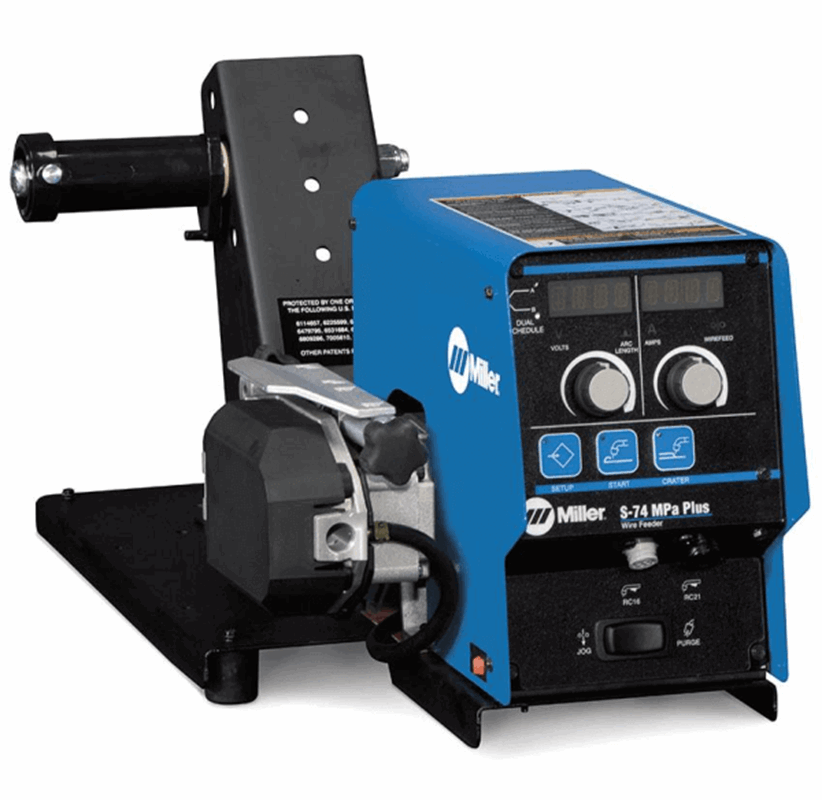

Miller S-74 MPa Plus Wire Feeder #300577

The Miller® S-74 MPa Plus single wire feeder is capable of synergic pulsed MIG Welding and can carry up to 4 separate welding programs easily retrieved for a faster setup. This single wire feeder is also optimized for use with XMT™ MPa and Miller Invision™ MPa welders. It is also capable of operating with Miller push-pull aluminum MIG guns along with having adjustable weld sequence control.

Capable of remote voltage control, the Miller® S-74 MPa Plus single wire feeder comes with a digital volt and wire feed speed meters (amp). This heavy industrial, four drive roll, 24 VAC wire feeder for MIG and flux-cored welding wires feeds 0.23 to 5/64 diameter welding wire anywhere from 50-780 inches per minute. Coming standard with a trigger hold, dual tension control, adjustable run in and tool-less rotatable drive, the floating positive drive system provides consistent feeding of an array of welding wires.

Features:

  • Alumination™ technology gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminum wire feeding
  • Alumination gives you the versatility to handle whatever aluminum welding job you want to tackle
  • Synergic Pulsed MIG operation when optimized with the Invision MPa power supplies
  • Provides communication between the power source, feeder and gun
  • As wire speed increases/decreases, the pulse parameters also increase/decrease to match the right amount of power needed
  • Trigger schedule select allows the operator to select the alternative schedule by quickly tapping the gun trigger when not welding
  • When optimized with MPa power sources the operator can also switch from MIG to Pulsed MIGProfile Pulse™ provides TIG appearance with MIG simplicity and productivity
  • Achieve “stacked dime” weld bead appearance without back-stepping
  • Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance
  • Accu-Mate™ properly seats the power pin for best feeding performance and prevents Accu-Mate grooved MIG guns from sliding in the cast
Welders Supply carries the best welding equipment. Shop online now!



Processes:

  • MIG (GMAW)
  • MIG (GMAW-P)
  • Flux Cored (FCAW)
  • (Gas- and Self-Shielded)



Input Power: 24 VAC, 10 A, 50/60 Hz
Wire Feed Speed: 50 - 780 IPM
Wire Diameters: .023" - 5/64"
.035" - 1/16" Aluminum
Dimensions (Single Feeder): H: 14" (356 mm) W: 12.5" (318 mm) L: 28" (711 mm)
Weight (Single Feeder): 58 lb (26 kg)
Dimensions (Dual Feeder): H: 14" (356 mm) W: 21" (533 mm) L: 35" (889 mm)
Weight (Dual Feeder):

87 lb (39.5 kg)

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 15.00 Inches
Length: 29.50 Inches
Weight: 60 Lb(s) 0 Oz

Miller S-74 MPa Plus #300577 Wire Feeder Features

Miller S-74 MPa Plus #300577 Wire Feeder Overview

Miller S-74 MPa Plus #300577 Wire Feeder Pulsed MIG Welding Basics

Product Questions and Answers


Q - What is the wire feed speed? A - 50 to 780 IPM
Q - How much does it weigh? A - 58 lbs.
