Miller® SuitCase® X-TREME Wire Feeder 300876

Part Number: 300876

Welding type:

MIG

MIG

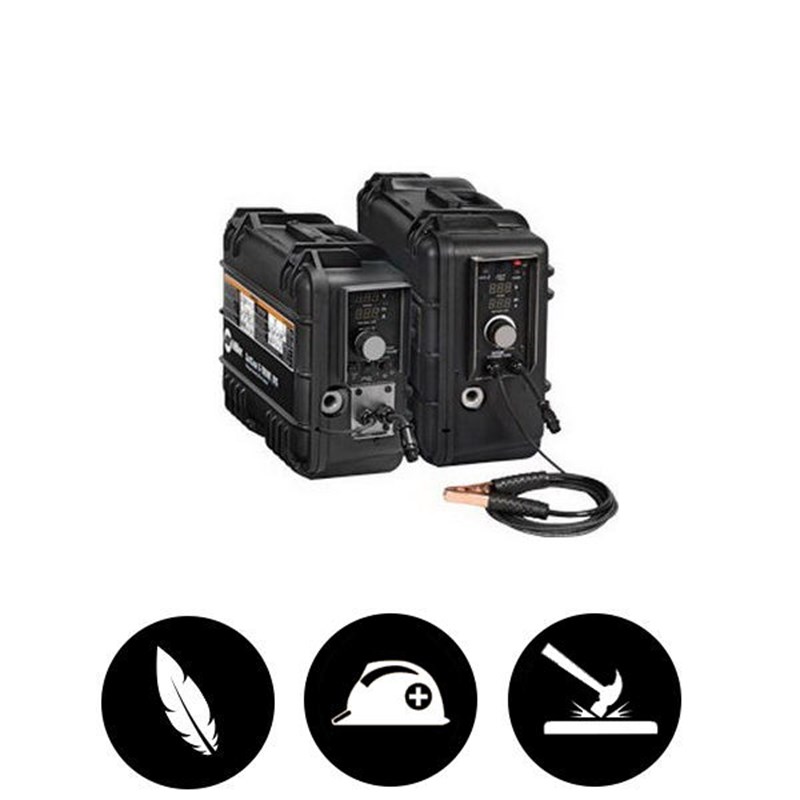

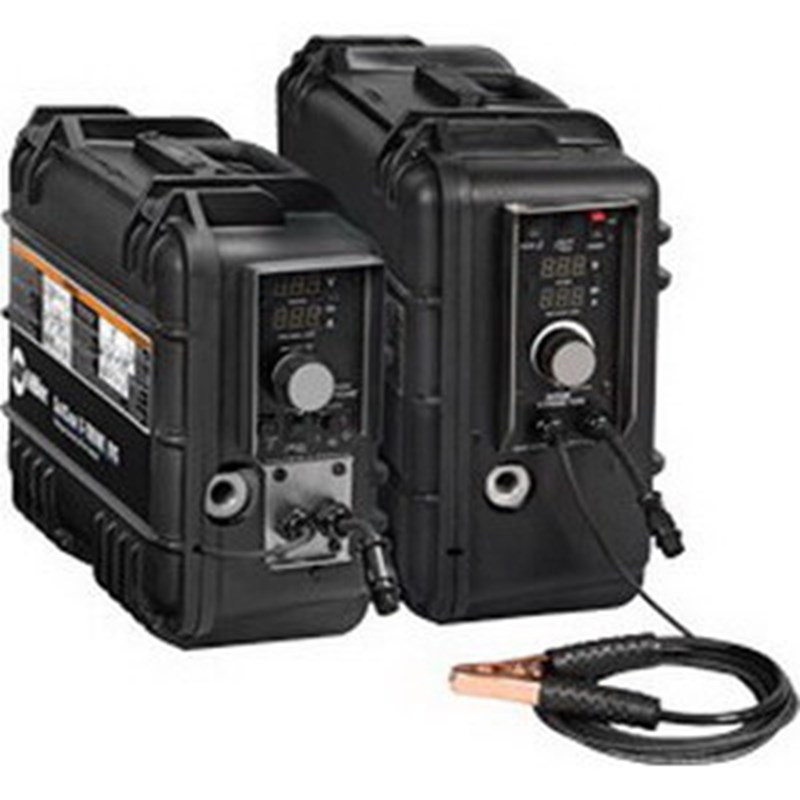

Miller® SuitCase® X-TREME 12VS Wire Feeder 300876

Miller® SuitCase® X-TREME 12VS Wire Feeder 300876 is designed to use with X-treme 12 VS series and comes with a heavy-duty drive.

Features:

  • Light weight
  • Provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next
  • Consistent wire feed speed is very important with large diameter cored wire, because small changes in wire feed speed make large changes in deposition rates
  • Polypropylene case with built-in slide rails and the ability to open the door to change wire with the feeder in a vertical position
  • New wire delivery system bends wire over a large radius and applies just the right amount of force to ensure consistent feeding

Industrial Applications:

  • Ship Building
  • Construction
  • Heavy Manufacturing
  • Rental Fleets
Looking for more? Check out our entire selection of welding machines and wire feeders!

Processes:

  • MIG (GMAW)
  • Flux Cored (FCAW)



Input Power Welding Power Source Wire Feed Speed Wire Diameter Range Input Welding Circuit Rating Max. Wire Spool Capacity Dimensions Weight
Open-Circuit/Arc Voltage, 14-110 V, DC Constant Voltage (CV) or Constant Current (CC) DC power source only 25-800 ipm (.64-20.3 mpm) depending on arc voltage

Solid Wire: .023-.052 (.6 - 1.3mm)

Flux cored: .030-5/64" (.8 - 2mm)

300 amperes at 100% duty cycle

425 amperes at 60% duty cycle

45 lb (20.4kg)

12" (304mm)

Length:    21"/ 533 mm

Width:      9"/229 mm

Height: 15.5"/394 mm

34.5 lb. 15.6 kg

SHIPPING DIMENSIONS

Height: 9.00 Inches
Width: 21.00 Inches
Length: 35.00 Inches
Weight: 41 Lb(s) 0 Oz

Product Questions and Answers


Q - What is the wire feed speed? A - 50 to 780 ipm
Q - Will a Bobcat power this? A - Yes, Miller says the Bobcat Series can be used to power this.
