ET 301i AC/DC HD TIG PKG W1009401

$7,450.00 $8,748.00 Reduced Price You Save $1,298.00
Product Number: W1009401
QTY:
Financing AVAILABLE!

ESAB ET 301i AC/DC HD TIG PKG W1009401

The ET 301i AC/DC is a high output, full digital control, AC/DC, Stick/Liftarc TIG/HF TIG, inverter power supply with expanded input voltage capabilities for maximum flexibility.

This unit is specially designed for precision TIG and Stick welding of all weldable materials. Superior, true square wave output combines with balance and cleaning features to deliver unbeatable welding performance with extended tungsten life on aluminum and magnesium alloys without the need for continuous high frequency.

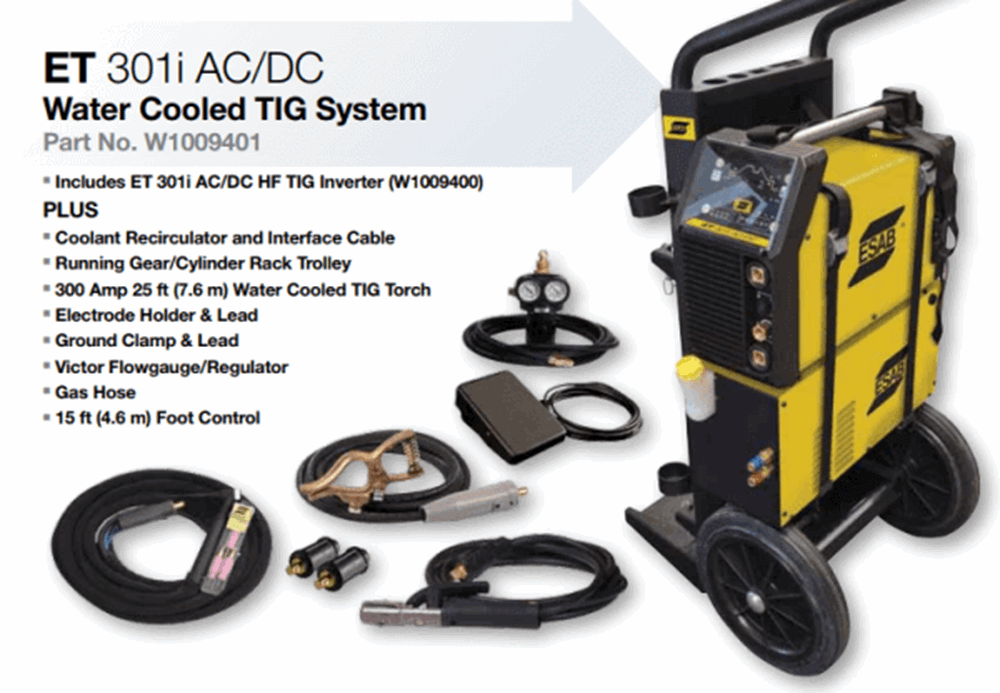

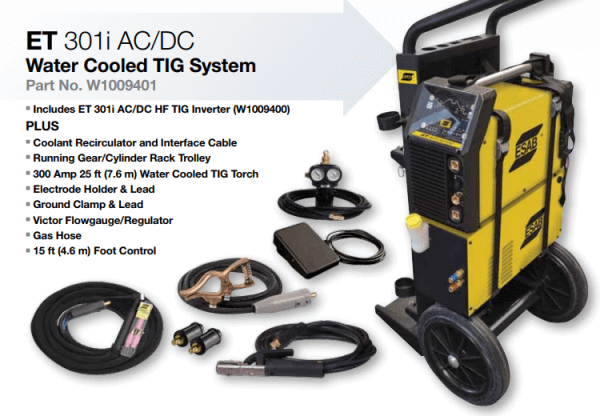

Includes:

  • Power Source
  • Remote foot control
  • Running Gear/Cylinder Rack Trolley
  • 300 Amp 25 ft (7.6 m) Water-Cooled TIG Torch
  • Electrode Holder & Lead
  • Ground Clamp & Lead
  • Flowmeter/Regulator
  • Gas Hose
  • 15 ft (4.6 m) Foot Control
View our large selection of multi-process welders, ESAB welding machines, and welding accessories.



ESAB

Power source weight without power cable, lb. (kg) 35.9 (16.3)
Power source dimensions, L x W x H, in. (mm) 19 x 7.25 x 13 (483 x 185 x 326)
Standards CSA E60974-1, ANSI/IEC 60974-1
Number of phases 1/3
Supply voltage, VAC – 1/3 ph 208-230/460 +/-15%
Welding current range (Stick), A – 1 ph 10 – 150
Welding current range (Stick), A – 3 ph 10 – 200
Welding current range (TIG), A – 1 ph 5 – 200
Welding current range (TIG), A – 3 ph 5 – 300
Effective input current (I1eff), A (V) – 1 ph 37.3 (208) 33.7 (230) 18.1 (460)
Effective input current (I1eff), A (V) – 3 ph 23.8 (208) 21.6 (230) 11.6 (460)
Maximum input current (I1max), A (V) – 1 ph 37.3 (208) 33.7 (230) 18.1 (460)
Maximum input current (I1max), A (V) – 3 ph 35.4 (208) 32.0 (230) 17.2 (460)
Generator requirement, kW (kVA @ PF) 13 (16 @ 0.8)
Stick (SMAW), A @ V (phase) 150 @ 100% 26 (1) 200 @ 60% 28 (3)
Welding output 40ºC (104ºF), 10 min, A @ V (phase) 165 @ 100% 26.6V (3)
TIG (GTAW), A @ V (phase) 200 @ 60% 18 (1) 300 @ 30% 22 (3)
Welding output 40ºC (104ºF), 10 min, A @ V (phase) 170 @ 100% 16.8 (1/3)
Open circuit voltage (VRD active), V <113

ESAB ET 301i AC/DC HD TIG PKG #W1009401 Inverter Power Supply Review



ESAB ET 301i AC/DC HD TIG PKG #W1009401 Inverter Power Supply TIG Welding Tips



ESAB ET 301i AC/DC HD TIG PKG #W1009401 Inverter Power Supply TIG Welding Basics

Product Questions and Answers


Q - Is this fan cooled or water cooled? A - It's fan cooled.
Q - What size generator does it take to run this? A - 13 kW (16kVA @ 0.8)
