Ships Free To Lower 48 States

Miller FILTAIR® SWX-D Single-Arm Package 951515

Part Numbers: 951515
UPCs: 715959586054

Included with your purchase: ()

Miller FILTAIR® SWX-S Single-Arm Package 951515
Miller FILTAIR® SWX-D Single-Arm Package...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$10,047.00 + Free Shipping
$10,047.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

  • Single Phase Input
  • 115V Blower
  • Multiprocess Compatible
  • 1-Year Miller Warranty

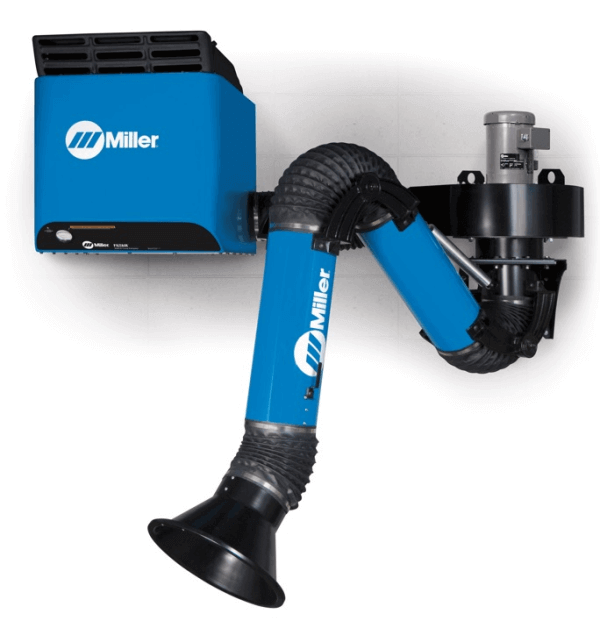

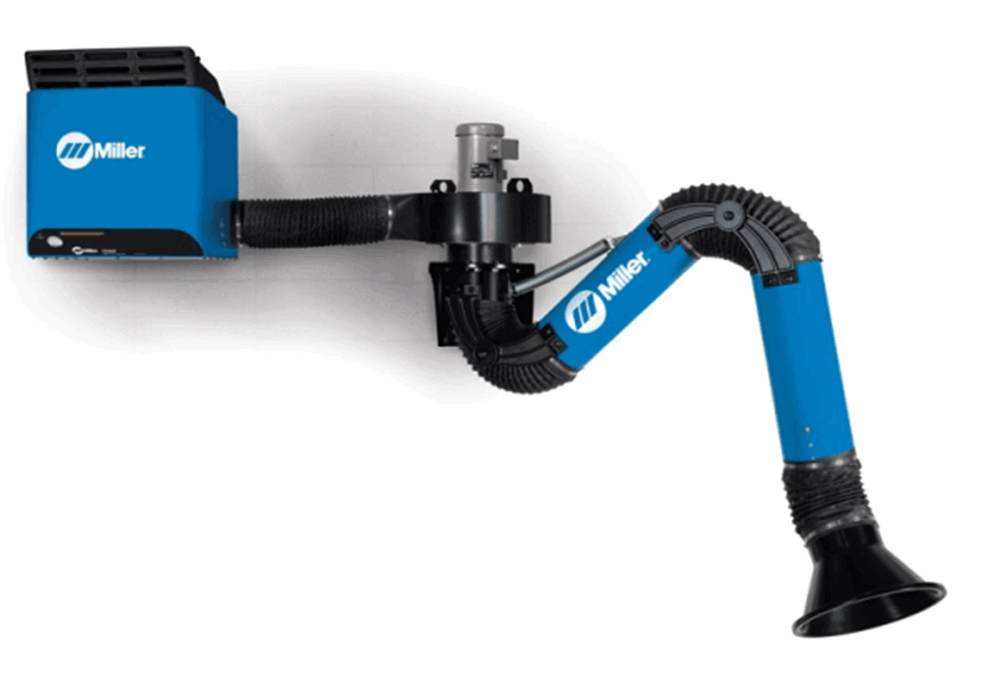

Miller FILTAIR® SWX-D (Disposable Filter) Single-Arm Package 951515, 12 ft. Standard Fume Extraction Arm

Miller’s FILTAIR fume extraction systems offer the flexibility of adding an extraction arm to the single-arm system you already own, effectively creating a dual arm solution. You can add an arm of the same length, or one that’s longer or shorter to customize your system to whatever fume extraction challenge you’re dealing with.

This add-on package has the 12 ft. Standard Fume Extraction Arm, but you can also choose the 4.5’, 7’, or 10’ arm. These arms can be wall or column-mounted, and come fully assembled. With class-leading suction power and unmatched filtering performance, the FILTAIR system is ideal for manufacturing, fabrication shops, and vocational training centers.

What's Included:

  • 8 in. diam. x 10 ft. ZoneFlow fume extraction arm
  • Backdraft dampers
  • Flexible duct (7 x 37 in.)
  • Mounting bracket for blower/arm
  • ZoneFlow motor control box
  • 115 V on/off control box
  • 115 V blower

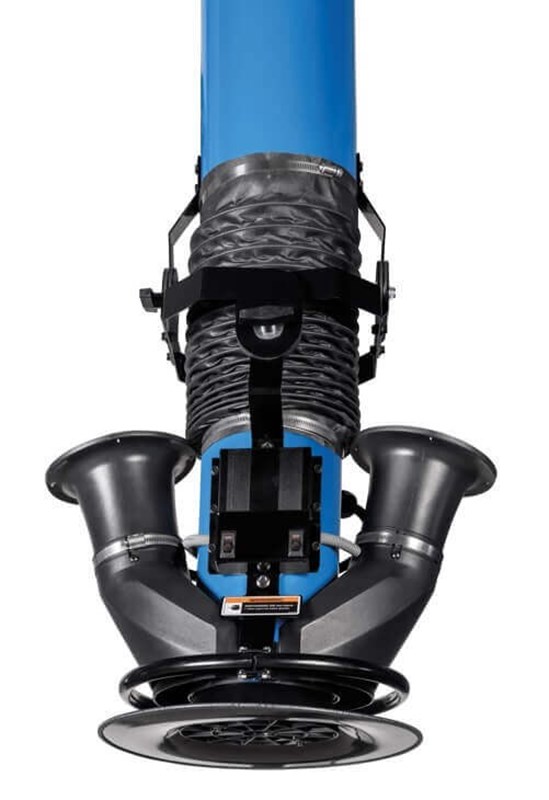

ZoneFlow™ Technology - Creates a negative pressure zone that funnels air to the center of the arm from greater distances. The arm features convenient 360-degree rotation for unlimited positioning and extended welding time.

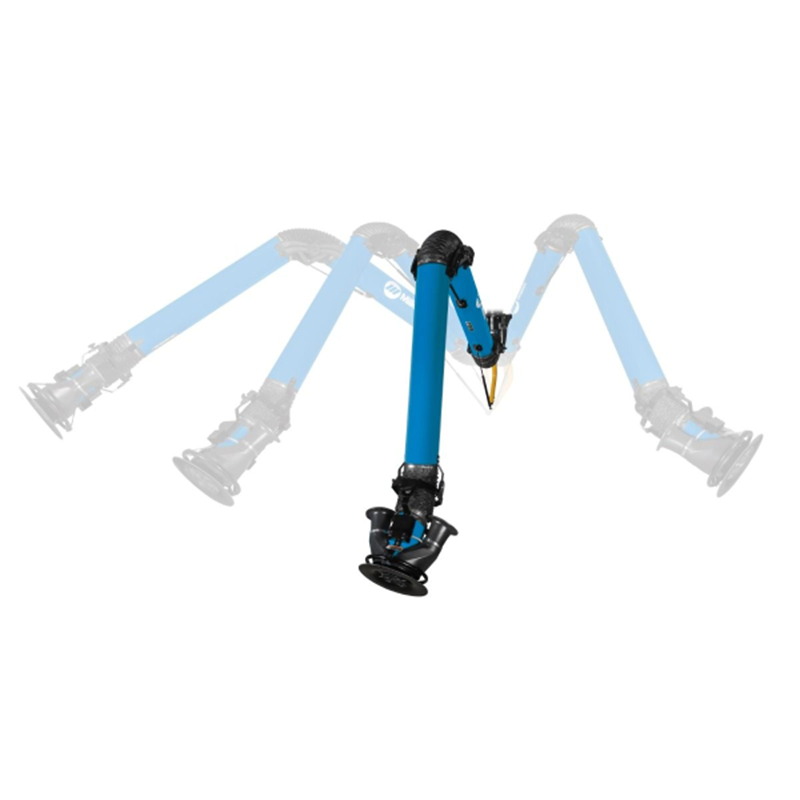

Easy-to-Operate ZoneFlow™ Arm - Arm with external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Extraction arms are available in 10- or 12-foot lengths.

Less Arm Movement - With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.

Class Leading Suction Power - High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.

Dual Fan Capture Zone Control - Keep both sides of the fans turned on for a 360 degree capture zone or turn one side off to position next to a wall or curtain for a 180 degree capture zone.

Shop all welding machines, plasma cutting machinesfume extraction equipment and welding safety equipment from Welders Supply.

Processes:

  • Stick (SMAW)
  • Flux-cored (FCAW)
  • MIG (GMAW)
  • TIG (GTAW

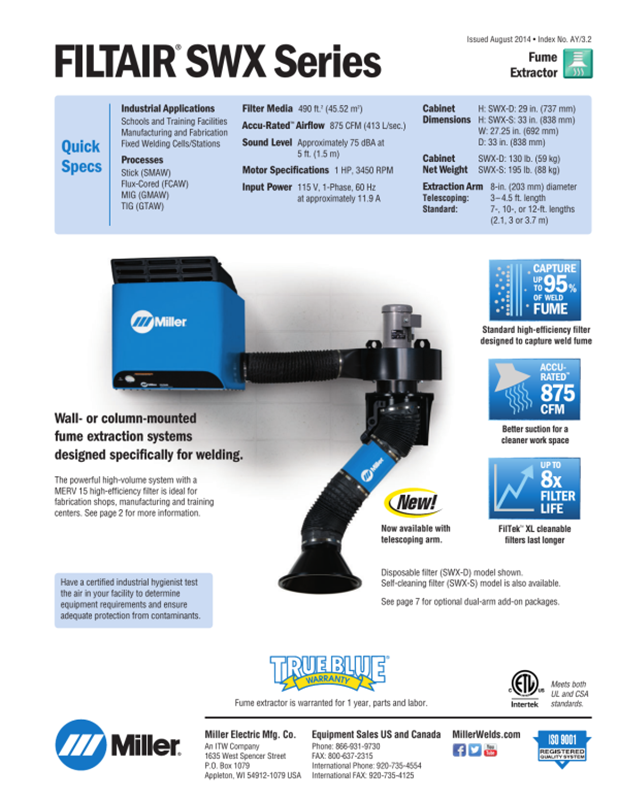

Specifications

Filter MediaAccu-Rated™ AirflowExtraction Arm DiameterSound LevelMotorPowerDimensionsNet Weight without Arm
290 sq. ft. (45.52 sq. m) 875 cfm (413 L/sec.) 8 in. (203 mm) Standard
Approximately 75 dBA at 5 ft. (1.5 m)
ZoneFlow™
Approximately 80 dBA at 5 ft. (1.5 m)
1 hp, 3,450 rpm Blower motor
115 V, 1-phase, 60 Hz at approximately 11.9 A
ZoneFlow™
115 V, 1-phase, 60 Hz at approximately 12 A
H: SWX-D: 29 in. (737 mm)
H: SWX-S: 33 in. (838 mm)
W: 27.25 in. (692 mm)
D: 33 in. (838 mm)
Cabinet
SWX-D: 130 lb. (59 kg)
SWX-S: 195. (88 kg)
Blower/bracket
95 lb. (43 kg)

SHIPPING DIMENSIONS

Height: 41.00 Inches
Width: 57.00 Inches
Length: 78.00 Inches
Weight: 394 Lb(s) 0 Oz

Product Questions and Answers


Q - Where can I get self-cleaning filters? A - You can order them here, the part number is 300540.
Q - Is this noisy? A - Not too bad: about 75 dBA at 5 ft, and around 80 dBA at 5 ft with ZoneFlow.
