Lincoln VIKING™ 3250D FGS® SAR Auto-Darkening Welding Helmet, w/ Input Hose, K5443-2

Part Number: K5443-2

UPC: 015082703817

Ships Free To Lower 48 States

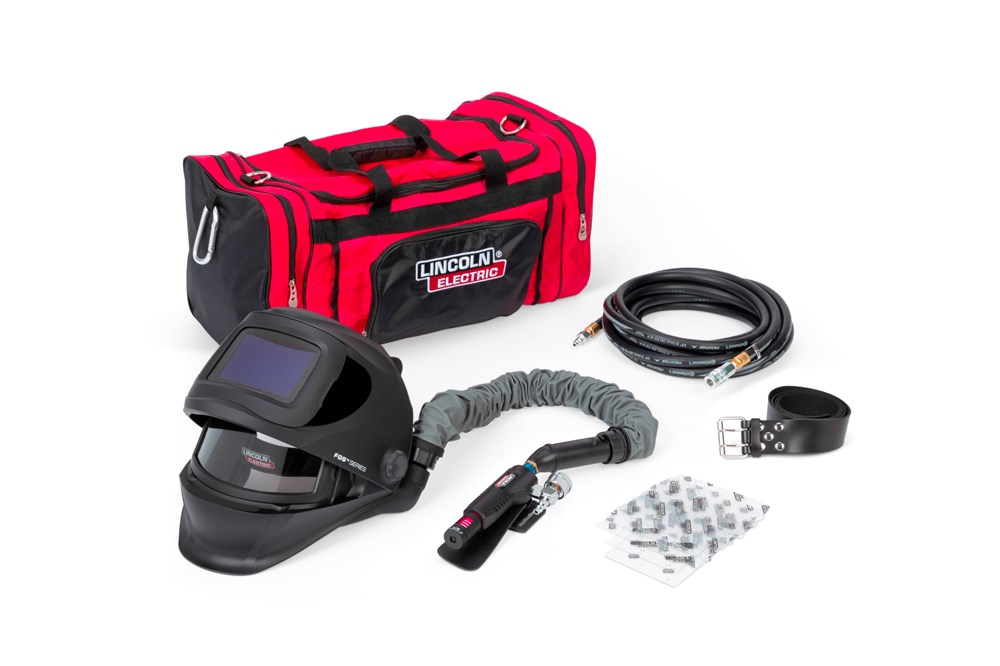

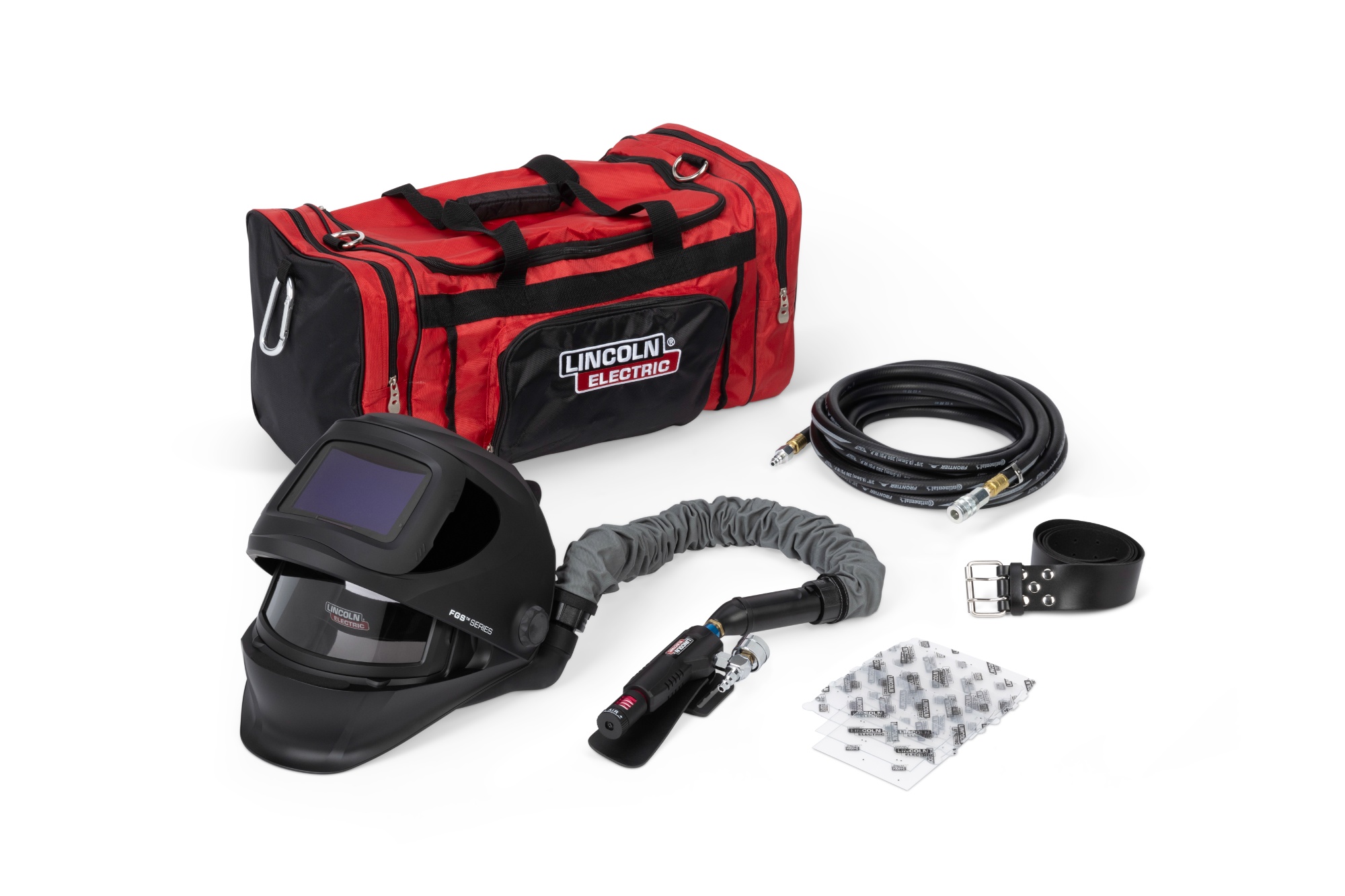

Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2 kit

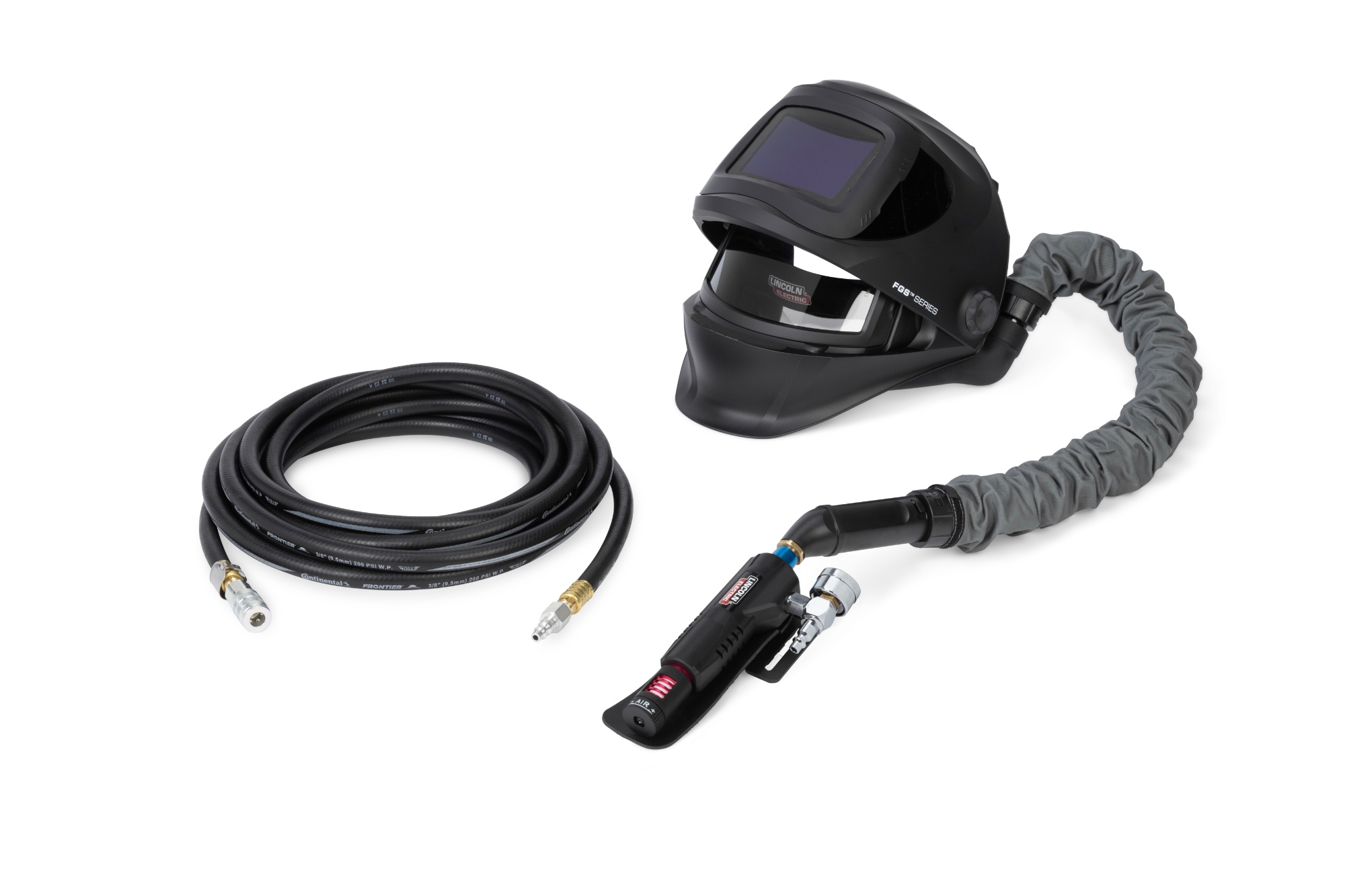

Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2 with hose

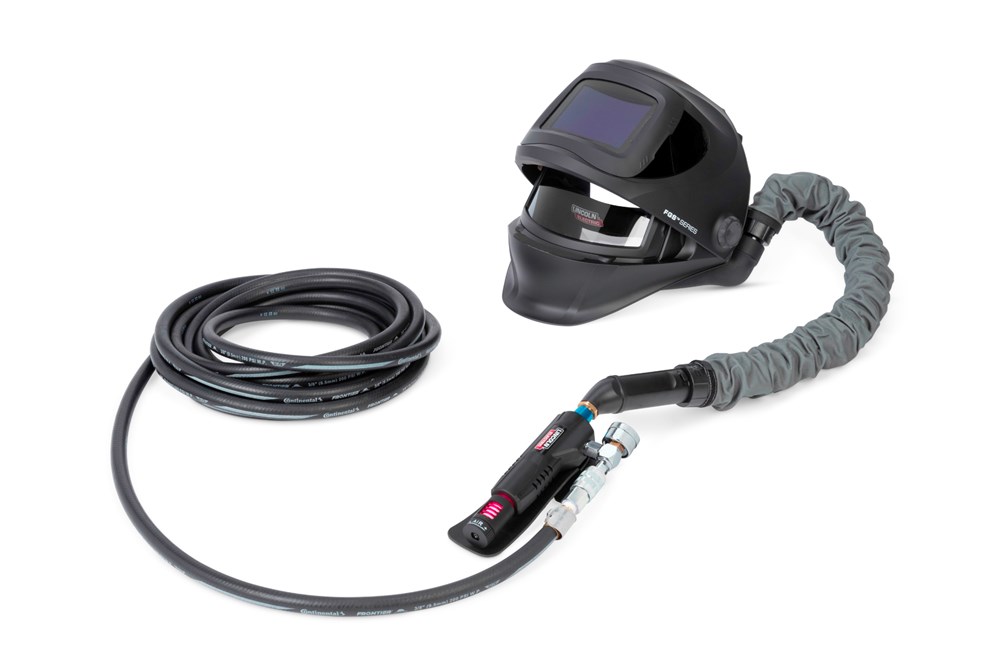

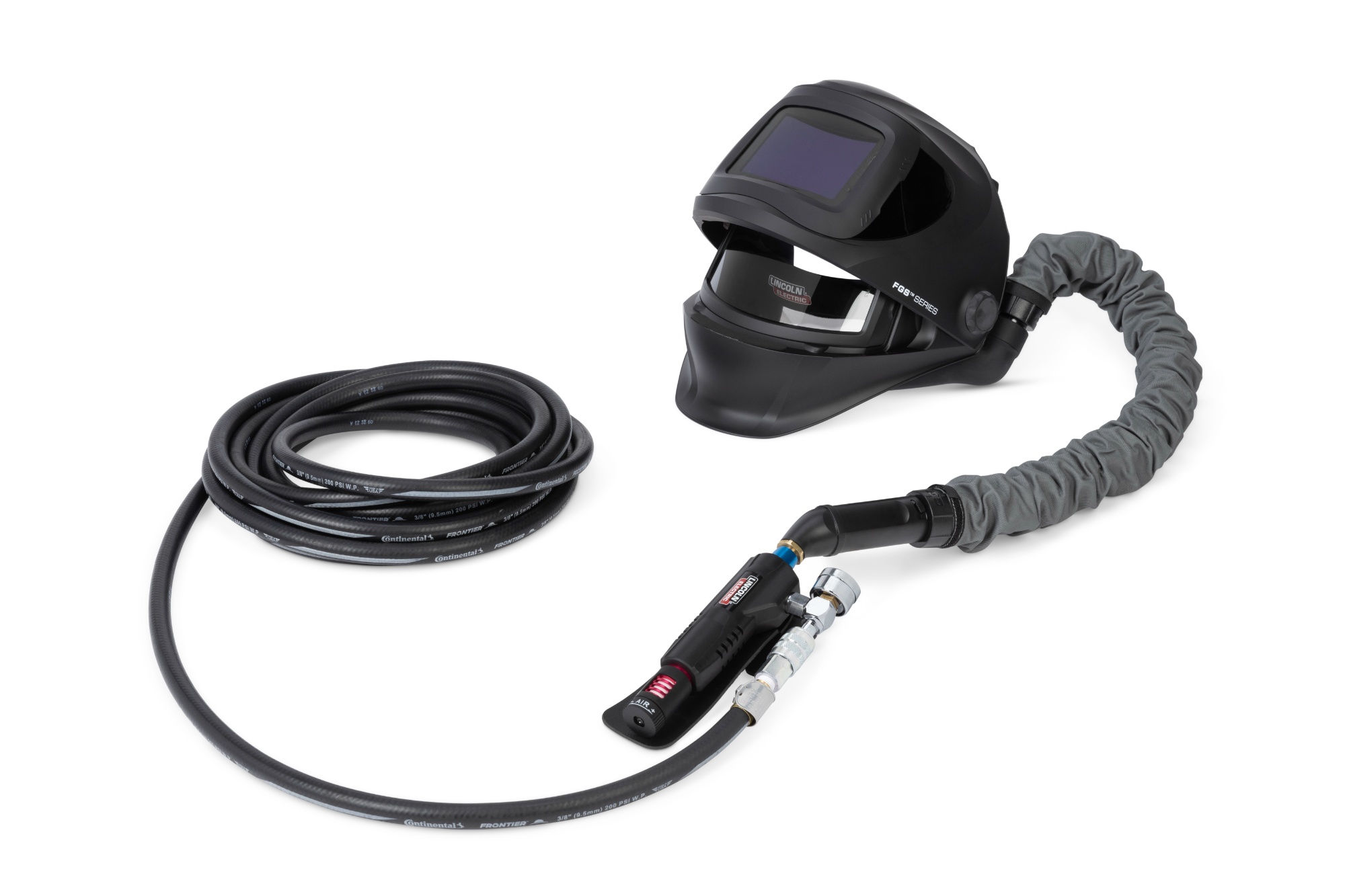

Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2 with hose attached

welder using the Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2

application of the Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2

using the Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2 in the field

Lincoln VIKING™ 3250D FGS® SAR Helmet K5443-2 in use at a plant

Lincoln VIKING™ 3250D FGS® SAR Auto-Darkening Welding Helmet, w/ Input Hose, K5443-2

Part Number: K5443-2

UPC: 015082703817

$1,667.50 + Free Shipping $2,203.64*

SAVE $536.14

VIKING™ 3250D FGS® SAR Helmet w/ Input Hose #K5443-2

While environmental systems can help filter particulates and fumes, the Viking SAR (Supplied Air Respirator) provides operators with a continuous supply of clean, cool air throughout the workday. The SAR is known in the industry as a continuous flow respirator, and is a complete system that transports air from an air source, such as compressed air or centralized air, and delivers breathable air without interruption. The SAR regulator is designed to supply an air flow range of 180-290 LPM (liters/minute) with the ability to cool the incoming air by up to 50°F (28°C). The exhaust outlet from the regulator propels hot air away from the user, in order to ensure cool and comfortable all day use.

Highlights

Continuous Supplied Air System: Delivers a steady flow of clean, breathable air to reduce fume exposure and improve safety
4C® Lens Technology: Expands the visible color spectrum for a clearer view of the arc and weld puddle while reducing eye strain
Extra-Large Viewing Area: 12.5 sq. in. auto-darkening lens provides a wide field of vision for better control and accuracy
Cooling Airflow Performance: Supplies 180–290 LPM airflow and can cool incoming air by up to 50°F for all-day comfort
Integrated Grind Shield: Allows quick transitions between welding and grinding without switching equipment
Expanded Field of View: 161° viewing capability improves awareness, safety, and productivity during operation
Advanced Adjustable Headgear: Multiple adjustment points provide a secure, customizable fit for extended wear
NIOSH Certified Protection: Meets NIOSH standards and delivers an OSHA APF 25 rating for reliable respiratory safety

What's Included:

(1) KP4474-1 3250D FGS Respiratory Helmet
(1) KP5601-1 SAR Regulator
(1) KP5519-1 SAR Leather Belt
(1) KP5122-1 Hose Assembly with Cover
(1) K3096-1 Industrial Duffle Bag
(1) KP3700-1 Replacement Outside Cover Lens (5/pk)
(1) KP3701-1 Replacement Inside Cover Lens (5/pk)
(1) KP5444-25 Air Input Hose Ind Interchange - 25 ft

Respirator Approval	NIOSH CFR Title 42, Part 84 supplied air respirator for C type helmets
Classification	Loose Fitting Respirator
Assigned Protection Factor	25
Helmet Compliance	ANSI Z87.1, CSA Z94.3
Air Flow	Low Speed: 180+ LPM (±5 LPM) High Speed: 299+ LPM (±5 LPM)
Belt Size	29 to 52 in. (736 to 1321 mm)
Weight of Helmet Assembly	32 oz. (899 g)
Operating Temperature	23°F to 104°F (-5°C to 40°C)
Storage Temperature	14°F to 122°F (-10°C to 50°C)
Warranty – SAR Assembly	1 Year
Warranty – Auto-Darkening Lens	5 Years
