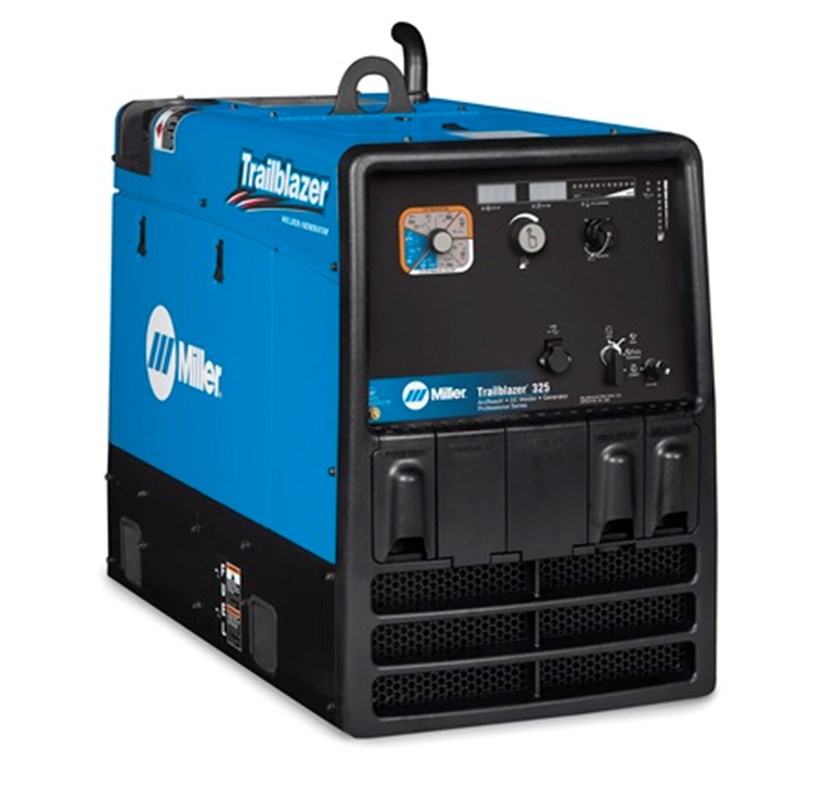

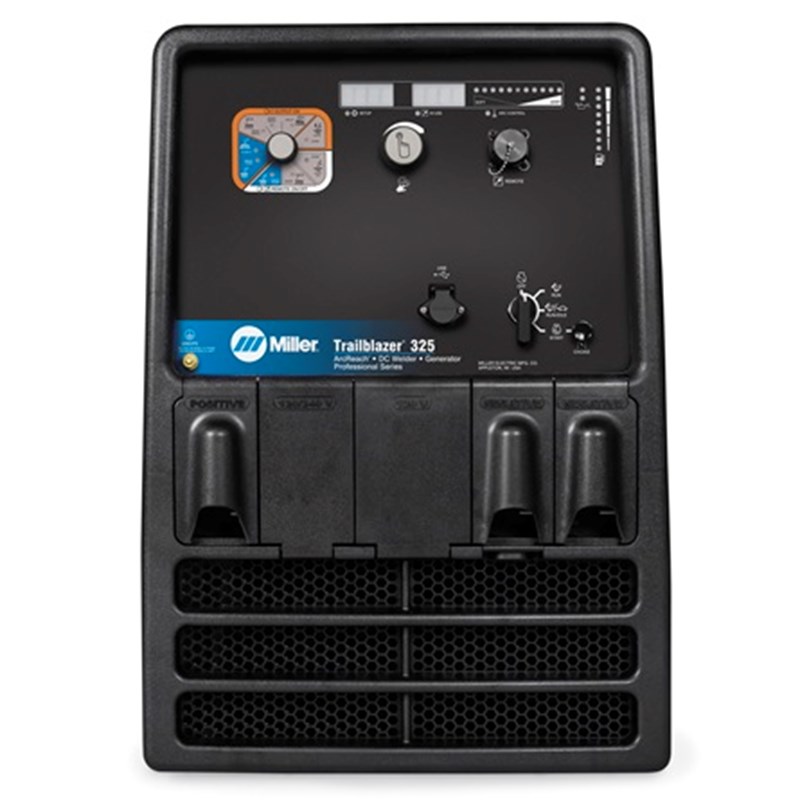

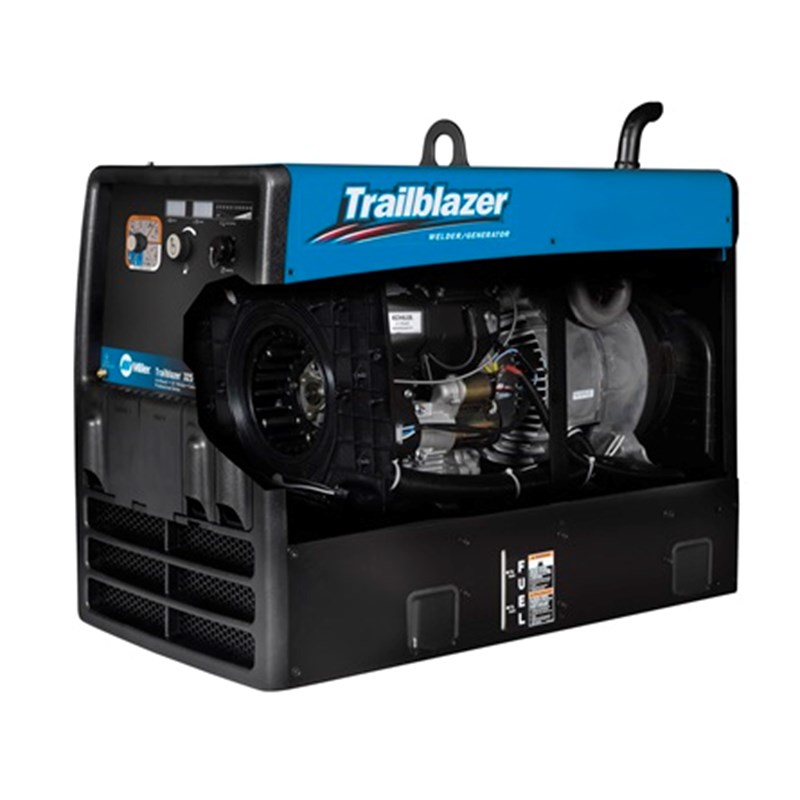

Miller Trailblazer® 325 (Kohler) #907797
Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.
Trailblazer 325 Features:
- Unmatched arc performance
- Clean and powerful generator power
- Minimized refueling trips
- Auto-Speed Technology
- ArchReach® Technology
- Air carbon arc (CAC-A) cutting and gouging
- Rated: 3/16-inch carbons
- Capable: 1/4-inch carbons
- Air plasma cutting and gouging with optional Spectrum® models
- Rated: 5/8-inch mild steel
Other Versions of the Miller Trailblazer 325:
- 907754003 - Miller Trailblazer 325 (Kohler) EFI w/ CHG/JMP & EXL PWR
- 907799001 - Miller Trailblazer® 325 Diesel, GFCI
- 907797 - Miller Trailblazer® 325 (Kohler)
- 907797001 - Miller Trailblazer® 325 (Kohler), GFCI
- 907797002 - Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump
- 907797003 - Miller Trailblazer® 325 (Kohler) w/ Wireless Interface Control
- 907798 - Miller Trailblazer® 325 (Kohler) EFI
- 907775001 - Miller Trailblazer® 325 LP, GFCI w/ Excel Power & ArcReach®
- 907798001 - Miller Trailblazer® 325 (Kohler) EFI w/ Wireless Interface Control
- 907798005 - Miller Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel Power & Wireless Interface Control
- 907798002 - Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power
- 907798004 - Trailblazer® 325 (Kohler) EFI w/ Battery Charge/Jump Start & Excel Power (No ArcReach)
- 907798003 - Miller Trailblazer® 325 EFI w/GFCI, Excel Power & Wireless Interface Control
PROCESSES
- Stick (SMAW)
- MIG (GMAW)
- Flux-cored (FCAW)
- RMesD®*
- Pulsed MIG (GMAW-P)*
- DC TIG (GTAW)
Title | Trailblazer® 325 (Kohler) |
---|---|
Industries Interests | Fabrication Maintenance Repair Structural steel work Sheet metal Pipe |
Engine Brand | Kohler |
Engine Idle Speed | 2400 RPM |
Engine Weld Speed | 2400 RPM 2800 RPM 3200 RPM 3600 RPM |
Fuel Tank Size | 12 Gallon |
Fuel Type | Gasoline |
Horsepower | 23.5 hp |
Single Phase Generator Continuous Power | 10500 W |
Single Phase Generator Peak Power | 12000 W |
Sound Rating | 70 dB @ idle and 81.5 dB @ weld dB |
Carbon Diameter | 3/16 in (4.8 mm) |
Current Type | DC |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Net Width | 20 in |
Net Height | 28 in |
Net Length | 40.5 in |
Net Weight | 486 lbs |
Warranty |
3 Years |
Weld Output | CC / CV |
SHIPPING DIMENSIONS |
|
Height: | 20.00 Inches |
Width: | 28.00 Inches |
Length: | 41.00 Inches |
Weight: | 490 Lb(s) 0 Oz |
