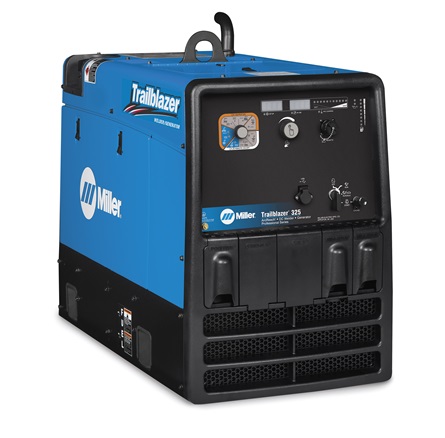

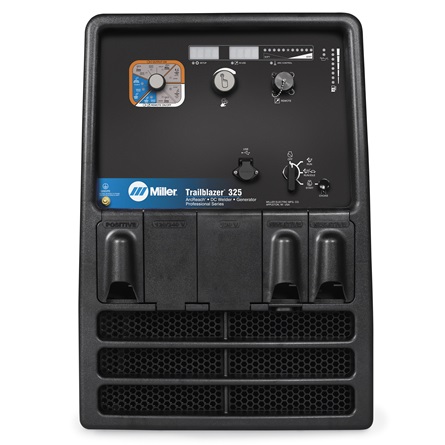

Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump #907797002

Part Number: 907797002
UPC: 715959678414
1 Review
REPLACED BY #907798
Miller Trailblazer 325 Miller Trailblazer 325 Miller Trailblazer 325
Miller Trailblazer 325
Miller Trailblazer 325
Miller Trailblazer 325

Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump #907797002

Part Number: 907797002
UPC: 715959678414
1 Review
This Item Has Been Discontinued and has been replaced by Trailblazer® 325 (Kohler) EFI 907798 - Level up today!

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Fuel Type:

Gasoline

Gasoline

  • Kohler Gas Engine
  • Single Phase Generator
  • MIG Welding
  • Stick Welding
  • TIG Welding
  • 3-Year Miller Warranty

Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump #907797002

Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

Trailblazer 325 Features:

  • Unmatched arc performance
  • Clean and powerful generator power
  • Minimized refueling trips
  • Auto-Speed Technology
  • ArchReach® Technology

This product replaces these legacy models:

Other Versions of the Miller Trailblazer 325:

PROCESSES

  • Air Carbon Arc Cutting & Gouging (CAC-A)
  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • TIG DC (GTAW-DC)
  • Plasma (PAC)
Title

Trailblazer® 325 (Kohler) w/Electric Fuel Pump
Industries Interests Fabrication
Maintenance
Repair
Structural steel work
Sheet metal
Pipe
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed 2400 RPM
2800 RPM
3200 RPM
3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Gasoline
Horsepower 23.5 hp
Single Phase Generator Continuous Power 10500 W
Single Phase Generator Peak Power 12000 W
Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Net Width 20 in
Net Height 28 in
Net Length 40.5 in
Net Weight 488 lbs
Warranty

3 Years
Miller's True Blue Warranty
Engine Warranties
Weld Output CC / CV

SHIPPING DIMENSIONS
Height: 20.00 Inches
Width: 28.00 Inches
Length: 41.00 Inches
Weight: 500 Lb(s) 0 Oz

Manufacturer Reviews

Aaron
We are a structural steel contractor. This machine runs everything we need from stick to flux core wire. Truly love the EFI function as it uses approximately 2 gallons of gas in an 8 hour day. Only idles up under heavy welding conditions. Great Buy!
