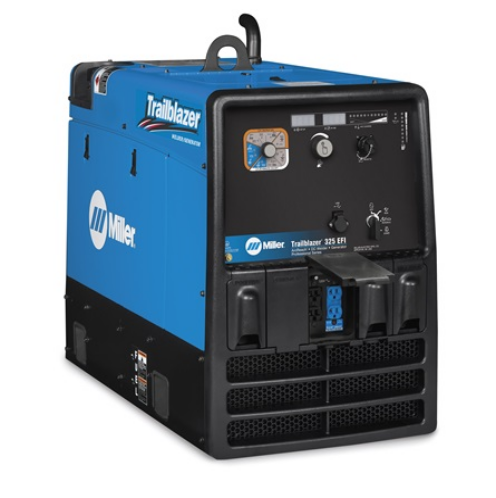

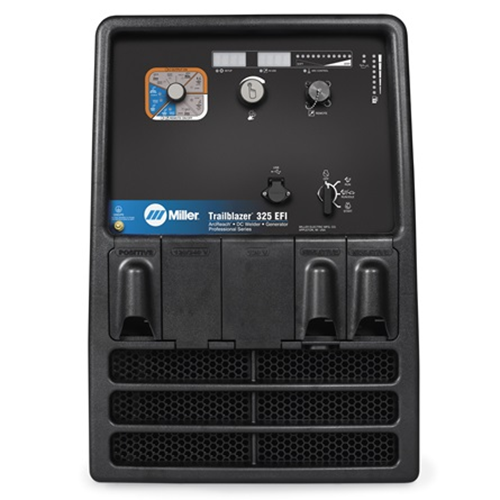

Miller Trailblazer® 325 (Kohler) EFI 907798

Part Numbers: 907798
1 Review
$9,240.00
$11,700.00* Save $2,460.00

Included with your purchase:

Select your Bundle!
Edit

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Engine Driven

    Engine Driven

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    • 3-Year Power Warranty
    • MIG Welding
    • Stick Welding
    • TIG Welding

    Miller Trailblazer® 325 (Kohler) EFI 907798

    Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

    Processes:

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cores (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIC DC (GTAW-DC)
    • Plasma (PAC)

    Trailblazer 325 Features:

    • Unmatched arc performance
    • Clean and powerful generator power
    • Minimized refueling trips
    • Auto-Speed Technology
    • ArchReach® Technology


    PROCESSES

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG DC (GTAW-DC)
    • Plasma (PAC)
    Title Trailblazer® 325 (Kohler) EFI
    Industries Interests Fabrication
    Maintenance
    Repair
    Structural steel work
    Sheet metal
    Pipe
    Engine Brand Kohler
    Engine Idle Speed 2400 RPM
    Engine Weld Speed 2400 RPM
    2800 RPM
    3200 RPM
    3600 RPM
    Fuel Tank Size 12 Gallon
    Fuel Type Gasoline
    Horsepower 23 hp
    Single Phase Generator Continuous Power 10500 W
    Single Phase Generator Peak Power 12000 W
    Carbon Diameter 3/16 in (4.8 mm)
    Current Type DC
    Portability Lift Eye (Standard)
    Running Gear / Cart (Optional)
    Trailer (Optional)
    Net Width 20 in
    Net Height 28 in
    Net Length 40.5 in
    Net Weight 491 lbs
    Warranty

    3 Years
    Miller's True Blue Warranty
    Engine Warranties

    Weld Output CC / CV

    SHIPPING DIMENSIONS

    Height: 20.00 Inches
    Width: 28.00 Inches
    Length: 41.00 Inches
    Weight: 515 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Weldah
    I purchased this Trailblazer 325 EFI to replace my old Bobcat 225 NT and I'll never look back. This machine is smaller (although about an inch wider) and lighter than the Bobcat and much, much quieter. It's got far more welding power than the Bobcat, but most importantly for me, it's got more voltage for FCAW and GMAW. I was previously forced to run my 8VS feeder in CC mode on the Bobcat because it just didn't put out enough power for FCAW for my tastes on 3/8" and thicker material. Even at that, I ran the Bobcat at max amperage to get the welding performance I wanted from the 8vs wire feeder. That's no problem now. The Trailblazer has power to spare and only runs at an RPM required for the power output instead of wide open all the time. It's a very nice feature! I couldn't be happier with it and wish I'd spend the extra money for this unit years ago! Fuel injection also makes cold day starts here in Maine a whole lot easier.
