Title |

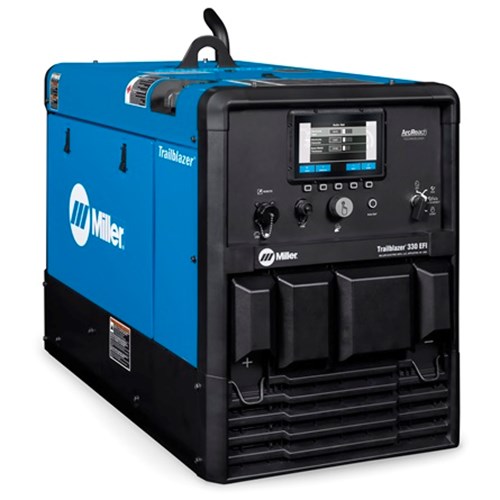

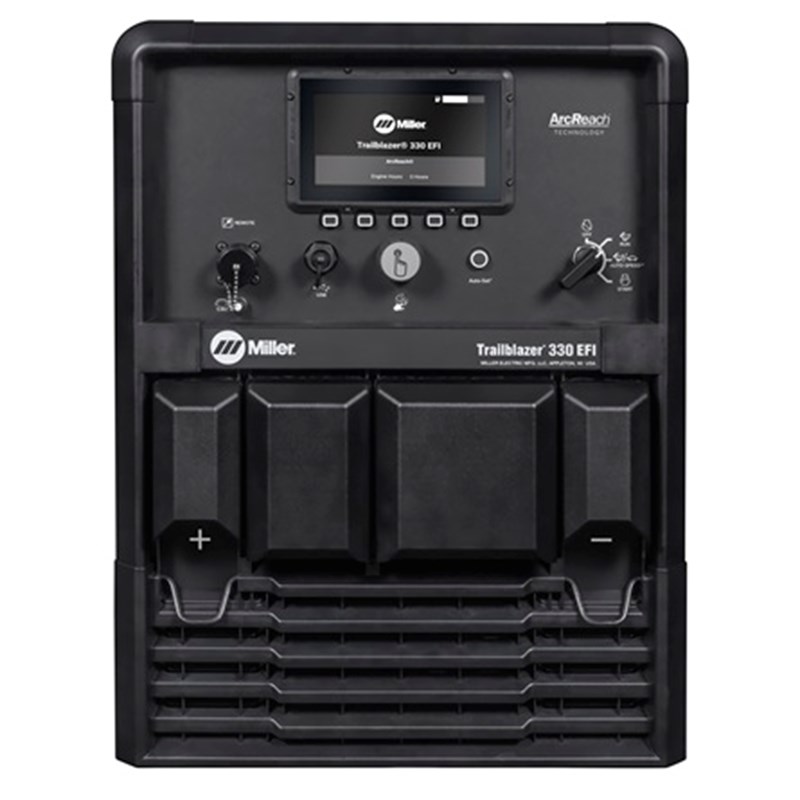

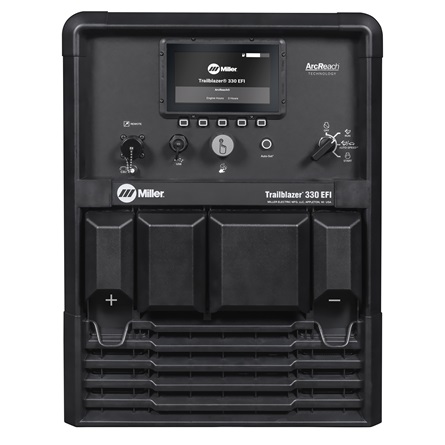

Trailblazer® 330 (Kohler) EFI |
Industries Interests |
Construction and Fabrication Heavy Equipment |
Amperage |
20 A - 330 A |
Weldable Metals |
Aluminum Stainless Steel Steel |
Rated Carbon Diameter |
1/4 in (6.4 mm) |
Current Type |
DC |
Max Open Circuit Voltage |
107 VDC |
Portability |
Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Engine Brand |
Kohler |
Engine Idle Speed |
2400 RPM |
Engine Weld Speed |
Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 RPM to match weld output |
Fuel Tank Size |
11 Gallon |
Fuel Type |
Gasoline |
Horsepower |
23 hp |
Weld Output |
CC / CV |
Rated Output |
CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle |

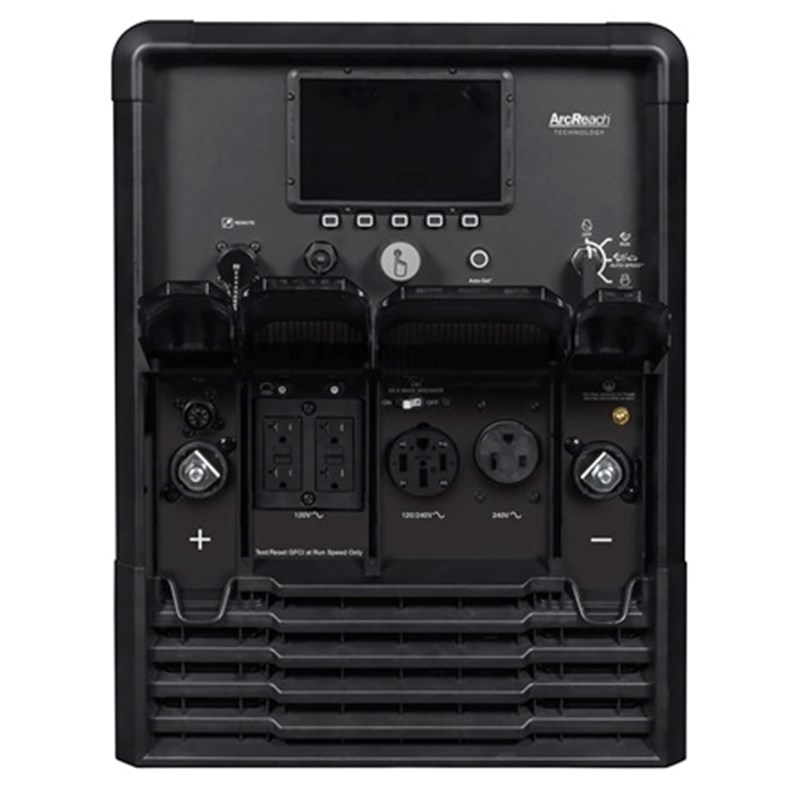

Single Phase Auxiliary Continuous Power |
10,500 W |
Single Phase Auxiliary Peak Power |
12,000 W |
Sound Rating |
65 dB @ idle and 73.5 dB @ max weld |
Applications |
Aluminum Welding Fabrication Mobile Fabrication & MRO Structural Welding |
Warranty |
3 Years Miller's True Blue Warranty |
