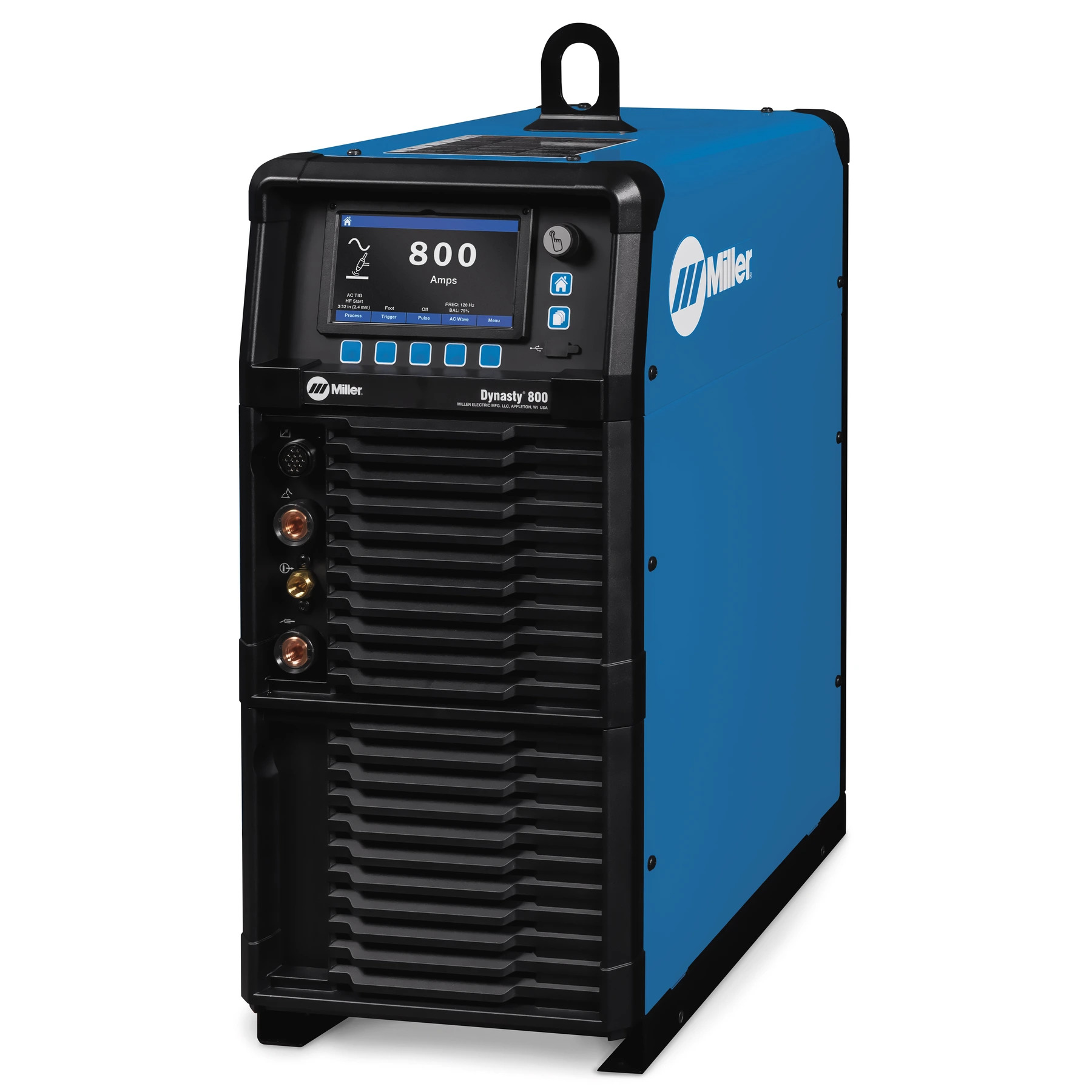

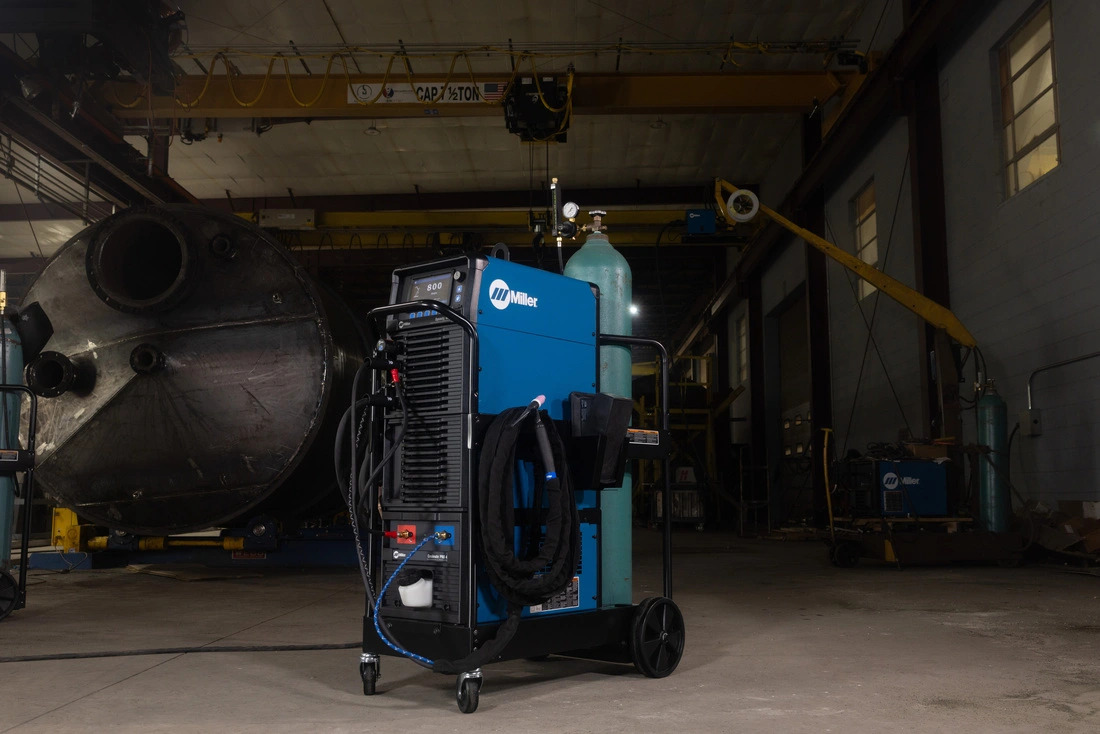

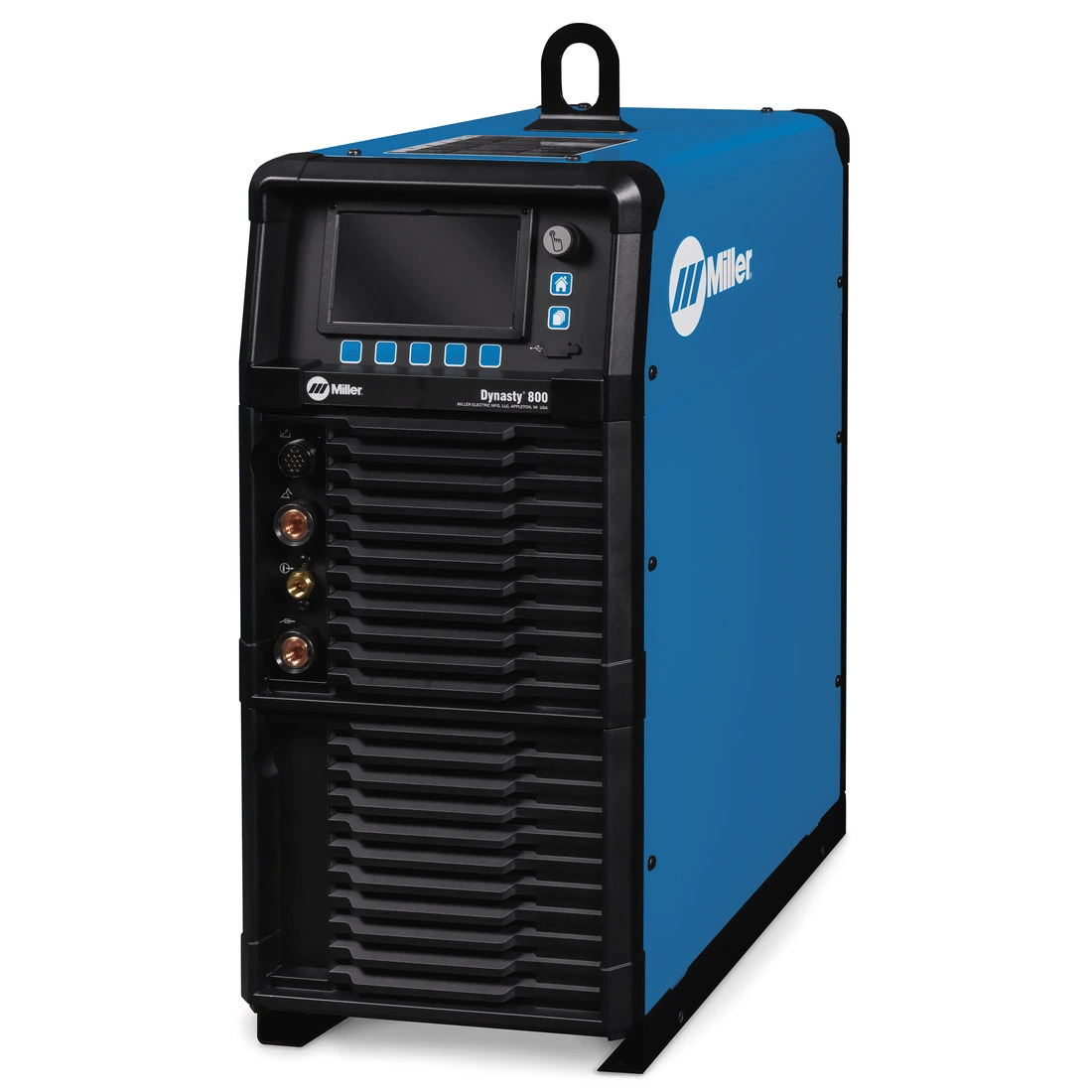

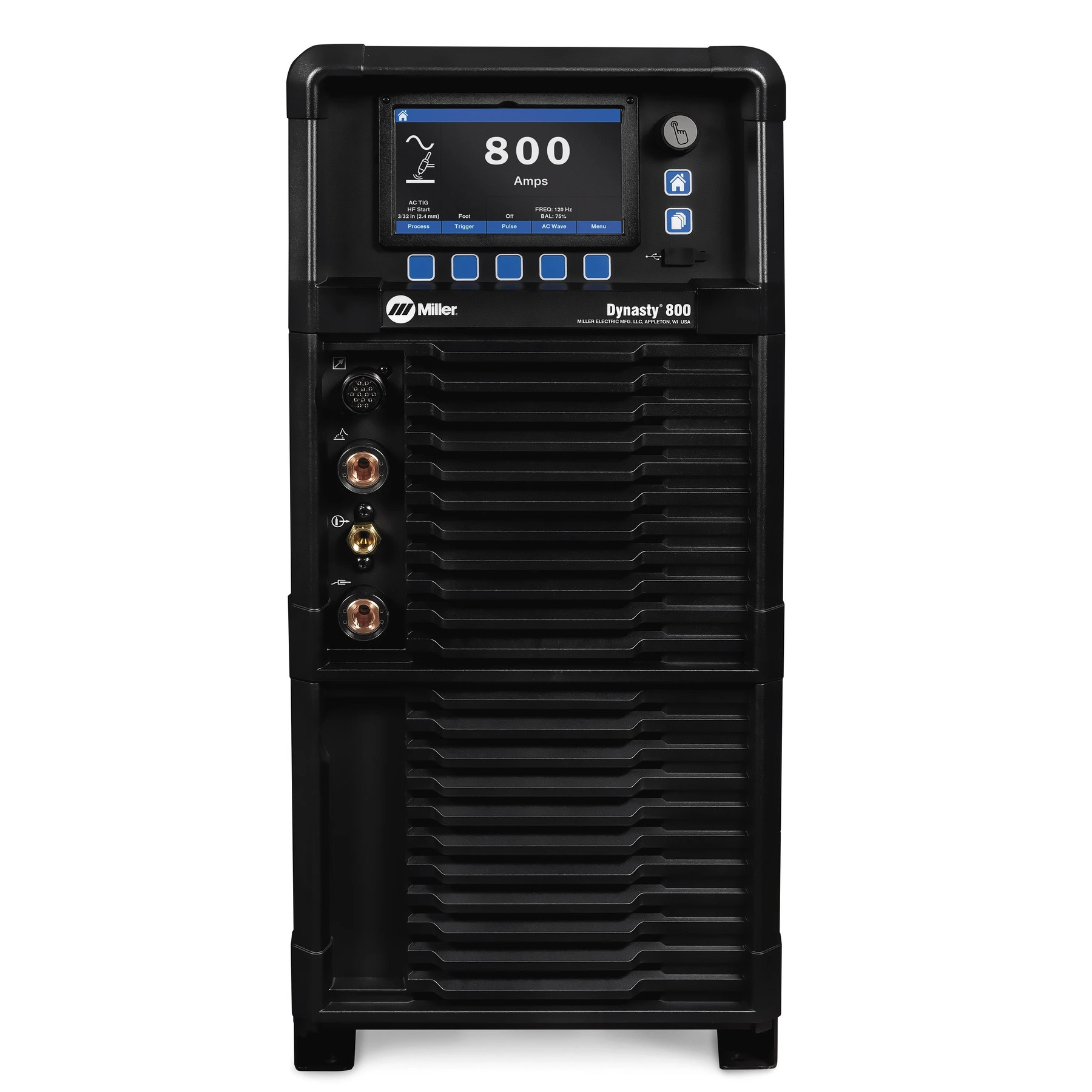

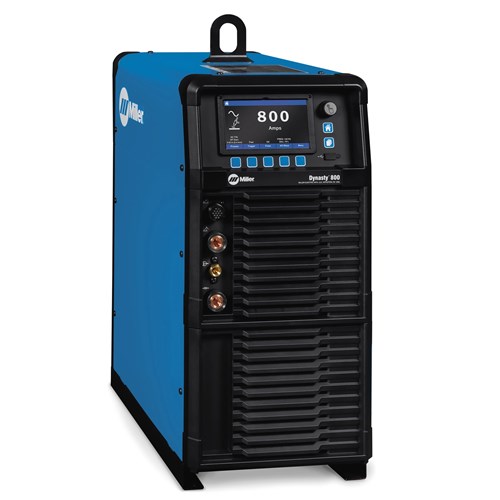

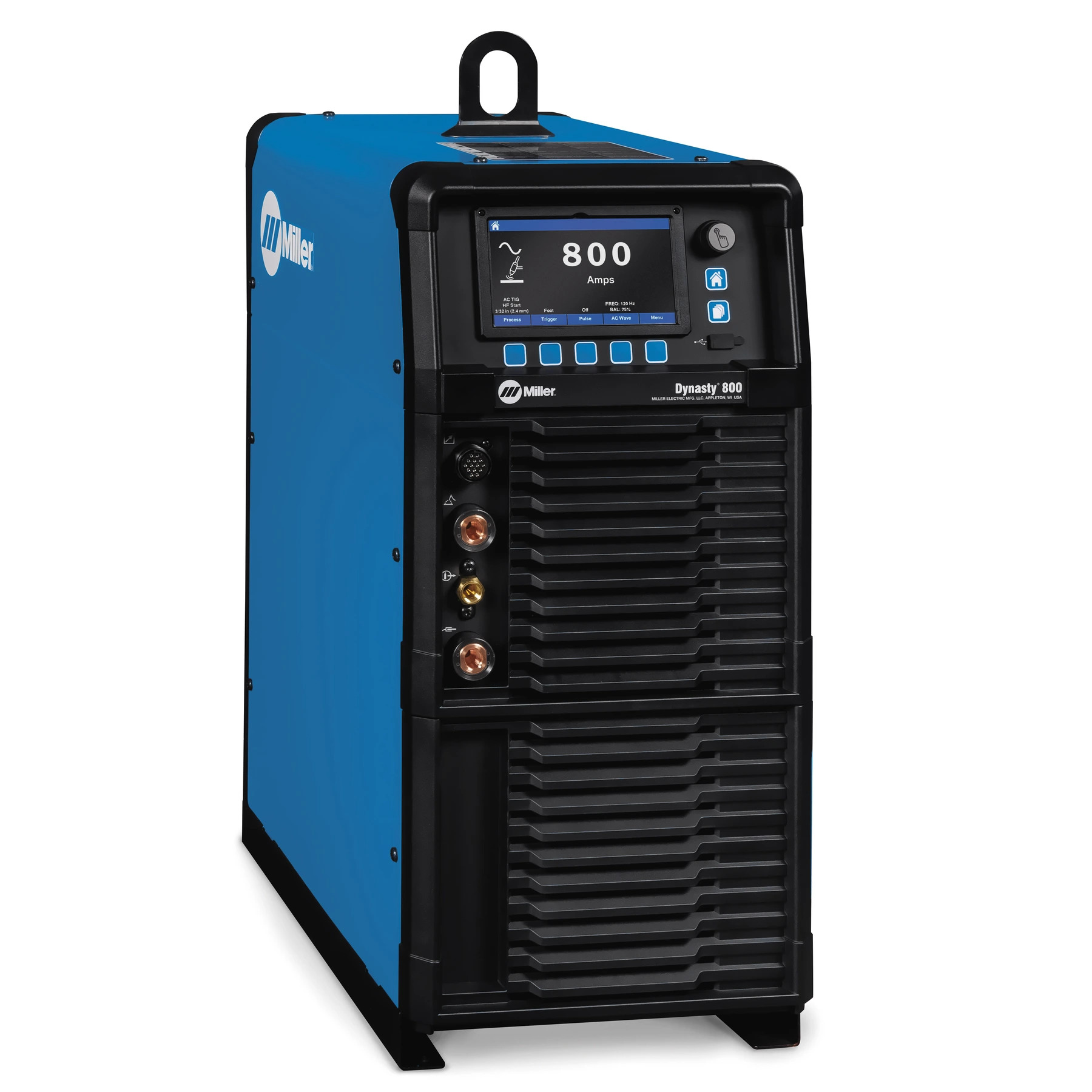

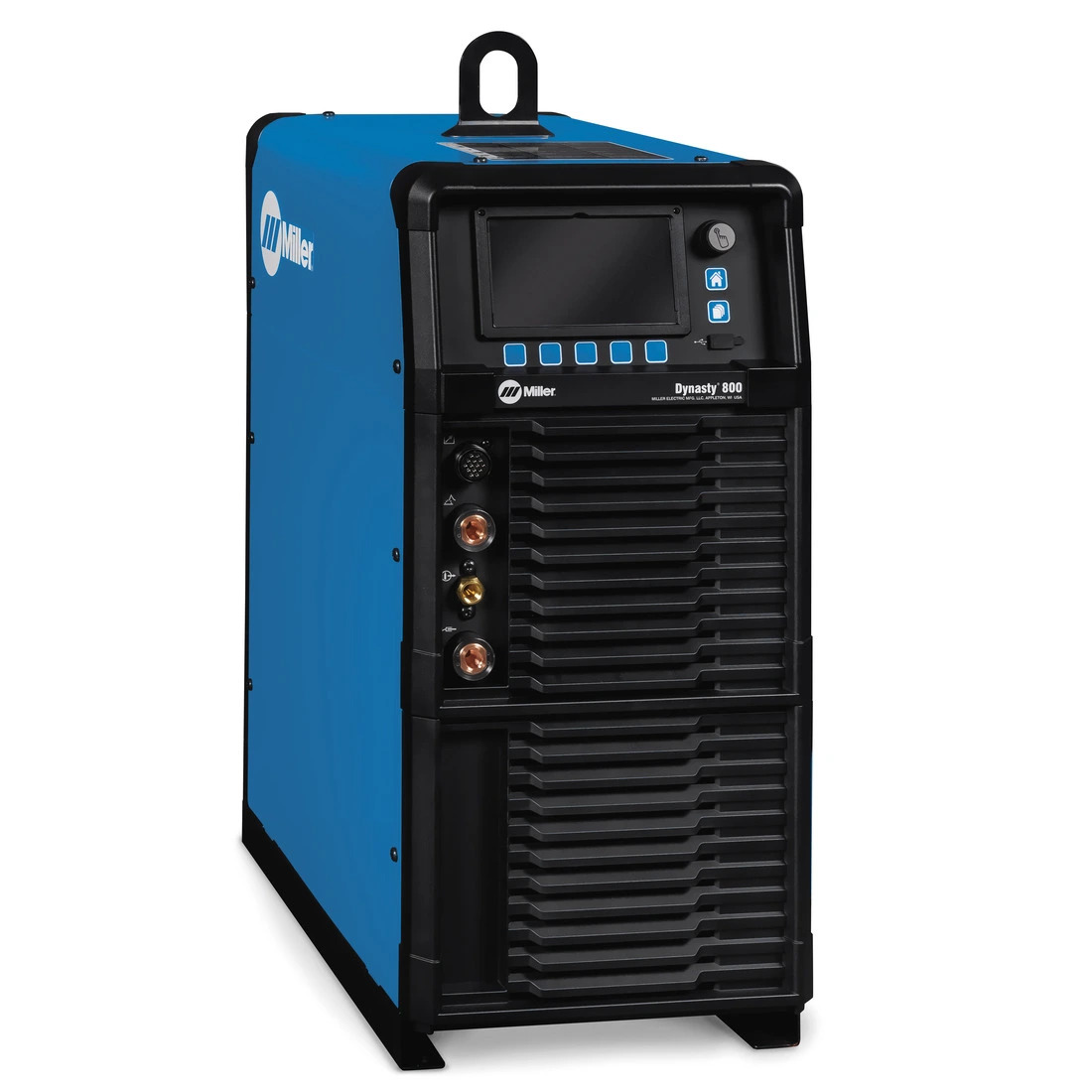

Miller Dynasty® 800 AC/DC TIG Welder, 380-600 V, CE

The CE version of the Miller Dynasty® 800 serves facilities that run on 380 to 600 V power and require CE-marked equipment. It keeps the full 5 to 800 amp AC/DC TIG and Stick range of the standard model and welds aluminum and steel up to 1 inch thick.

Highlights

• CE-Marked for International Use: Configured for 380/400, 460/480, and 575/600 V input where CE conformity is required.
• 800-Amp Output: 5 to 800 A range with a 600 A rating at 60% duty cycle.
• Auto-Line™ Technology: Adjusts automatically to primary voltage within its range with no manual linking.
• Advanced AC TIG Controls: Independent EP and EN amperage, extended AC balance, and 20 to 400 Hz AC frequency control heat input, cleaning action, and arc width.
• Four AC Waveforms: Advanced Squarewave, Soft Squarewave, Sine, and Triangular.
• High-Speed DC Pulse: Up to 5,000 pulses per second for a stable arc and less heat input on stainless and specialty alloys.
• QuietPulse™: Sine or Triangular pulse waveshapes reduce audible arc noise.
• Program Memory: Up to 99 named weld programs, transferable between machines by USB.
• Locks and Limits: Restricts parameter ranges to keep operators within the WPS.
• Pro-Set™: One-press presets for balance, frequency, pulse, and DIG.
• Blue Lightning™ HF Arc Starter: Reliable non-contact arc starts.
• Stick and Gouging: Adjustable DIG and Hot Start™ for 7018 and 6010 electrodes, plus carbon arc gouging up to 3/8 inch.
• Cooler Power Supply (CPS): Powers a Coolmate™ PRO 4 water cooler directly from the welder.

What's Included

• Dynasty® 800 power source, CE
• (1) Water-cooled thread-lock torch adapter #225028 for #18 or #20 torches
• (2) Thread-lock connectors

Applications

• Heavy aluminum fabrication
• Aerospace manufacturing
• Shipbuilding
• Process pipe
• International and export projects requiring CE equipment
