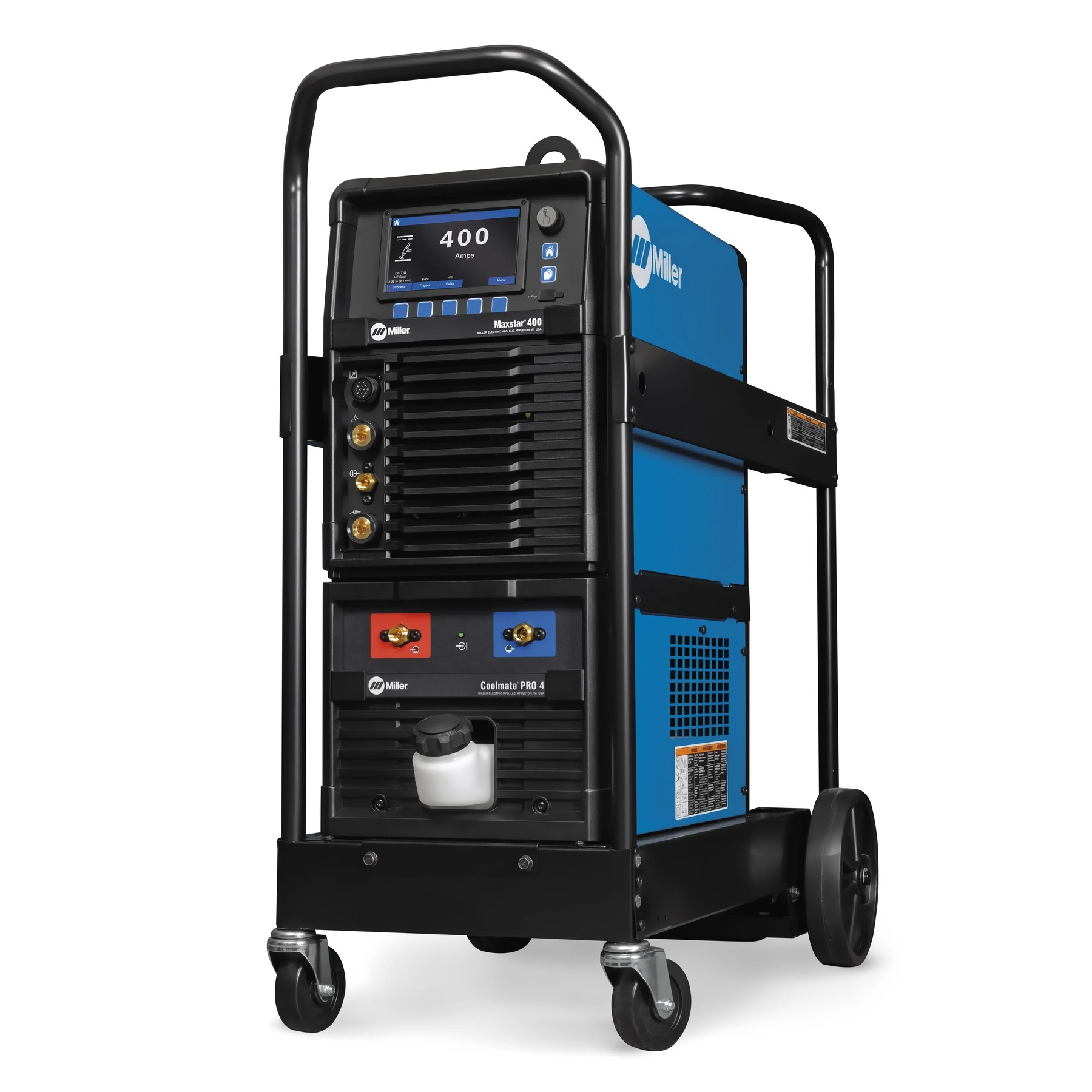

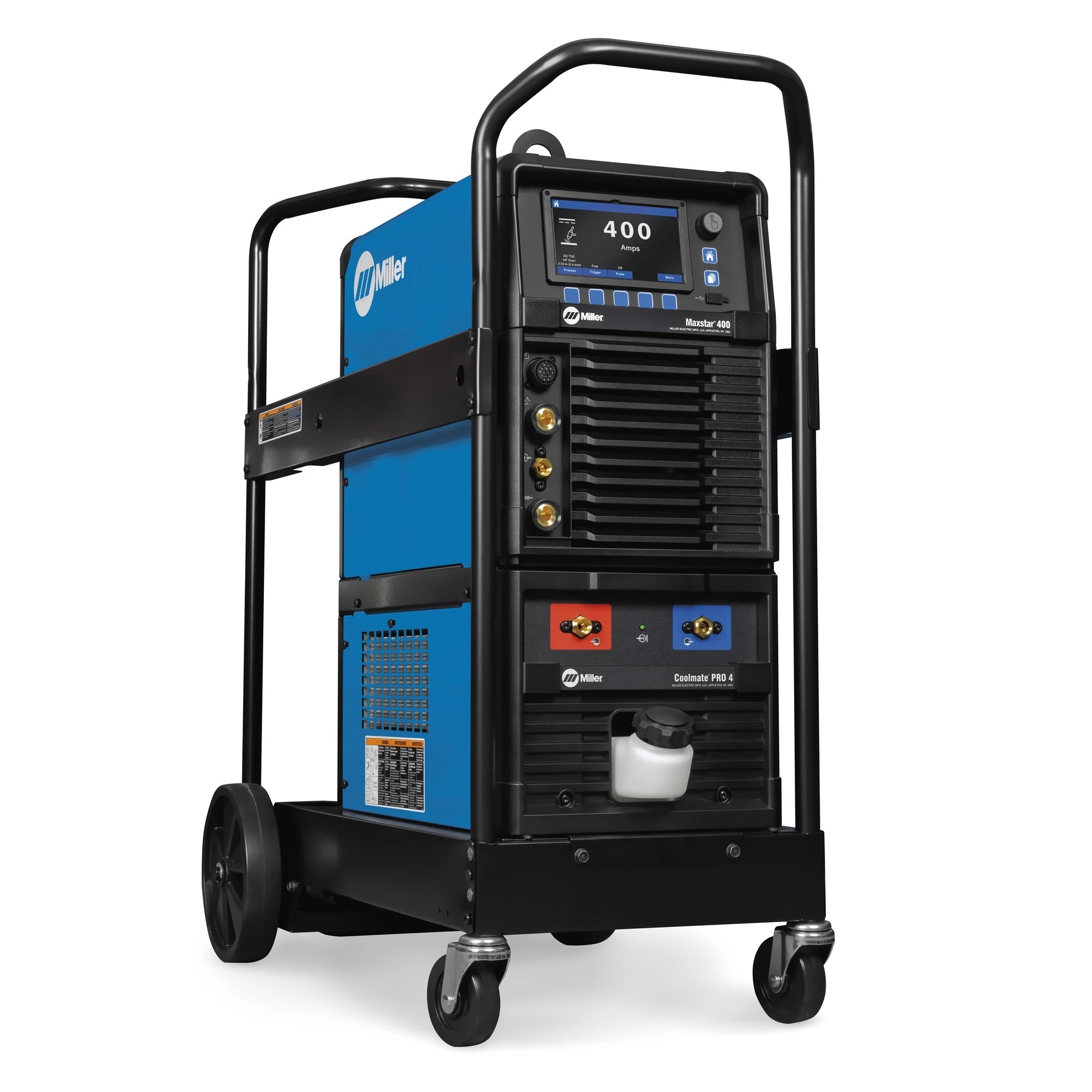

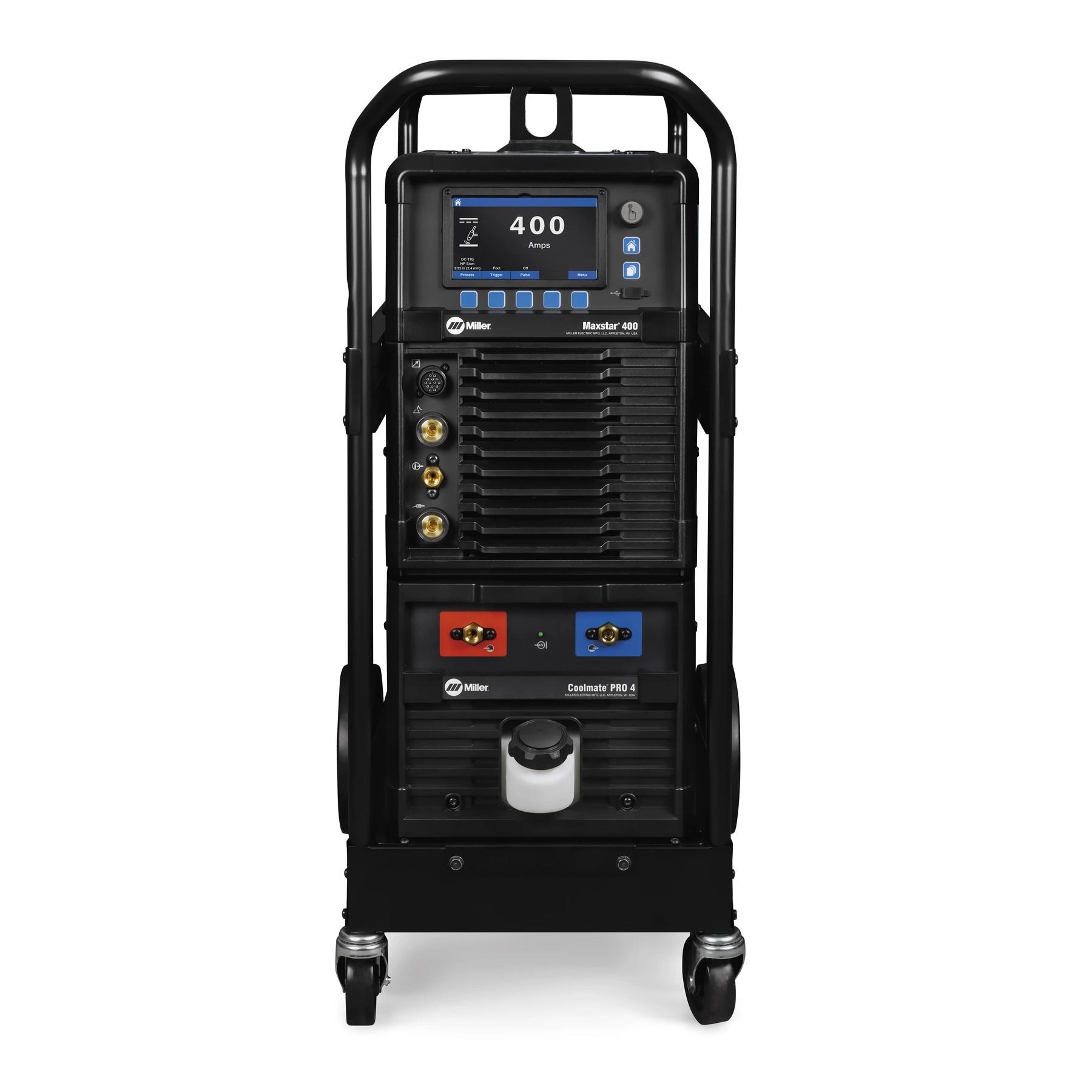

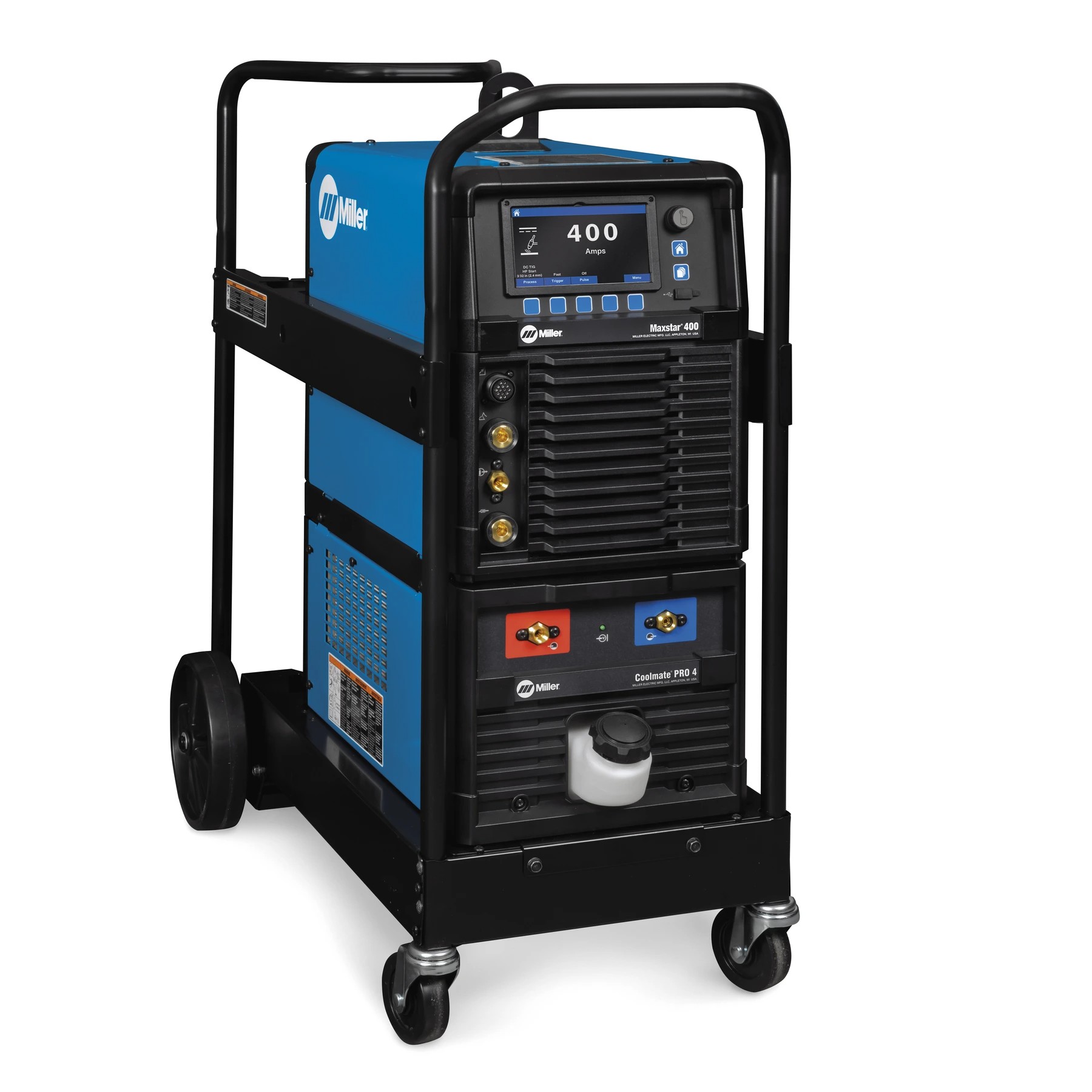

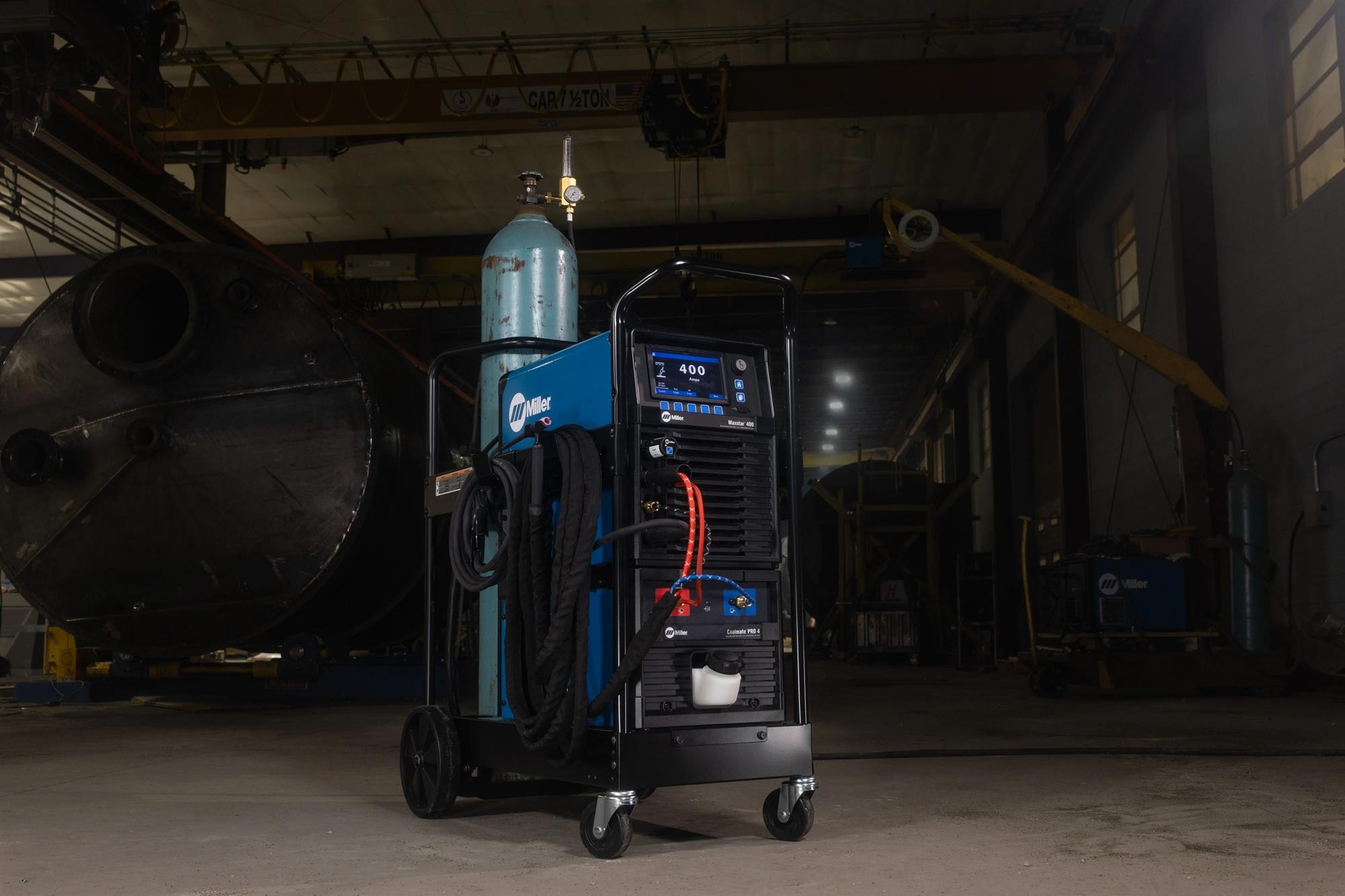

Miller Maxstar® 400 TIGRunner DC TIG Welder, 380-600 V, CE

The Maxstar® 400 TIGRunner CE package combines the CE-marked Maxstar 400, a Coolmate™ PRO 4 water cooler, and a Runner cart for sites on 380 to 600 V power. It delivers 3 to 400 amps of DC TIG and Stick output for steel and stainless up to 5/8 inch thick. Add coolant and a water-cooled torch to complete the system.

Highlights

• CE-Marked Water-Cooled Package: Welder, cooler, and cart for sites that run 380/400, 460/480, or 575/600 V and require CE conformity.
• One-Cart Setup: The Runner cart carries the Maxstar 400 and Coolmate PRO 4 together.
• Cooler Power Supply (CPS): The welder powers the Coolmate PRO 4 through a dedicated receptacle.
• Auto-Line™ Technology: Adjusts to primary voltage within its range with no manual linking.
• High-Speed DC Pulse and QuietPulse™: Up to 5,000 pulses per second, with Sine or Triangular waveshapes for a quieter pulsed arc.
• Program Memory and Locks/Limits: 99 named programs with USB transfer and locked parameter ranges to hold operators to the WPS.
• Pro-Set™: One-press presets for pulse and DIG.
• Blue Lightning™ HF Arc Starter: Reliable non-contact arc starts.
• Stick Capability: Adjustable DIG and Hot Start™ for 7018 and 6010 electrodes.

What's Included

• Maxstar® 400 power source, CE
• Primary power cord
• Coolmate™ PRO 4 water cooler
• Runner cart

Coolant and torch are sold separately. Miller recommends Low-Conductivity Antifreeze/Coolant #043810.

Applications

• Process pipe
• Tube and pipe fabrication
• Pressure vessels
• Stainless steel fabrication
• International and export projects requiring CE equipment
