Miller Trailblazer® 325 EFI w/GFCI, Excel™ Power & Wireless Interface Control 907798003

Part Numbers: 907798003
1 Review
$12,025.00
$15,226.00* Save $3,201.00

Included with your purchase:

Select your Bundle!
Edit

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    • MIG Welding
    • Stick Welding
    • TIG DC Welding
    • Portable & Compact
    • Fuel-Efficient
    • 3 Year Warranty

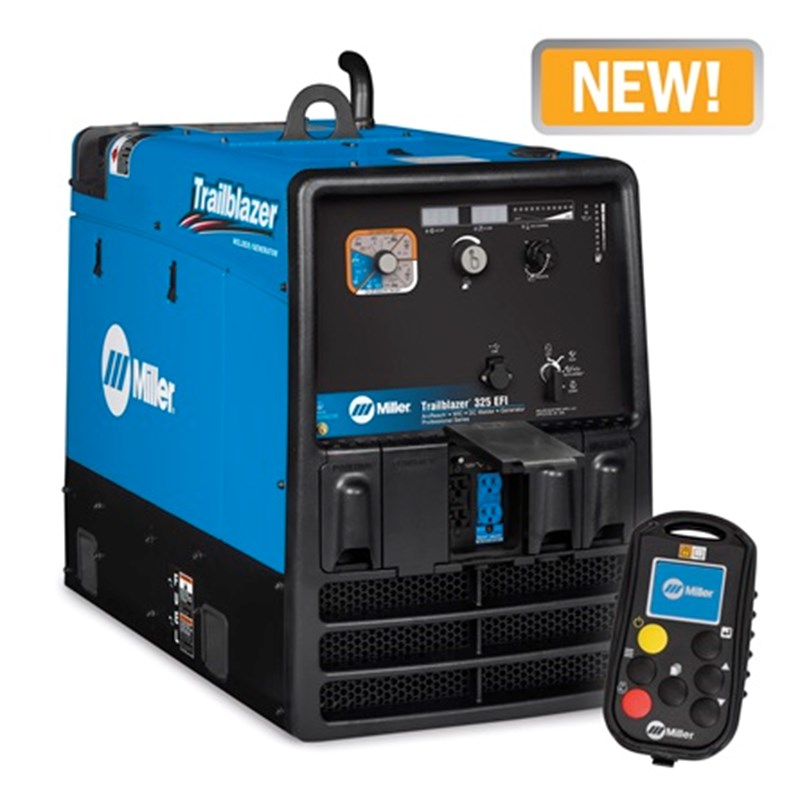

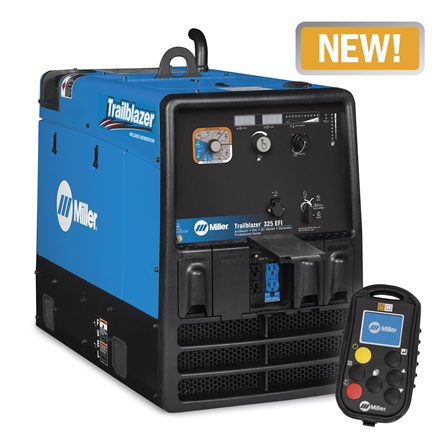

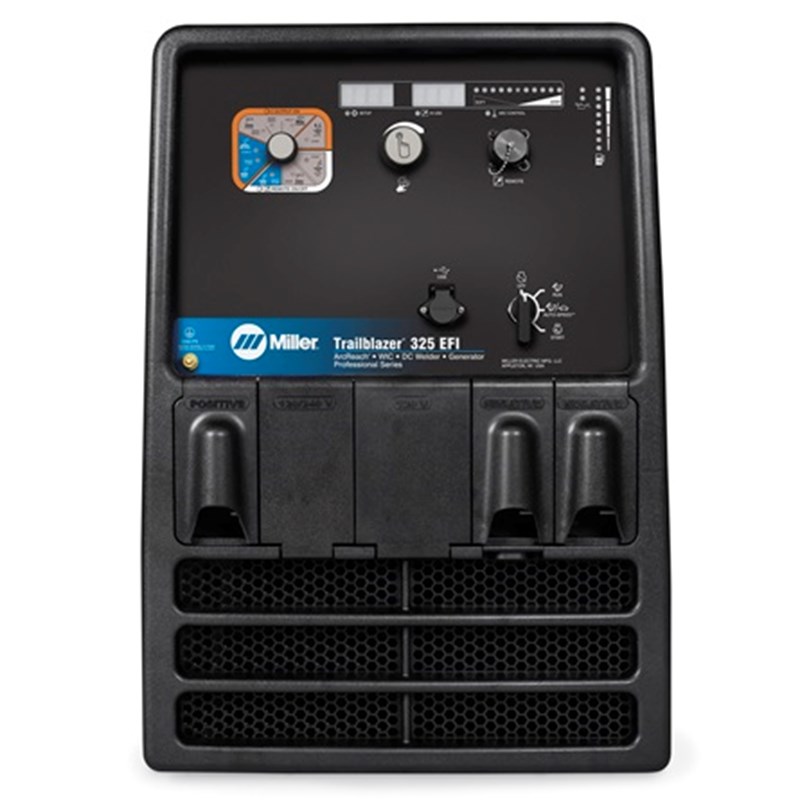

    Miller Trailblazer® 325 EFI w/GFCI, Excel™ Power & Wireless Interface Control 907798003

    Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

    Cordless Welding from Miller Welders

    Work hassle-free with this cordless welder. With wireless interface control, you can extend time between fuel fill-ups & change welding processes and parameters from wherever you are on the job site. With this Miller Trailblazer®, you'll also receive:

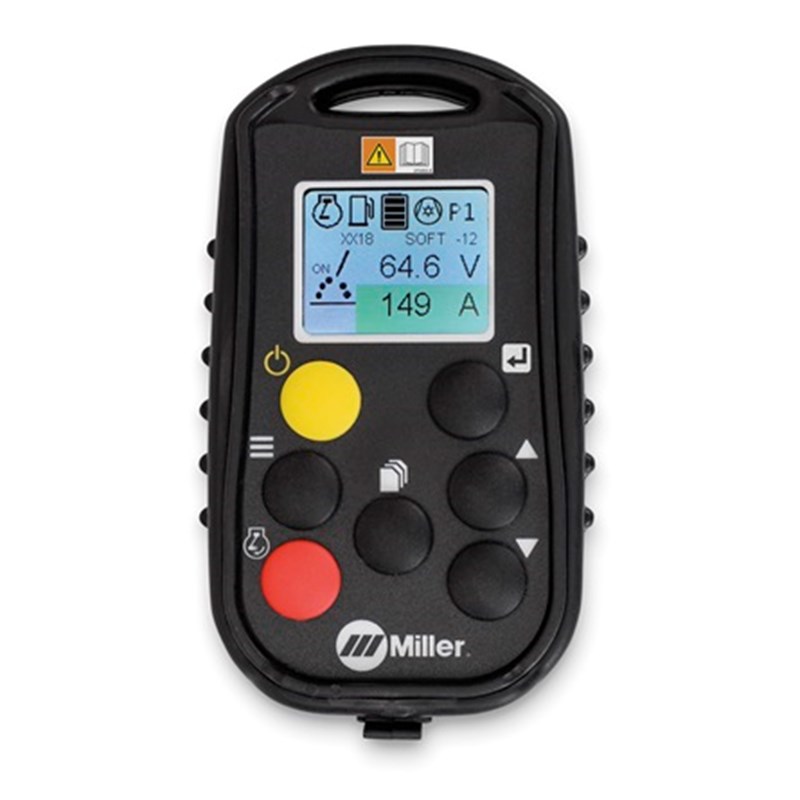

    • Wireless Interface Control. Full control of your machine in the palm of your hand, wherever you are on the job site.
    • Excel™ power. Miller machines offer the exclusive ability to power at idle.
    • Electronic fuel injection (EFI). Improved fuel efficiency means higher productivity and profitability.
    • Auto-Speed™ Technology. Miller machines exclusively offer the benefit of matching engine speed to load.
    • Dynamic DIG™. Miller's proprietary Dynamic DIG works on a time-based algorithm to automatically adjust the amount of current required to clear a short.
    • ArcReach® Technology. Existing weld cables communicate process adjustment commands back to the generator thanks to ArcReach technology.
    • Unbeatable arc performance. Get the job done faster & save money with wide amperage output and better welding deposition rates.
    • Fewer refueling trips. Spend more time welding and less time refueling - this machine delivers maximum runtime.
    • Maximum cost savings. Spend less money on fuel and enjoy more profit.
    • Portable & compact. Trailblazer welders are 17% smaller and 10% lighter than competitive machines.
    • Safer, more product job sites. A quieter job site is a more productive job site. No more shouting over loud machines!
    Browse all multi-process weldersMiller welders and welding safety equipment available online from Welders Supply.
    Trailblazer® 325 EFI w/GFCI, Excel™ Power & Wireless Interface Control #907798003 Specifications
    Industries Interests Fabrication
    Maintenance
    Repair
    Structural steelwork
    Sheet metal
    Pipe
    Processes
    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG DC (GTAW-DC)
    • Plasma (PAC)
    Engine Brand Kohler
    Engine Idle Speed 2400 RPM
    Engine Weld Speed 2400 RPM
    2800 RPM
    3200 RPM
    3600 RPM
    Fuel Tank Size 12 Gallon
    Fuel Type Gasoline
    Horsepower 23 hp
    Single Phase Generator Continuous Power 10500 W
    Single Phase Generator Peak Power 12000 W
    Rated Carbon Diameter 3/16 in (4.8 mm)
    Current Type DC
    Portability Lift Eye (Standard)
    Weld Output CC / CV
    Net Width 20 in
    Net Height 28 in
    Net Length 40.5 in
    Net Weight 491 lbs
    Warranty

    3 Years
    Miller's True Blue Warranty
    Engine Warranties

    SHIPPING DIMENSIONS

    Height: 20.00 Inches
    Width: 28.00 Inches
    Length: 41.00 Inches
    Weight: 515 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Nick
    Are use it for structural welding and repairs
