Ships Free To Lower 48 States

ESAB Rogue EM 190 PRO MIG Welder #0700301083

Part Number: 0700301083
UPC: 7330725080005
Rebate Forms:
$100 MFR Rebate - ESAB Burn & Earn
$949.99 + Free Shipping $1,144.00*
SAVE $194.01

Welding type:

Mig

Mig

Power supply:

220V Single Phase

220V Single Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • MIG
  • 220V welding machine220V Input
  • Single phase power input welding machine1-Phase
  • Lightweight, portable welding machineLightweight & Portable

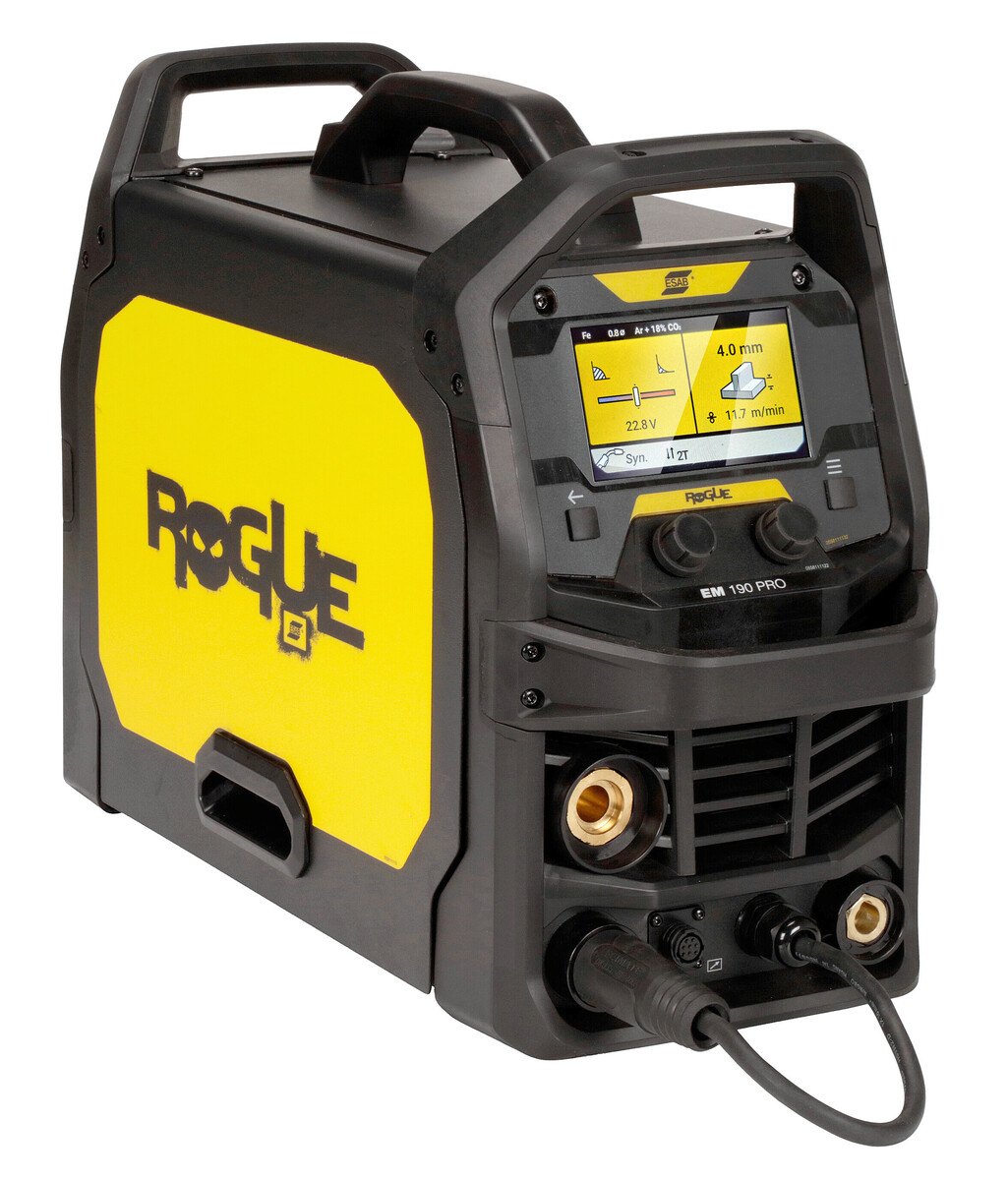

ESAB Rogue EM190 MIG Welder 0700301083

ESAB Rogue EM 190 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 16.9 kg (37.3 lbs), single voltage input, 230V single-phase and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Rogue EM takes single-phase welders to the next level with MIG/MAG and Flux-cored welding, proven Rogue performance and a rugged industrial design. Break away from convention with Rogue and upgrade the capabilities of your shop.

ESAB Rogue EM 190 PRO Portable MIG/MAG 230 V welding packageFeatures:

  • Full feature MIG/MAG machine for Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored
  • Intuitive 5.0 in TFT screen offers clear views with direct interaction
  • Synergic Weld Programs –full range of welding parameters, 0.5 –10.0 mm (0.020 –0. 375 in) with single knob control
  • Power Factor Correction (PFC) –ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
  • Unique rugged industrial design –supporting multiple lift points and cable management.
  • Arc Dynamics -fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel|Jobs –10 memory save/recall function
  • Spool Gun Ready –Rogue automatically configures set up when spool gun is connected
  • Multi-language display –configure the display to 1 of 29 languages
  • IP23S rated for indoor/outdoor use

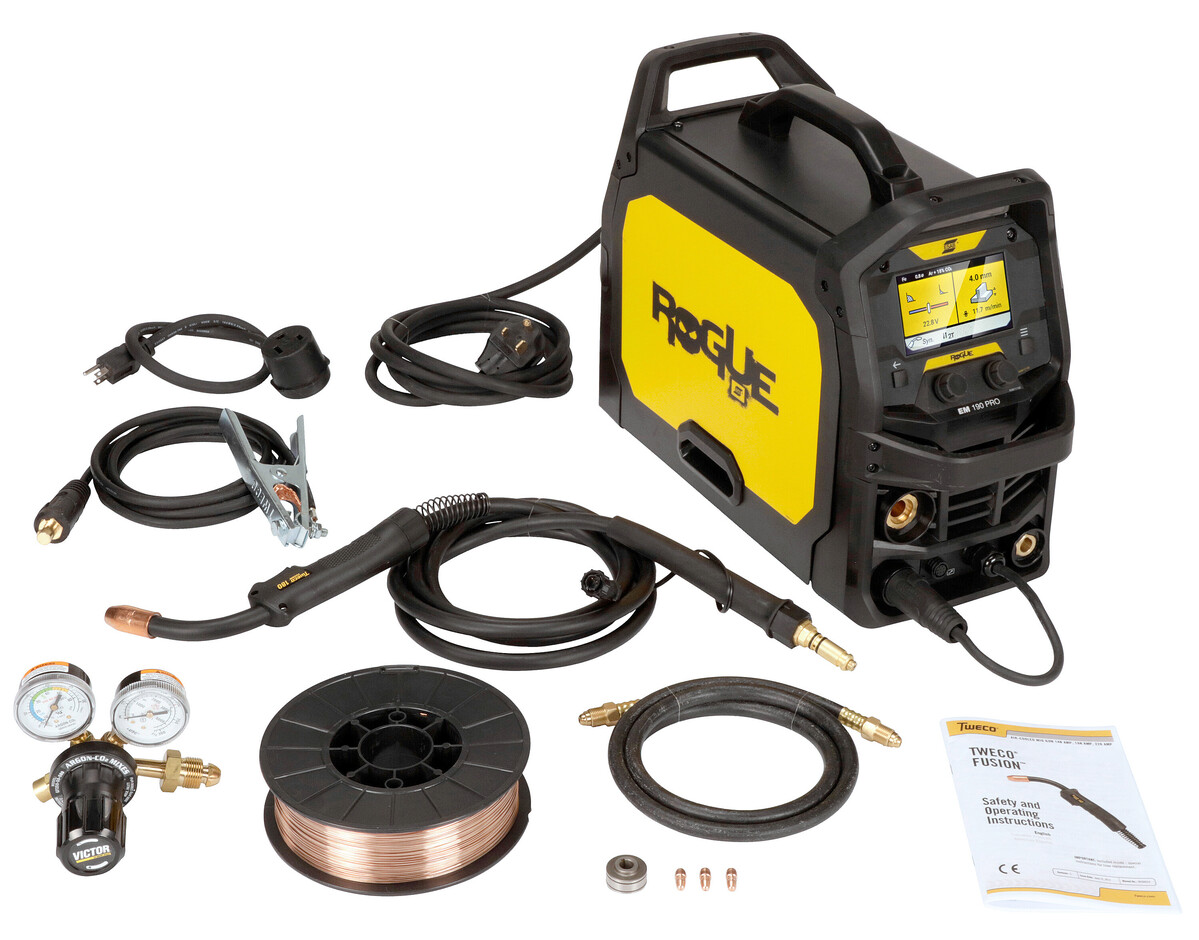

Package Includes:

  • 190A MIG/MAG power source
  • TwecoFusion 180 MIG Torch 3 m (10 ft)
  • Victor Gas Regulator/Flow gauge
  • Return cable kit, OKC 35-50 16 mm2
  • 3 m (10 ft), Gas Hose 3 m (10 ft)
  • ESAB OK AristoRod 12.50 0.8mm (0.030) 1kg (2.2lbs)
  • Feed rolls 0.6/0.8 mm (0.023/0.030 in.) V (fitted), 0.8/0.9 mm (0.030/0.035 in.) V and 0.8/0.9 mm (0.030/0.035 in.) VK
  • Instruction manual
Shop welding machines, fume extractors and welding helmets available at Welders Supply.

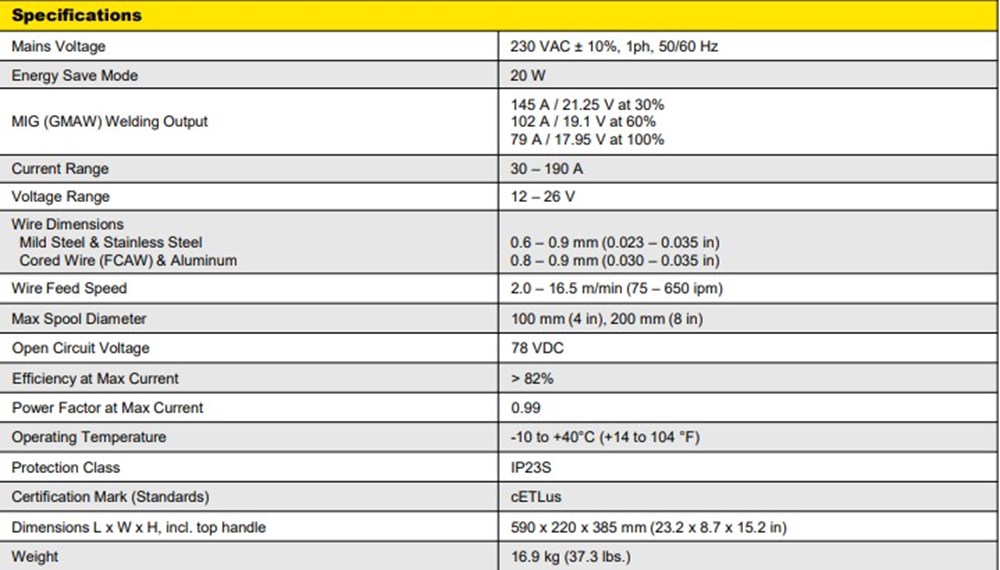

ESAB Rogue EM 190 PRO MIG Welder - Specifications
Mains Voltage 230 VAC ± 10%, 1ph, 50/60 Hz
Energy Save Mode 20 W
GMAW Welding Output 145 A / 21.25 V @ 30% Duty Cycle
102 A / 19.1 V @ 60% Duty Cycle
79 A / 17.95 V @ 100 % Duty Cycle
Current Range 30-190 A
Voltage Range 12-26 V

Wire Dimensions

  • Mild Steel & Stainless Steel
  • Cored Wire (FCAW) & Aluminum



  • 0.023 - 0.035 in. (0.6 - 0.9 mm)
  • 0.030 - 0.035 in. (0.8 - 0.9 mm)
Wire Feed Speed 75 - 650 ipm (2.0 - 16.5 m/min)
Max Spool Diameter 4 in. (100 mm), 8 in. (200 mm)
Power Factor at Maximum Current 0.99
Efficiency at Maximum Current > 82%
Open Circuit Voltage 78 VDC
Power Factor 0.99
Operating Temperature +14 to 104 °F (-10 to +40°C)
Enclosure Class IP23S
Certification Mark cETLus
Industries
  • Automotive
  • Automotive Bodies
  • Civil Construction
  • Mechanical Contractors
  • Repair and Maintenance
  • Light Fabrication
  • Agricultural Equipment



SHIPPING DIMENSIONS

Height: 18.00 Inches
Width: 18.00 Inches
Length: 24.00 Inches
Weight: 41 Lb(s) 5 Oz
