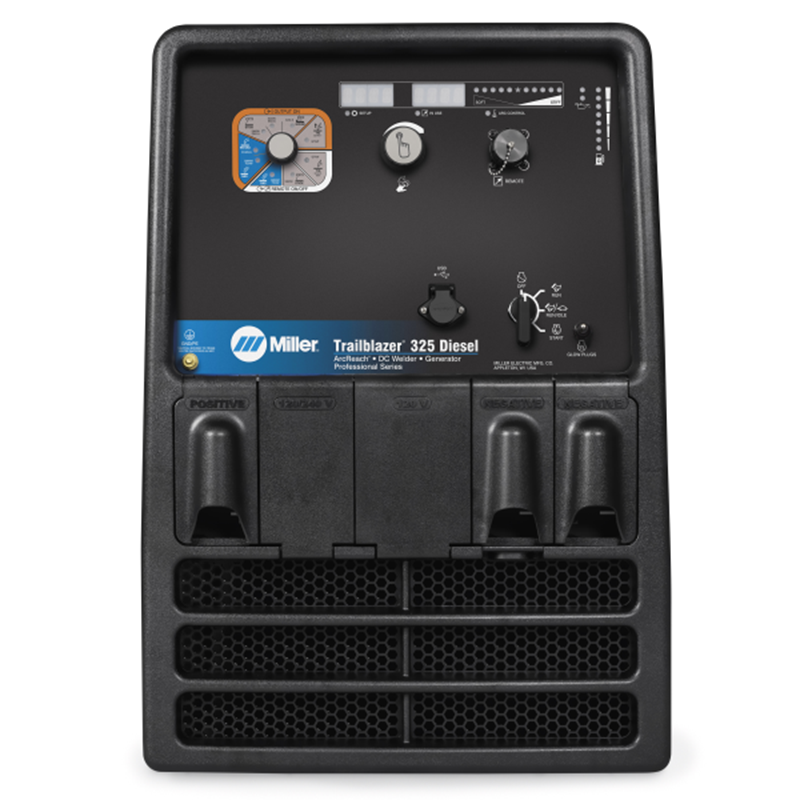

Miller Trailblazer 325 Diesel 907799

Part Numbers: 907799
1 Review
$20,021.00

Included with your purchase ( ) :

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Engine Driven

    Engine Driven

    • MIG Welding
    • Stick Welding
    • TIG Welding
    • Fuel-Saving Technology
    • 3-Year Power Warranty

    Miller Trailblazer 325 Diesel 907799

    Not IncludedMiller Trailblazer 325 Diesel 907799

    • Weld leads

    Unbeatable arc performance

    Wide amperage output with better welding deposition rates means you can get jobs done faster, saving time and money. The Trailblazer also has precise arc control, which allows you to fine-tune the arc to match your personal preferences and quickly dial in the perfect parameters to optimize weld quality and maximize productivity across a variety of applications and welding processes

    Auto-Speed™ Technology

    Matches engine speed to load — a Miller exclusive. Get the welding power you need — plus reduced fuel consumption and lower noise levels for a more-profitable, safer jobsite. Unlike competitive machines that operate at 3,600 rpm (max) under any load, Miller-exclusive Auto-Speed technology responds to weld requirements by automatically adjusting engine speed to one of five rpm levels so the engine never works harder than necessary. Refueling time and operating costs are reduced, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered.

    Excel™ Power (Option)

    Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller. Learn More

    ArcReach® Technology

    ArcReach technology uses existing weld cables to communicate process adjustment commands back to the welder generator. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

    Cleaner and Stronger Generator Power

    Combined with a 25-horsepower engine, Trailblazer welder/generators offer 12,000 watts of clean, truly usable generator power that is Accu-Rated™, not inflated: tested to deliver uninterrupted peak output for a minimum of 30 seconds for big loads, so you can get more jobs done. An independent welder and generator power system ensures no interaction between jobsite tools and the welding arc, while advanced generator technology virtually eliminates power spikes and other electrical imperfections — so welds are cleaner and jobsite tools can run without interruption, maximizing quality, productivity and profit.

    More portable, uses less truck and jobsite space

    Trailblazer welder/generators are up to 24 percent smaller and 10 percent lighter then competitive machines — which means moving them is faster and easier, for maximum productivity. And because they take up less space, Trailblazer welder/generators let work trucks carry more equipment and gear — so your work crews can be ready for anything.

    Safer, more productive jobsites

    Quieter jobsites are safer and more productive because work crews can communicate easier, and work can start earlier and end later — even in noise-sensitive areas. If your jobsite needs a welder/generator, it needs a Trailblazer welder/generator — because no other diesel-fueled choice is as quiet.

    Maximum cost savings

    Less money spent on fuel means more profit for you. Every Trailblazer welder/generator has fuel-saving Auto-Speed technology; add optional Excel power to save even more on fuel costs and enjoy a combination of advanced, profit-enhancing features that are only available on a Trailblazer welder/generator.
    View our selection of multi-process Miller welders, welding machines and welding safety equipment.
    Miller Trailblazer 325 Diesel 907799 Specifications
    Industries Interests

    Infrastructure

    Fabrication

    Pipe Fabrication / Construction

    Maintenance and Repair - Field Operations

    Processes
    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Plasma (PAC)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG DC (GTAW-DC)
    Engine Brand  Kubota
    Engine Idle Speed  1800 RPM
    Engine Weld Speed 1800 RPM, 2400 RPM, 2800 RPM, 3200 RPM, 3600 RPM
    Fuel Tank Size 12 gal.
    Fuel Type Diesel
    Horsepower 24.8 hp
    Single Phase Generator Continuous Power 10500 W

    Single Phase Generator Peak Power

    12000 W

    Sound Rating

    Idle: 70 dB / Max Weld: 81.5

    Rated Carbon Diameter

    3/16 in (4.8 mm)

    Current Type

    DC

    Portability

    Lift Eye (Standard)

    Running Gear / Cart (Optional)

    Trailer (Optional)

    Weld Output

    CC / CV

    Net Width

    20 in

    Net Height

    28 in

    Net Length

    45.375 in

    Net Weight

    620 Ibs

    Warranty

    3 Years

    Miller's True Blue Warranty

    Manufacturer Reviews

    By: Hector
    The product is great for I do. I weld concrete panels, which is well known as tilt ups. So I use this welder all day long, 9 hrs a day, and a least five days a week.
