Miller Trailblazer 325 Diesel #907566001

Part Number: 907566001

This product has been replaced by the Miller Trailblazer® 325 Diesel, GFCI #907799001.

$10,589.00
$12,230.00* Save $1,641.00
Out of Stock

Welding type:

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Kubota Diesel Engine
  • Stick Welding
  • MIG Welding
  • TIG Welding
  • Single Phase Generator
  • 3-Year Miller Warranty

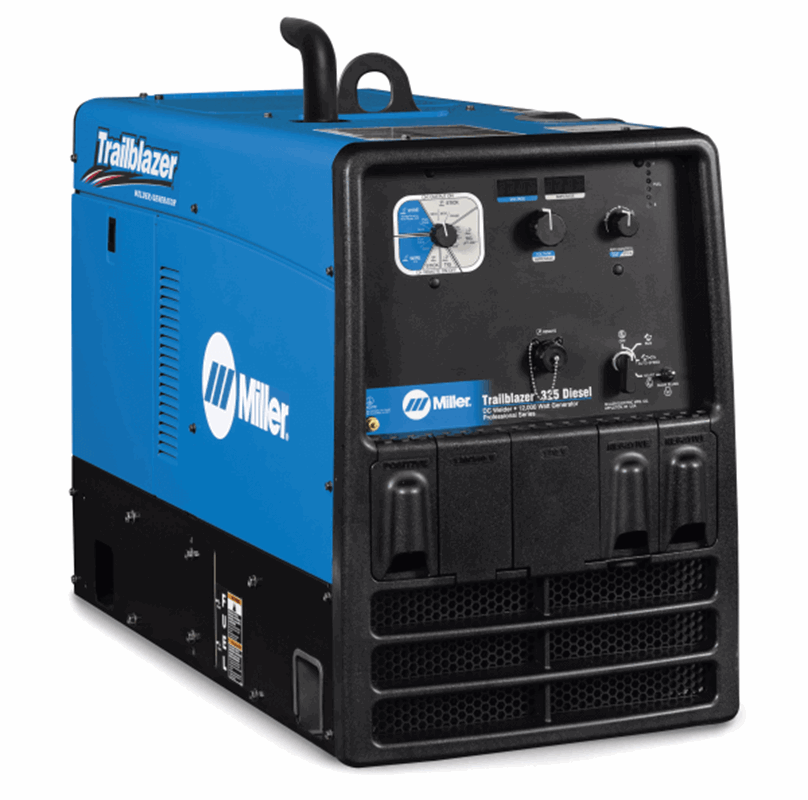

Miller Trailblazer® 325 Diesel #907566001

Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive technologies – Auto-Speed™ and optional Excel™ power – deliver superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

Unbeatable Arc Performance

Miller® Trailblazer welder/generators deliver a wider amperage output with better welding deposition rates, which means you can get jobs done faster, saving time and money. The Trailblazer also has precise arc control, which allows you to fine-tune the arc to match your personal preferences and quickly dial in the perfect parameters to optimize weld quality and maximize productivity across a variety of applications and welding processes.

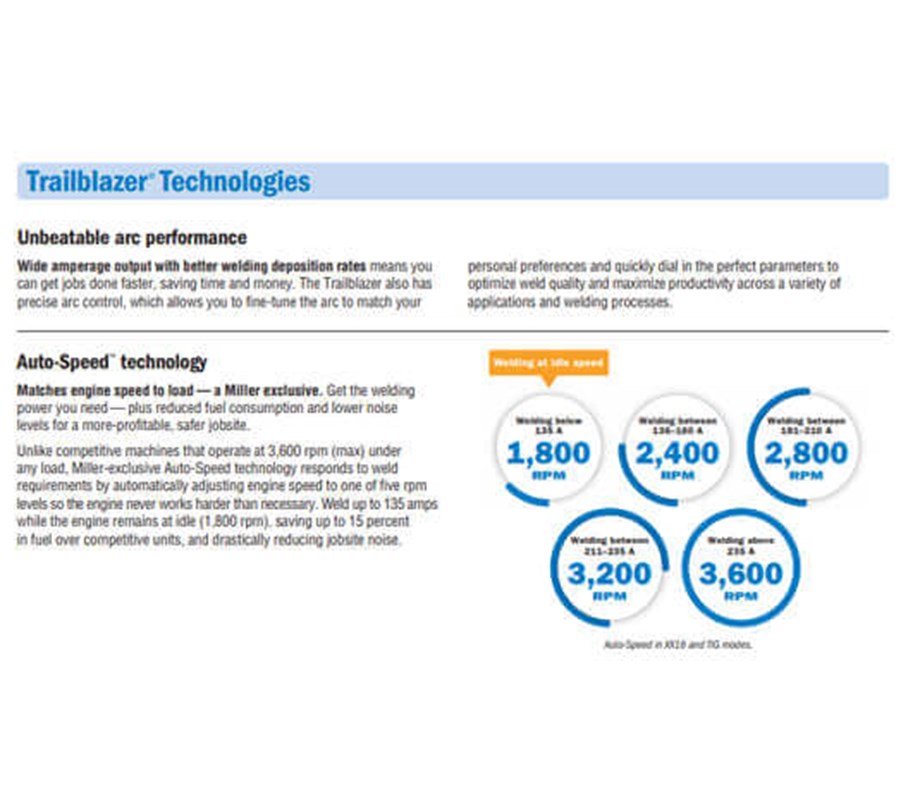

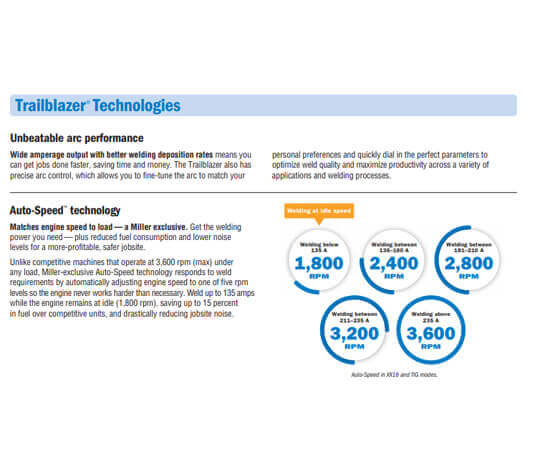

Auto-Speed™ Technology - Matches engine speed to load, reducing fuel use and noise.

Matches engine speed to load — a Miller exclusive Get the welding power you need — plus reduced fuel consumption and lower noise levels for a more-profitable, safer jobsite. Unlike competitive machines that operate at 3,600 rpm (max) under any load, Miller-exclusive Auto-Speed technology responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary. Refueling time and operating costs are reduced, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Auto-Speed technology: available only from Miller.

Excel™ Power (Option)

Power at idle — a Miller exclusive Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel Power delivers a full 2,400 watts (20 A) of 120 V inverter-based, pure sine wave power at idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving engine speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power: available only from Miller.

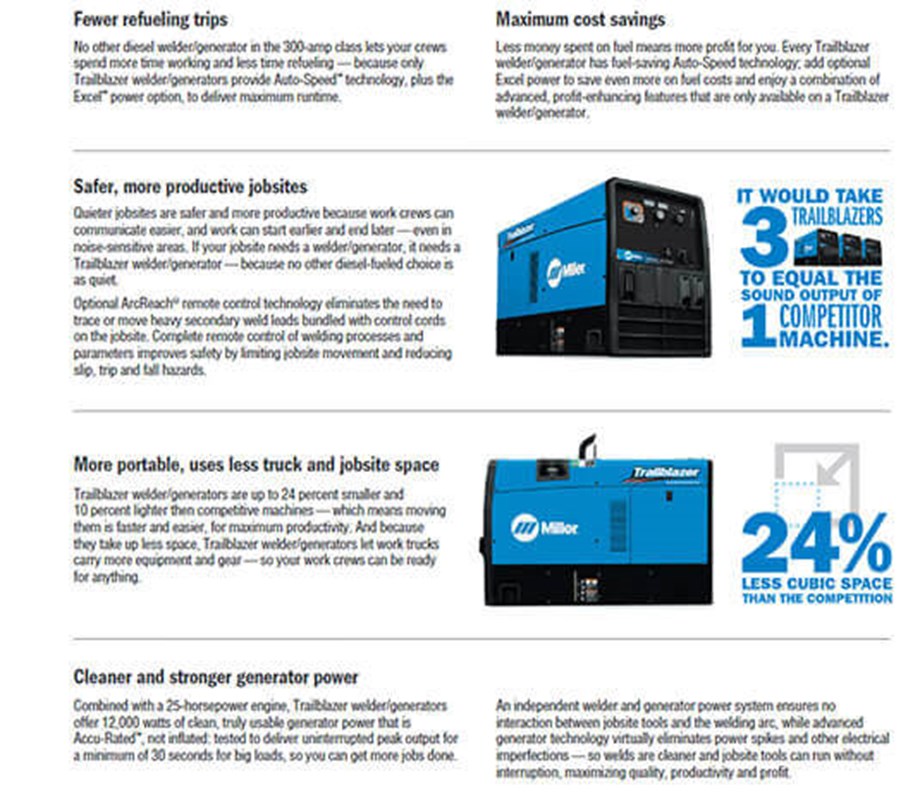

Cleaner and Stronger Generator Power

Combined with a 24.8 horsepower engine, Miller Trailblazer welder/generators offer 12,000 watts of clean, truly usable generator power that is Accu-Rated™, not inflated: tested to deliver uninterrupted peak output for a minimum of 30 seconds for big loads, so you can get more jobs done. An independent welder and generator power system ensures no interaction between job site tools and the welding arc, while advanced generator technology virtually eliminates power spikes and other electrical imperfections — so welds are cleaner and job site tools can run without interruption, maximizing quality, productivity and profit
 Browse diesel powered welders, Miller welders, and welding safety equipment.

PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Plasma (PAC)
Title Trailblazer® 325 Diesel
Industries Interests Construction
Infrastructure
Farm and Ranch
Maintenance and Repair - Field Operations
Manufacturing
Mechanical Contracting
Work / Service Trucks
Pipe Fabrication / Construction
Railcar
Cross Country Pipeline

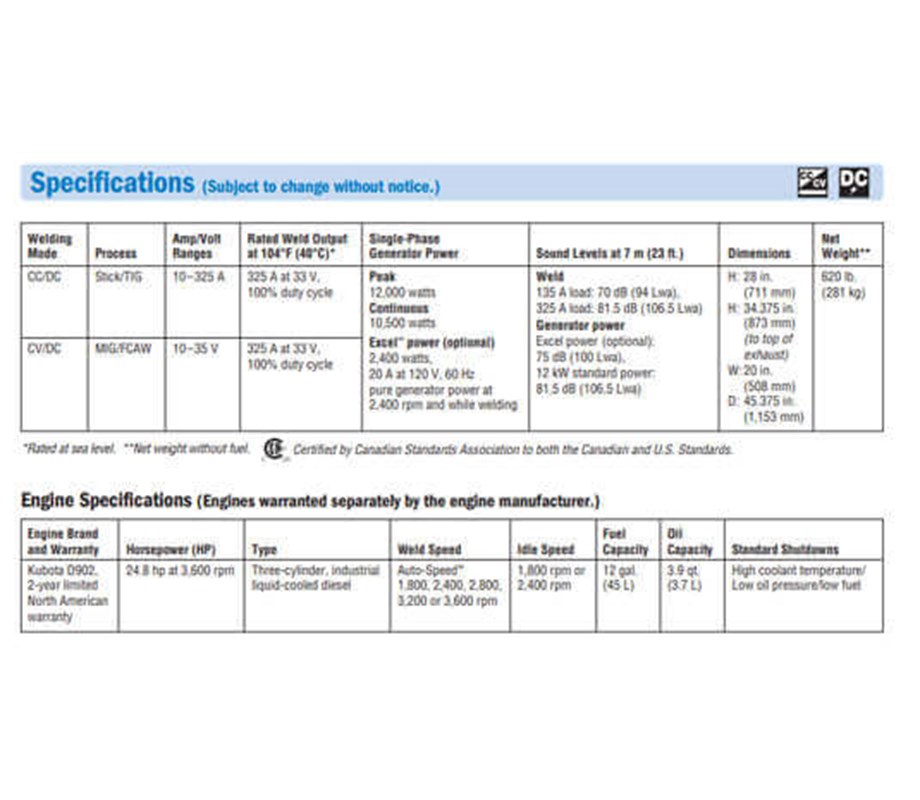

Cold Weather Starting Aids Glow Plugs
Engine Brand Kubota
Engine Compliance T4F
Engine Idle Speed 2400 RPM
Engine Weld Speed 2400 RPM
2800 RPM
3200 RPM
3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Diesel
Horsepower 24.8 hp
Weldable Metals Steel
Stainless Steel
Rated Output 325 A 33 V 100%
Single Phase Generator Continuous Power 10500 W
Single Phase Generator Peak Power 12000 W
Sound Rating 75 dB @ idle and 81.5 dB @ weld dB
Carbon Diameter 1/4 in (6.4 mm)
Current Type DC
Amperage Range 10 - 325
Net Width 20 in
Net Height 28 in
Net Length 45.375 in
Net Weight 620 lbs
Warranty Engine Warranties
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Weld Output CC / CV

SHIPPING DIMENSIONS

Height: 28.00 Inches
Width: 34.00 Inches
Length: 46.00 Inches
Weight: 649 Lb(s) 0 Oz
