Miller Continuum™ Swingarc™, 12 Ft 951635

$11,294.00 $13,044.00 Reduced Price You Save $1,750.00
Product Number: 951635
QTY:
Financing AVAILABLE!

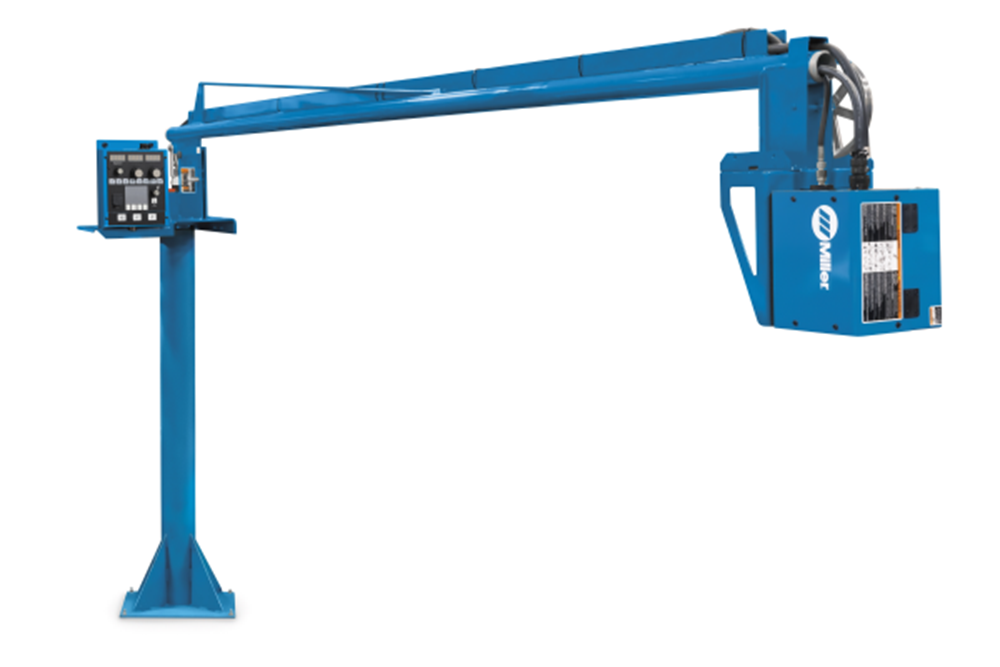

Miller Continuum™ Swingarc™, 12 Ft 951635

All-new power source design - Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.

All-new feeder design - Faster motor response provides the best arc starts with the least amount of spatter Precise feeding operation for stable arc performance.

In-boom cable routing - Organizes hoses and cables, preventing damage and maintaining an orderly work cell.

Superior Arc Performance - Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer.

Balanced-pressure drive-roll design and tensioners - Feed wire in its truest and straightest form for better feedability and to extend consumable life.

Easy to set up and adjust with minimal training - 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits.

Tool-less lockable rotatable drive - Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires.

LCD Display - New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.

Modular to adapt to a variety of weld cell configurations - Flexible user interface location (power source, feeder, remote operator interface) Insight Welding Intelligence™ systems Easily add process and programs Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems.

Unique counterbalanced boom - Makes it easy to raise and lower boom and automatically holds its position.

View our selection of multi-process Miller welders, welding machineswelding safety equipment, and plasma cutting machines.
Title  Miller Continuum™ Swingarc™, 12 Ft 951635
Industries Interests Heavy Industrial Manufacturing
Construction equipment
Automotive components
Recreational vehicles
Farm machinery
Office furniture
Mining machinery
Industrial fabrication
Weldable Metals  Aluminum
Input Voltage  208 V
220/230/240 V
380/400/440 V
575 V
Input Phase  1 - and 3 Phase
Input Hz  50 / 60 Hz
Rated Output 10 - 38 V, 5 - 425 A
Max Open Circuit Voltage 90 VDC
Portability Handle(s)
Running Gear / Cart (Standard)
Running Gear / Cart (Optional)
Warranty 3 Years
Miller's True Blue Warranty

Product Questions and Answers

Have a question about this product? Submit your question using the form below

* required

Related Products

Industrial MIG 4/0 Kit, Lug Connections #300390
Miller Industrial MIG 4/0 Kit, Lug Connections #300390
$653.15
$777.00* You Save $123.85
Free Shipping
Add to Cart
Product Number: 300390

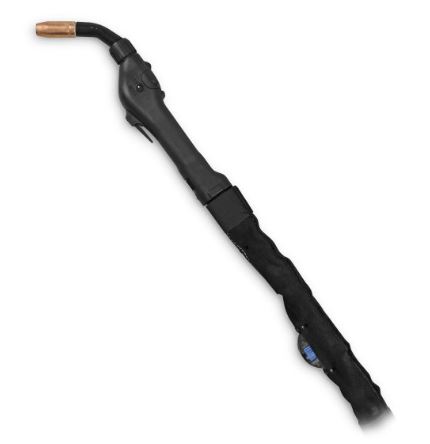

Miller XR-A ALUMA-PRO PLUS 15FT. #301575
