Miller Deltaweld® 500 230/460V MIGRunner™ with Intellx Feeder #951814

Part Numbers: 951814
1 Review
$13,041.00
$15,061.00* Save $2,020.00

Included with your purchase ( ) :

See Bundle Details!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Power supply:

    220V 3 Phase

    220V 3 Phase

    460V

    460V

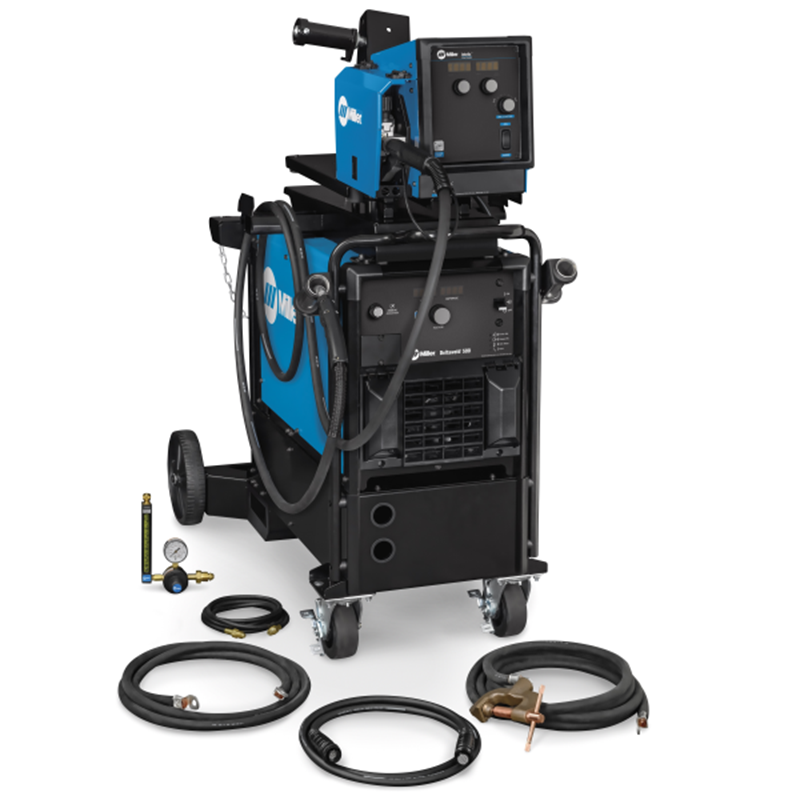

    Miller Deltaweld® 500 230/460V MIGRunner™ with Intellx Feeder #951814

    What's included

    • .035/.045 in. V-groove Drive Rolls
    • Bernard™ BTB Gun 400 A

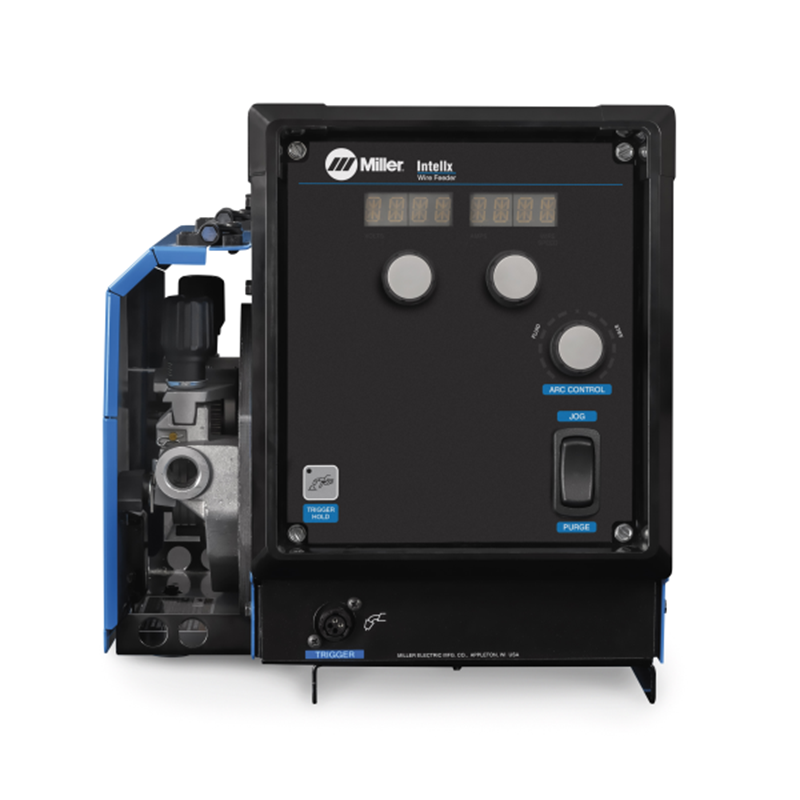

    • Intellx™ Wire Feeder
    • ArcConnect Control/Motor Cable 9ft
    • Cart Accessory Kit
    • Feeder Swivel Kit
    • Deltaweld 350/500 Running Gear/Cylinder Rack

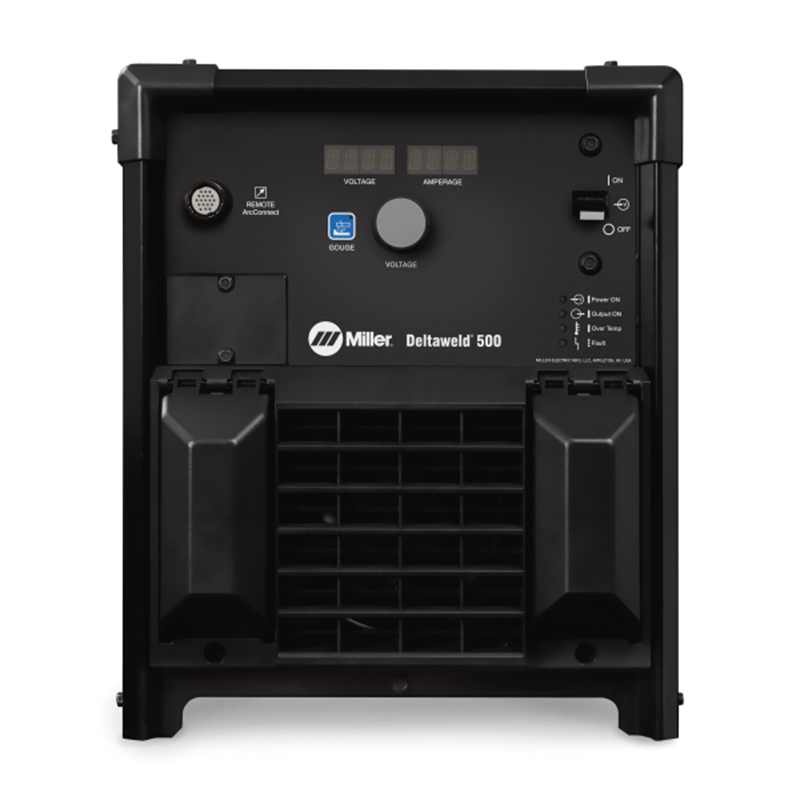

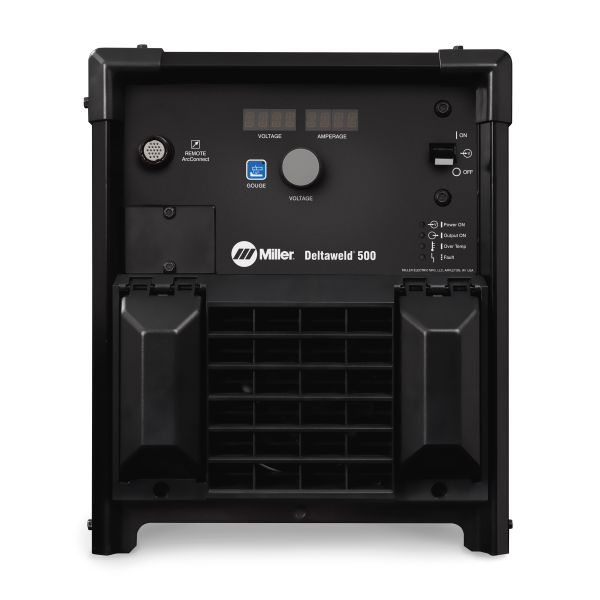

    • Deltaweld® 500 with ArcConnect™

    Easy to use - EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

    Legacy meets pulse - Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.

    ArcConnect™ - Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.

    Fan-On-Demand™ - Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.

    Ready to weld - The Deltaweld 350 System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.

    Dedicated wire feeder options - Intellx feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.

    Gouge Mode - Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.

    Backwards Compatibility - A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.

    Wind Tunnel Technology - Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.

    View all welding machines, used welders & equipment, and other welding tools available at Welders Supply.
    Title Miller Deltaweld® 500 230/460V MIGRunner™ with Intellx Feeder 951814
    Industries Interests Manufacturing
    Heavy Equipment Manufacturing
    Railcar
    Commercial Truck and Trailer
    Weldable Metals  Steel
    Input Voltage 208 / 230 / 460 / 575 V
    Input Phase  3-Phase
    Input Hz  60 Hz
    Rated Output 10 - 44 V, 30 - 650 A
    Max Open Circuit Voltage 86 VDC
    Portability Lift Eye (Standard)
    Running Gear / Cart (Optional)
    Warranty 3 Years
    Miller's True Blue Warranty

    Manufacturer Reviews

    By: Kyle
    This machine was purchased to replace an old Deltaweld 451 in a large manufacturing shop. We were able to demo this unit first before the purchase was made and the demo machine was set up as a portable unit with the new Intellx Pro feeder head all on the Miller running gear. Our guys were super impressed with how stable the arc was and loved the built in gouge feature. Once we got our machine all installed and in place with the feeder mounted on a swing boom with 35 foot cables connecting it all together we had some difficulties. The machine was not performing the way the demo unit did. We had tried to just reuse the 2.0 cables that were running the old machine but were having trouble with too much spatter and unstable arc. After replacing the ground clamp and the cable with new 4.0 as well as the positive cable to a 4.0 it performs to what it should now. So the con to this machine is how sensitive it is to everything but on the flip side of that is how the machine can be dialed in to make perfect welds.
