Miller Deltaweld® 500 230/460V MIGRunner™ Welder Packager w/ Dual Intellx™ Pro Feeder #951820001

Part Number: 951820001
UPC: 715959679275
1 Review
$17,685.00 + Free Shipping
Qualifies for Welder's Super Sale

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

Power supply:

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • MIG Welding
  • 3-Phase Input
  • 3-Year Warranty

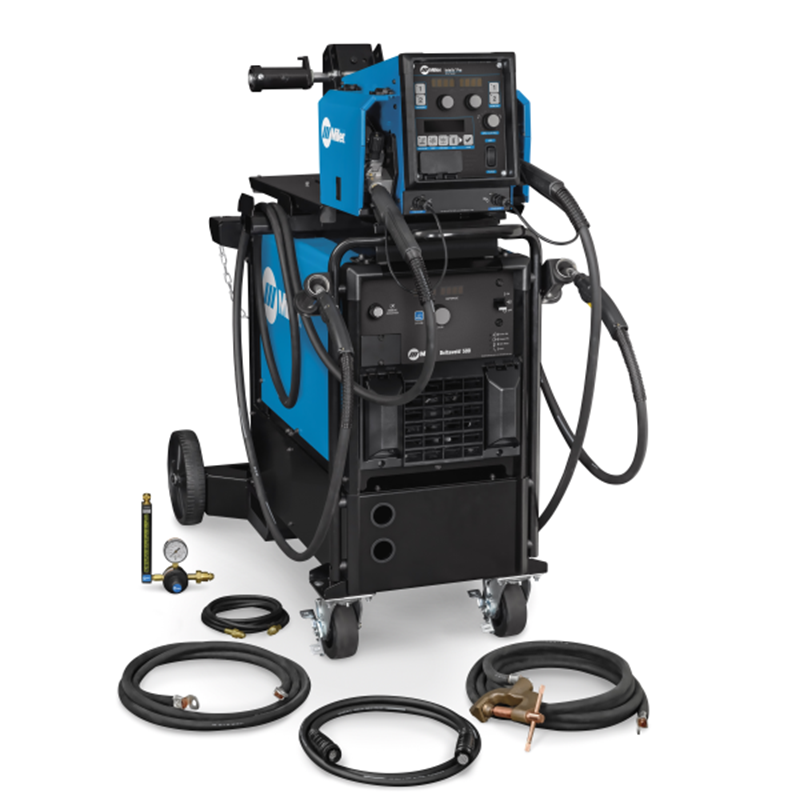

Miller Deltaweld® 500 230/460V MIGRunner™ Welding Machine w/ Dual Intellx™ Pro Feeder #951820001

What's Included:

  • .035/.045 in. V-groove Drive Rolls
  • 2 Bernard™ BTB Guns 400 A

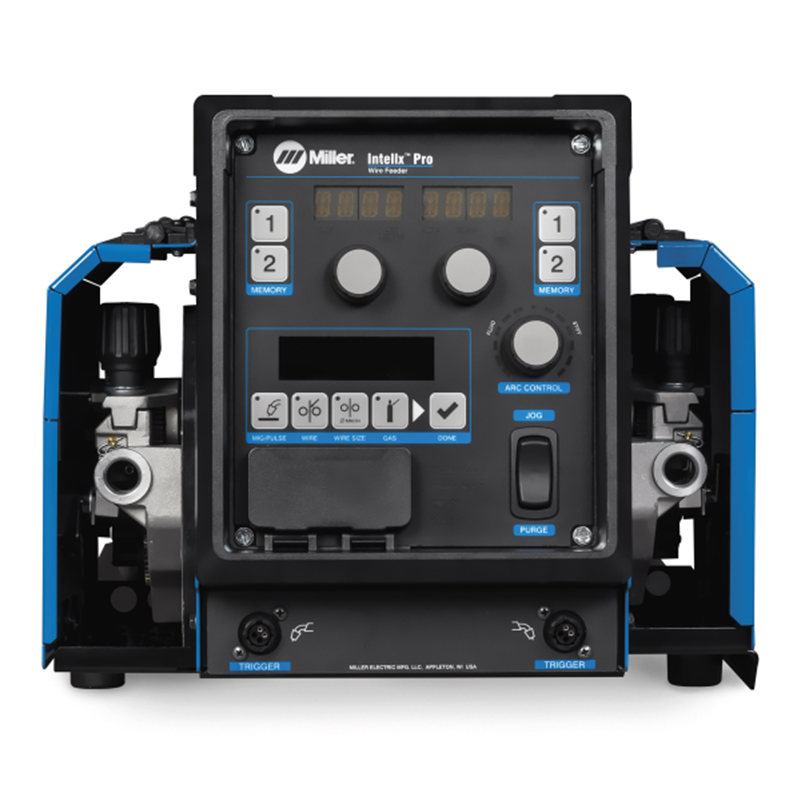

  • Intellx™ Pro Dual Wire Feeder
  • ArcConnect Control/Motor Cable 9ft
  • Cart Accessory Kit
  • Deltaweld 350/500 Running Gear/Cylinder Rack

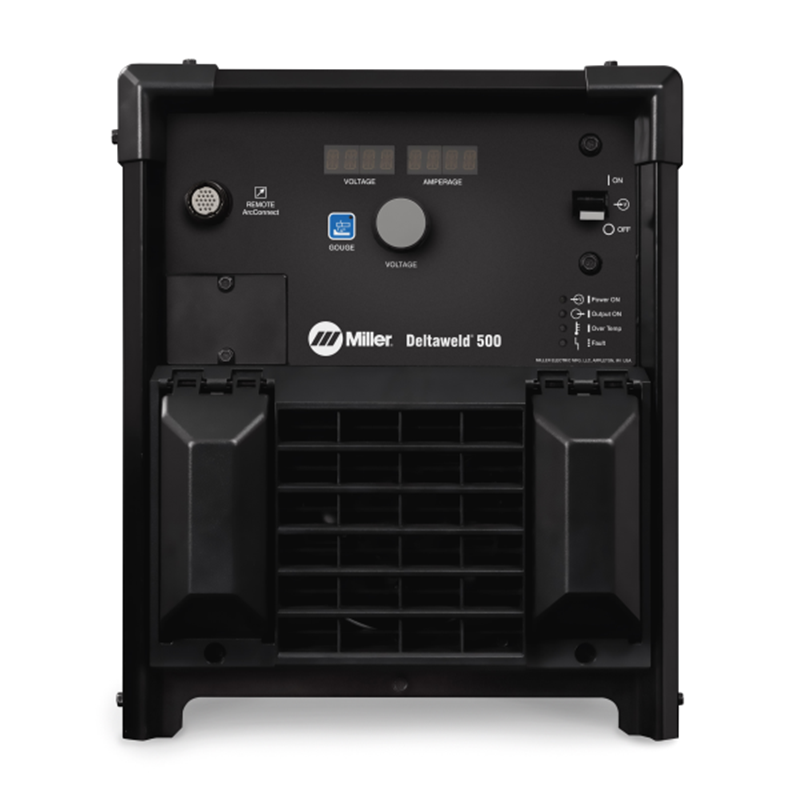

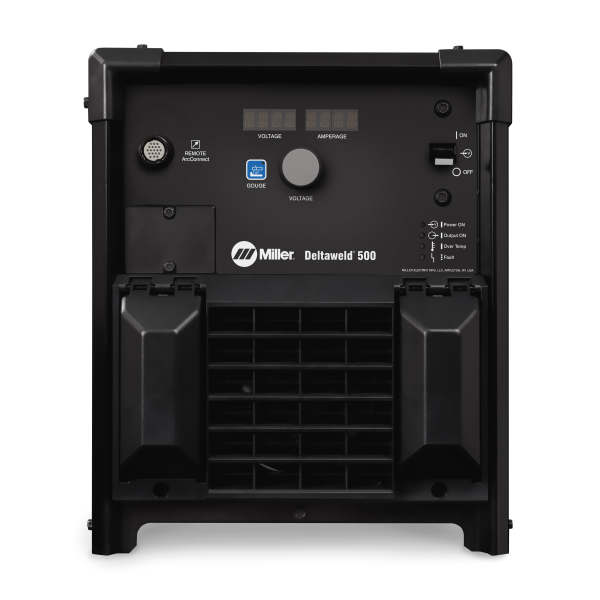

  • Deltaweld® 500 with ArcConnect™

Features:

Easy to Use

EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

Legacy Meets Pulse

Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique

Welders of any skill level can get into production quicker

ArcConnect™

Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.

AccuLock S Consumables

Transform the way you manage your MIG welding gun consumables with AccuLock. Optimize productivity, operating costs and welder confidence with fewer tip changes, less troubleshooting and more beads worth bragging about.

Fan-On-Demand™

Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.

Ready to Weld

The Deltaweld System is shipped as a complete package with everything you need to get welding sooner.

Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.

Dedicated Wirefeeder Options

Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments

Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs and memory buttons

Gouge Mode

Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.

Backwards Compatibility

A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wire feeders.

Wind Tunnel Technology

Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.

Measures Productivity

Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.

Welders Supply Demo: Deltaweld MIG Welders

Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.

Miller Deltaweld® 500 Specifications:

Title Deltaweld® 500 230/460V MIGRunner™ with Dual Intellx™Pro Feeder 951820001
Industries Interests
  • Manufacturing
  • Heavy Equipment Manufacturing
  • Railcar
Processes
  • Flux Cored (FCAW)
  • MIG (GMAW)
Input Power
  • 208/230/460 V or 575 V, 3-phase, 60 Hz
Output Power
  • Rated Output: 500 A at 100% duty cycle
  • Output Range: 30–650 A, 10–44 V
Portability
  • Lift Eye (Standard)
  • Running Gear / Cart (Optional)

Manufacturer Reviews

Kyle
This machine was purchased to replace an old Deltaweld 451 in a large manufacturing shop. We were able to demo this unit first before the purchase was made and the demo machine was set up as a portable unit with the new Intellx Pro feeder head all on the Miller running gear. Our guys were super impressed with how stable the arc was and loved the built in gouge feature. Once we got our machine all installed and in place with the feeder mounted on a swing boom with 35 foot cables connecting it all together we had some difficulties. The machine was not performing the way the demo unit did. We had tried to just reuse the 2.0 cables that were running the old machine but were having trouble with too much spatter and unstable arc. After replacing the ground clamp and the cable with new 4.0 as well as the positive cable to a 4.0 it performs to what it should now. So the con to this machine is how sensitive it is to everything but on the flip side of that is how the machine can be dialed in to make perfect welds.
