MIG Welding
24 VAC Input Power
3 Year WarrantyWhat's included
Industrial Design - Ideal for most high-duty-cycle applications requiring day-in/day-out trouble-free operation.
Motor Ramp and Burnback Control - Provides excellent wire starting and stopping performance.

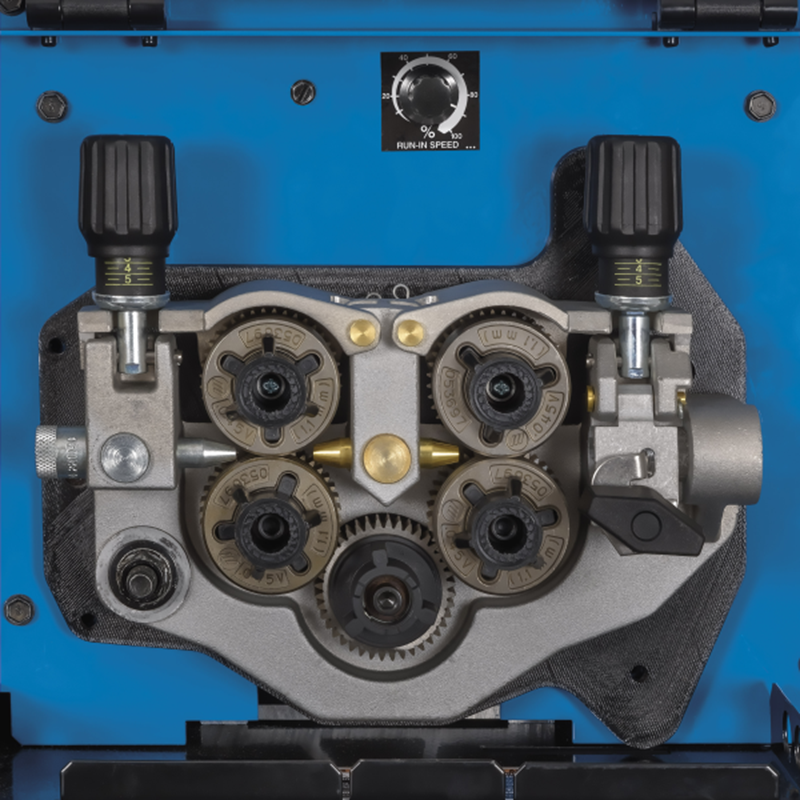

Four Gear-Driven Drive Rolls - Provide smooth, positive wire feeding for most wires.
Trigger Hold - Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.
Quick-Change Drive Rolls - Save time with standard, quick-change drive rolls.

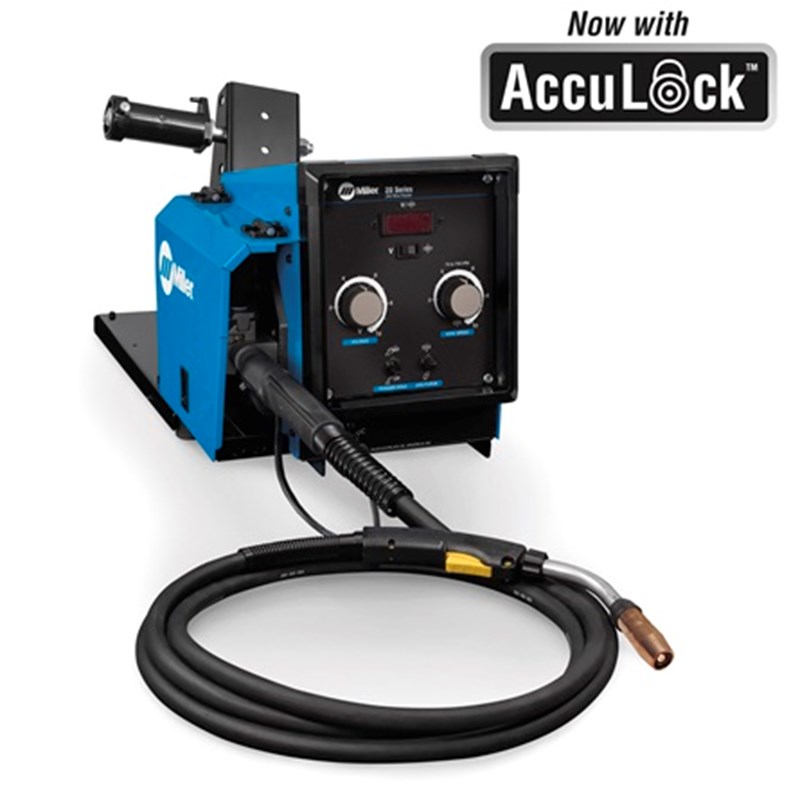

Standard 14 pin connection - Each feeder includes a 15-foot Bernard Q400 MIG gun, plus a 10-foot 14-pin interconnecting cord.
AccuLock S Consumables - AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
| Specifications - 20 Series Digital, Q4015, Drive Roll Kit #951780001 | |
|---|---|
| Welding Processes | MIG (GMAW) Flux Cored (FCAW) |
| Industries Interests | Manufacturing Railcar |
| Applications | Fabrication Welding Education and Training |
| Input Power | 24 VAC, 3.5 A, 50/60 Hz |
| Wire Feed Speed | 75–750 ipm (1.9–19 m/min.) |
| Wire Diameter Capacity | .023–5/64 in. (0.6–2.0 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 16.00 Inches |
| Width: | 12.38 Inches |
| Length: | 27.88 Inches |
| Weight: | 46 Lb(s) 0 Oz |
