Miller Fume Extractor MWX-S Product#951178 7ft Part# 951510, 10ft Part#951511, 12ft Part#951512

Part Numbers: 951510, 951511, 951512
$10,672.70 + Free Shipping
$12,915.00* Save $2,242.30
  • 3-Year Warranty

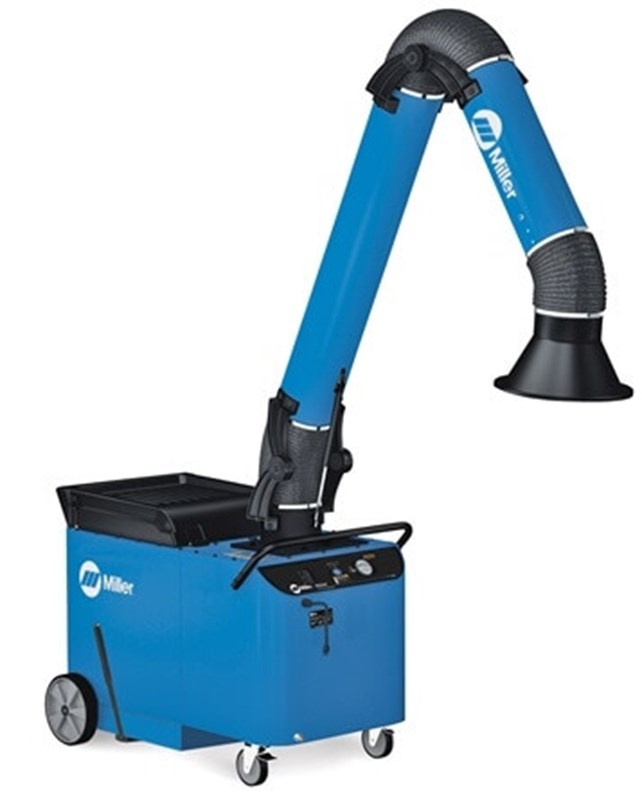

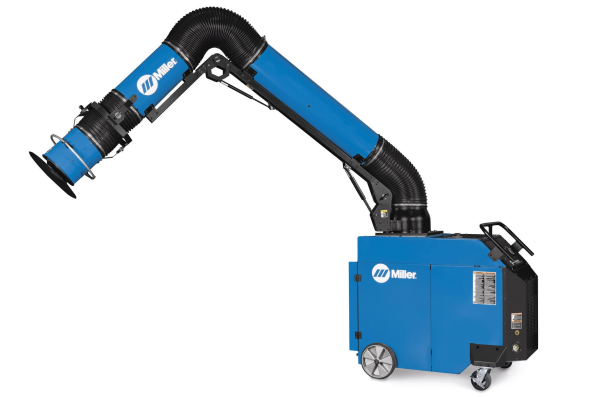

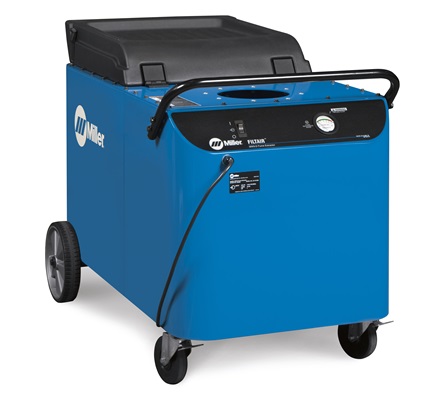

Miller Fume Extractor MWX-S 951178 7ft Part# 951510, 10ft Part#951511, 12ft Part#951512

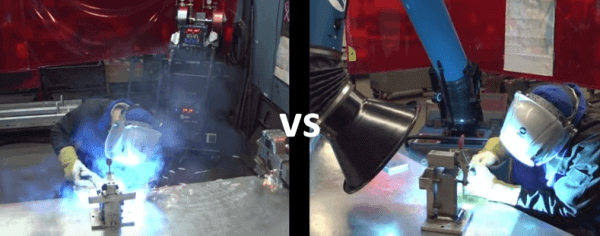

Fume Extractor Helps you breathe easier and safer

The Miller Fume Extractor MWX-S 951178 from Welders Supply is your effective way to remove welding fumes from the air. Available with 7-foot (part #951510), 10-foot (Part #951511) or 12-foot (Part #951512), you can select the exact fume extractor configuration you need to most efficiently clear the air in your work place. Fume Extractors from Welders Supply are specifically designed for professional welding operations. Protection is not only effective, it is also longer lasting with nanofilter technology providing extended filter life. You’ll be able to work more efficiently because the air around you will be cleaner and more breathable. The Fume Extractor generates a powerful 875 CFM air volume. The internal tubing on the extraction arm is completely clear for maximum air flow.

Miller Fume Extractor #951178 is rugged, durable and simple

The entire unit is easy to operate, simple to replace or clean the filters, and – importantly – easy to maintain so ongoing clean air is assured. The rugged metal base is very strong. You’ll be able to effectively use this equipment in even the toughest work environment. It’s an extremely effective fume extraction system. With its large fume holding capacity, the unit can run for much longer than competitive models before filters need to be cleaned or replaced. There’s an easy-to-read gauge to tell the operator when to replace the filter. The Miller Fume Extractor from Welders Supply is very easy to use. The hinged filter hatch is simple to open. Filter replacement requires no tools. This fume extraction system is perfect for fabrication shops, maintenance and repair operations. It is also excellent for manufacturing, production, schools and other education facilities.

Breathe Easy

  • Two FILTAIR fume extractor models available — MWX-S and MWX-D provide industrial solutions designed specifically for welding applications.
  • Superior nanofiber filter technology: Results in extended filter life and higher filter efficiency. Self-cleaning model: Features innovative cleaning mechanism, greatly extending filter life.
  • Powerful 875 CFM (airflow): Internal tubing of the extraction arm is obstruction free to achieve maximum airflow. Extraction hood for 360° rotation: Large capture source provides better coverage and easy movement.
  • Simplicity: Easy to operate, easy to replace or clean filter, easy to maintain. Rugged metal base designed to withstand tough shop conditions.

Cleaner Air

  • FILTAIR fume extractors effectively clean welding fumes from the air. Combining nanofiber filter technology, longer lasting airflow, and an optimized design results in a more powerful fume extraction system.
  • Extended Filter Life
  • Nanofiber filters feature superior surface loading and weld fume holding capacity, meaning your fume extractor can run up to twice as long as the competition before requiring filter cleaning or replacement.
  • Easy to Use welding safety
  • Saving operator downtime — from the hinged filter hatch that provides easy access to the filter and tool-free replacement, to a simple front panel and the easy-to-read gauge that tells the operator when it’s time to clean or replace the filter.

FILTAIR Mobile Fume Extractors are the right choice for:

  • Manufacturing and Production
  • Fabrication Shops
  • Maintenance and Repair Operations
  • Schools/Educational Facilities



See our entire inventory of fume extractors and welding Safety Equipment and welding accessories for sale online today.

Miller Fume Extractor Specs

Filter Media 490 ft.2 (45.52 m2)
AccuRated™ Airflow 875 CFM (413 L/sec.)
Extraction Arm Diameter 8 in. (203 mm)
Sound Level

Approximately 70 dBA at 5 ft. (1.5 m)

Motor 1 HP, 3450 RPM
Power 115 V/1-Phase/60 Hz at approximately 11.9 A
Dimensions H: 34.75 in (883 mm)
W: 31.75 in (806 mm)
D: 48 in (1219 mm)
Net Weight MWX-D 238 lb. (108 kg)
MWX-S 300 lb. (136 kg)
Shipping Weight MWX-D 285 lb. (129 kg)
MWX-S 340 lb. (154 kg)



















See our entire inventory of fume extractors and welding Safety Equipment for sale online today.

SHIPPING DIMENSIONS

Height: 55.00 Inches
Width: 61.00 Inches
Length: 78.00 Inches
Weight: 504 Lb(s) 0 Oz
See our entire inventory of fume extractors and welding Safety Equipment for sale online today.

Product Questions and Answers


Q - How loud is it? A - Approximately 70 dBA at 5 ft distance
Q - The only difference between the three is the length of the extraction arm? A - Yes.

How to clean the air filter:

  1. Know when to clean the filter.

    Clean or replace filter when Filter gauge reading is over 4 in. w.c. (10 x 100 Pa) or whenever air flow is too low to extract fumes.

  2. Run filter cleaning system.

    Press and release Filter Cleaning switch. The filter cleaning system operates only when the unit is off.

  3. Push lever down to release particle tray.

    The system cleans the filter in about 15 seconds. Wait until the cleaning has stopped before removing particles from tray. Pull out tray and remove particles from tray after every cleaning cycle.

  4. Reinstall tray.

    Reinstall tray and pull lever up to secure tray in position. Inspect filter after cleaning (Section 7-4 of Owner's Manual). Start unit and check Filter gauge reading.
