Miller FILTAIR® SWX #951518 Fume Extractors
Part Numbers: 951518

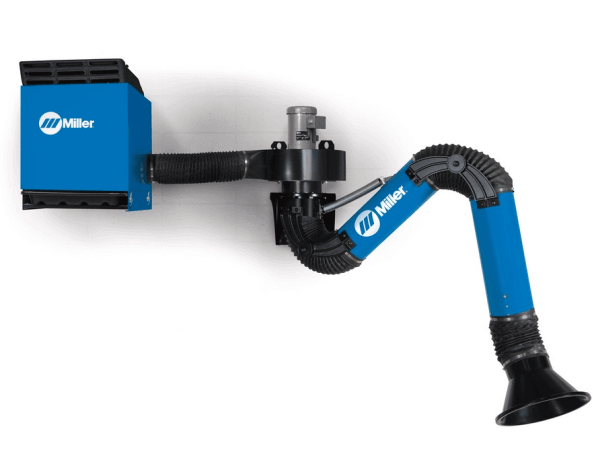

Stationary wall or column-mounted weld fume extraction systems feature class-leading suction power resulting in unrivaled filtering performance and welding safety.
Miller FILTAIR® SWX Fume Extractors Specifications:
|Input Voltage||110/115/120 V|
|Input Hz||60 Hz|
|Number of Arcs||2|
|Sound Level at 5 Feet||74|
|Extraction Arm Length||12 Ft.|
|Extraction Arm Diameter||203
|Weld Fume Extractor Type||Wall or column mounted|
Miller's True Blue Warranty
|Weight:||470 Lb(s) 0 Oz|
Instructions for mounting bracket installation are in section 5-4 of Owner's Manual.
Using the attached shipping pallet, lift filter cabinet so cabinet forks are above the mounting bracket.
Lower the filter cabinet until both forks are seated on the bracket and within bracket ear tabs.
Tighten the two locking screws to secure cabinet on bracket. Remove shipping pallet.
