Lincoln Electric Aspect® 230 AC/DC TIG Welder #K4340-1

Part Numbers: K4340-1
UPCs: 15082631837
Lincoln Electric Aspect 230 AC/DC #K4340-1
Lincoln Electric Aspect® 230 AC/DC TIG W...

Included with your purchase:

Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
Small
Medium
Large
1X Large
2X Large
3X Large
$6,009.99 + Free Shipping
$6,009.99 + Free Shipping

Welding type:

TIG

TIG

Stick

Stick

Power supply:

110V

110V

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • Stick welderAC/DC Stick Welding
  • TIG welderAC/DC TIG Welding
  • Multi-voltage input welderMulti-Voltage Input
  • Multi-phase welderMulti-Phase
  • Lincoln Electric hassle-free warrantyHassle-Free Warranty

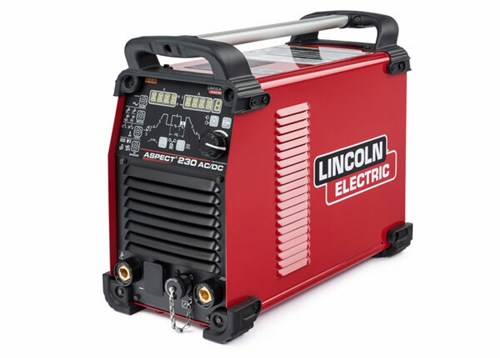

Lincoln Aspect® 230 AC/DC TIG Welder #K4340-1

Capable. Durable. Powerful.

The Lincoln Electric Aspect 230 AC/DC TIG welder was expertly designed and built for professional welders. It is a powerful and rugged machine capable of AC/DC TIG and AC/DC stick welding with variable input power between 120-460V 1-phase and 3-phase. Its best-in-class output range is between 2-230 amps and at just over 50lbs it is portable. Built with metal housing and equipped with exclusive features, make your next project a breeze with the Lincoln Electric Aspect 230. It works great across a variety of industries, including automotive, shipbuilding, repair and fabrications, and general maintenance.

Lincoln Electric Aspect 230 AC/DC TIG welding machine $K4340-1Features of the Aspect® 230

  • Exceptional arc response and stability
  • Highly Customizable TIG Machine
  • PowerConnect(R) technology 120-460V input power

Tackle More Work

With up to 230 Amps of maximum output You can TIG weld aluminum up to 1/4

Weld on the Go

Portable, lightweight, and easy to transport

Peace of Mind

Save critical weld set up information in up to -9- memory locations

Activate Intellistart technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.

What's Included

  • 10 ft. (3m) input power cord
Shop all TIG welding machines and TIG welding helmets available online from Welders Supply.
Lincoln Aspect® 230 AC/DC #K4340-1 Specifications
Input power

120-460V

120V: 21A 208/230/460V: 11A/10A/5A

50/60 Hz

1-Phase, 3-Phase

Output range 120V: 2-150A TIG 208/230/460V: 2-230A
Rated output 120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V
Welding processes

AC/DC TIG

AC/DC stick

Typical applications Automotive
Brewery
Distillery
Maintenance & Repair
Marine Applications
Marine Fabrication & Repair
Repair Welding
Shipbuilding

SHIPPING DIMENSIONS

Height: 16.50 Inches
Width: 9.70 Inches
Length: 19.90 Inches
Weight: 50 Lb(s) 8 Oz

Product Questions and Answers

Have a question about this product? Submit your question using the form below
