- AC/DC Stick Welding
- AC/DC TIG Welding
- Multi-Voltage Input
- Hassle-Free Warranty

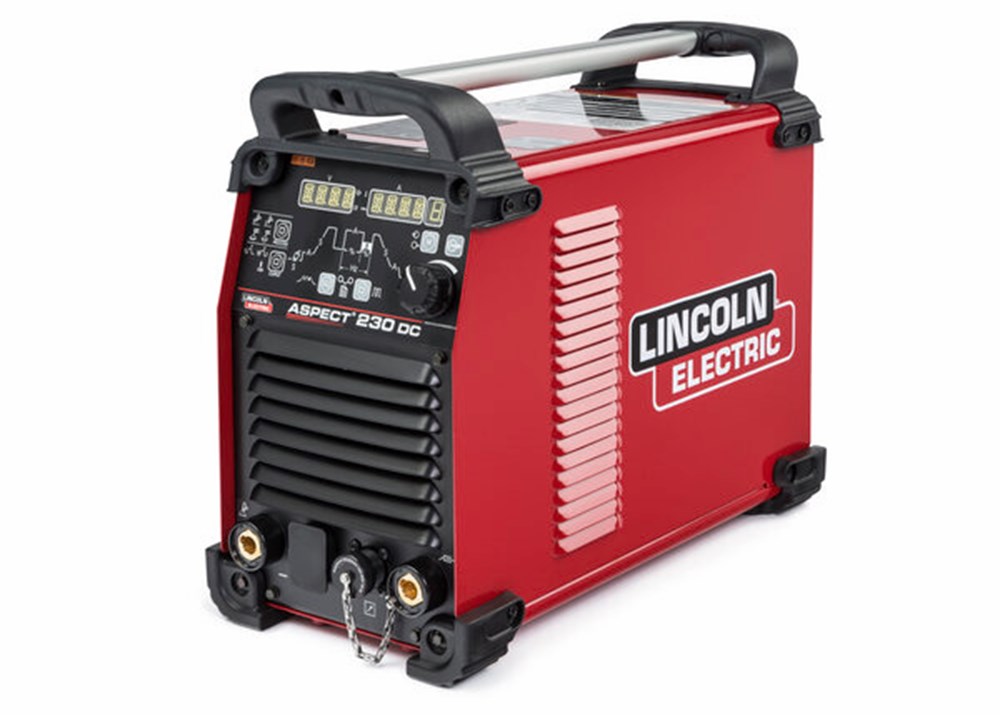

Lincoln Aspect® 230 DC TIG Welder #K4346-1
More Power. More Portability.
The Lincoln Electric Aspect 230 DC TIG welder can process both DC TIG and stick applications and is only 54 lbs. Packed with exclusive features and advanced technology, it will make your next welding project a breeze. Variable input power of 120-460V, single-phase and 3-phase, gives you the ability to use the outlets and generators available to you wherever you are, whether in the garage or the job site. The Aspect 230 is a beast and has a maximum output of 230 amps. This machine is the perfect welder for automotive, repair, maintenance, marine applications, construction, and more.
Features of the Aspect® 230
- Exceptional arc response and stability
- Highly Customizable TIG Machine
- PowerConnect(R) technology 120-460V input power
Tackle More Work
With up to 230 Amps of maximum output You can TIG weld up to 1/4
Weld on the Go
Portable, lightweight, and easy to transport
Peace of Mind
Save critical weld set up information in up to -9- memory locations
Activate Intellistart technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.
- 10 ft. (3m) input power cord
Shop all TIG welding machines and TIG welding helmets available online from Welders Supply.
|Lincoln Aspect® 230 DC #K4346-1 Specifications|
120V: 21A 208/230/460V: 11A/10A/5A
|Output range||120V: 2-150A TIG 208/230/460V: 2-230A|
|Rated output||120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V|
Maintenance & Repair
Marine Fabrication & Repair
|Weight:||54 Lb(s) 0 Oz|
